Porsche 911 992.2 GT3—1:10 Scale Model/RC Car
Print Profile(16)
Bill of Materials
Description

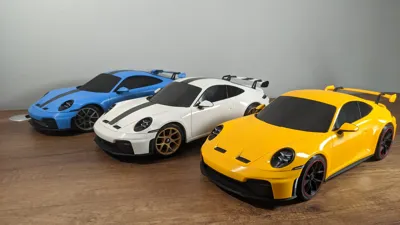

This is a 1:10 scale 2025 Porsche 911 992.2 GT3 RC Car / Display Model
Check below video for detail info and assembly instructions.

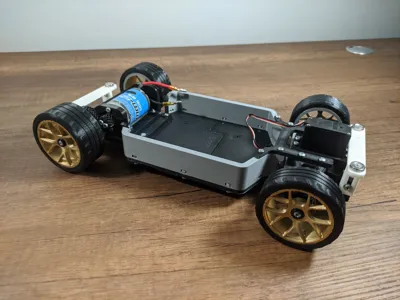

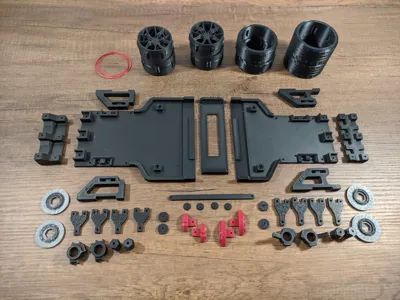

RC Chassis is a modified version of DKS-Basic. Only modified parts are provided here.
For assembly instructions and the rest of the parts go to chassis page from Duke Doks. https://makerworld.com/en/models/1468804-chassis-1-10-adaptable-dks-basic

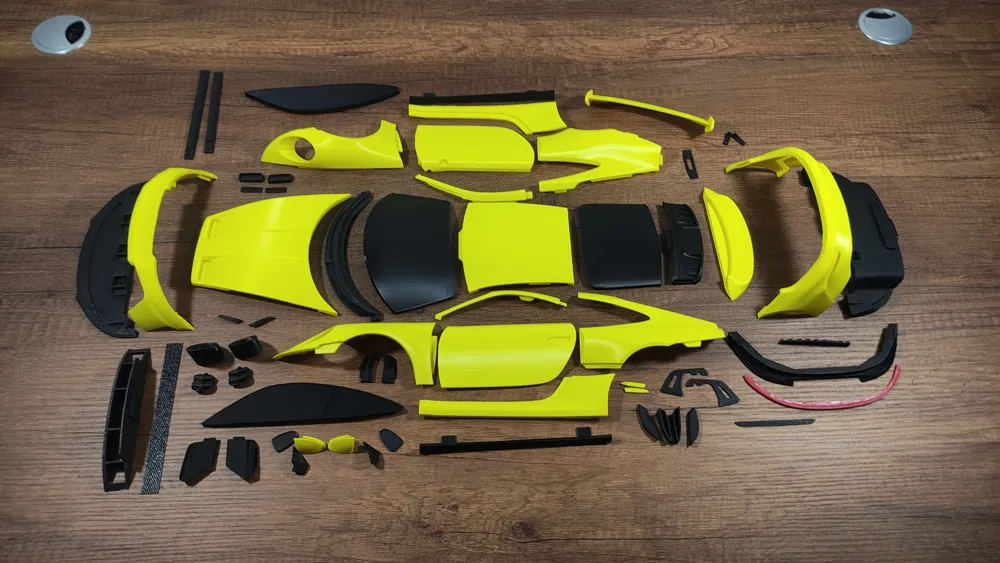

Body parts are separated based on colors so painting is not necessary.
Most of the parts are thin and tall so clean your build plate before printing. If you are having issues with bed adhesion, increase initial layer expansion or use rafts.
Dimensions:
- Wheelbase : 245 mm
- Overall length : 455 mm
- Front Track Width : 183 mm
- Rear Track Width : 184,5 mm
- Height : 132 mm
Hardware :
Display Chassis :
- 42x – M3x8
- 12x – M3x16
- 4x – M3x25
- 4x – M3 x 5
RC Chassis :
- 2x – M3x5
- 39x – M3x8
- 20x – M3x12
- 2x – M3x16
- 8x – M3x8 (countersunk)
- 38x – M3 Nuts
- 6x – M3 Washers
- 8x – 12x3x3mm Magnets
- 2x – 12x18x4mm Bearing
- 4x – 8x12x3.5mm Bearing
***Per Standard Digital File License you are NOT ALLOWED to sell printed copies.
