Rotatable Bike Wall Hook - Fully printable

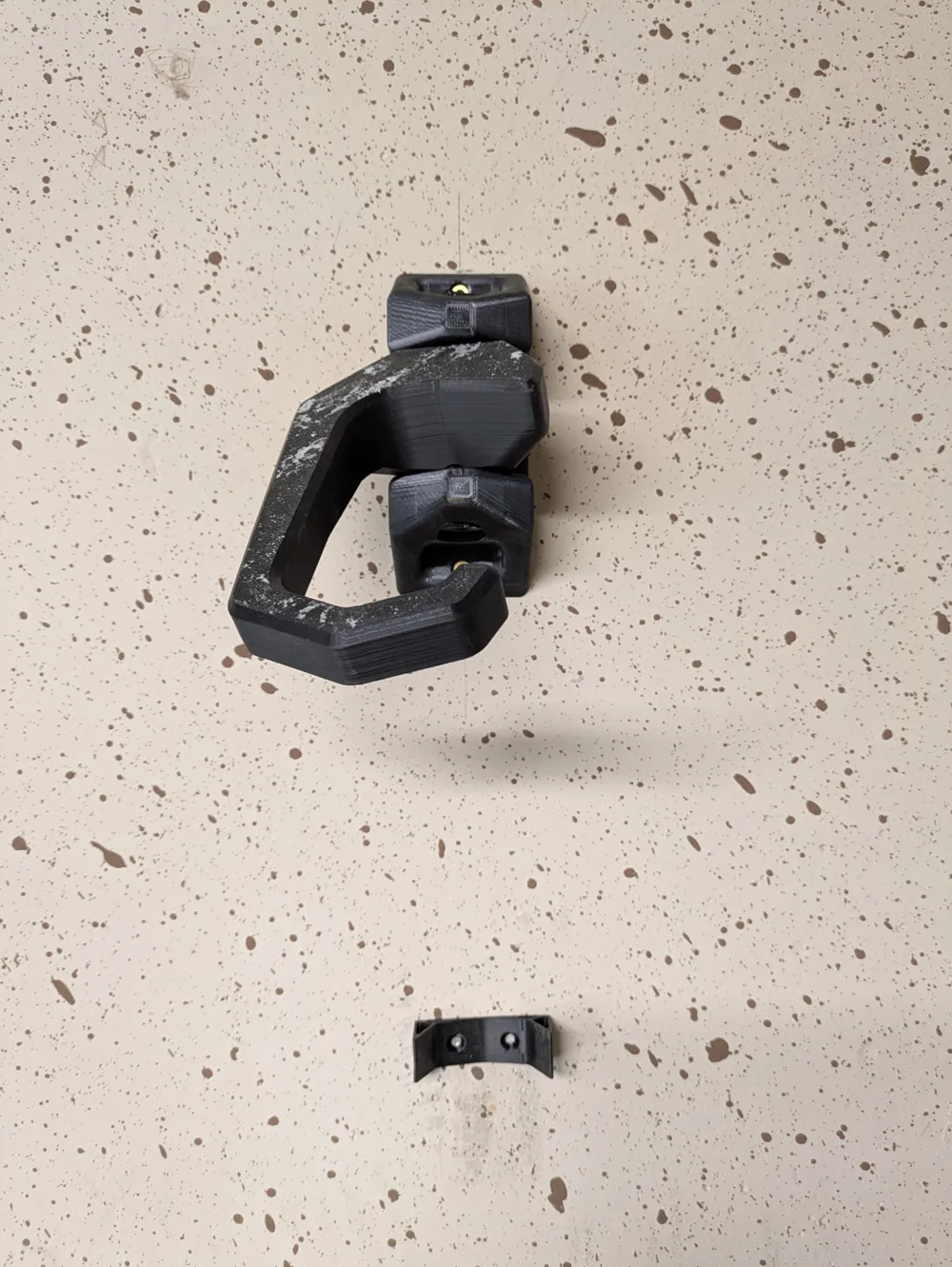

Effortlessly store your bike while saving space with this Rotatable Bike Wall Hook! Designed for strength, simplicity, and flexibility, it’s perfect for garages, apartments, and compact spaces. The hook rotates on a printable axis mounted to a sturdy base, letting you angle your bike for a better fit.

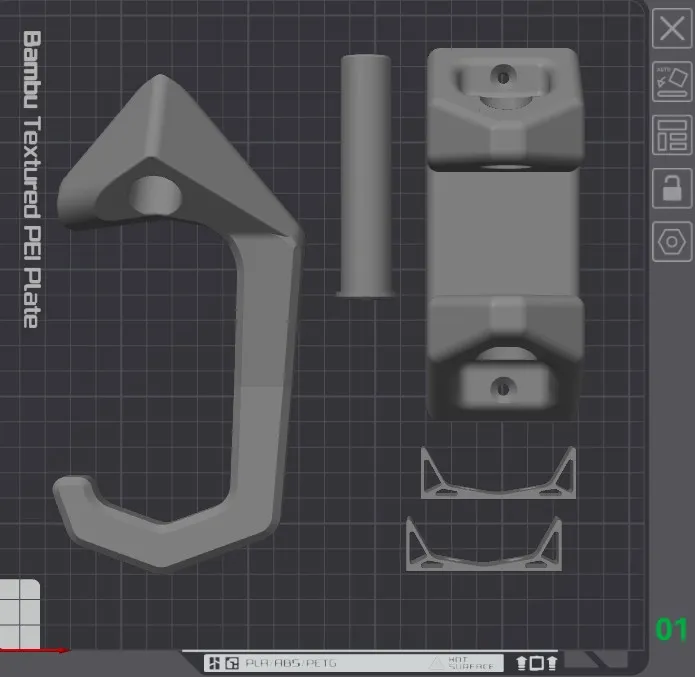

Parts Included:

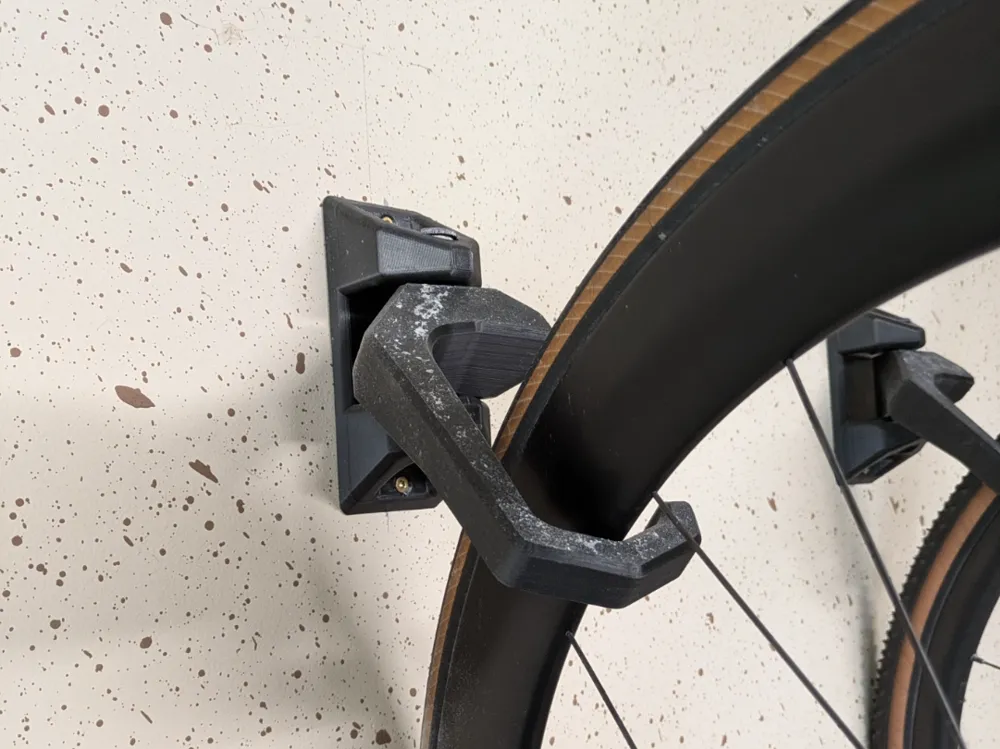

Hook Arm: Strong angled design to support the bike by its wheel.

Mounting Baseplate: Attaches to the wall with 2 screws, houses the rotation axis.

Printable Axis: Enables the hook’s smooth rotation.

Wheel Guides (x2): Attach below the hook to guide the tire and keep the bike aligned on the wall.

Specs & Recommendations:

Max Tire Width: 55 mm

Max Rim Depth: 65 mm

Max Recommended Bike Weight (Hanging): 15 kg Heavier bikes can still be stored using this hook, but it's safer to rest the rear wheel on the ground.

Best Printed In: PETG, ABS, or other technical materials for strength and temperature resistance.

Print Orientation: All parts are optimized for flatbed printing

Mounting: Use proper wall anchors suitable for your surface (drywall, brick, etc.)

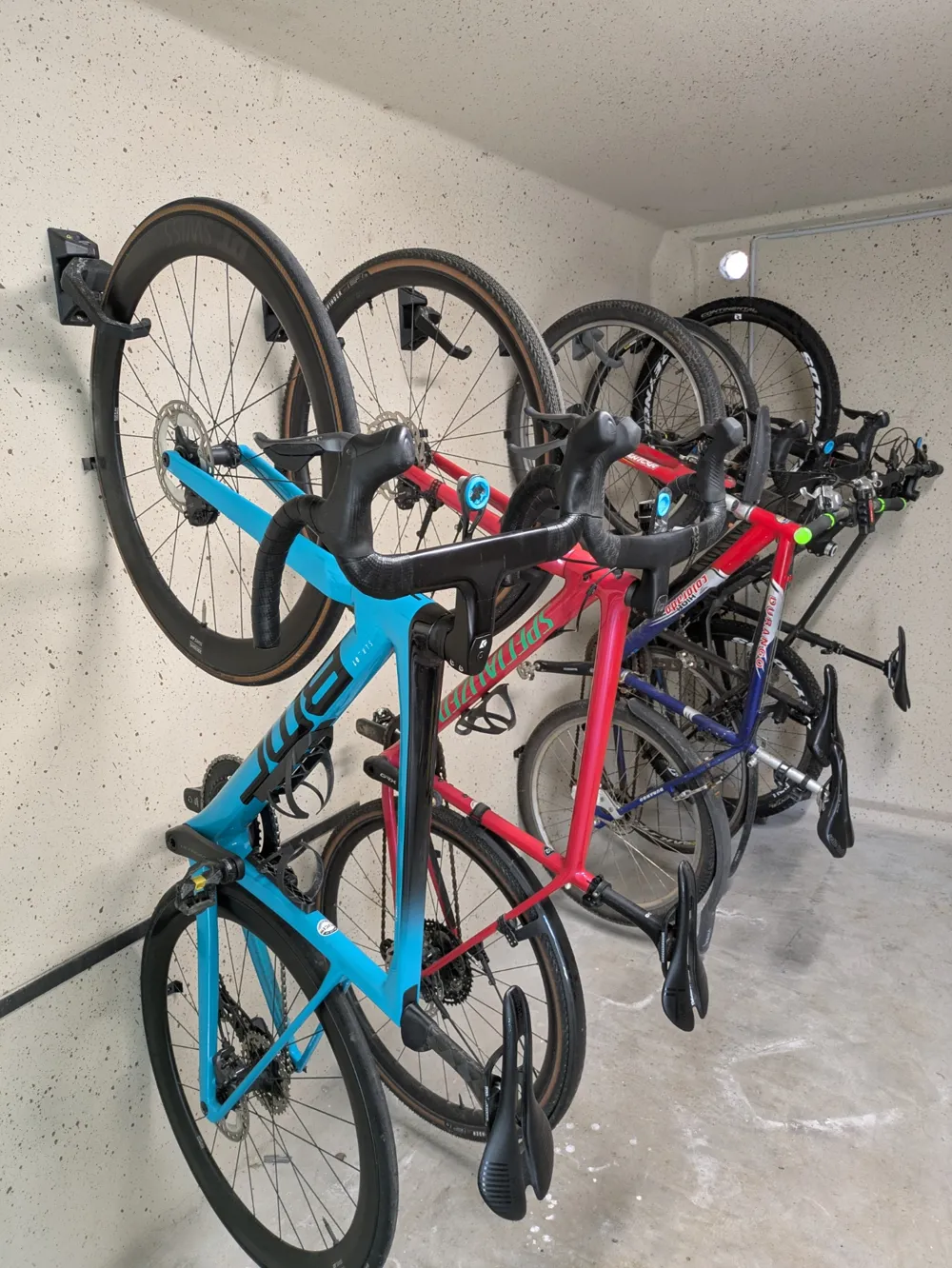

This is a durable, easy-to-install system for vertical bike storage with added rotation to maximize space. Great for road bikes, hybrids, and even heavier E-bikes (with the rear wheel grounded).
