Pantograph - Mechanism 246
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
3.2 h
2 plates
A1 Mini: resized to 98.6% to fit buildplate
3.2 h
3 plates
Plate 2 Slicing Error Fixed
2.7 h
1 plate
Open in Bambu Studio
Boost
3868
8707
279
91
3 k
1.7 k
Released
Description

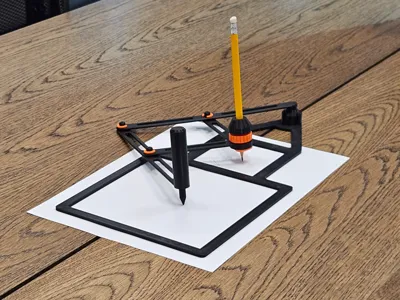

A pantograph based on Mechanism 246 from 507 Mechanical Movements. It copies drawings at half scale using fixed arm geometry. All linkages are assembled with C-clips, and the pencil is held with a threaded compression ring. The output size fits a standard 3x3 inch sticky note.
