Gridfinity Heat Insert Tip Holder

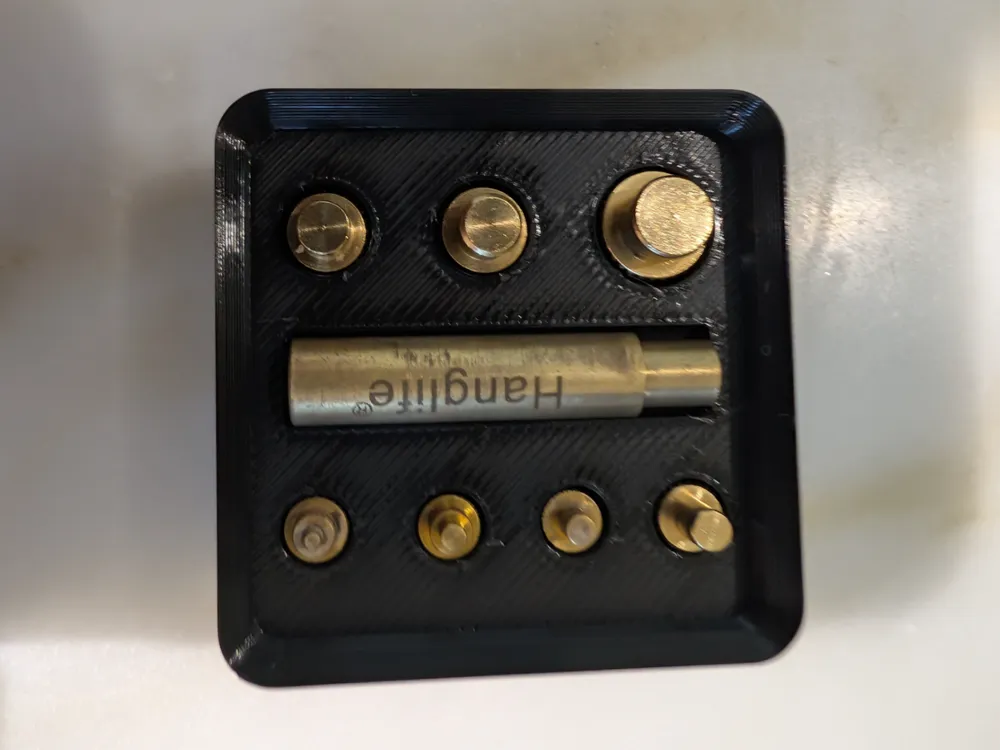

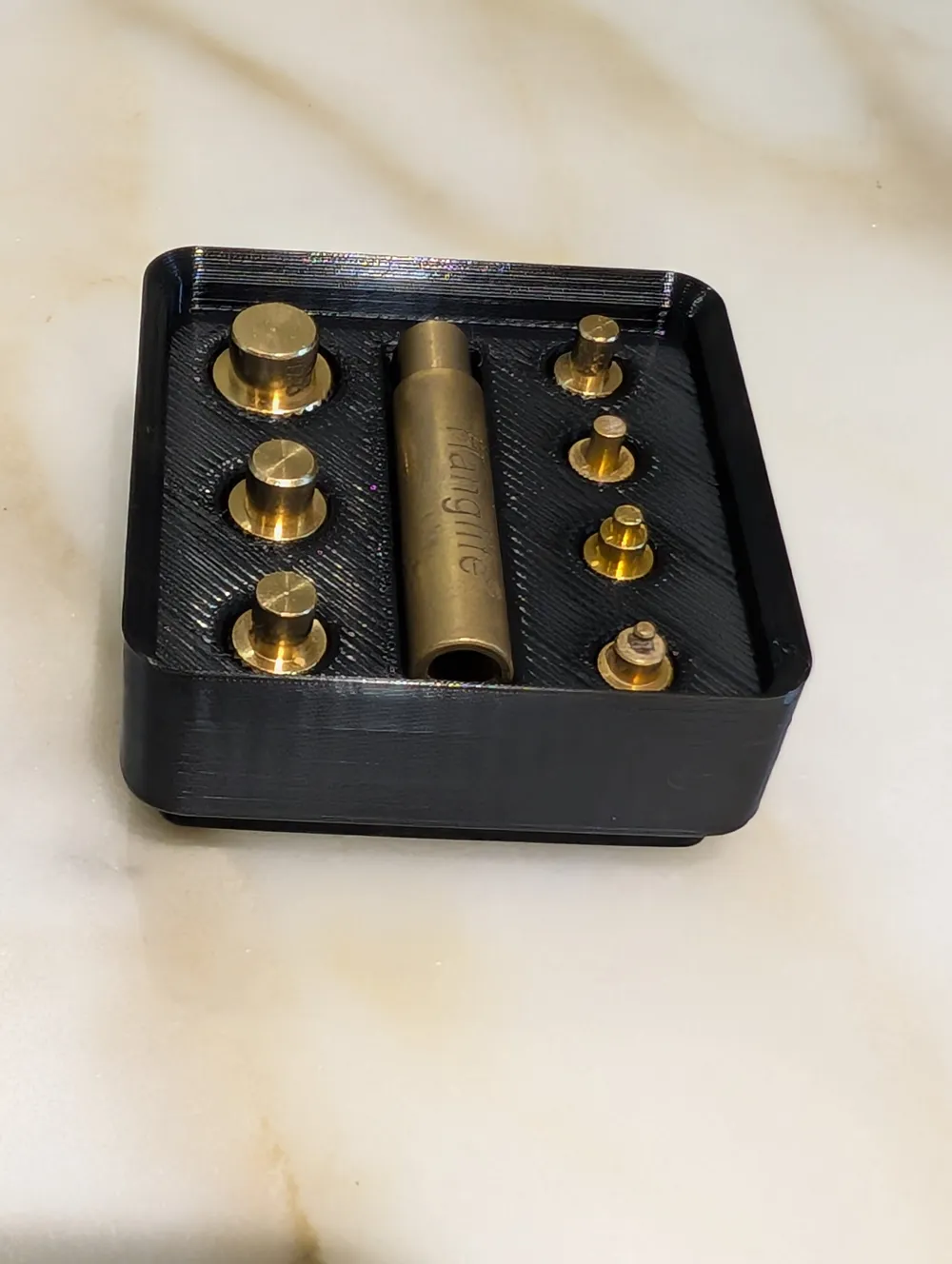

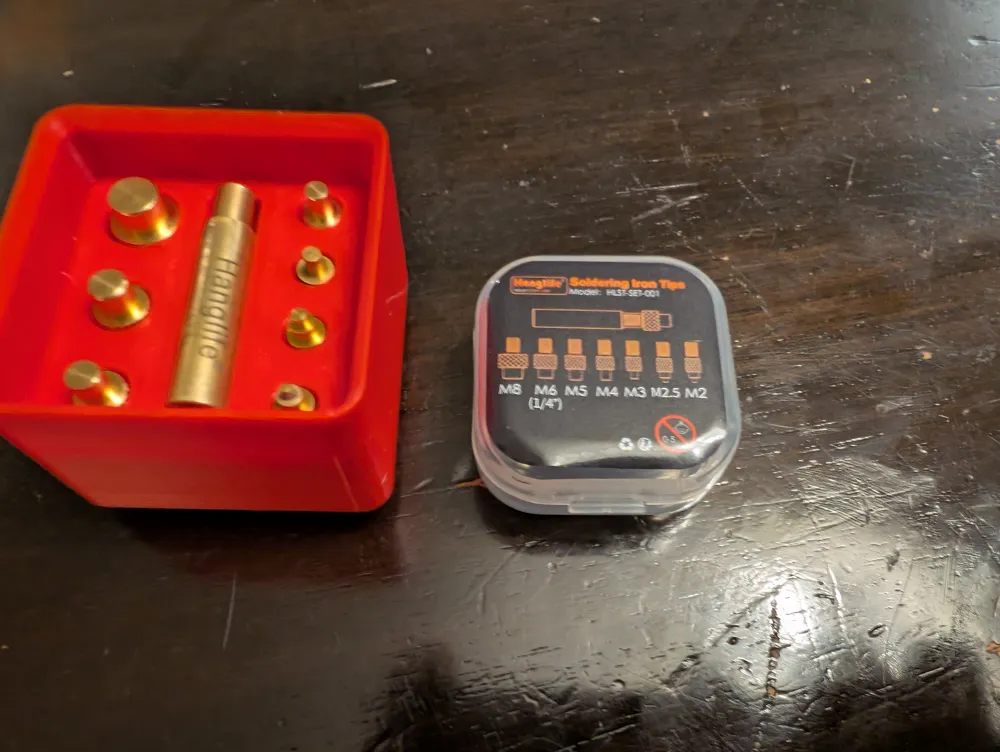

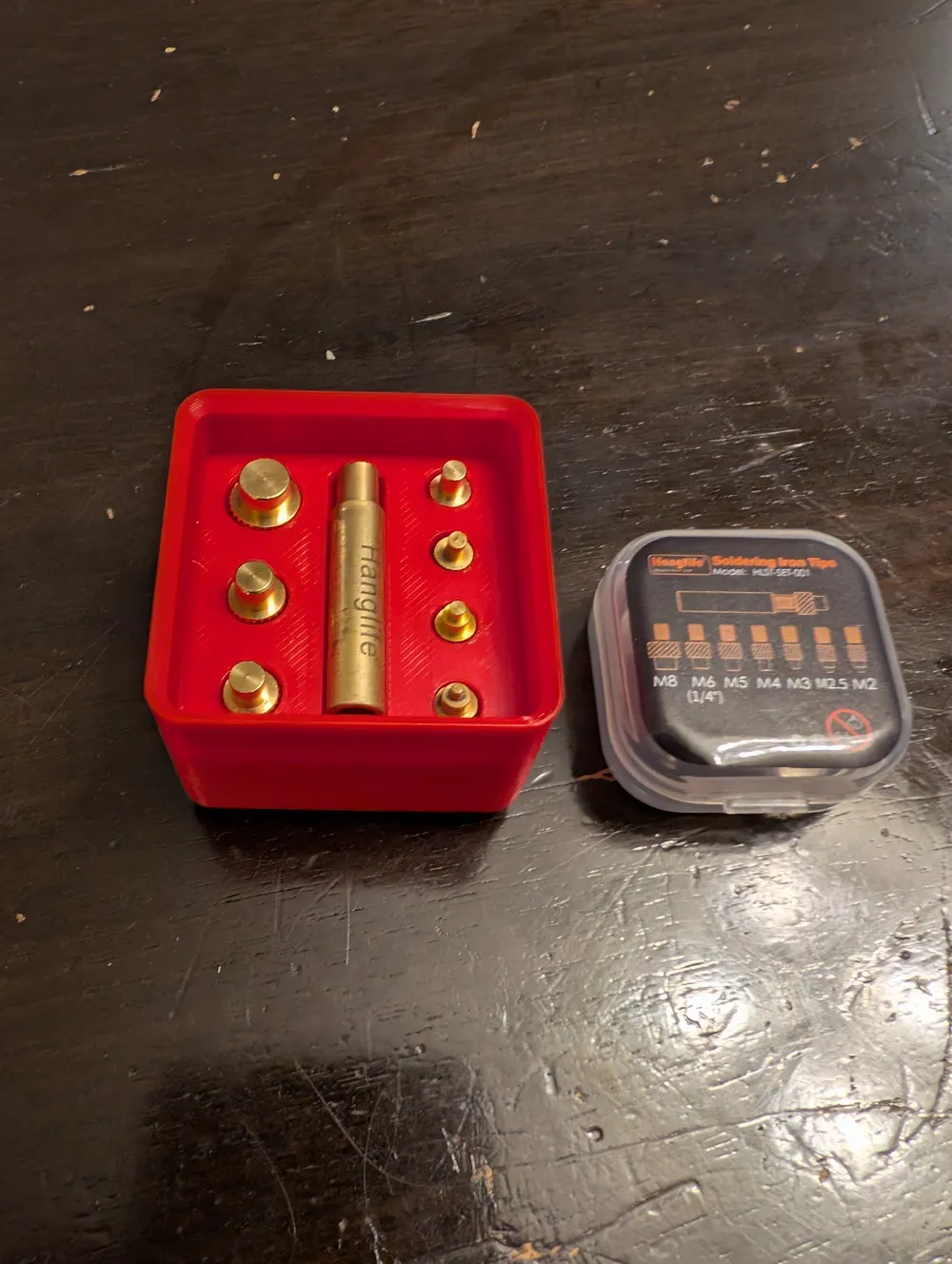

This Gridfinity bin is designed to fit a Heat Insert Tip kit from Hanglife.  The set can be found on Amazon here.  Most heat insert tips should also fit this bin.

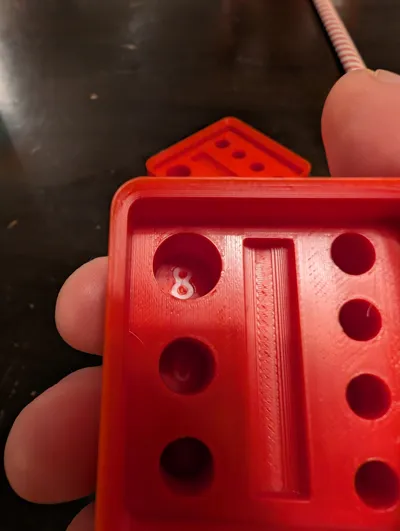

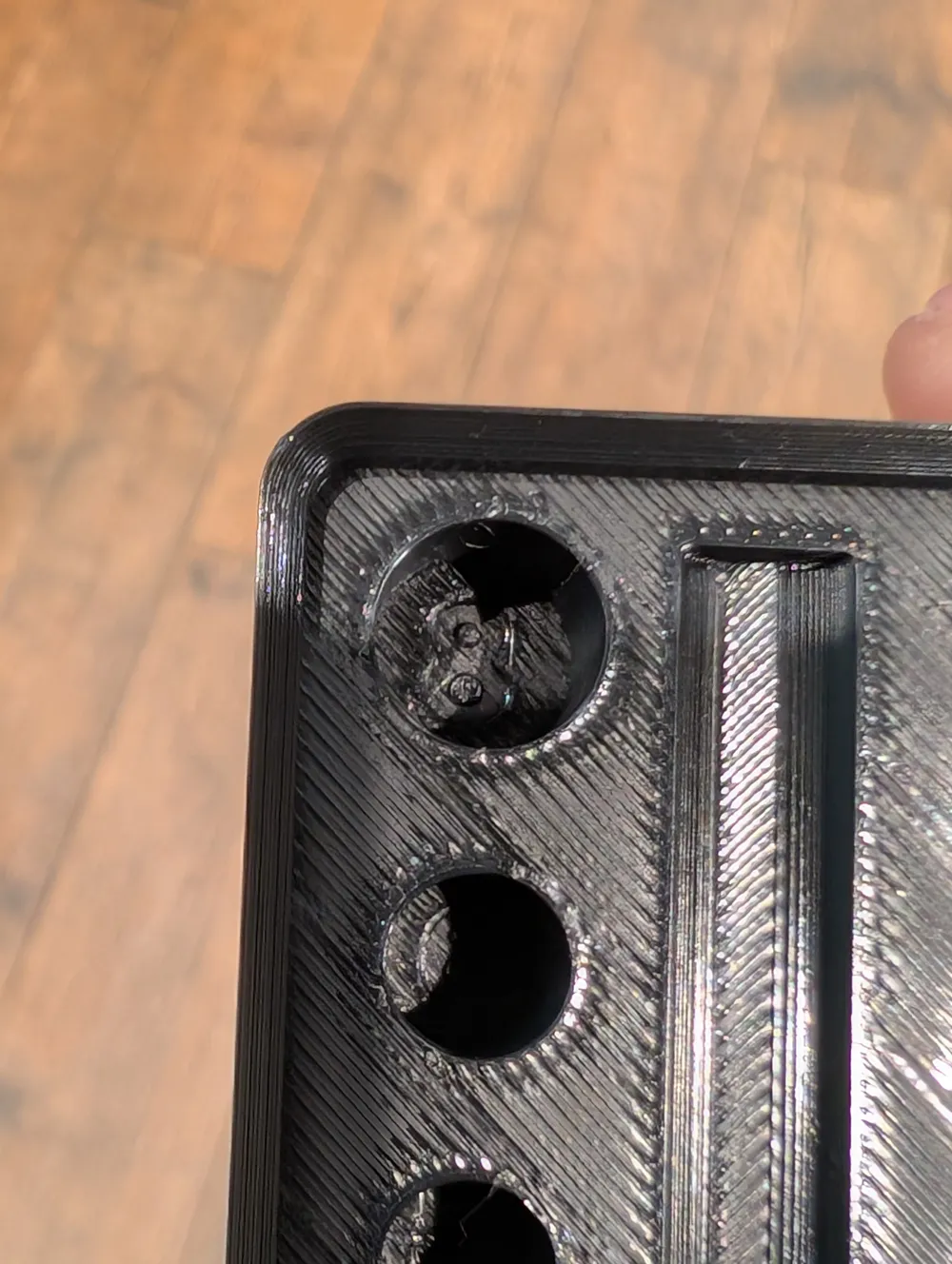

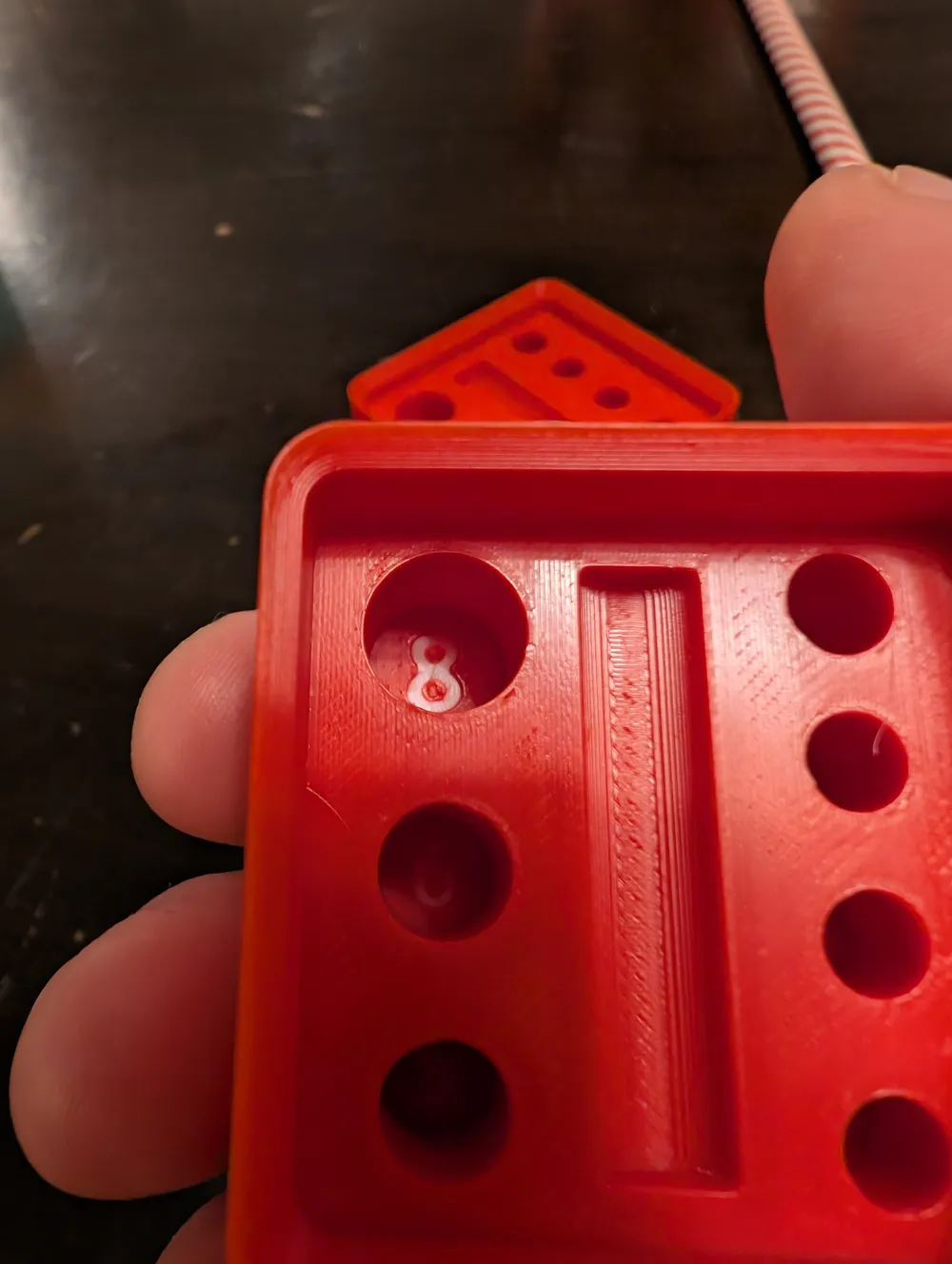

Other bins I found had no indicator where what size tip went into which hole.  I went ahead and designed my own, and embedded the M-size of the threaded insert into the base of the hole itself.  This should be a pretty straightforward bin to use, since some of the smaller tips have the same diameter, but different depths.  So if something is in the right hole, everything will fit flush.

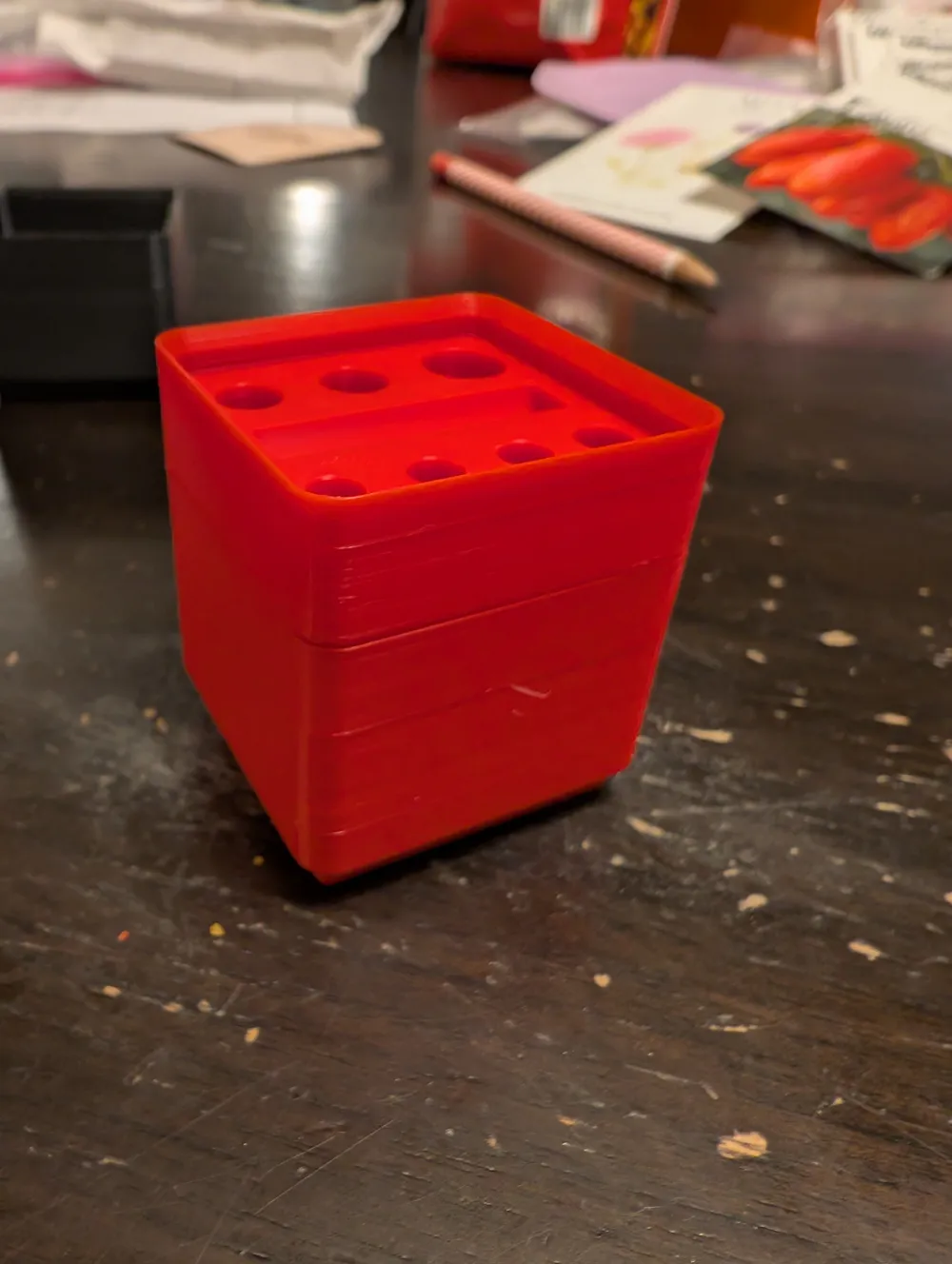

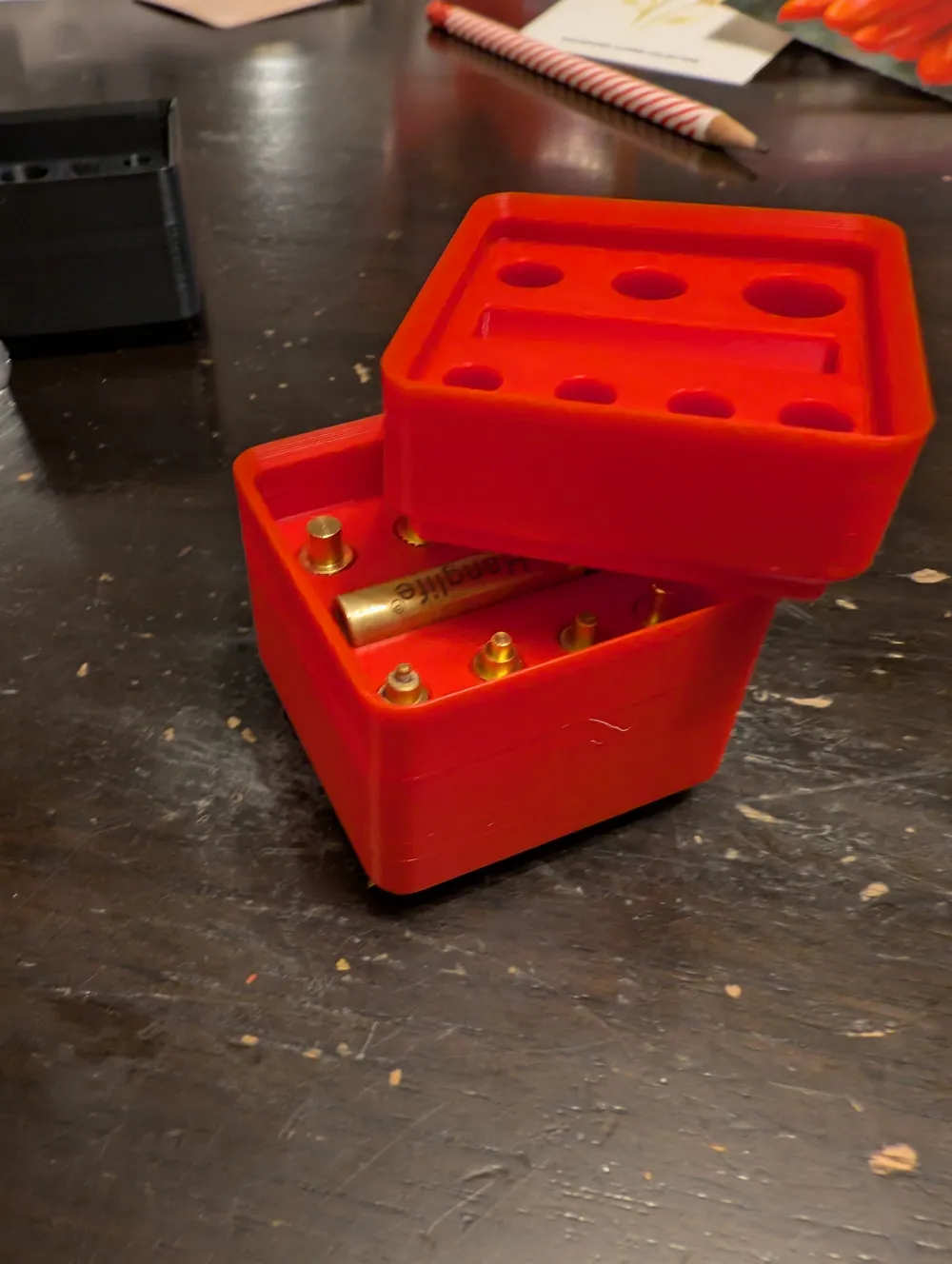

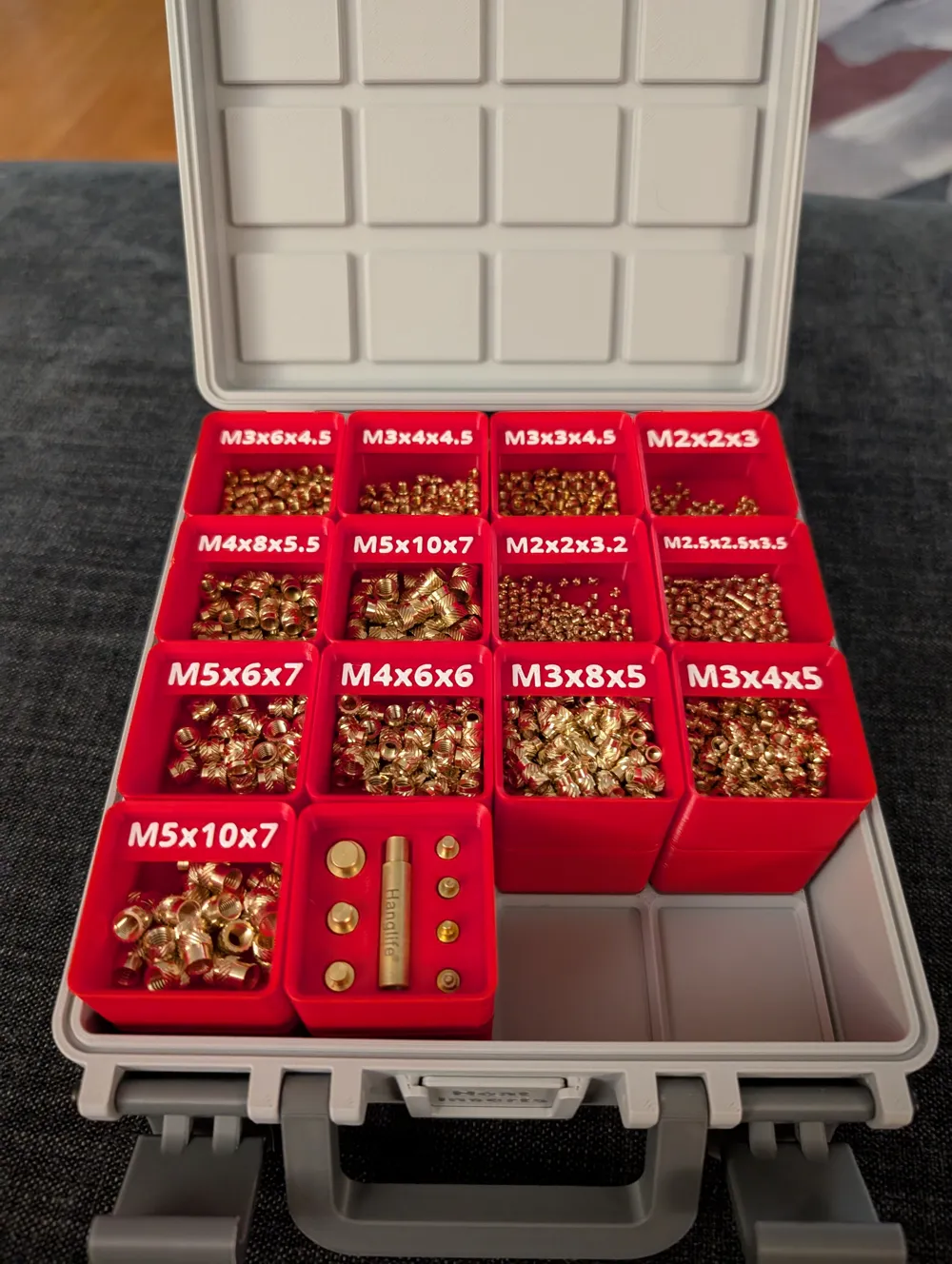

I included two height sizes, 2 and 4 Gridfinity Units.  The 2U-high option fits everything great, but can't have things stacked on top if the set is in the bin.  The 4U-high option is fully stackable, plus it fits my other bins below for the threaded inserts themselves.

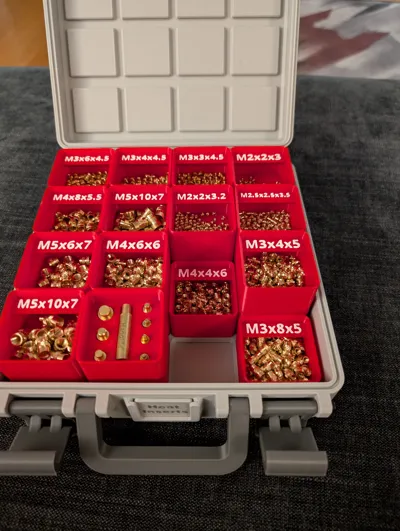

These are part of a set of Gridfinity organizer bins for screws, heat inserts, and rugged containers.  Others in this set are:

• Gridfinity Bins (Unlabeled) for Assorted Fasteners
• Gridfinity Bins for Kadrick heat inserts
• Gridfinity Bins for Ktehloy heat inserts
• Gridfinity Bins for M2-M5 Fasteners
• Gridfinity Bins for 4U Rugged Storage Boxes
• Gridfinity Bins for 5U Rugged Storage Boxes
• Gridfinity Rugged Storage Boxes V2

I've included PETG and PLA profiles, and have single color or multi-color options for both.

As I try to do with all of my models, I've included both STEP and STL files for all models in the projects.  Feel free to adjust as necessary for your own needs.  If you need/prefer the CAD model itself, DM me and I'll try to send you a link to my OnShape project for the model.

Thanks, and happy printing!
