Weber Series Q Stand Casters
Print Profile(1)
Bill of Materials
- Rollen x 4:
- Schraube x 16: M4x8
- Sechskantmutter x 16: M4
Description

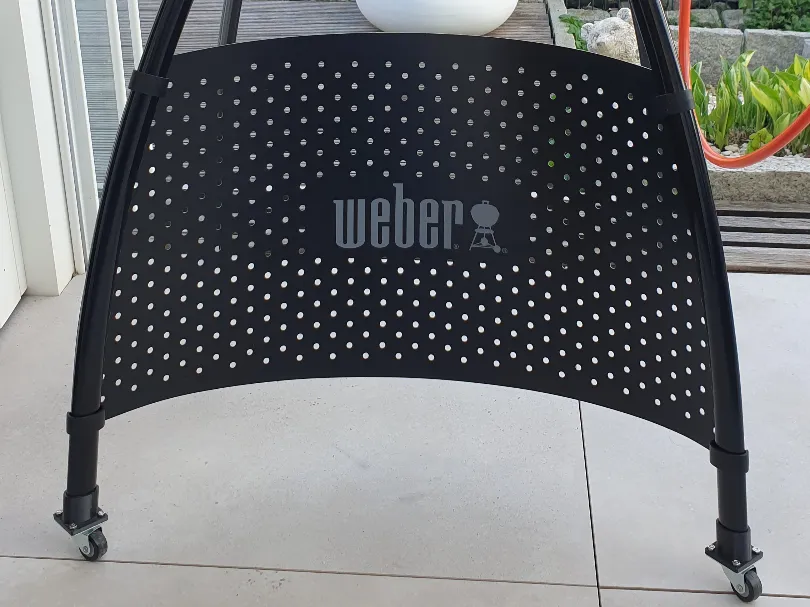

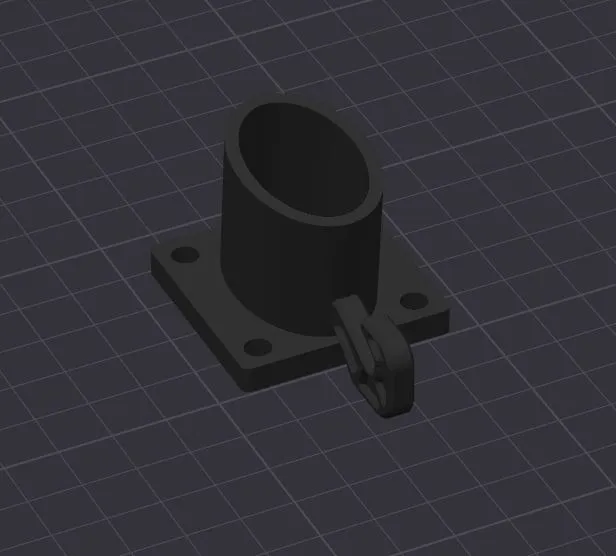

Caster Foot for Weber Stand (Q-Series) – Stable V2 Version
Equip your grill with practical wheels and finally make it mobile:
This simple, functional caster foot was specially developed for the Weber Q-Series Stand.
The new V2 version provides significantly more stability and makes moving the grill much more comfortable and secure.
Perfect for anyone who wants to position their grill flexibly.
🔧 Features
Stable wheel solution for Weber Q Stand
Improved V2 version for enhanced stability
Simple, functional design
Easy to print and assemble
Individually adaptable for larger wheels
📏 Required Components
The following parts are required for assembly:
Wheels (4 pieces):
Mounting plate: 40 × 40 mm
Hole spacing: 30 mm
Hole diameter: 5 mm
Mounting hardware:
16 × M4x8 screws
16 × M4 hex nuts
👉 Note: Stainless steel screws and nuts are recommended for outdoor use.
🛠️ Assembly
Attach wheels to the printed feet
Secure with screws and nuts
Mount feet to the grill stand
💡 Tip: Tighten all screws evenly to achieve maximum stability.
🖨️ Print Information
No support required
Recommended layer height: 0.2 mm
Robust material (e.g., PETG or ABS) recommended for outdoor use
⚙️ Version V2 – Improvements
The original version fit well, but was too unstable for rolling the grill.
With the new V2 version:
Significantly improved stability
Safe and easy movement possible
Optimized design of the feet
🔄 Customization Options
Do you want to use larger wheels? No problem.
I will gladly create a customized version – for this I need:
Size of the mounting plate
Hole spacing
Hole diameter
🔥 Perfect for
Owners of a Weber Q grill
Grill enthusiasts with limited space
Flexible outdoor kitchens
Practical upgrades for existing setups
Now the grill gets enough stability to be rolled.
