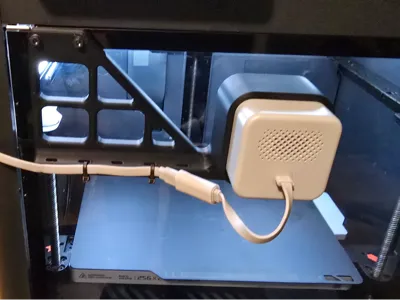

Wyze Cam V4 Hinge Mount w/ Downward Tilt and Light

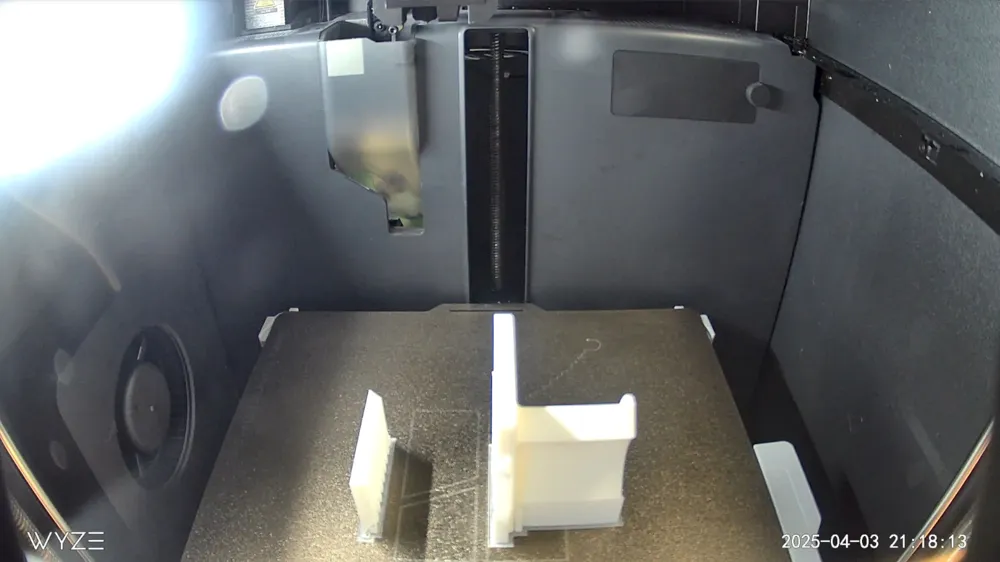

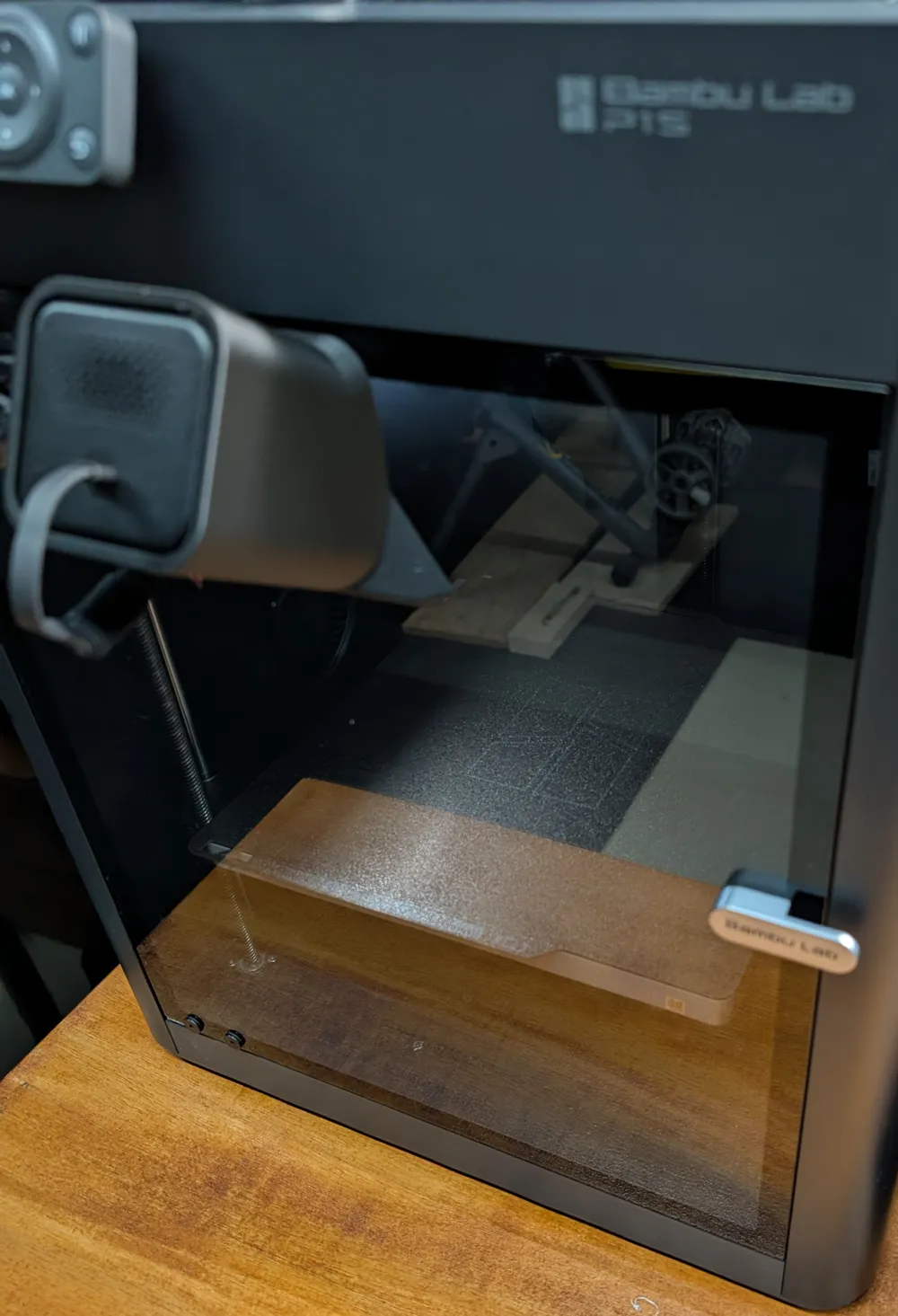

This is a Wyze cam V4 P1S hinge mount with a modifications to tilt the camera downward to capture more of the print volume.

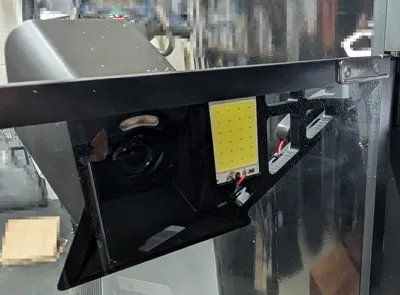

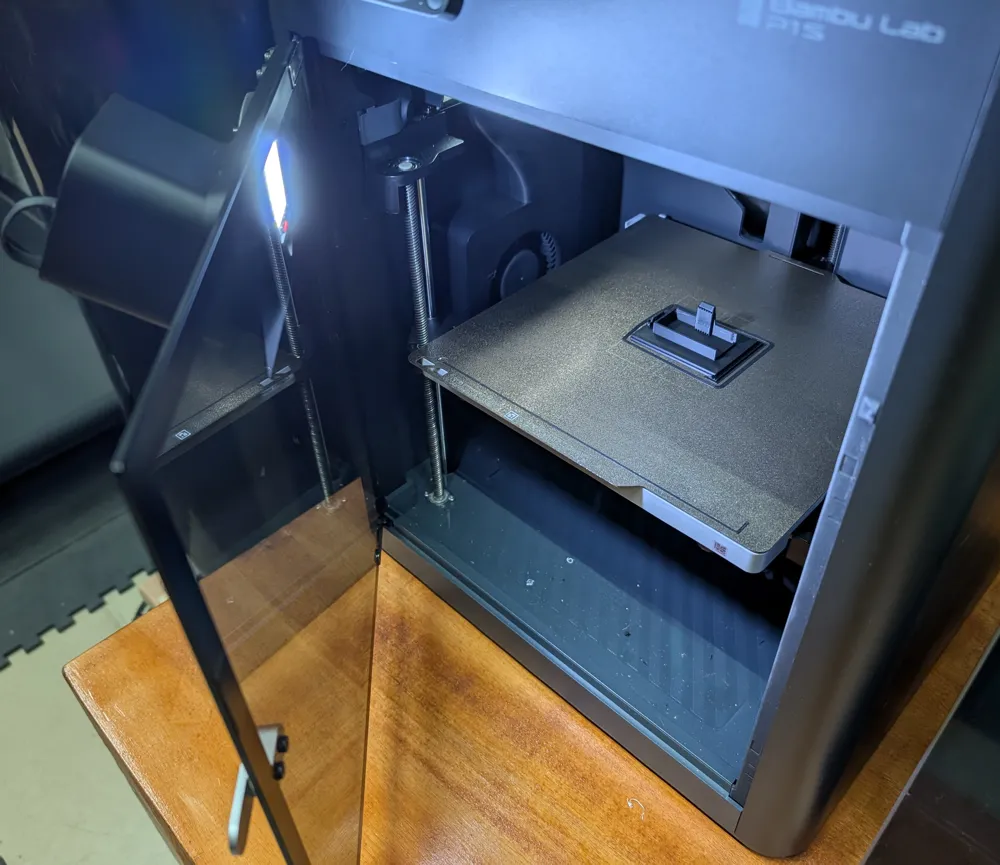

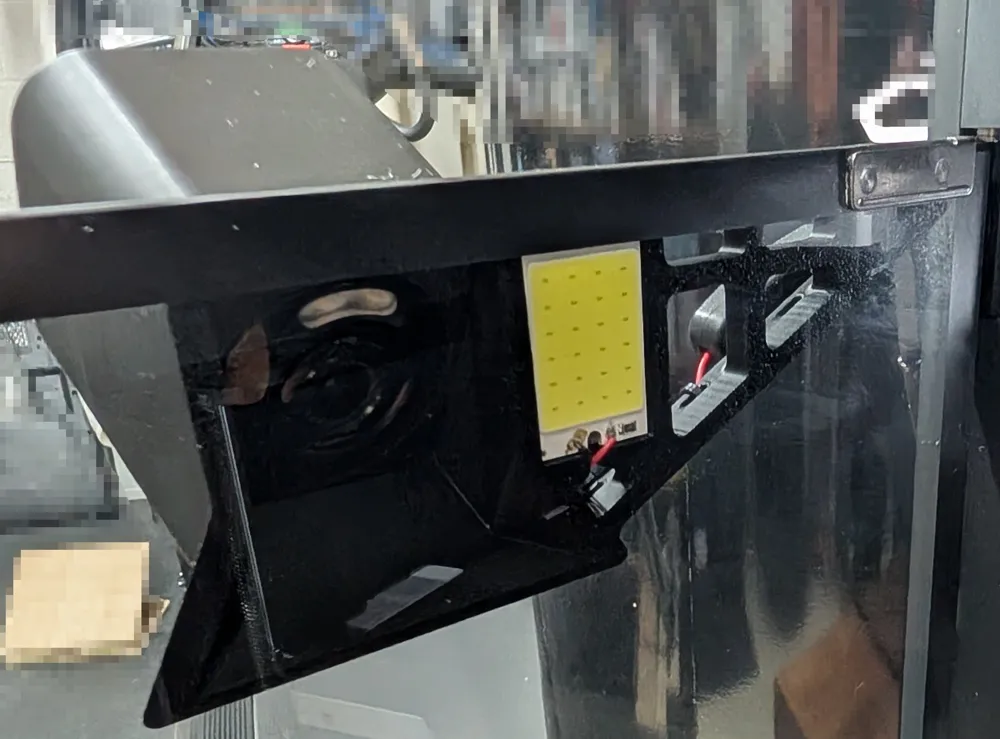

I also added an option to add auxiliary lighting. Model options with and without the light are available.

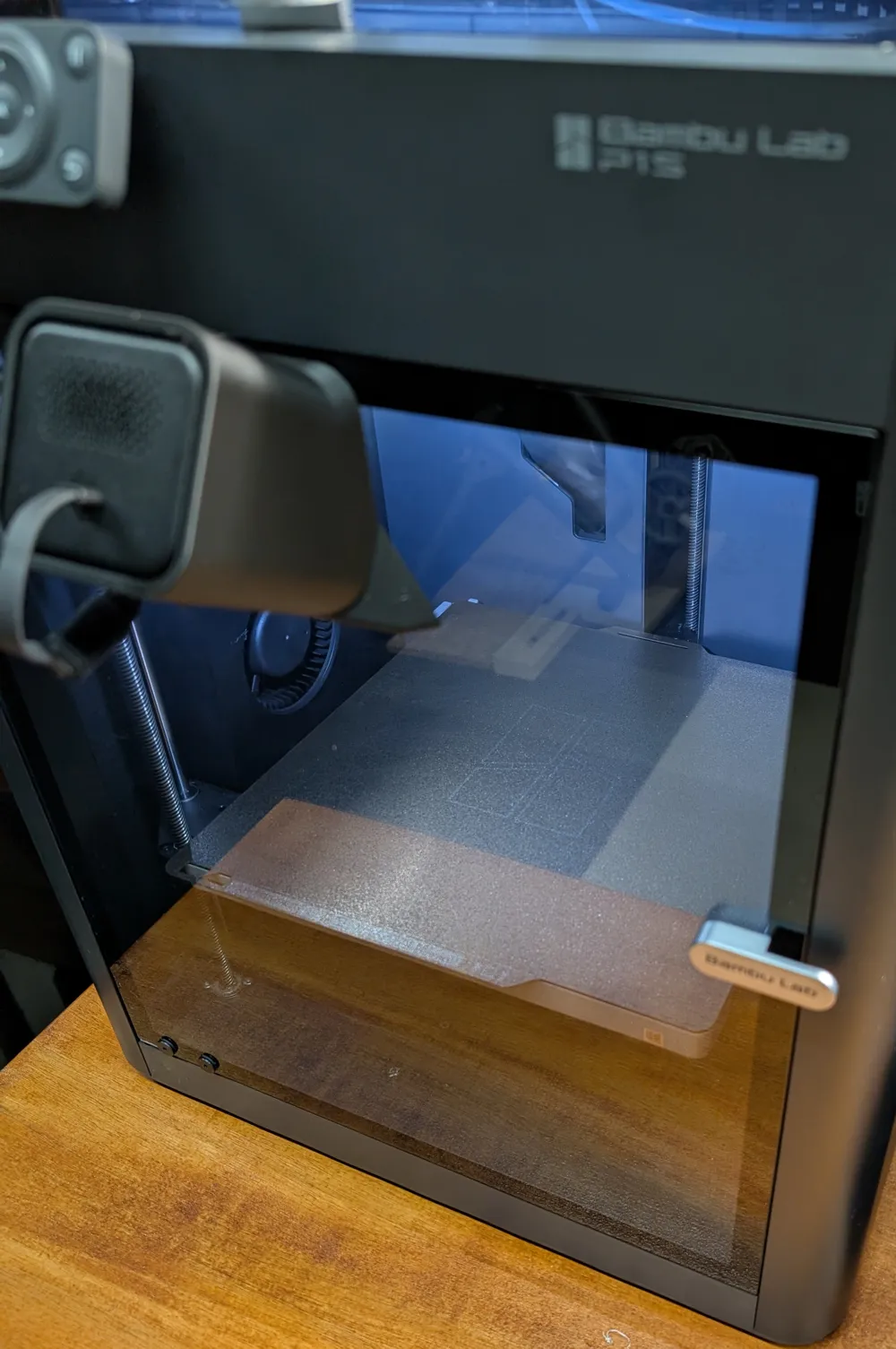

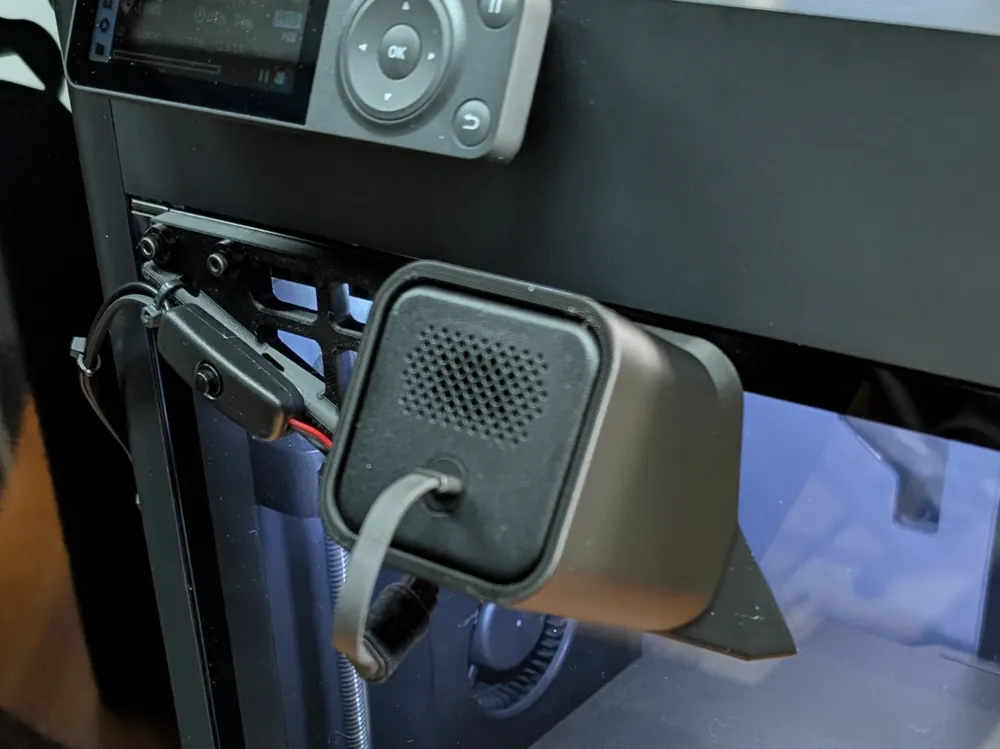

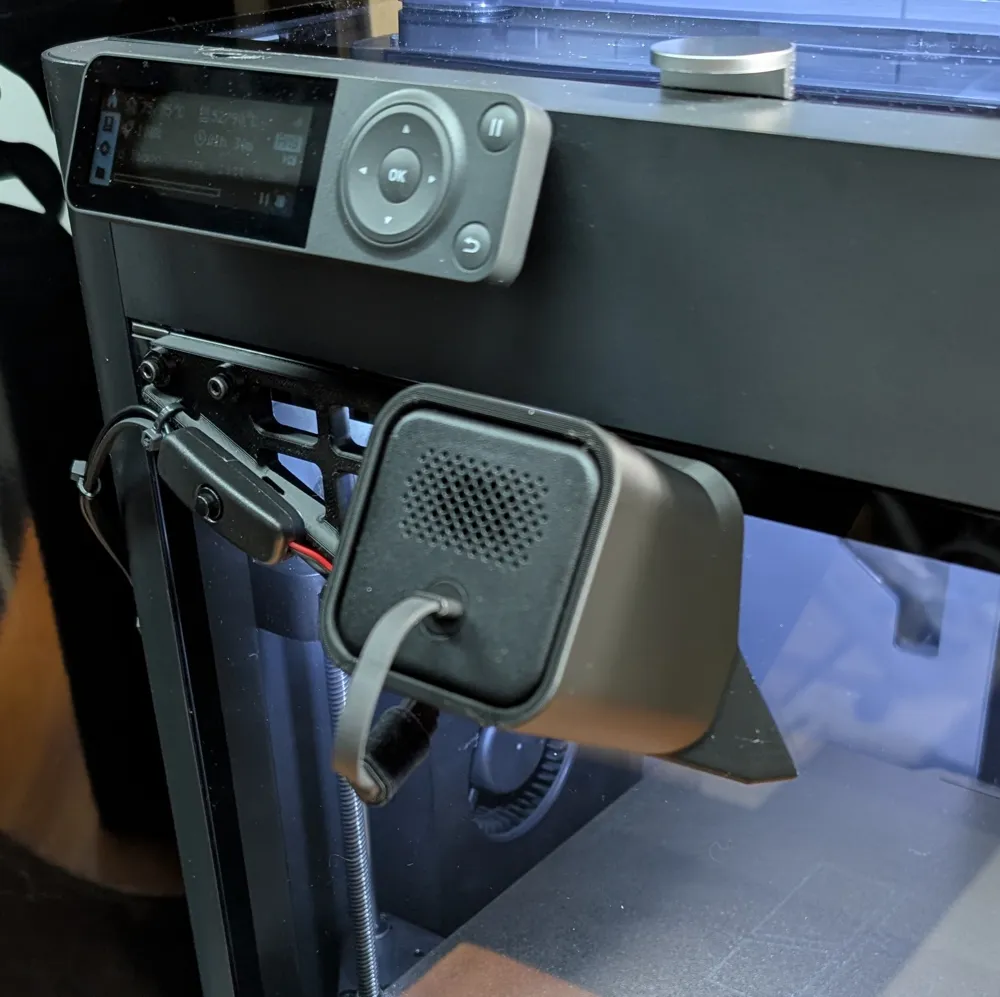

This mounts to the upper front door hinge. Remove the existing screws and mount this with new M3x12 screws.

Confirmed to work on al X1, P1, P2, and H2 printers (X1C, P1S, P2S, H2S, H2D, and H2C).

Print with a higher temperature filament if using the version with the light. My first print with PLA warped from the heat of the light after some time.

Tip: Google “Wyze cam focal adjustment”. These cameras are designed for longer distances. You can improve the image quality for 3D printers by modifying the focal point. There are a lot of videos out there that can guide you through this process.

Here are the parts used for the lighting:

https://www.amazon.com/dp/B00J23EA7U?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_4&th=1

https://www.amazon.com/dp/B077PW5JC3?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
