HKR MODULAR POOP CHUTE SYSTEM FOR H2D, H2S & H2C PRINTERS
Modular chute system offers unparalleled flexibility for users in different requirements.

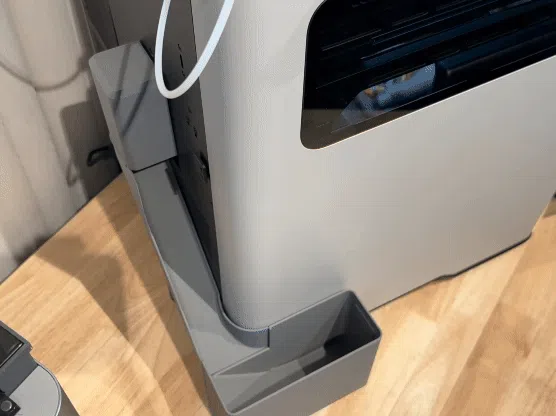

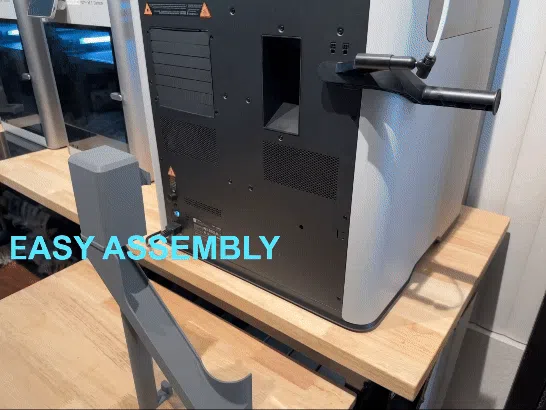

The slide securely attaches to the printer body without any tools, screws or magnets.

UPDATE 4/20/2026
- Built in supports are now depletable for someone who wants to print without them.

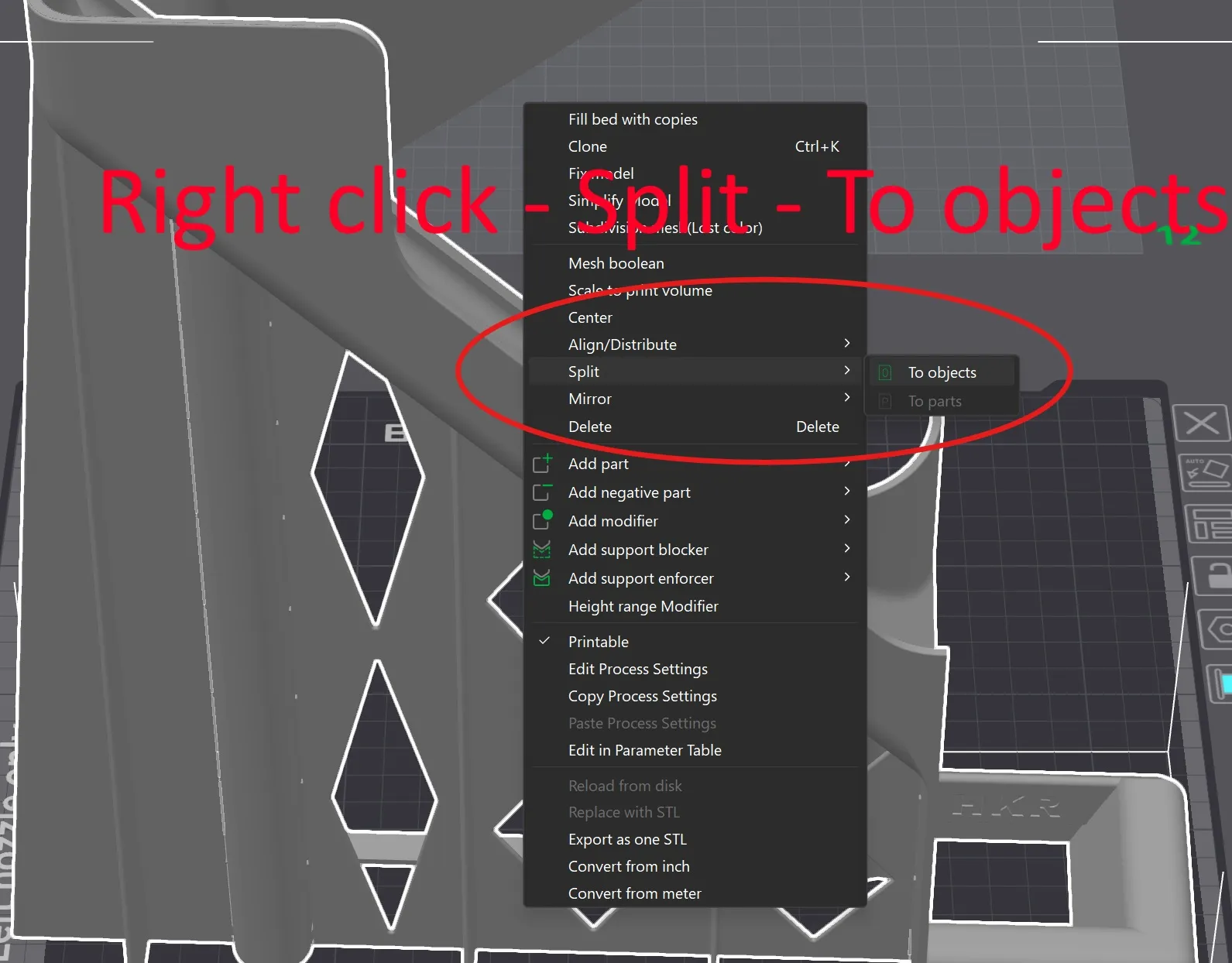

By simply Right click the model - Split -To objects. Now you can delete supports if you wish.

- Chute object file version V21.0.0
- Project file version V1.3.0

*UPDATE 2/20/2026
- Added built in supports to the chute. This improves printing stability with engineering materials.
- Chute object file version V19.1.0
- Project file version V1.2.2

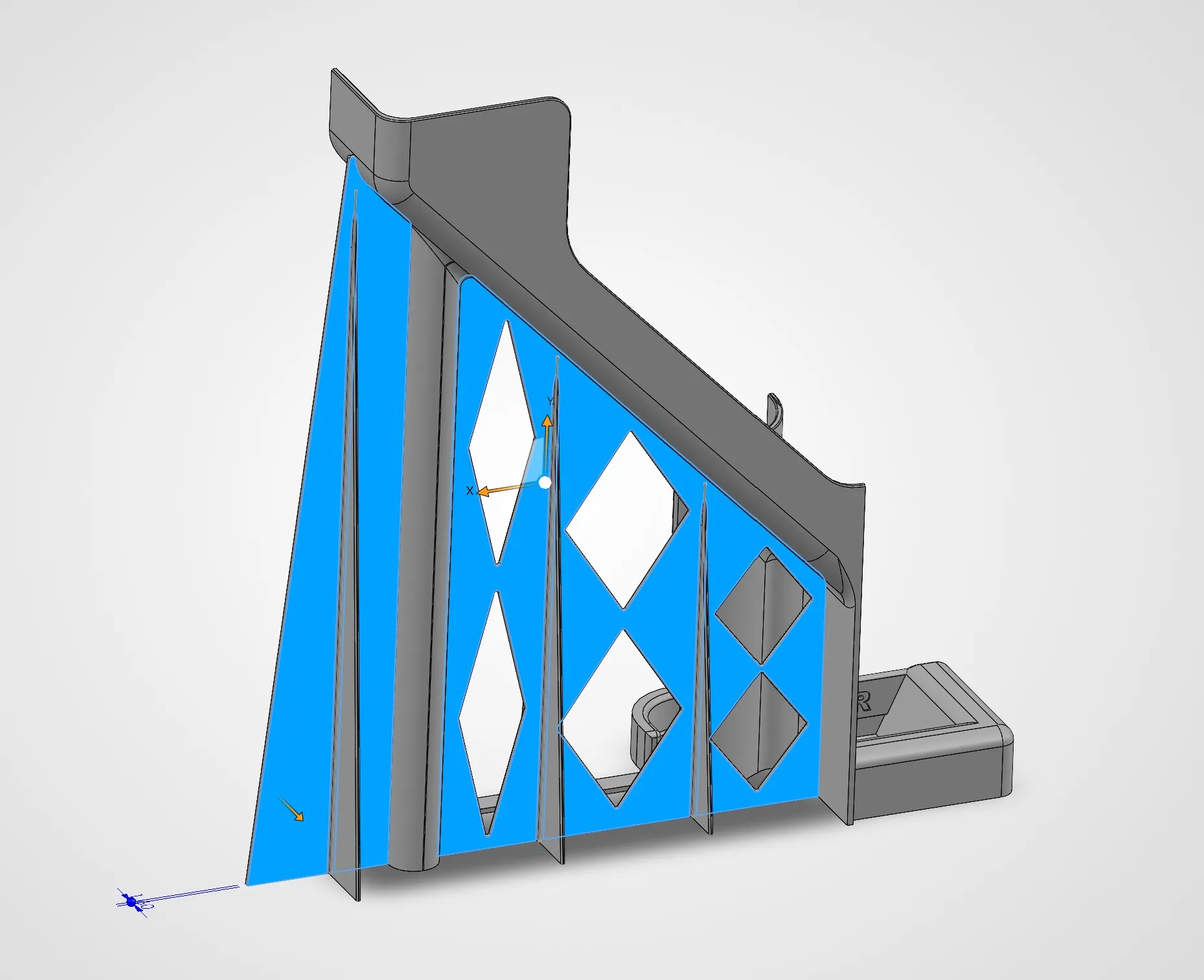

Design supports are implemented to the slide.
They are easily removable.

*UPDATE 2/7/2026
Introduced new attachment AMS-HT stand / Poop chute

*UPDATE 12/14/2025

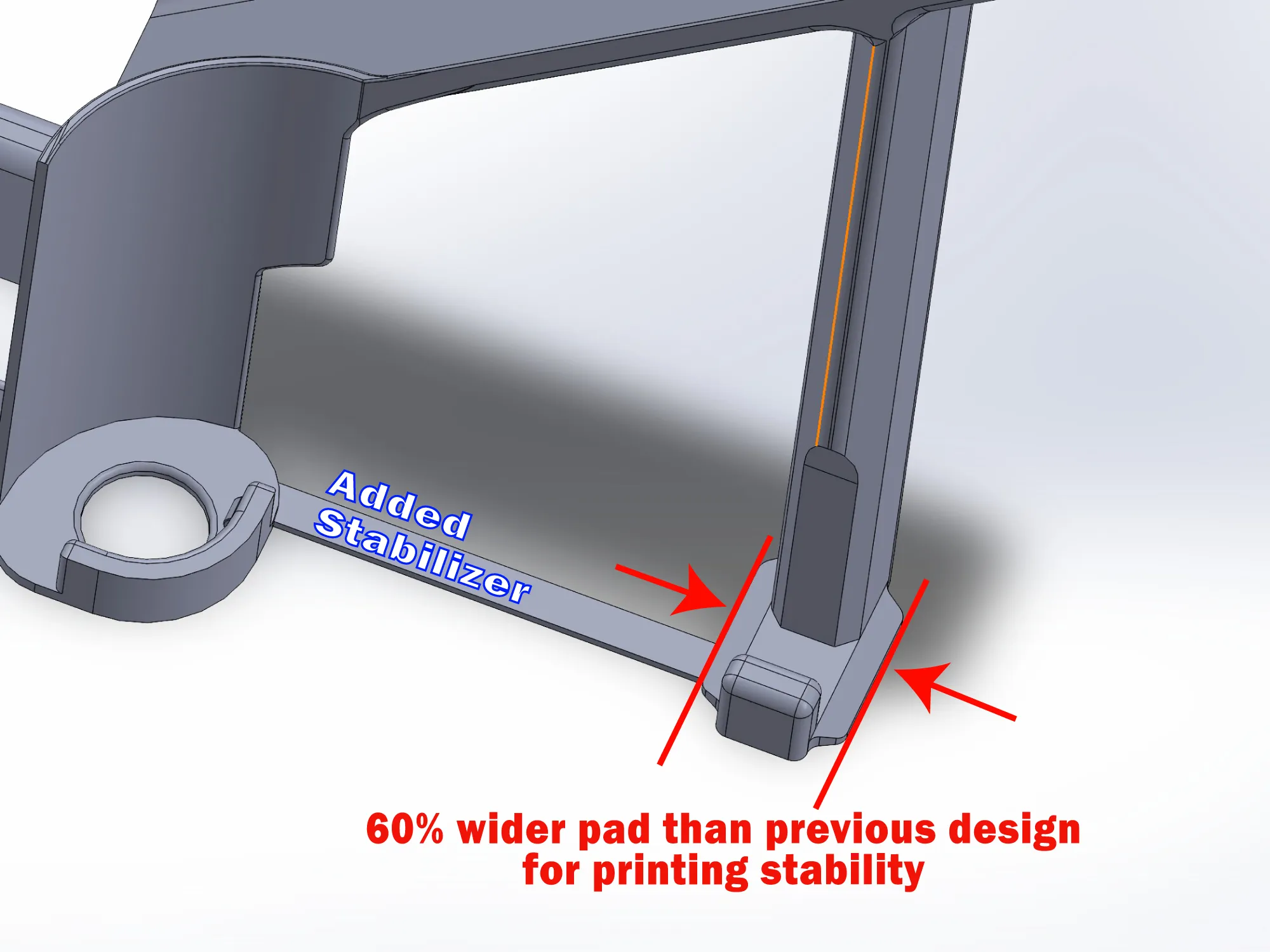

Improved chute design

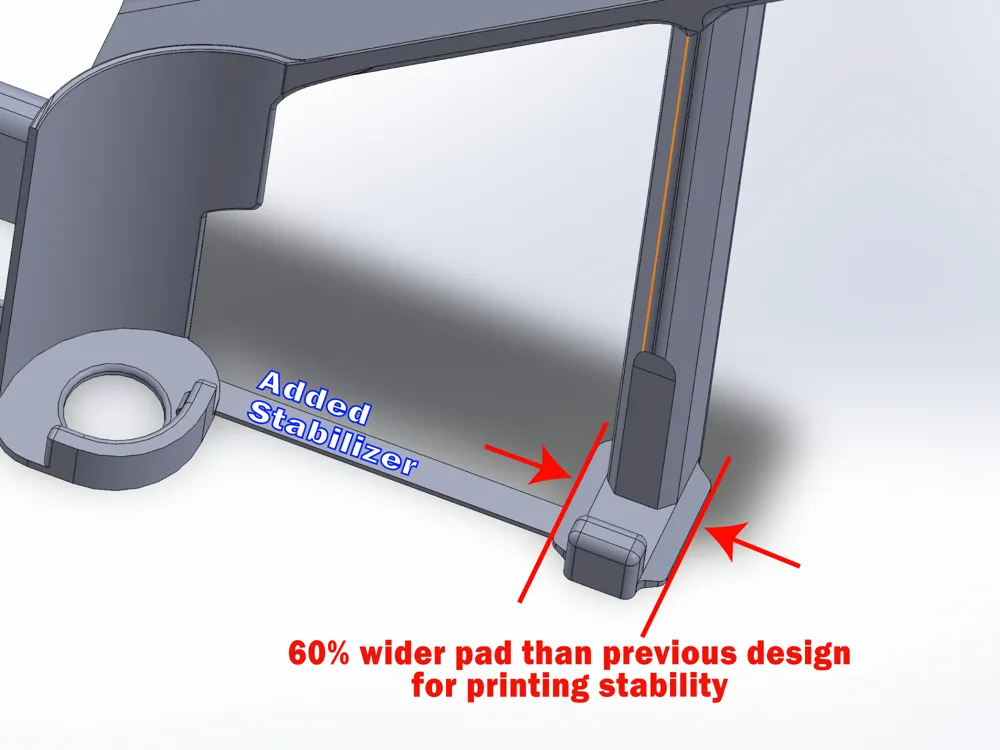

- Added stabilizer to reduce flex.
- Widen contact pad size by 60% for printing stability.

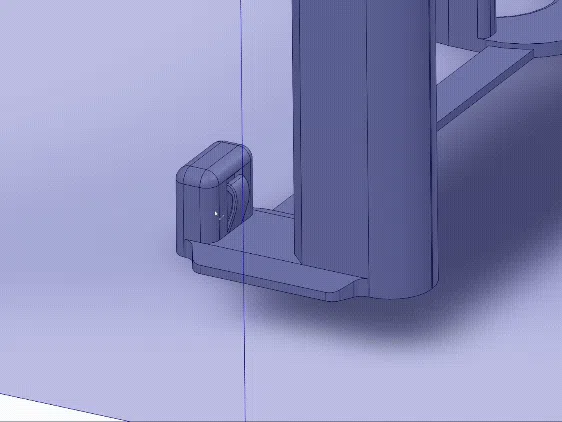

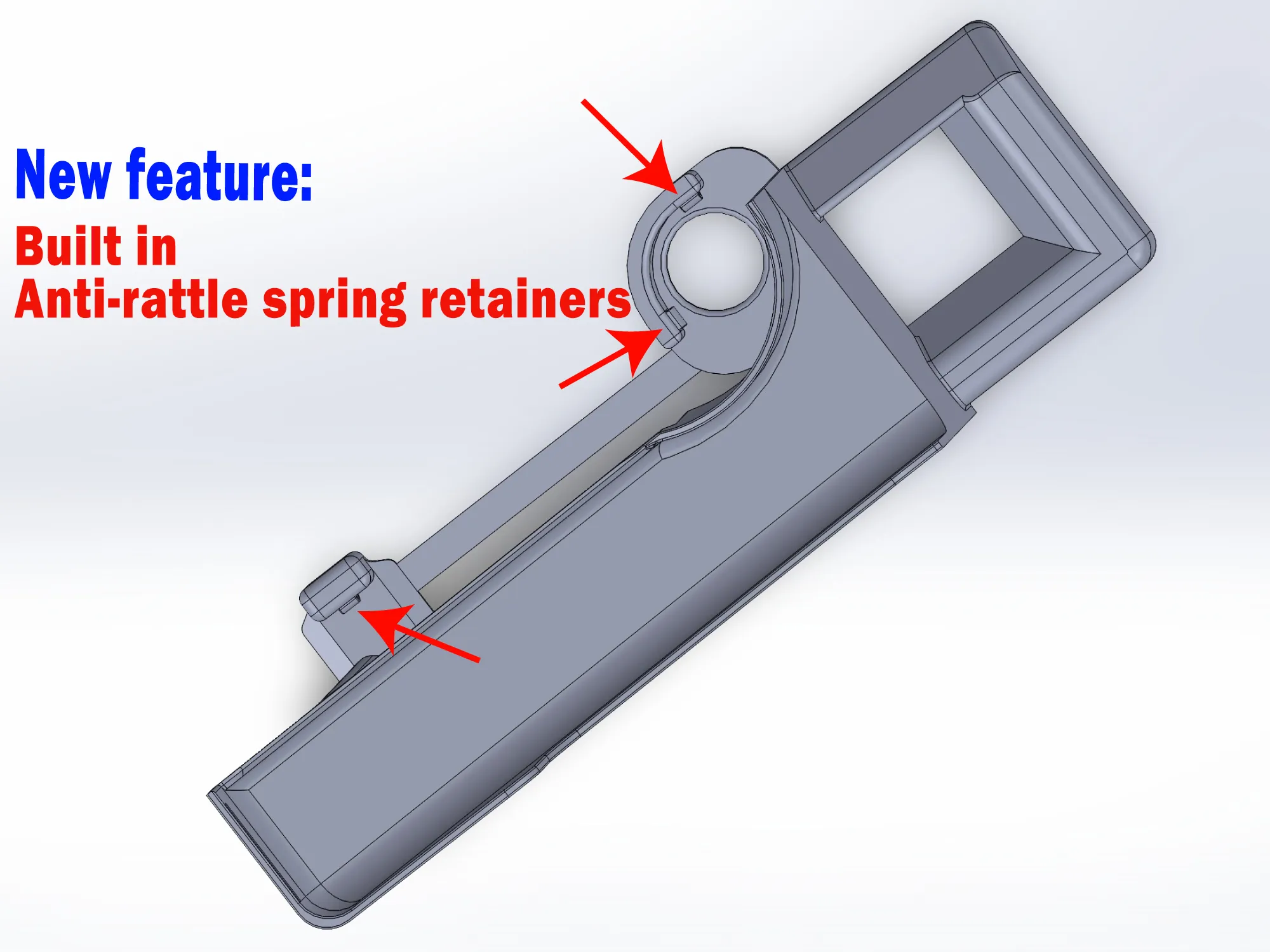

- Added built in “anti-rattle spring retainers” to eliminate rattling noise for some operating situations.
New chute is fully compatible with existing attachments. Current user can just print the chute to take advantage of updated functionality.

*UPDATE 4/9/2025
Added 3 larger size buckets and lids
- XL 300mm
- XXL 350mm
* MAX 385mm

Boost Me (for free)

If you enjoyed this model, please consider boosting it to support creator.
Thank you!

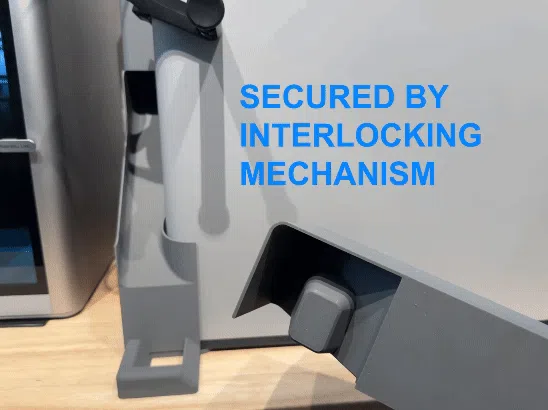

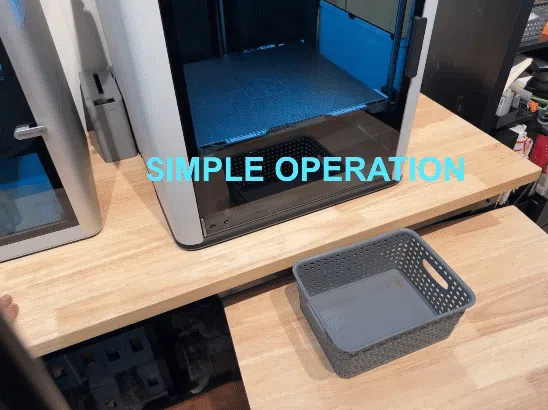

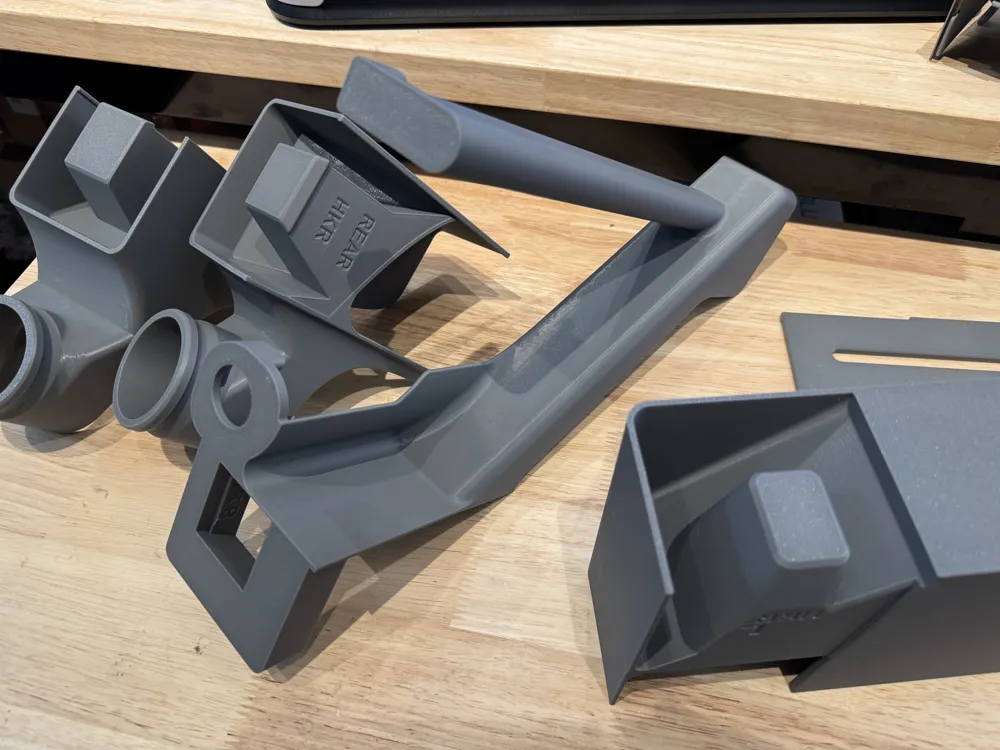

Interlocking bucket for securing container to the slide & easy emptying.

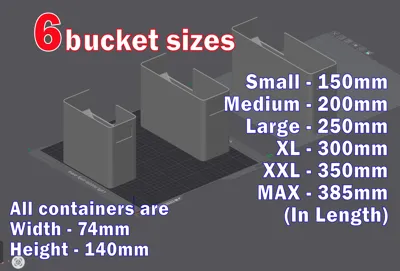

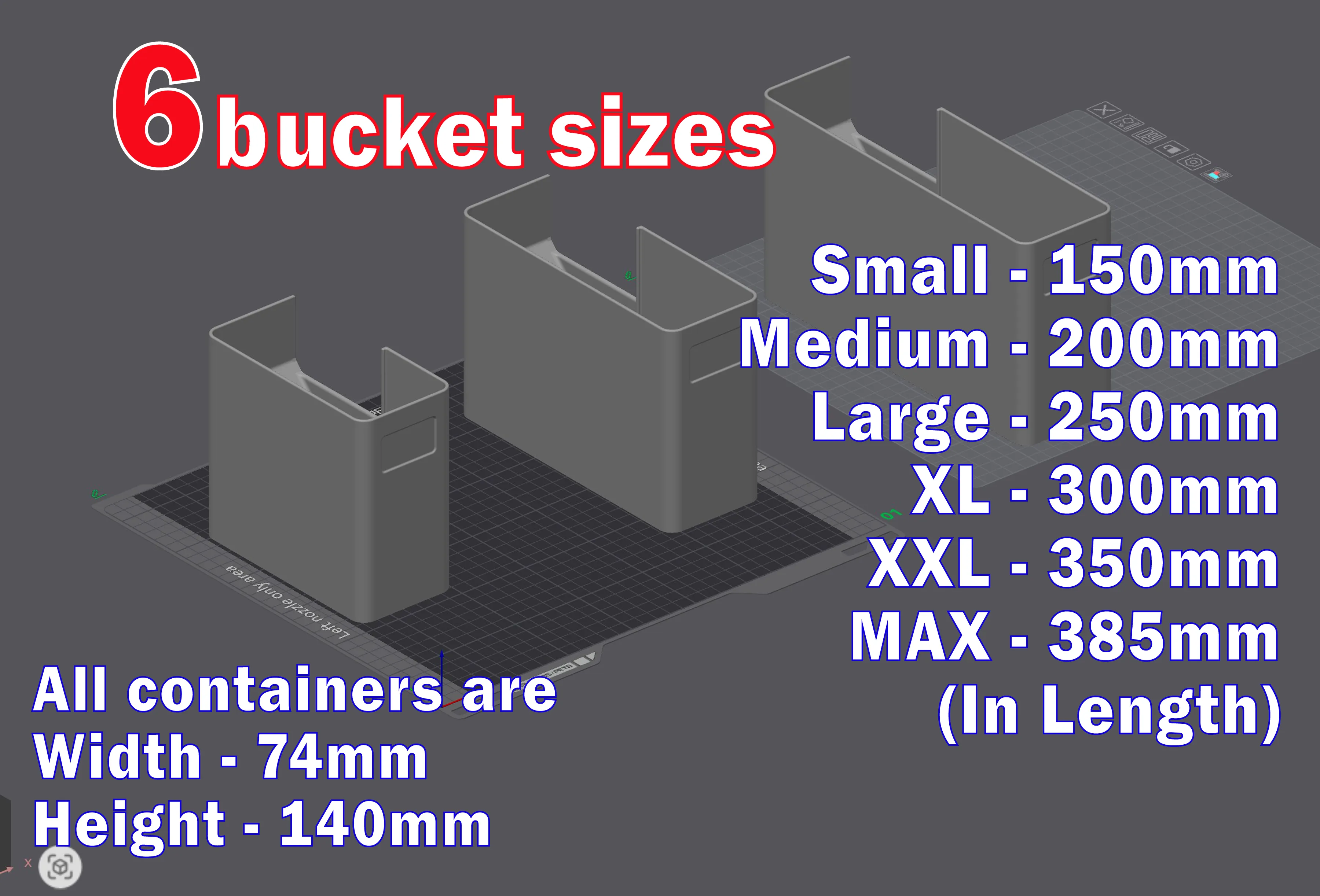

Choose from 6 different sizes of buckets

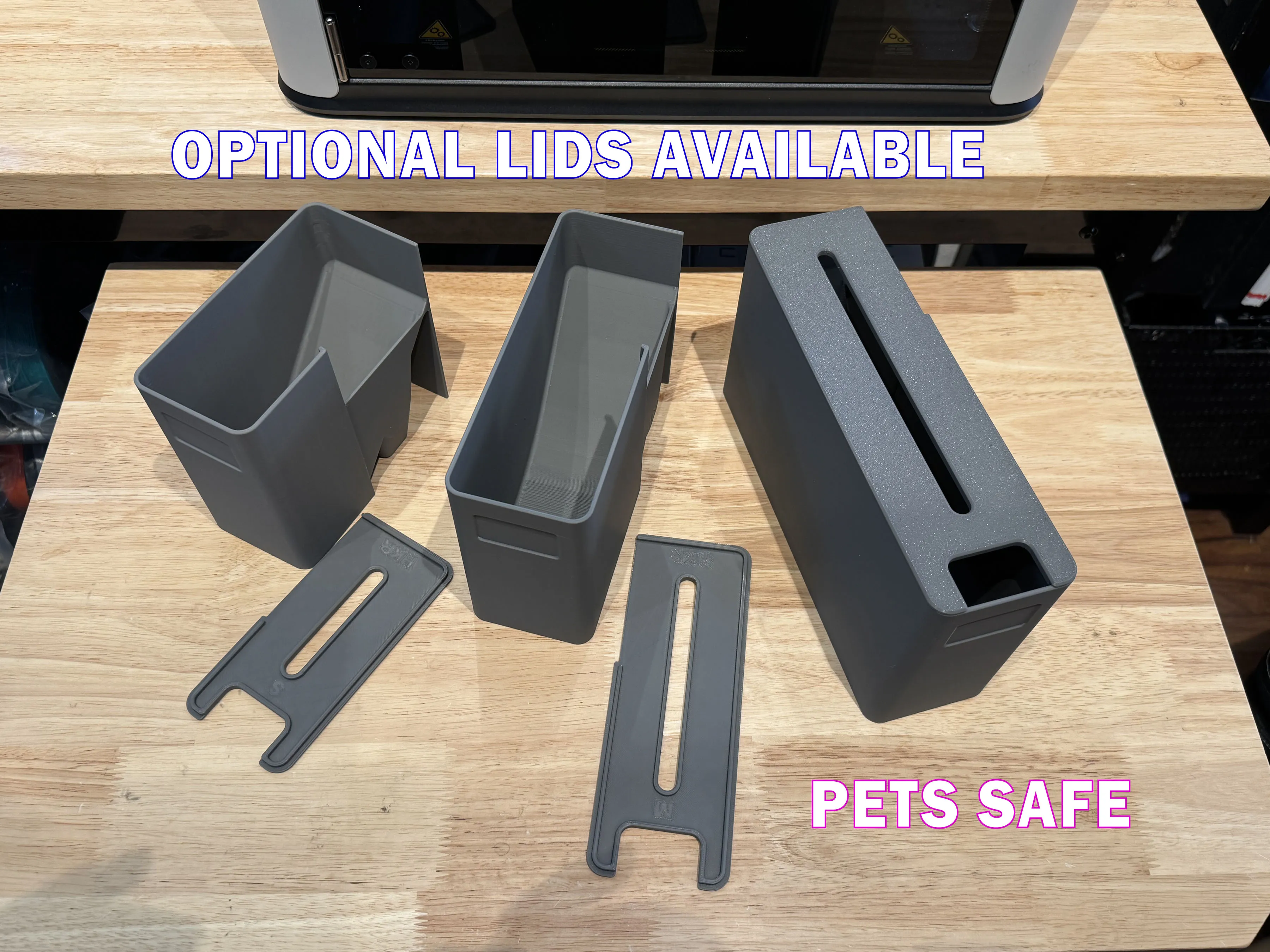

Optional lids are available.

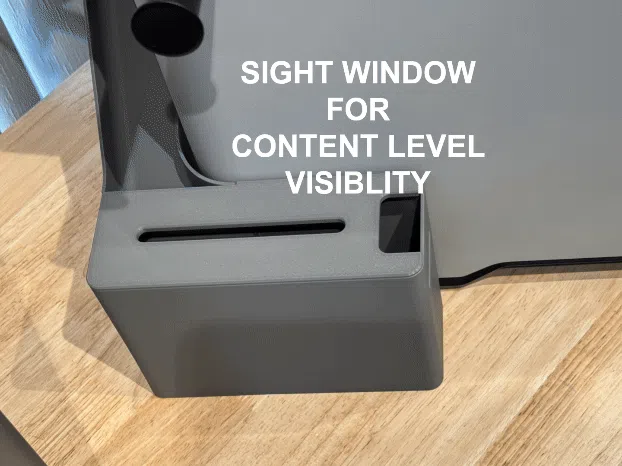

You can check level of content without removing the lid.

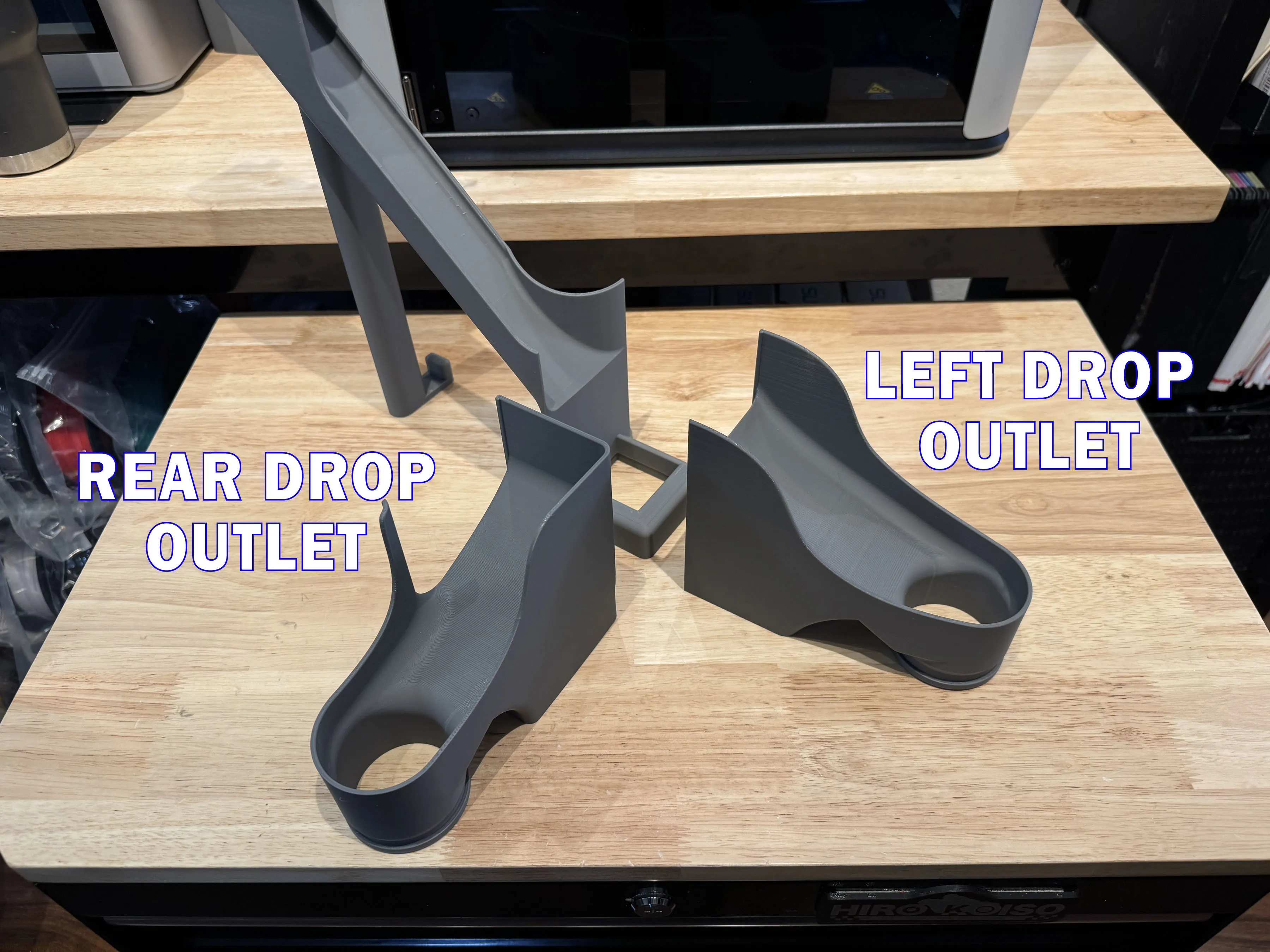

In addition, side and rear drop outlets for users with heavy on color changing operations with your choice of cardboard box, straight to the trash can or plastic bag.

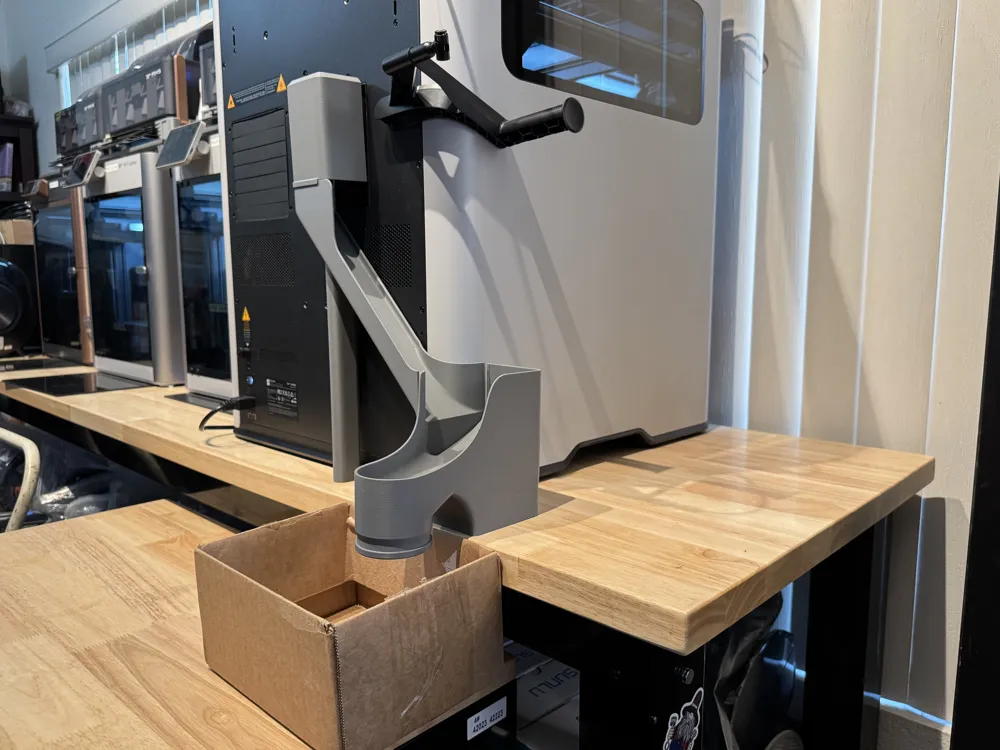

Rear drop outlet

Outlet features stepped lip to tie a catching bag around it.

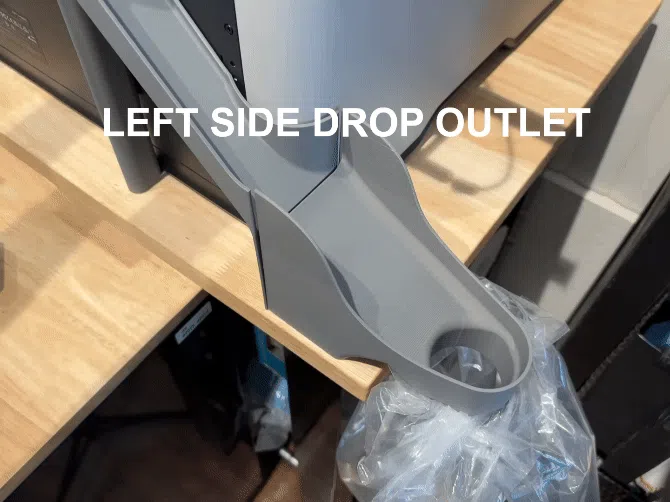

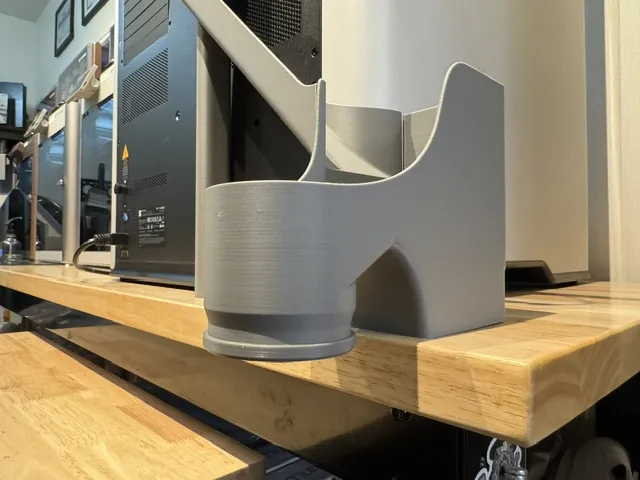

Left drop outlet

Additional features and print instructions

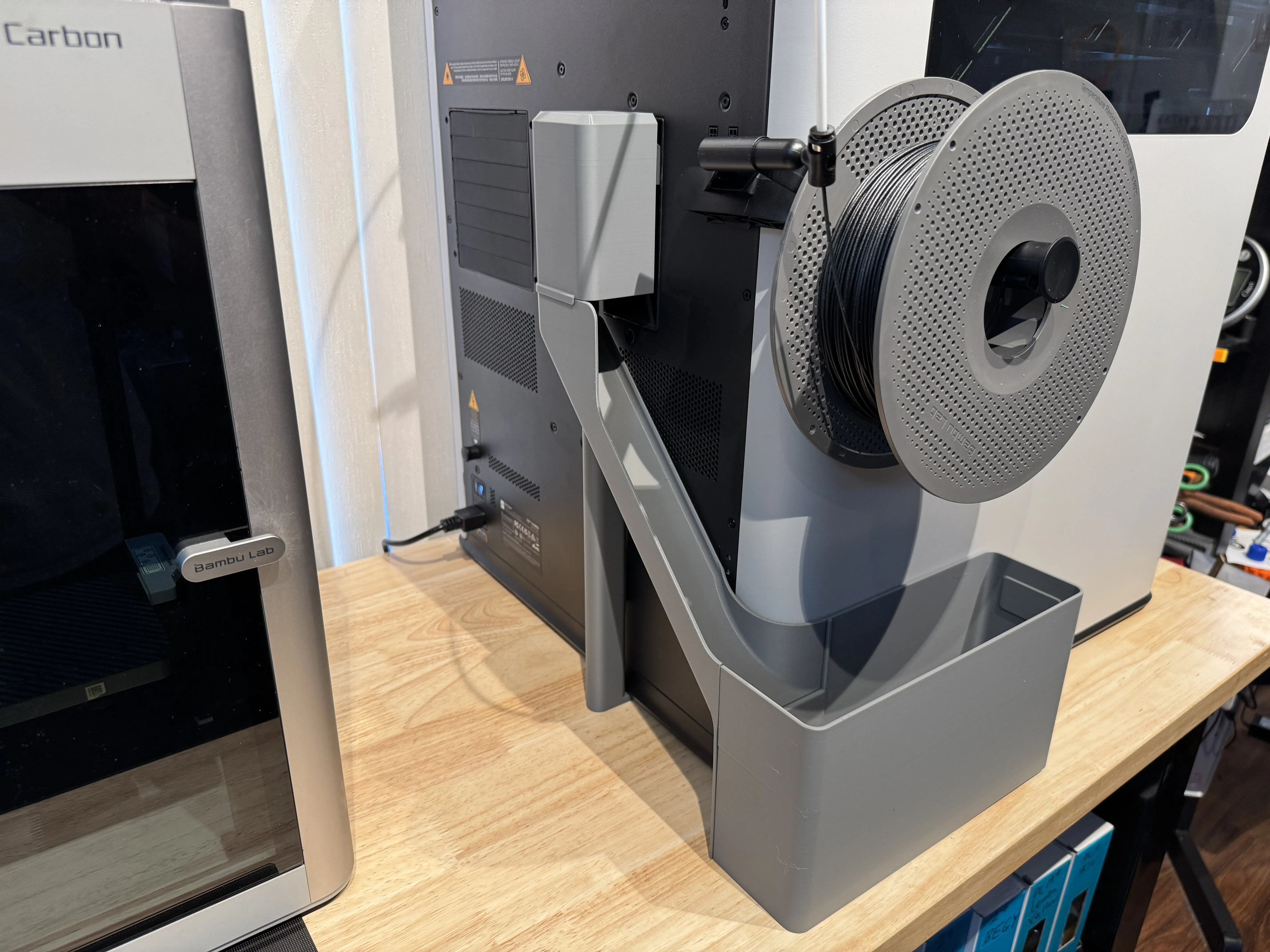

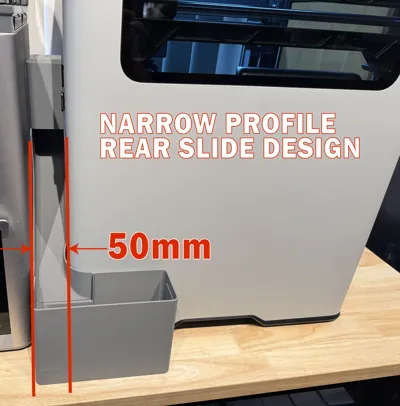

Narrow profile rear slide for tight fit behind the printer.

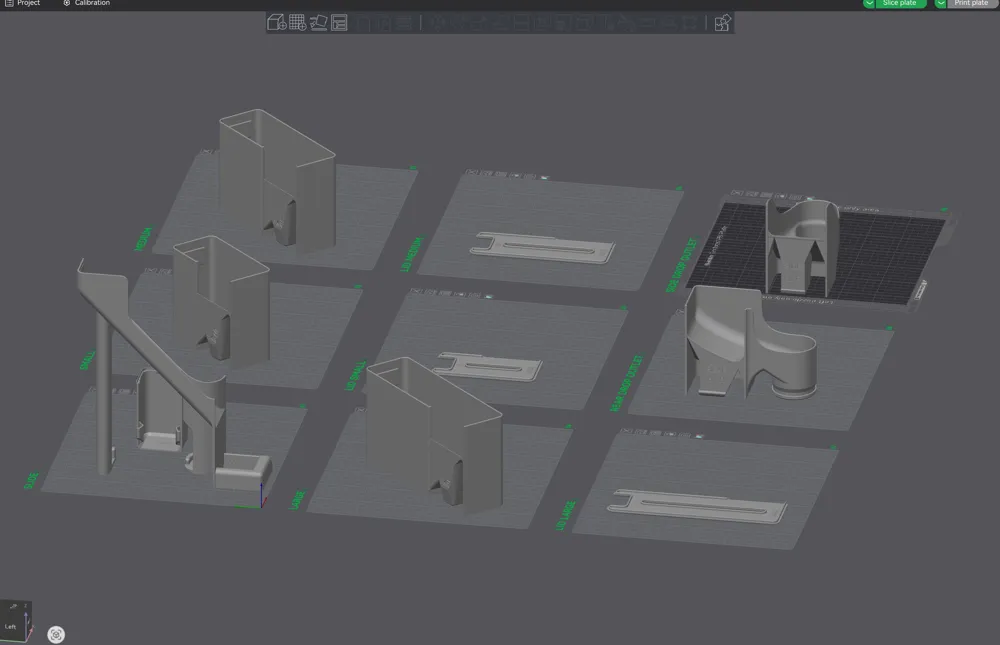

Designer .3MF print profile

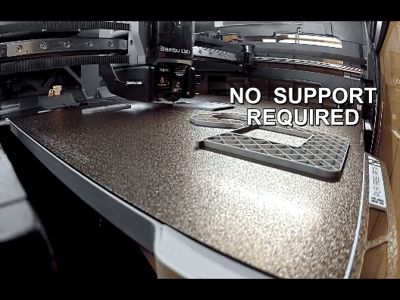

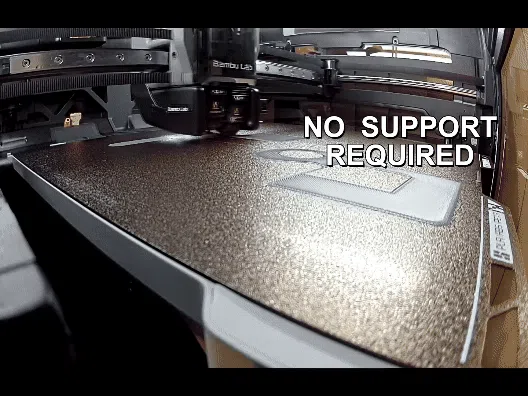

All components are designed to print without support.

Each components are strategically placed on build plate for overhangs. And thoroughly test printed for maximum quality.
**Designer would not recommend moving around or combining components on plates for this reason.**
Make sure your AUX fan is 70% or higher for PLA printing.

Underside of print should look like this with the designer print profile.

Compatible with the original external spool holder

Extra tip:
H2D throws really hot poops. And have seen sticking inside purge port of the printer sometimes.
For the preventative measure and sliding performance of the print, you could add a layer of aluminum tape as pictured.

Treated inside the purge port as well as the slide.
Secondary slope on the buckets for extra touch

Check out other accessory for H2D:
https://makerworld.com/en/models/1519437-hkr-modular-h2d-build-plate-storage-ams-mount#profileId-1592141

HKR interlocking Poop chute for P2S, X1/P1 series is available here:
https://makerworld.com/en/models/218121-hkr-interlocking-poop-chute-with-removable-bucket#profileId-236994

Happy Printing!
