Nice design! M3 12 mm worked finefor the side holes but not the middle hole. 10 mm would probably be OK too. Not the design's issue.

user_1790315086

What size screws did you use for this? Seems likes the m3 screws i had are a bit to big but i could be wrong

doron.s

Passt mit Adaptern, die ich passend dazu entworfen habe, perfekt!

Fits perfectly with adapters that I designed to match

Frank H.

Ich habe passende Adapterplatten entworfen, um die Montage an einer RockSchox Lyrik Select RC, 1,8 Steerer - E-MTB zu ermöglichen und zu vereinfachen, da die unteren beiden Befestigungspunkte links und rechts etwas nach vorne versetzt sind (es entsteht ein Spalt). Dieser wird durch die Adapter überbrückt und der Fender sitzt bündig an der Brücke. Befestigt - Mittig M3 x 8mm, Links/Rechts M3 x 12mm. Vielleicht kann der Designer dieses Teile als Option hinzufügen. STL oder Steps Datei ist vorhanden.

I have designed adapter plates to enable and simplify mounting on a RockShox Lyrik Select RC, 1.8 steerer - E-MTB, as the lower two mounting points on the left and right are slightly offset forward (creating a gap). This is bridged by the adapters, and the fender sits flush against the crown. Attached - Center M3 x 8mm, Left/Right M3 x 12mm. Perhaps the designer of this part can add it as an option. STL or Steps file is available

Roby70-3D

Mountain Bike Fender for RockShox Lyrik/Pike

If you can take a straight on photo of the mounting surface (with as little distortion as you can) and give me a precise measurement between the widest screw holes I might be able to make one. You can message me with the photo and we can try to make one.

Mike Jackson

bien sûr : l’espacement des trou est de 95 mn, merci pour votre retour :-)


of course : the hole spacing is 95 mm, thanks for your feedback :-)

Morey

How did you go with the domain adjustment. The print is fantastic!

Maker_Dr_Dre

hello
pourriez vous créer un profil de ce modèle pour la rockshox DOMAin?
je peut vous envoyer les mesures si vous souhaiter. un grand merci

hello
could you create a profile of this model for the Rockshox DOMAIN
I can send you the measurements if you wish many thanks

Diddich

Steve

Volt37

Tks for the model..... i did a "Gambiarra" and it fits on RockShox PSYLO. If you can... please just but about 20º angle in the middle hole the screew is M5

mr_jeferson26

cover


RockShox Fender.jpg

RockShox Fender2.jpg

RockShox Fender3a1a.jpg

RockShox Fender3aa.jpg



Variable layer heights2 walls15% infill




Passende Adapter (Haltepunkte Linke/Rechts) für RockShox Lyrik Select RC, 1.8 Steerer

Matching Adapters (Mounting Points Left/Right) for RockShox Lyrik Select RC, 1.8 Steerer

0.2mm layer, 2 walls, 15% infill

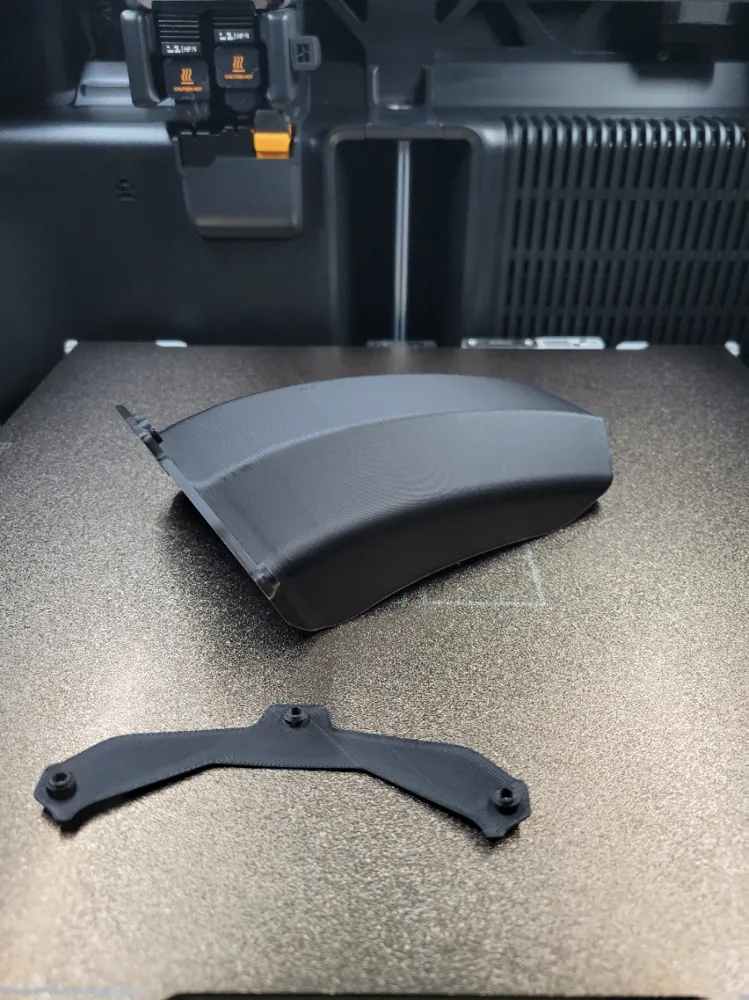

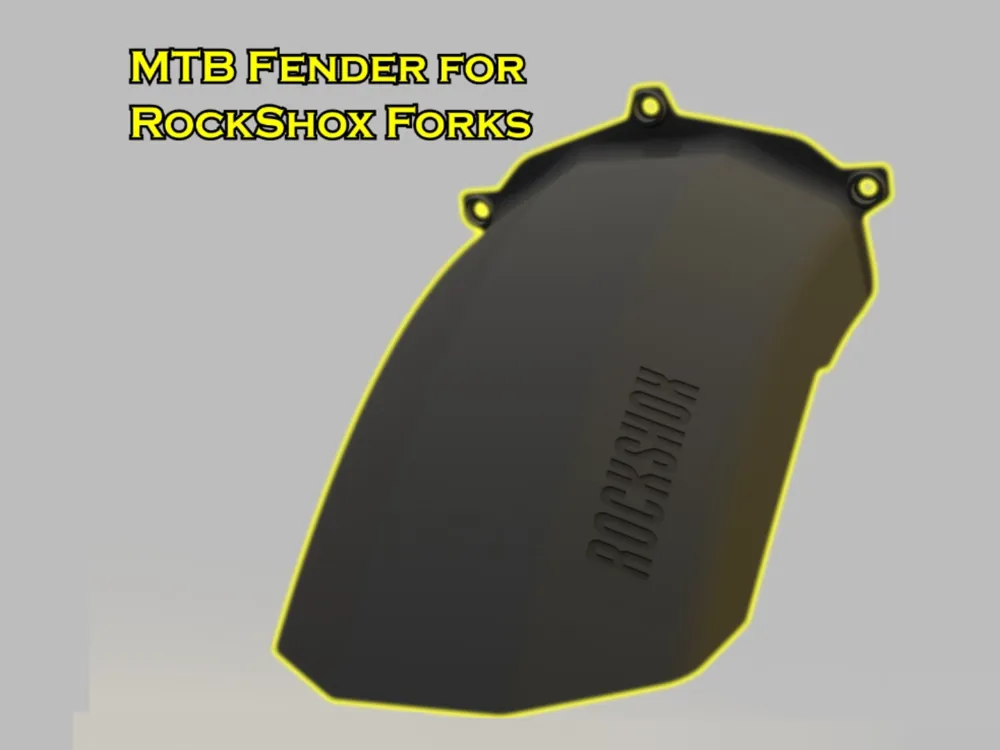

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you find this interesting, please give me a Boost. It goes a long way, thanks. </boostcontent></boostme>This short fender is made to keep you dry and clean when the weather gets wet and muddy. It&#39;s installed with three M3 bolts and fits on RockShox forks (Lyrik/Pike). If you own a ZEB or Domain, I&#39;d love to know if it fits, please leave a comment. Because it bolts on, there&#39;s no need to mess around with zip ties.&nbsp;The spacer is optional. It helps to key the fender cleanly into the fork and can be glued on to the fender or simply bolted up and sandwiched with the notches going into the fork. But I have found it fits without. &nbsp;I&#39;ve found that the design is fairly durable in PLA, but I would suggest printing in ABS/ASA or PETG for sun-proofing.
