Card Master (Multifunctional Wallet)

Model Description

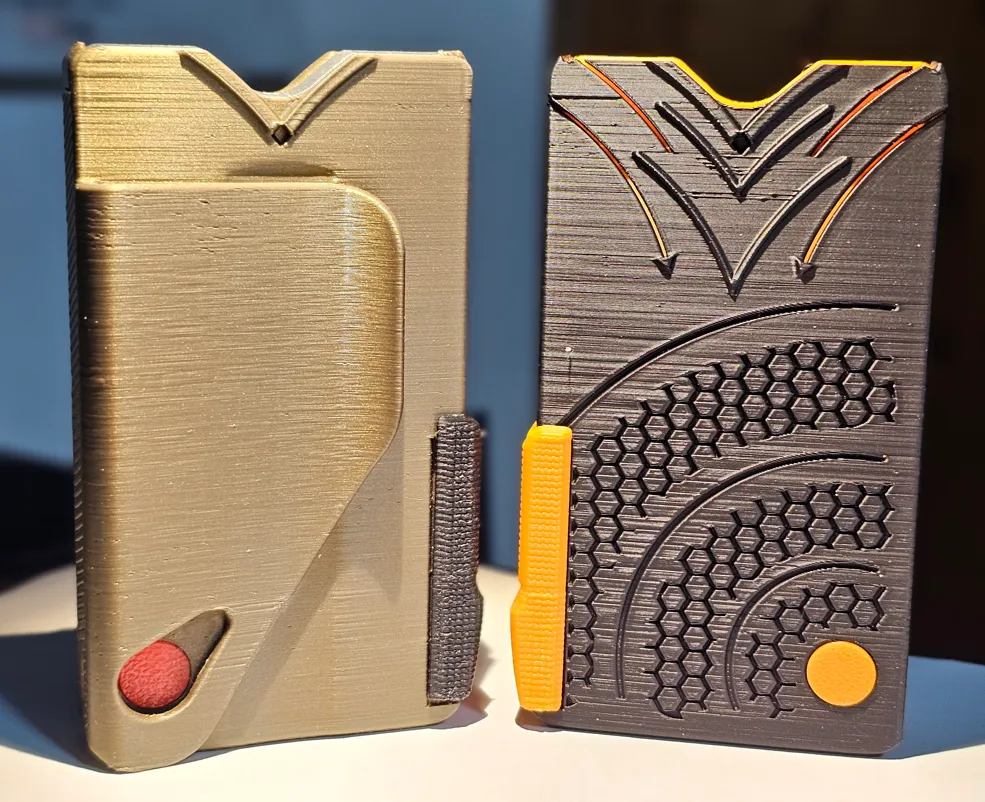

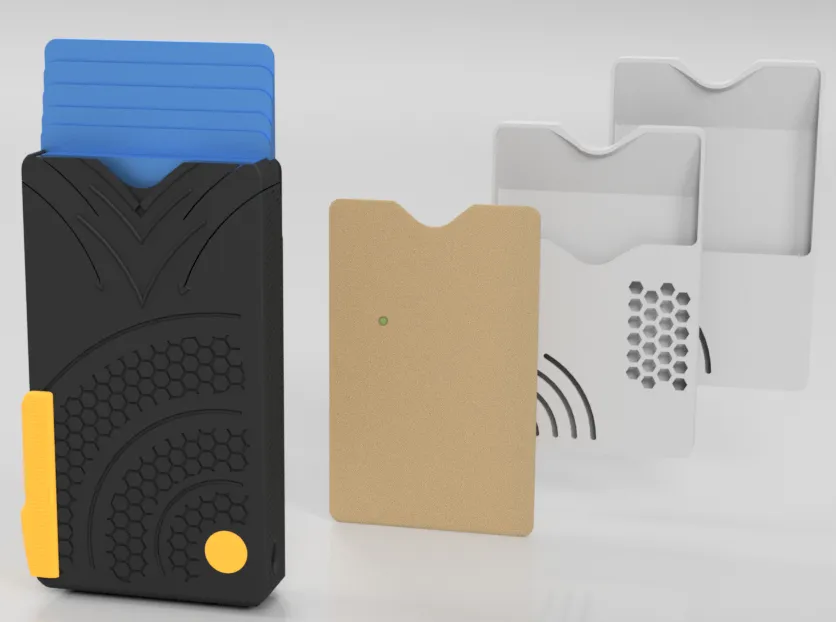

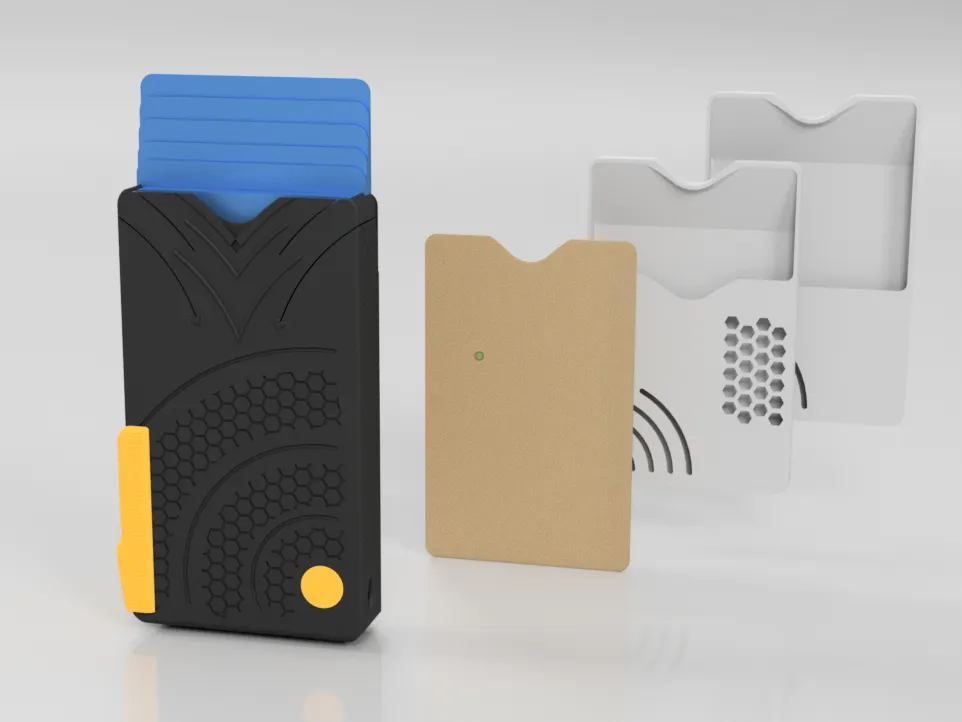

This is a multifunctional wallet completely 3D printed with the following characteristics:

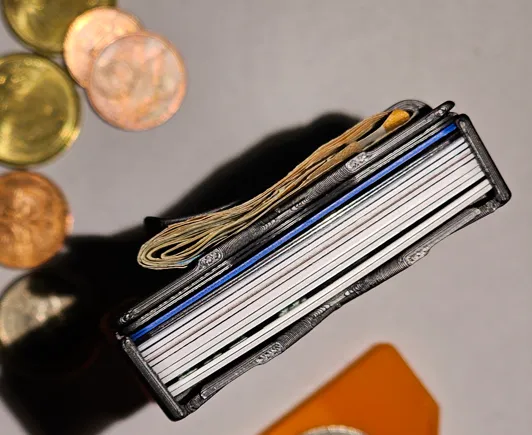

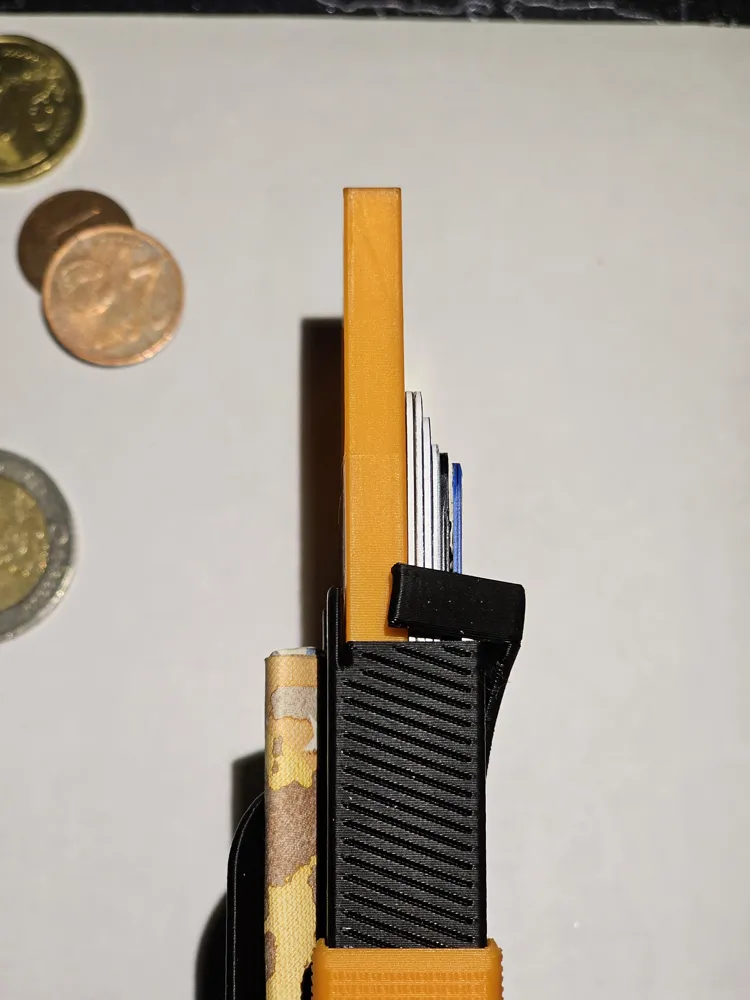

• Can hold up to 12 cards

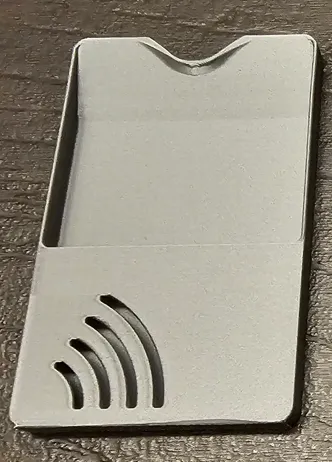

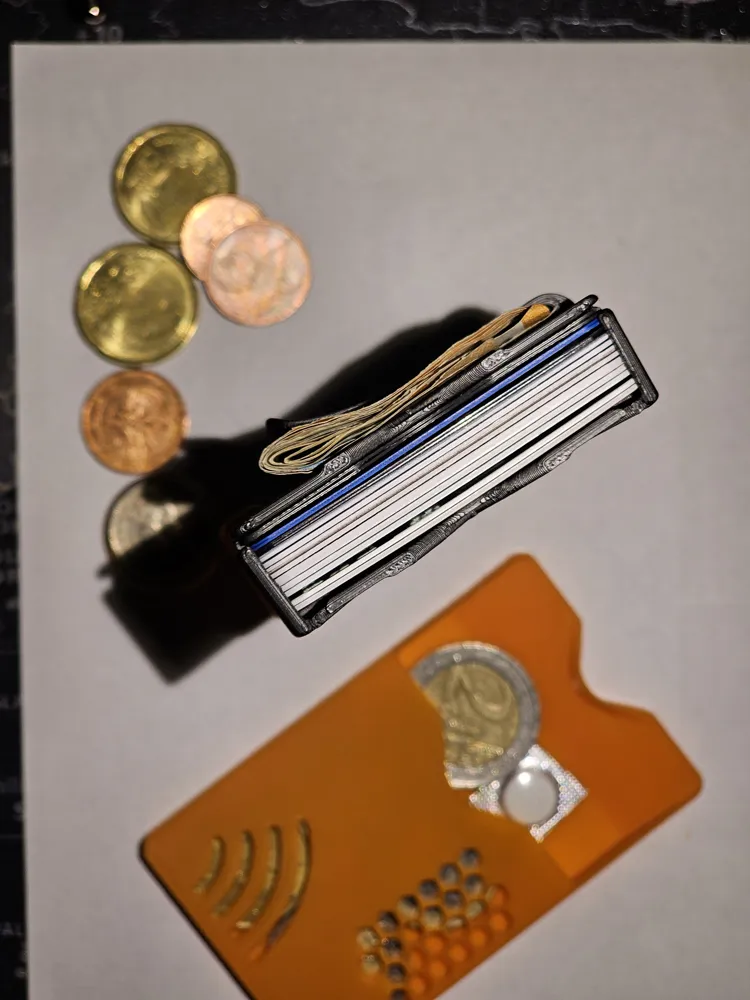

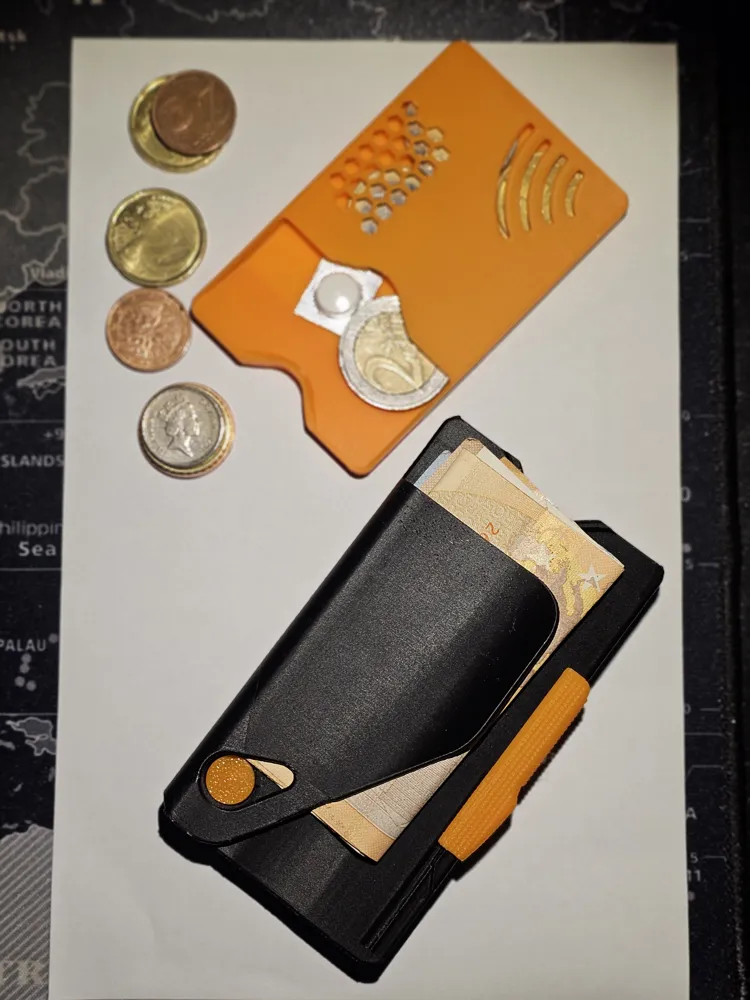

• is provided with a coin box (it is like a card able to contains pills and/or coins)

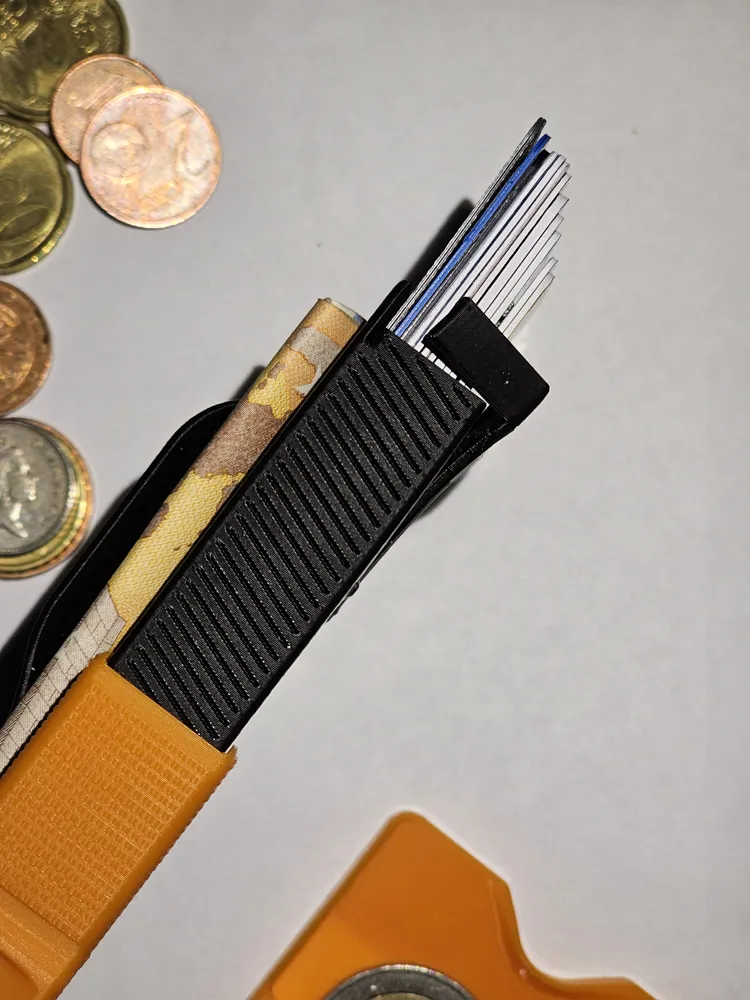

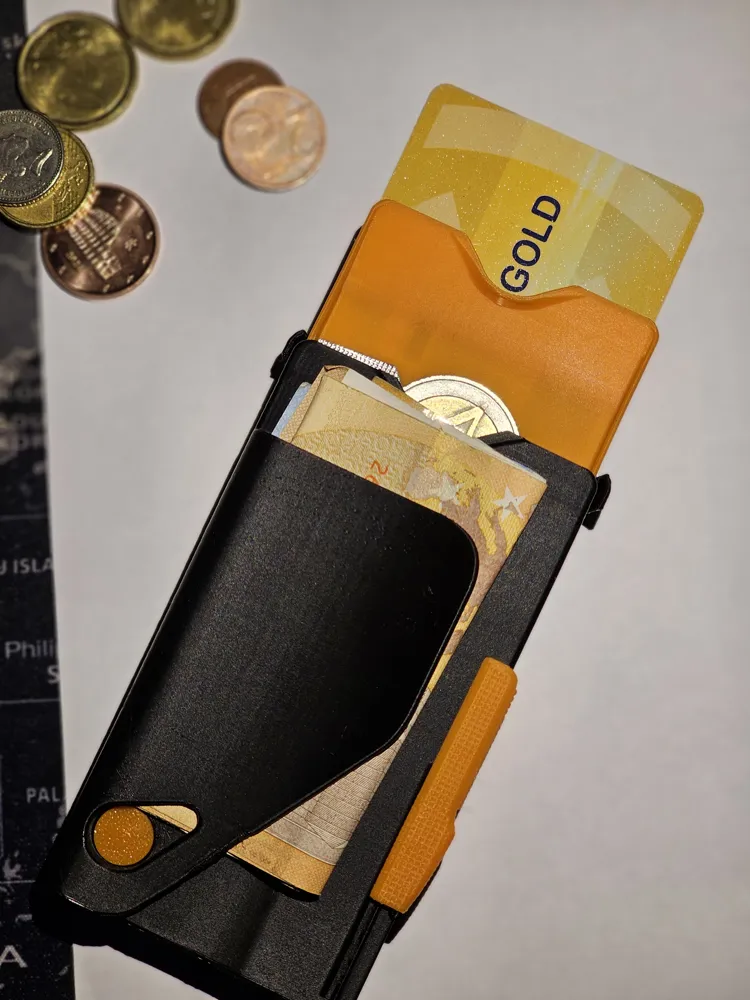

• is provided with an integrated money clip

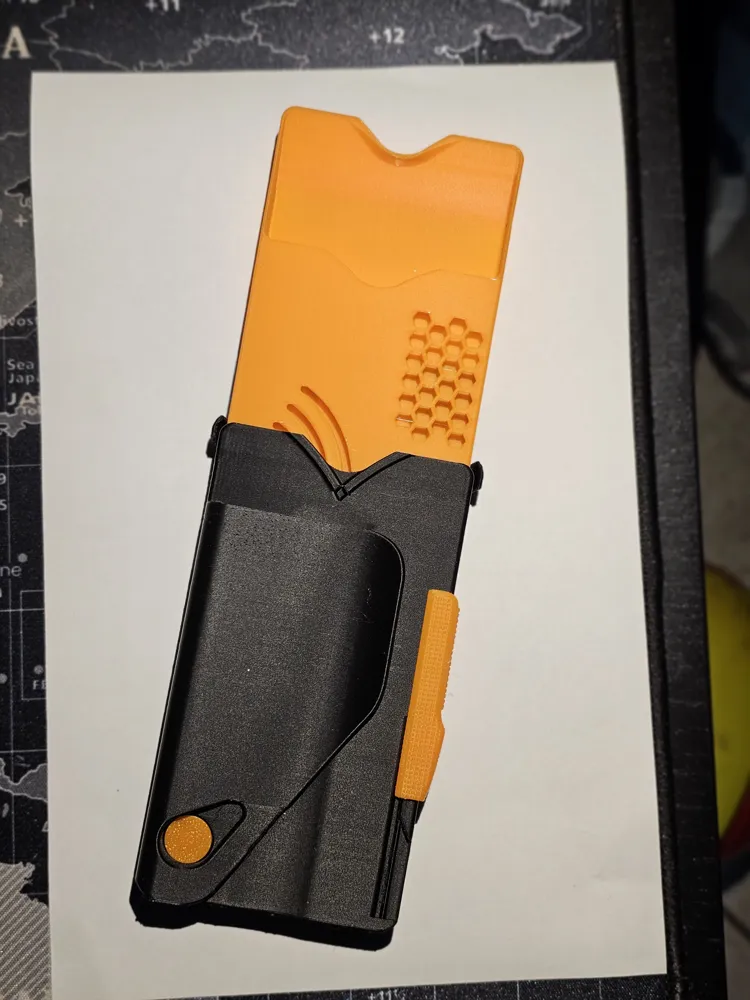

• is provided with a slider handle which can help to extract the cards

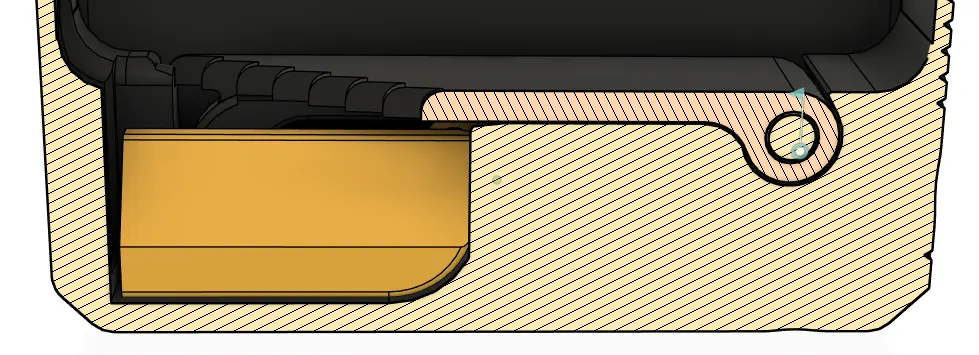

• is provide with a retain system which ius able to firmly hold the cards inside
• is provide with a hole for additional strap
• is provided with double thin cards to be glued together which you can use for build your own RFID/NFC blocker.

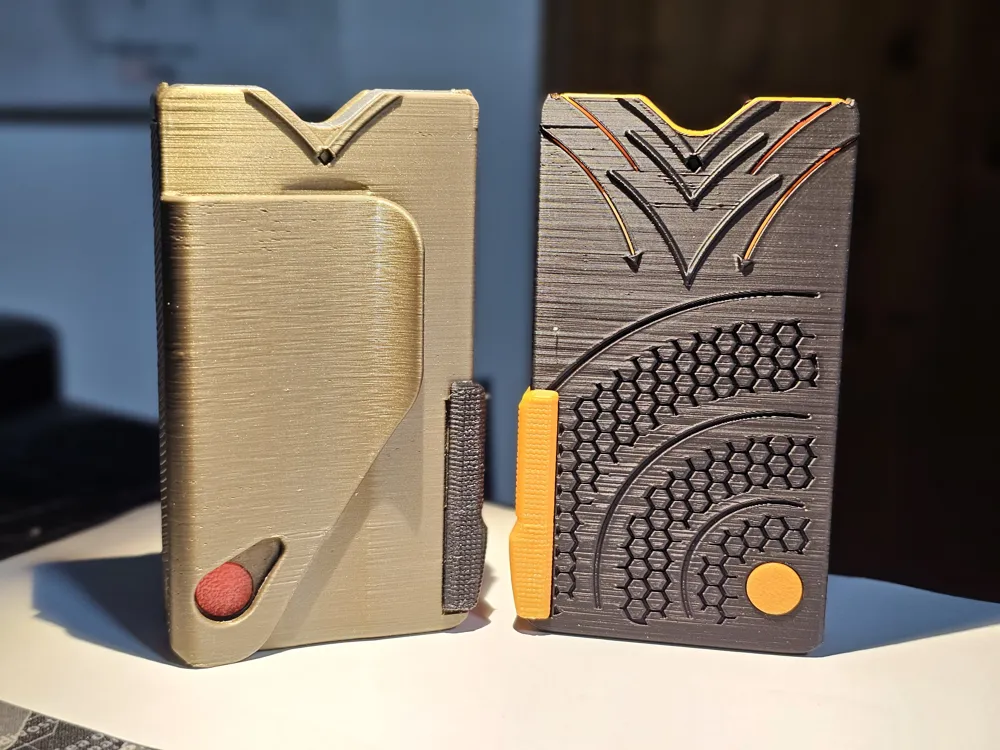

I have added some aesthetical drawings which I hope you like!

How to Assembly

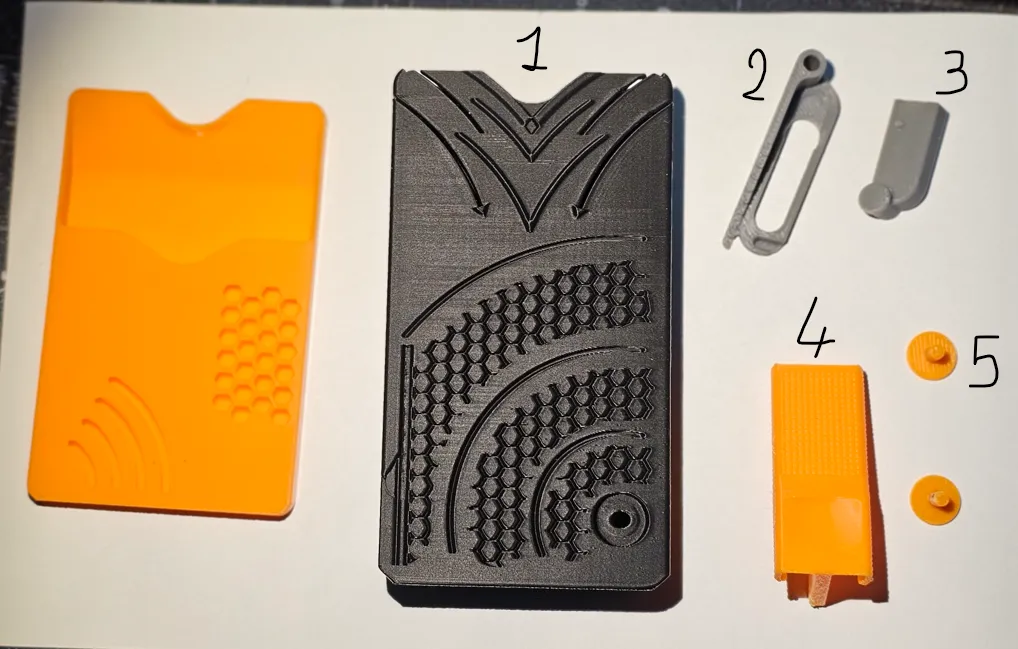

The necessary parts to assembly the wallet are above numbered from 1 to 5.

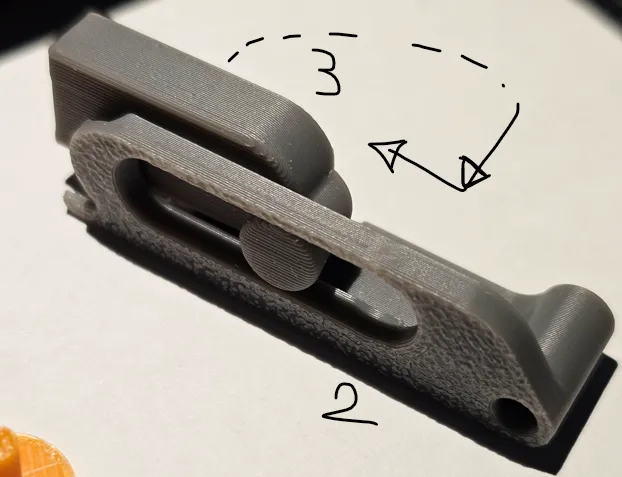

First of all connect togheter (2) and (3):

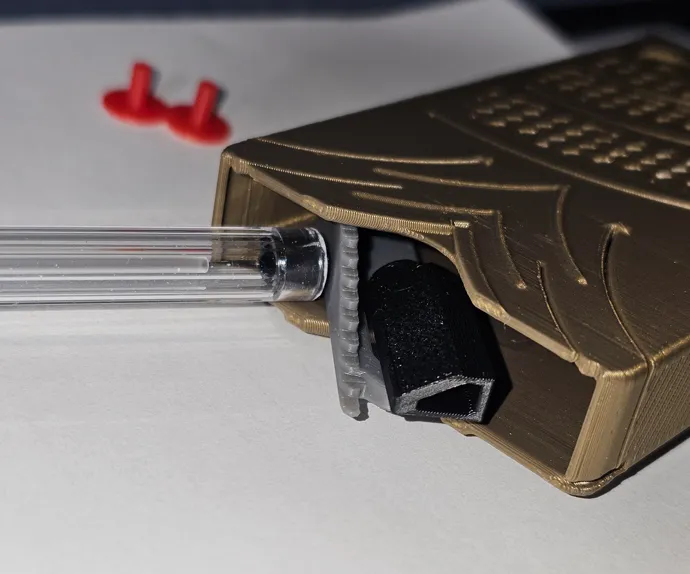

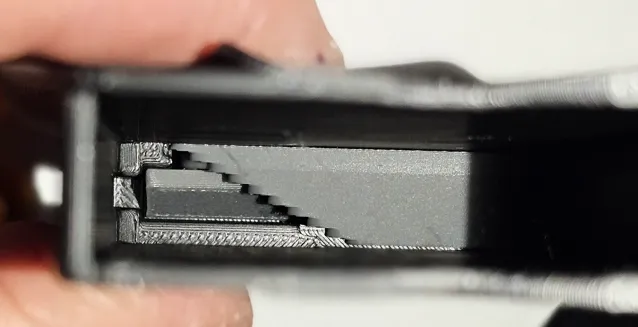

Now it is necessary to insert these two assembled parts inside the main wallet box (1)

NOTE: this is little bit difficult / tricky and it is necessary to move slowly:

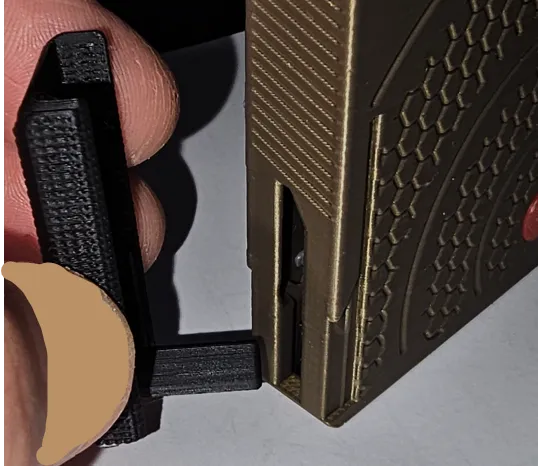

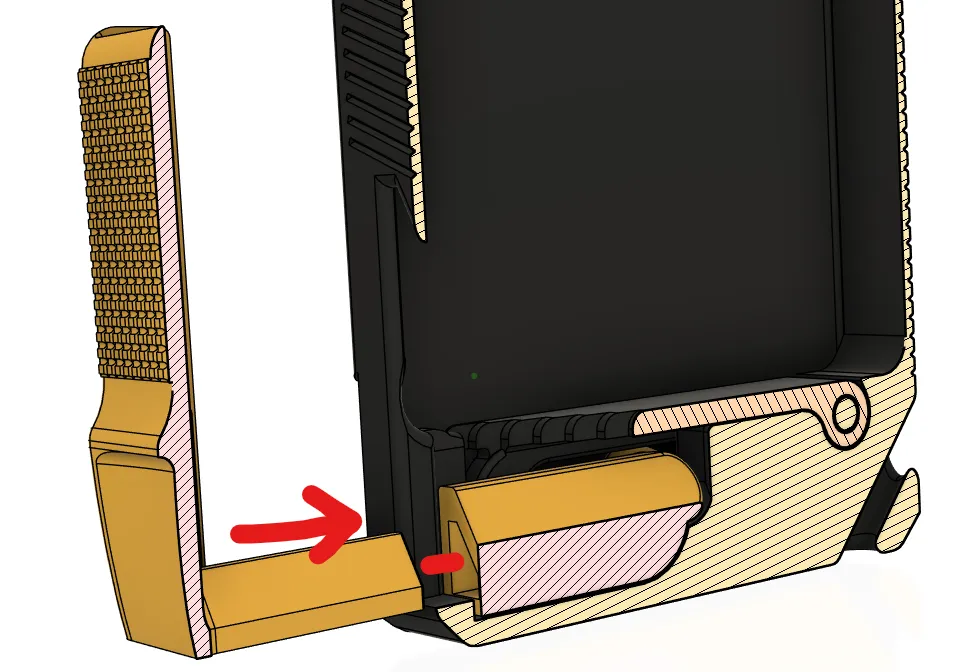

Carefully while The wallet is in vertical position, insert the handle:

After inserted the handle the internal parts will remain connected.

Add the two pin on front and rear, test if all work correctly and add a drop of glue if necessary:

Add a strap if you like:

Make your own RFID/NFC Blocker:

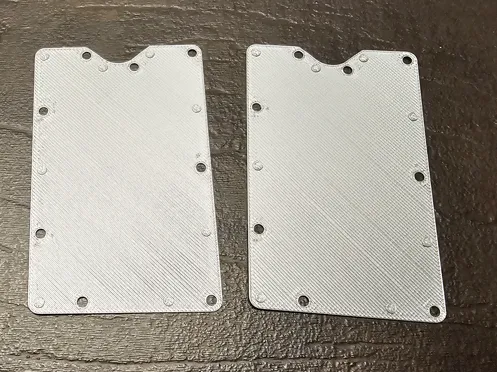

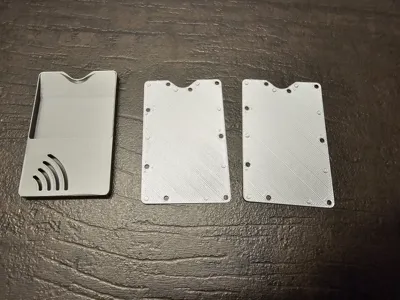

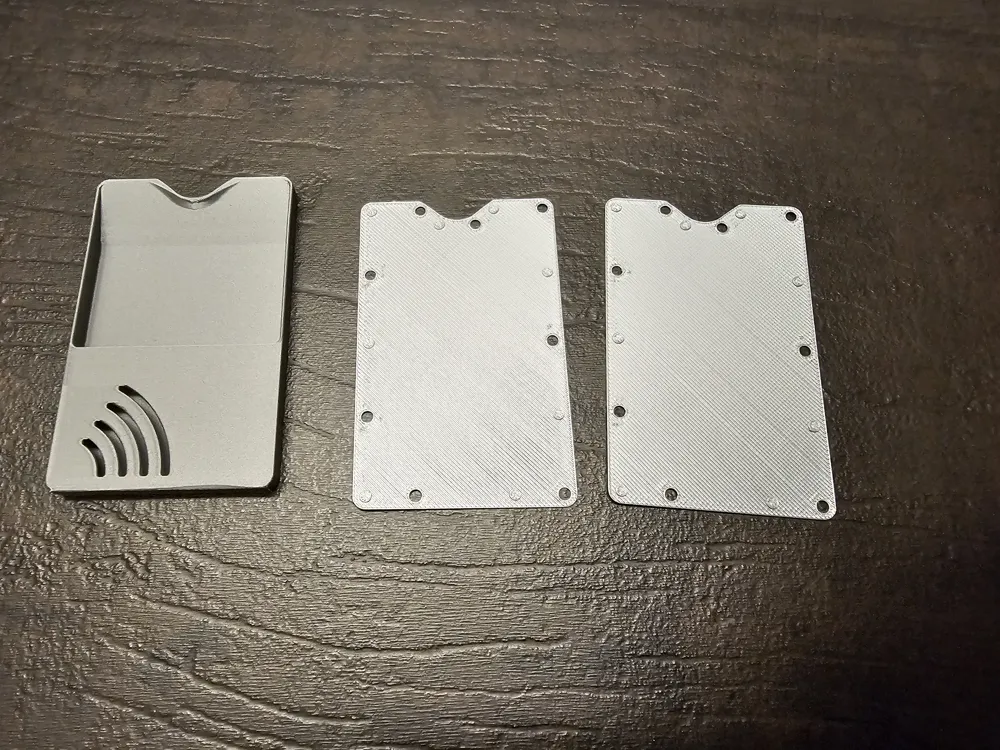

Print these two parts:

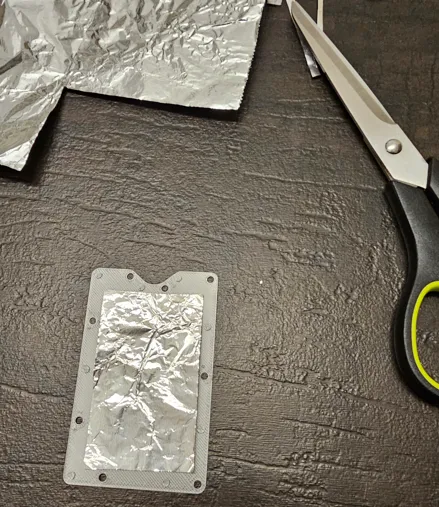

Cut a little sheet of aluminum foils and insert in half card:

Add few drops of glue on all pins of the card and add the second half card. Press togheter until the parts will be fixed.

Now you have a RFID/NFC blocking card to be inserted inside the wallet along with other cards.

Hope you like it!
