flydevel

cover

Screenshot from 2025-04-05 12-39-45.png

Screenshot from 2025-04-05 12-39-37.png

Screenshot from 2025-04-05 12-37-44.png

Screenshot from 2025-04-17 16-38-01.png



fitting



print without supports  PETG - layer height: 0.2mm Line width: - Default: 0.5mm - Outer wall: 0.5mm - Inner wall: 0.5mm Wall generator: Arachne

0.2mm layer, 2 walls, 100% infill

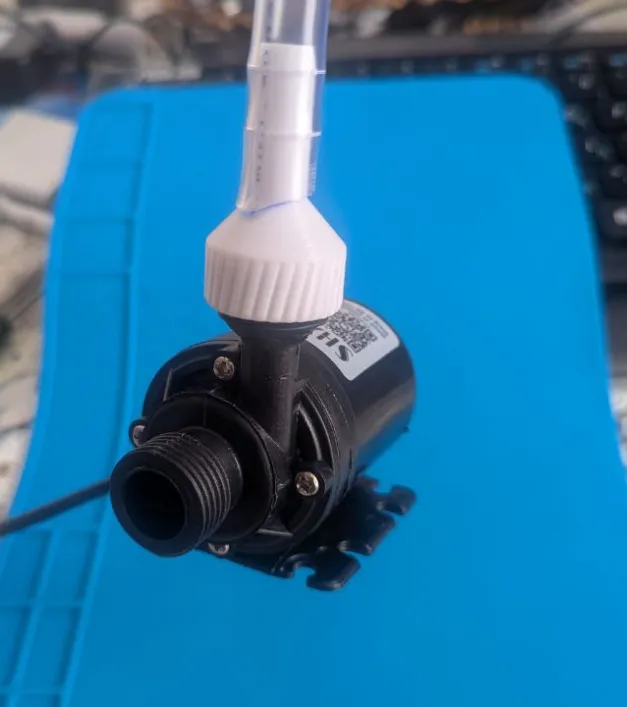

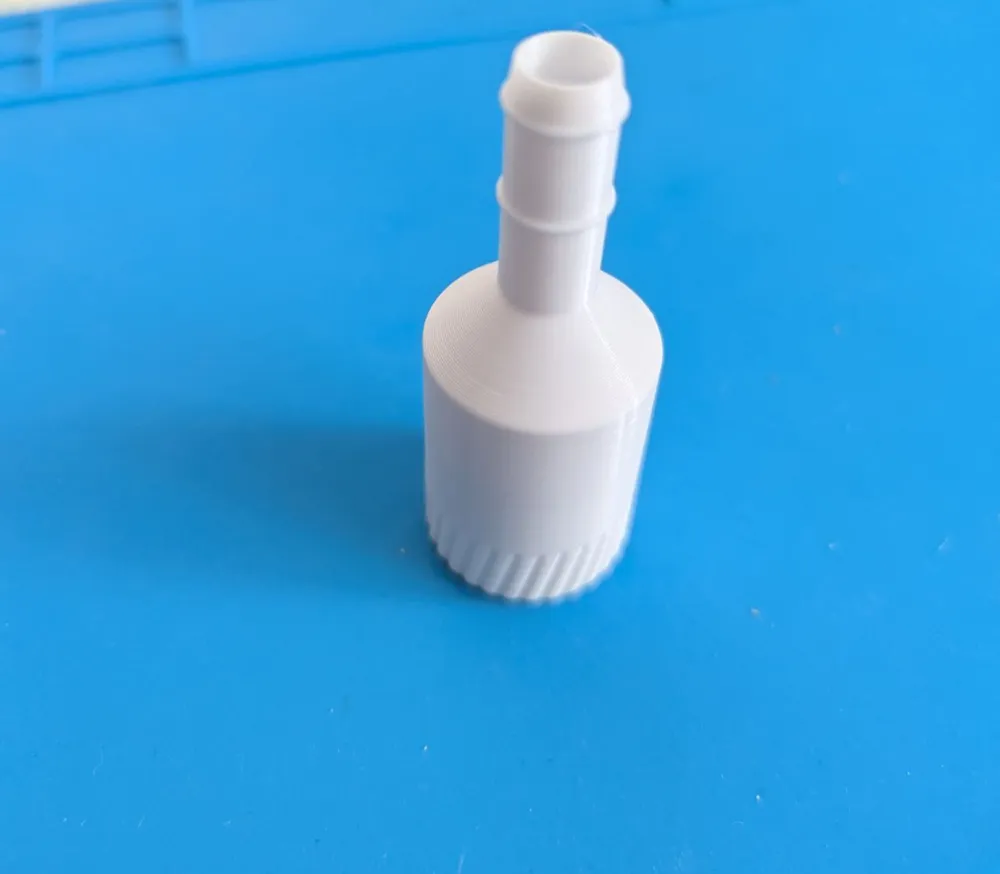

G1/2 Female Thread Pipe Adapter to 10mm ID Silicone Tube with One-Way Flow Restrictor This adapter allows you to connect a G1/2 female threaded pipe to a silicone tube with an inner diameter of 10mm. It features an integrated one-way flow restrictor that significantly slows down reverse flow without completely stopping it.The design also allows easy adaptation to other tube sizes if needed. Optimized for 3D printing without supports (settings included in the profile).

with One-Way Flow Restrictor

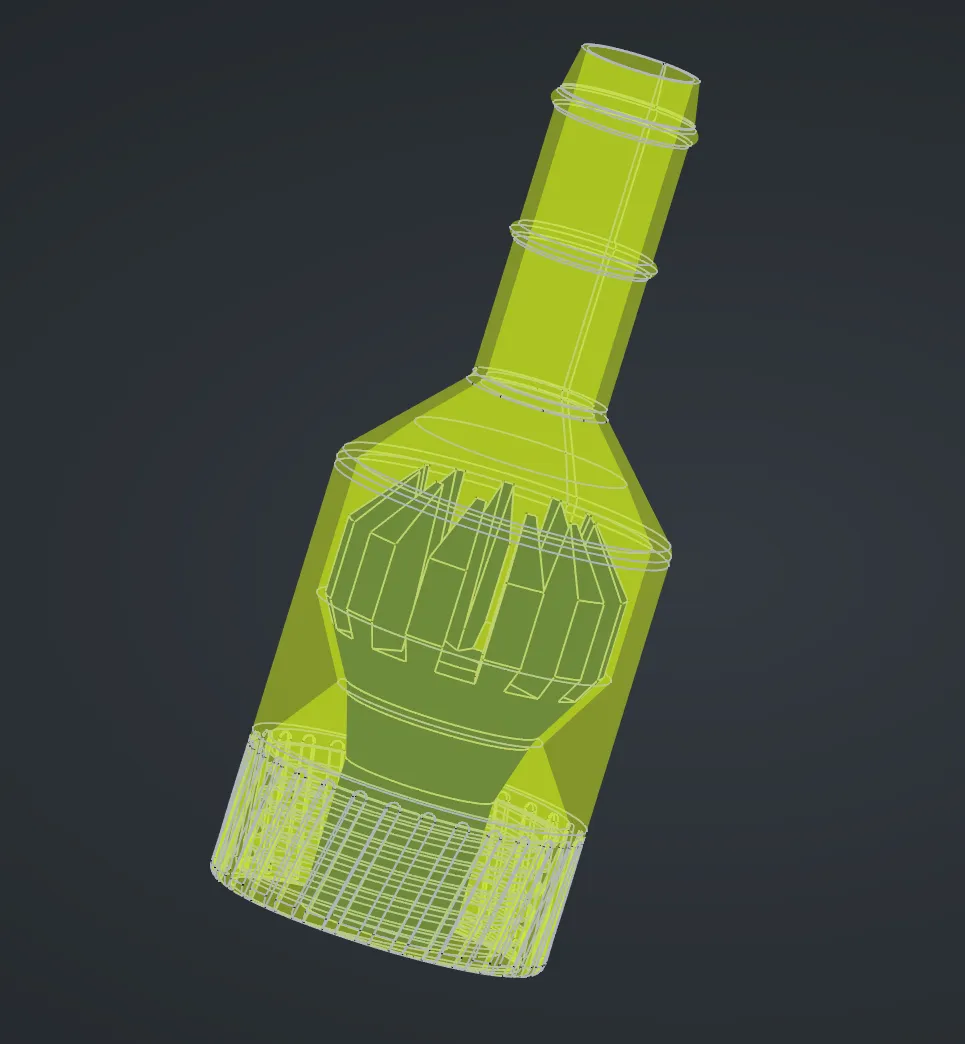

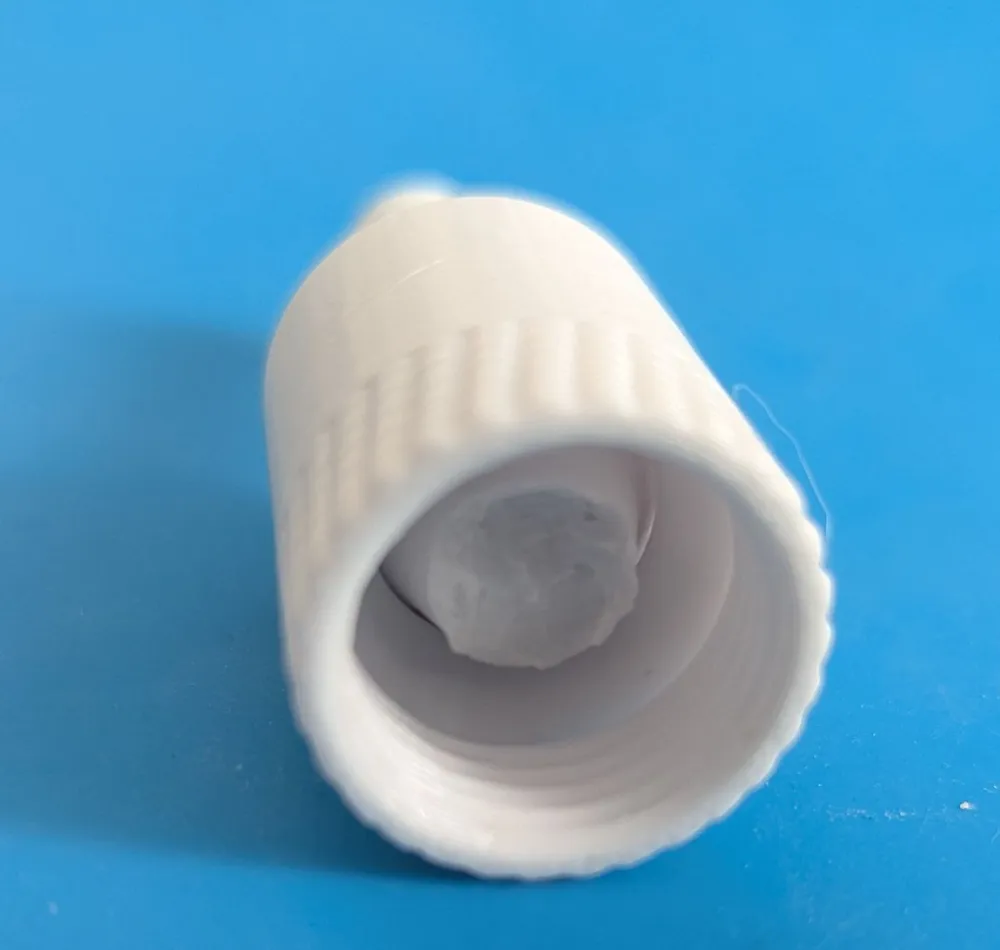

G1/2 Female Thread Pipe Adapter to Silicon tube ID 10mm  Can be adopted to another tube print without supports  Second profile with one-way flow restrictor - significantly slow down back flow&nbsp;PETG - layer height: 0.2mm Line width: - Default: 0.5mm - Outer wall: 0.5mm - Inner wall: 0.42mm Wall generator: Arachne

G1/2 Female Thread Pipe Adapter and one-way valve
