Description

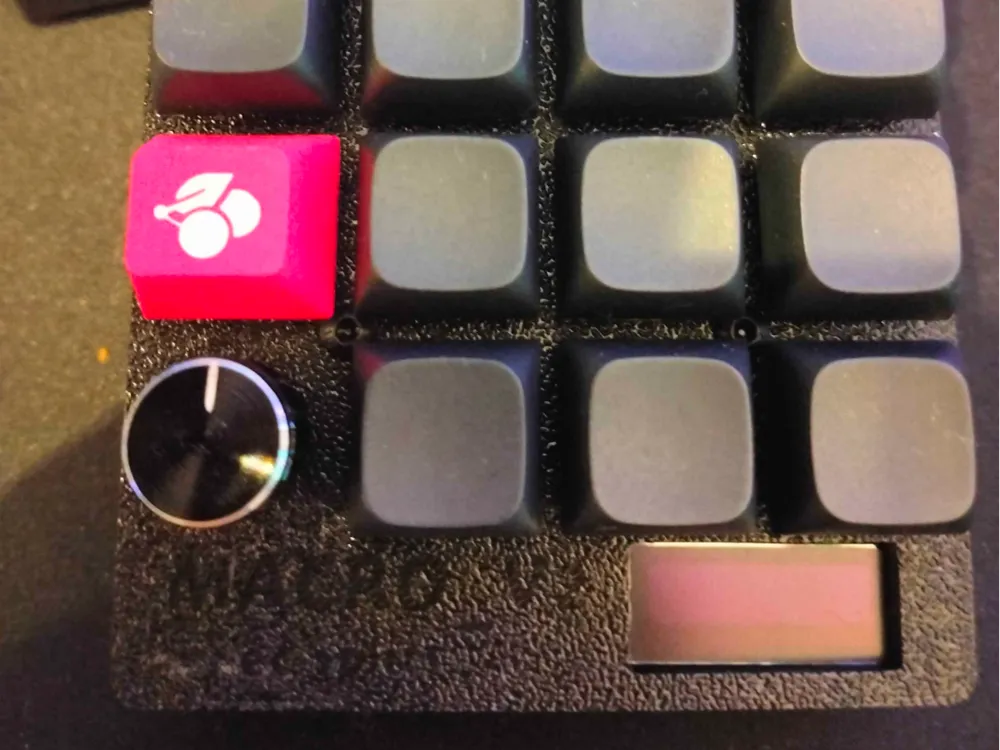

this is a handwired macropad with a oled screen. It uses a rp2040 pro micro as the mcu and you can get the firmware here.
hardware parts needed are as listed below:
- x1 rp2040 pro micro
- x1 small oled screen
- x1 rotary encoder
- x19 mx style switches
- x19 1N4148 diodes
- x3 M3x 12 screws
- x3 M3x5x5 heatset inserts
