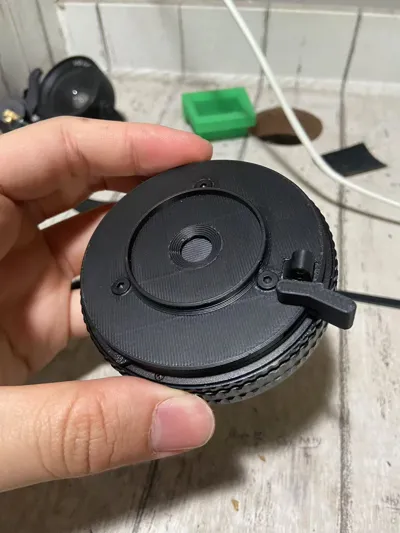

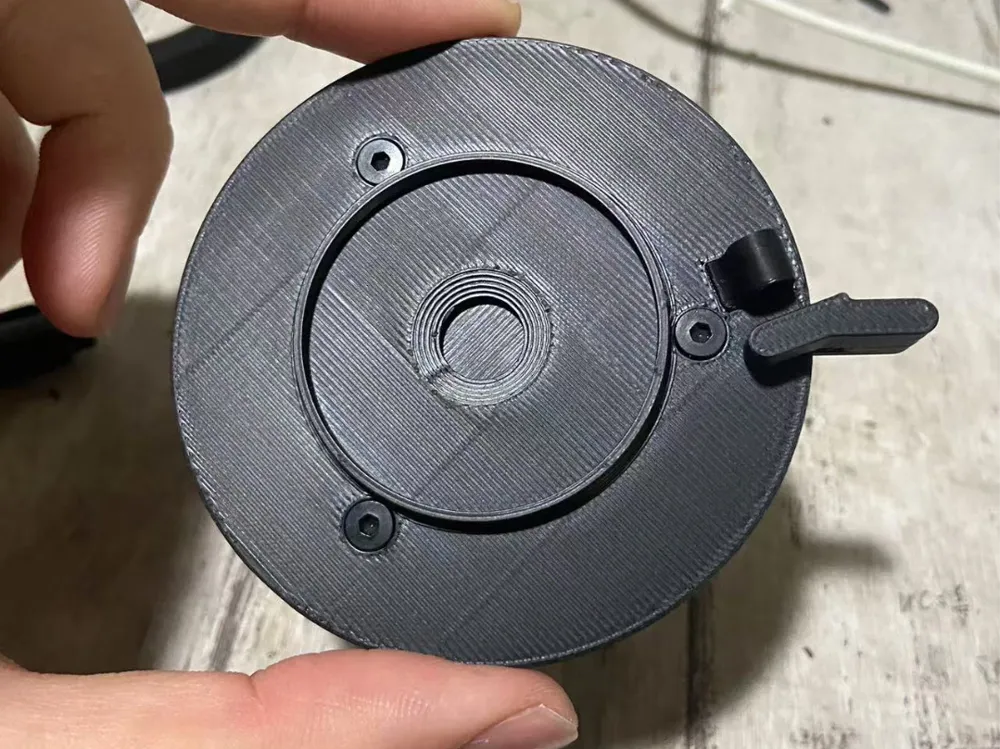

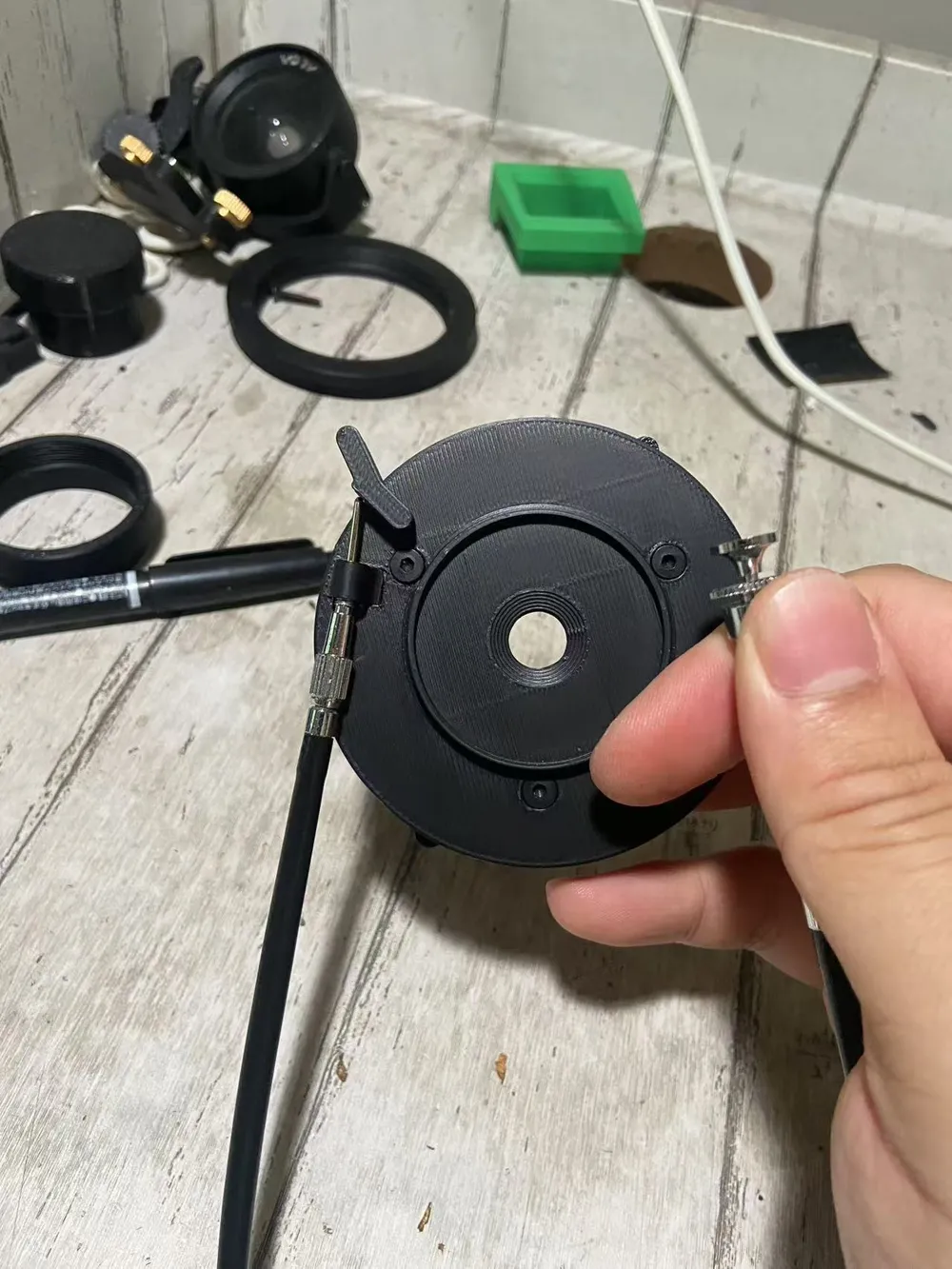

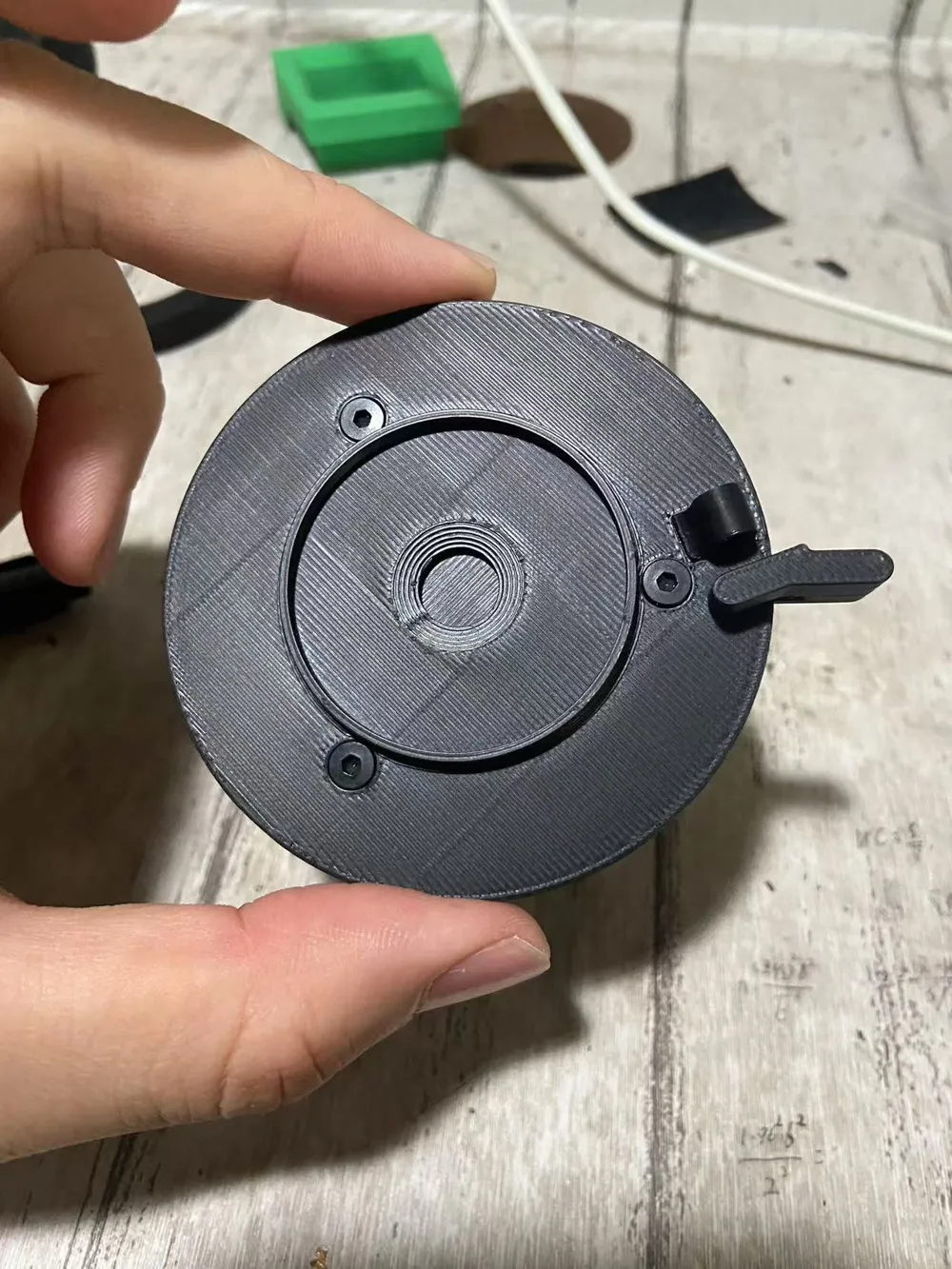

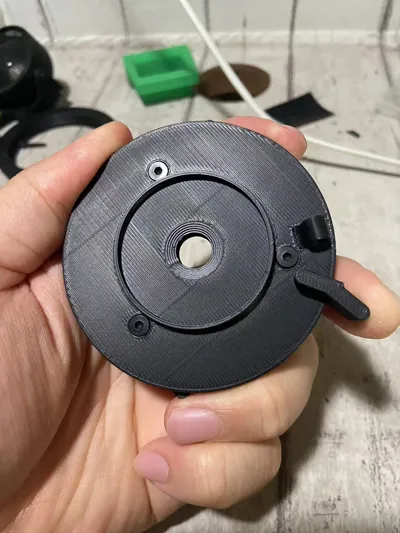

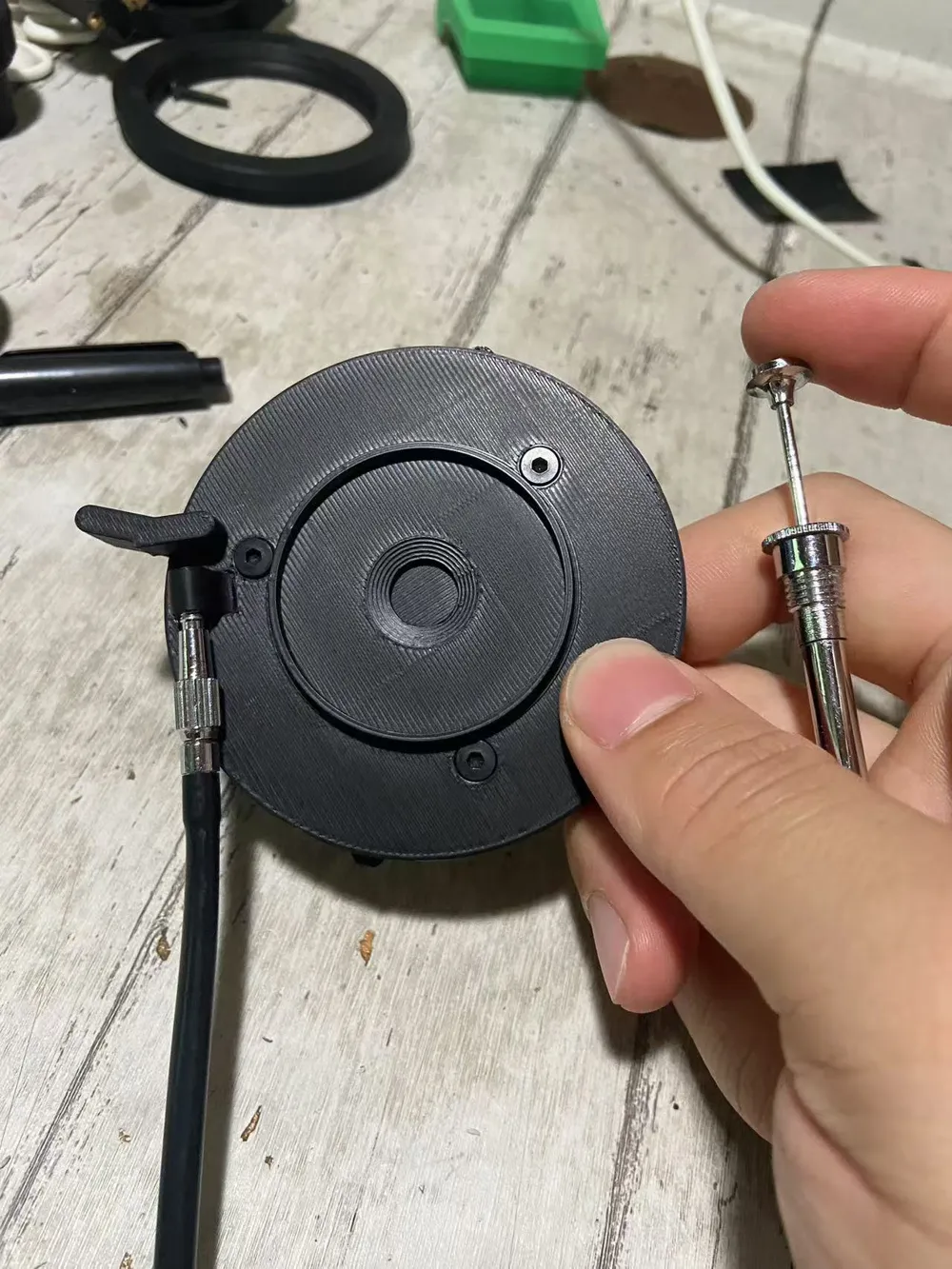

M65 Pinhole Shutter

M65 Pinhole Camera Shutter; External Thread M65X1, Internal Thread M22X1

Thread model print layer height 0.12 mm, others 0.24 mm

Update: Linhof lens plate version pinhole shutter

Pinhole Lens:

【闲鱼】https://m.tb.cn/h.6Ub0cSZ?tk=71TseCA5WBv CZ028 「快来捡漏【Pinhole 小孔成像片片】」
Click the link to open directly

Hardware Accessories:

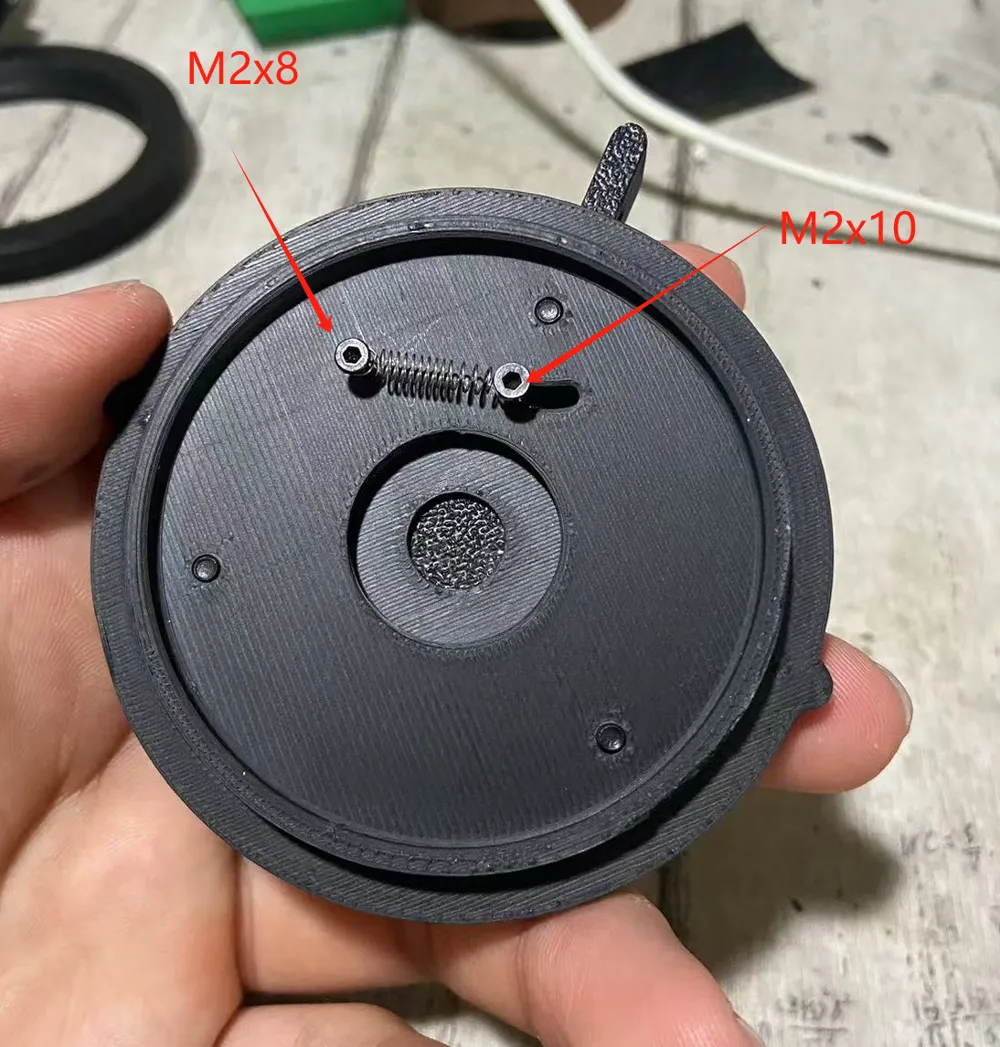

One each of M2x8 and M2x10 countersunk screws

【淘宝】假一赔四 https://e.tb.cn/h.6UR2StU7wLUWko6?tk=edfveCA6JYv MF287 「12.9级高强度沉头内六角螺丝钉平头六角螺栓螺钉M2M3M4M5M6M8-M12」
Click the link to open directly or search directly on Taobao

Three M3x8 flat head screws

【淘宝】假一赔四 https://e.tb.cn/h.6URPU9fvYls4w9l?tk=YSM8eCApK2R HU293 「黑色304不锈钢CM超薄头大平头内六角螺丝钉沉头扁平头螺栓M2-M12」
Click the link to open directly or search directly on Taobao

One 0.3x3x10 mm tension spring

【淘宝】假一赔四 https://e.tb.cn/h.6UbYw5edEnaTRyu?tk=KFpNeCAhGsi HU591 「304不锈钢拉簧拉力拉伸带钩弹簧线径0.3/0.4/0.5/0.6/0.8/1.0mm」
Click the link to open directly or search directly on Taobao

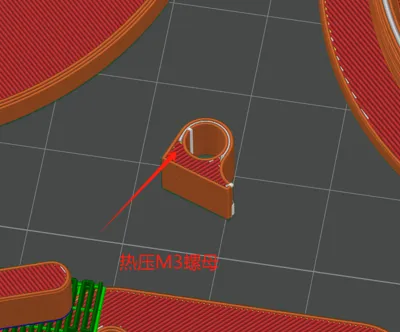

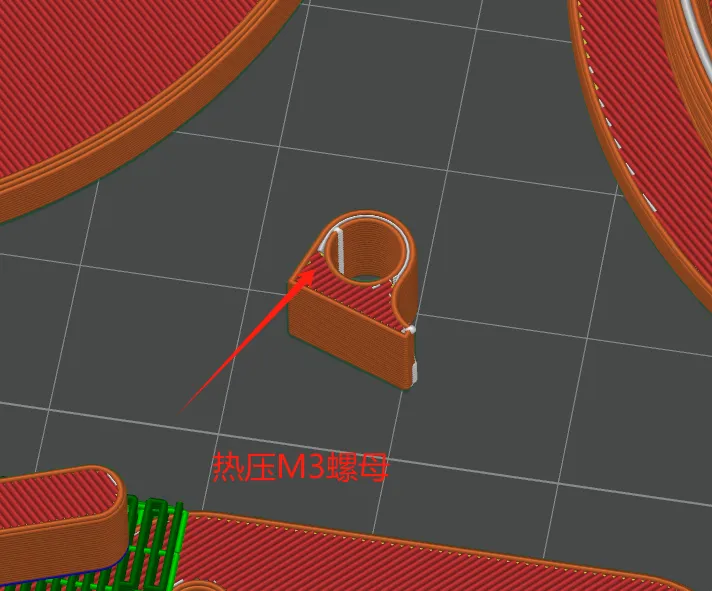

One M3x5x4.2 mm heat-set nut

【淘宝】假一赔四 https://e.tb.cn/h.6UR3Lrf4EqDZLzb?tk=WcyWeCASg1H CZ057 「热熔螺母铜嵌件滚花土八注塑螺母嵌件斜纹预埋热压螺母M3M4M5M6M8」
Click the link to open directly or search directly on Taobao
