Music Box (song of storms V1)

"Song of Storms" Whistle Music Box - Build and Play!

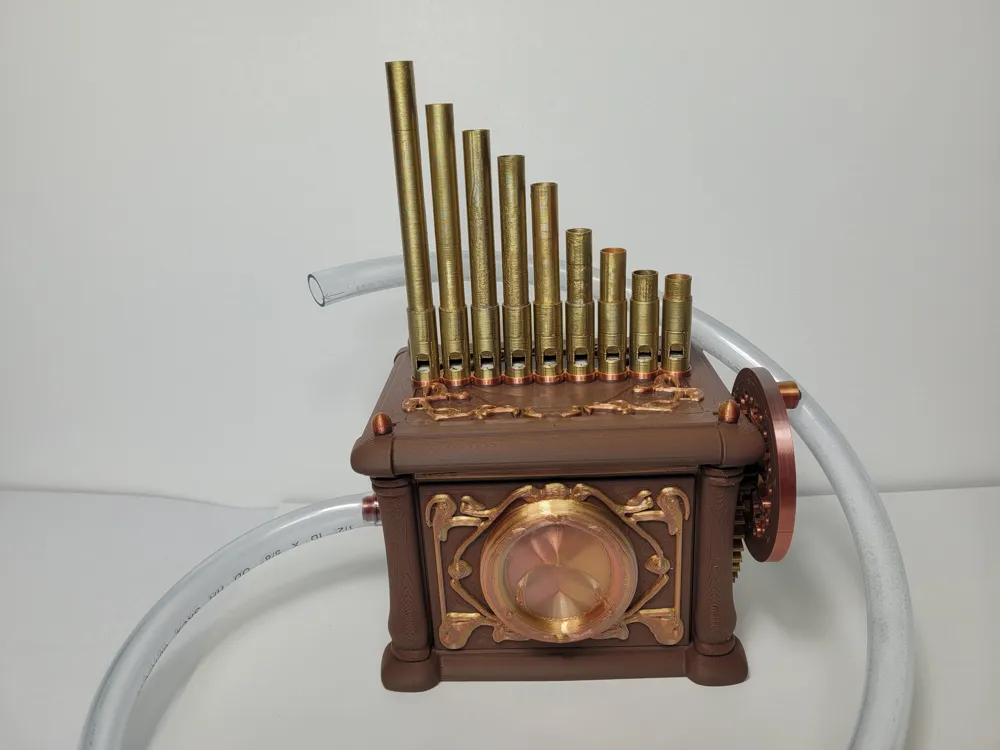

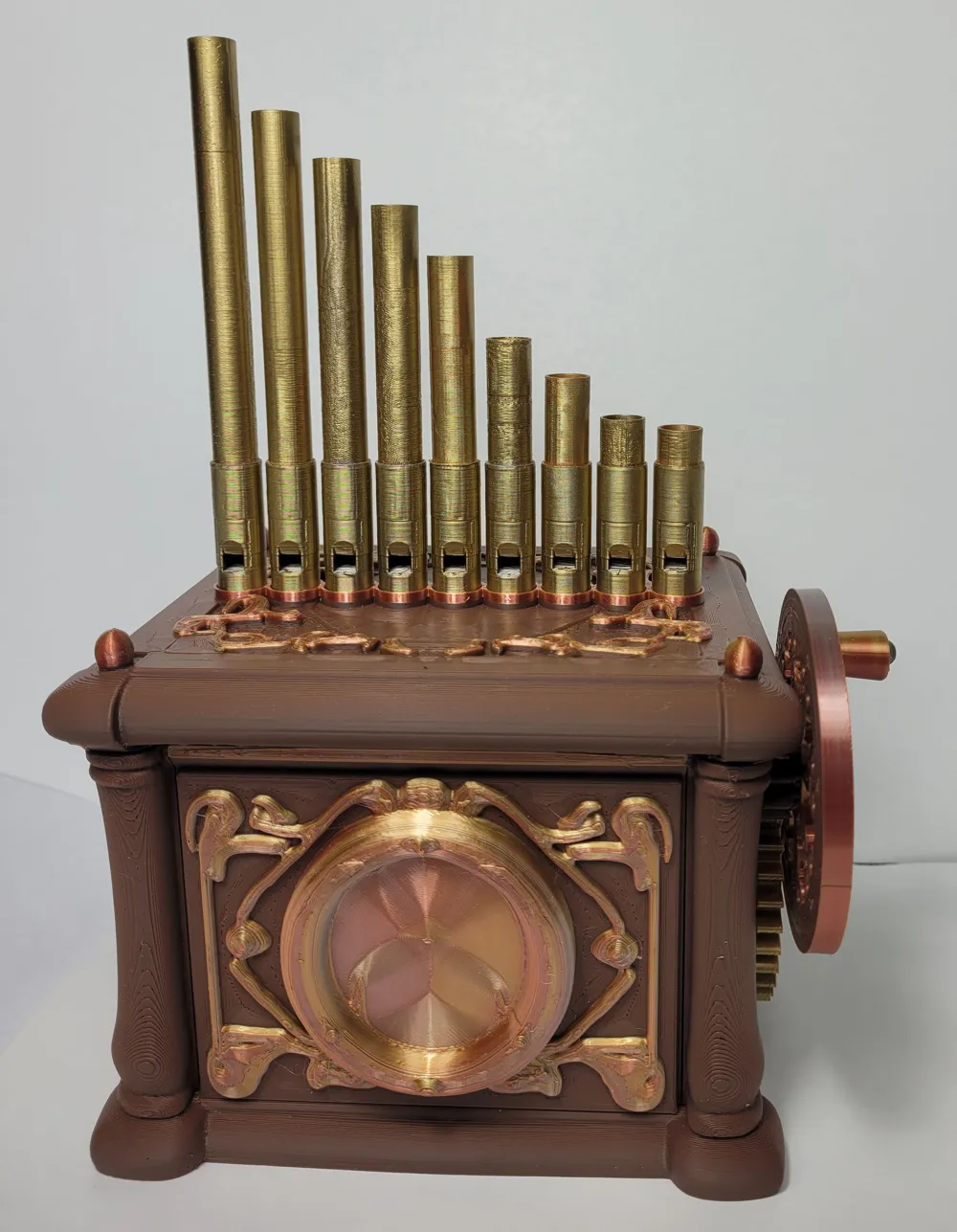

Assemble the pre-tuned whistles as pictured, connect a tube, and blow!

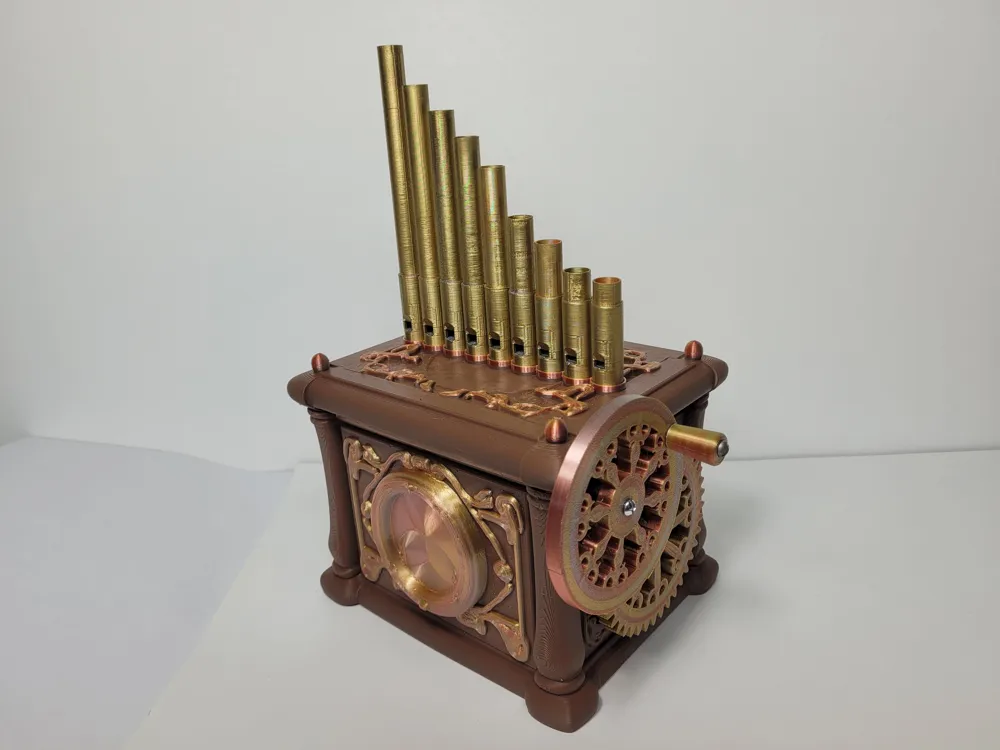

Turn the crank smoothly to play the "Song of Storms."

A tight fit between the whistles and the tube is important for sound quality. Minor sanding of the whistle interiors and/or tube exterior may be necessary due to seams.

Requires approximately 3' of ½" clear tubing and two 6-32 @ 1 ¼" machine screws (not included).

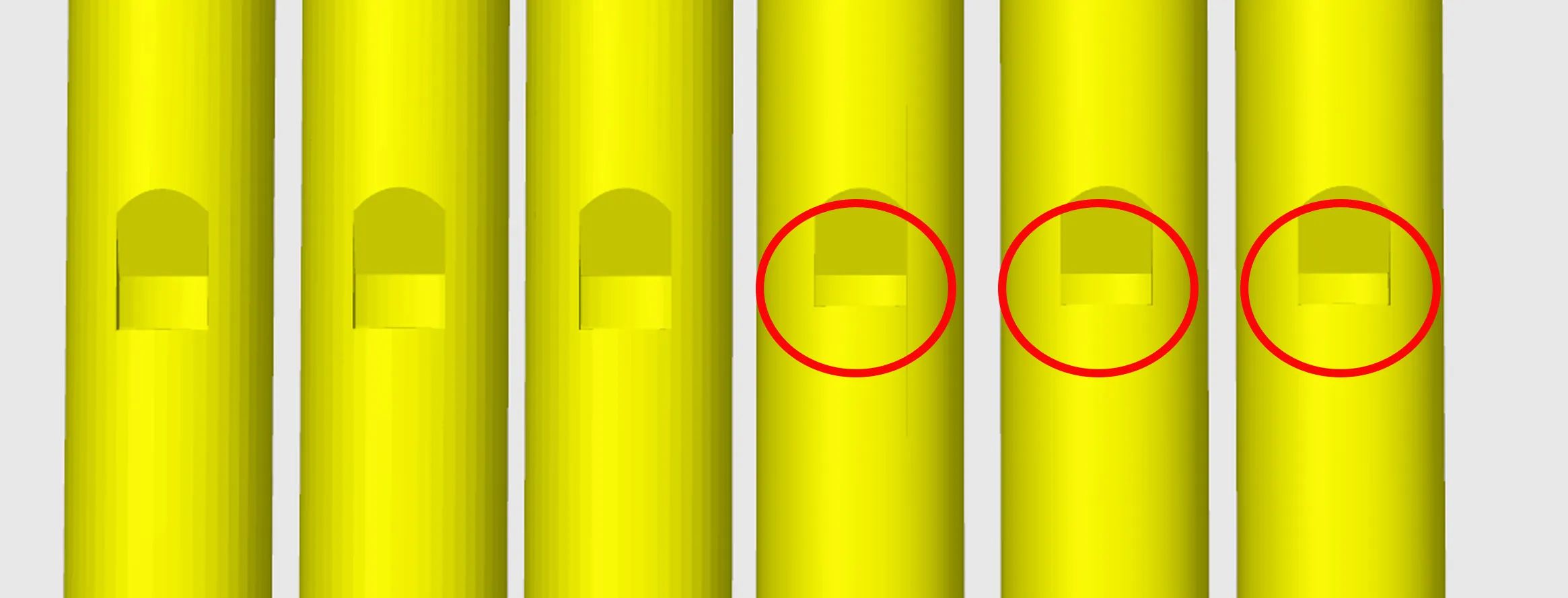

Take note during assembly, the highest(shortest tube) 3 whistles have smaller air holes. The rest are the same.

Here's a short clip of V1 functionality

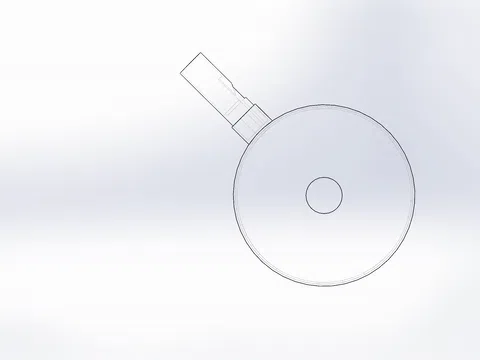

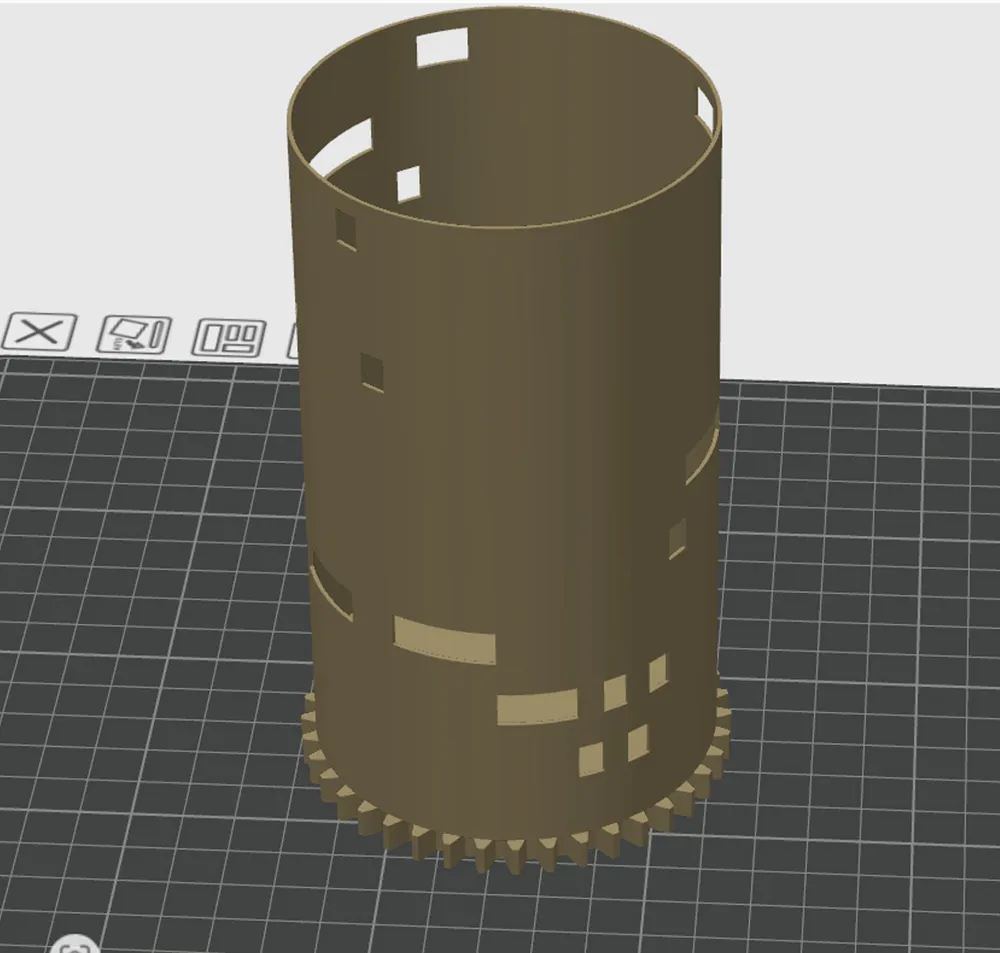

Here's an illustration of the internal workings of the rotor assembly
