Polymer Gypsum / Plaster Decor Drying Mat
Print Profile(1)
Description
Caution
This model should not be used as a mat for hot objects, especially when printed with low temperature tolerance materials like PLA.
Caution is advised even with materials that can handle more heat. There is a risk of burn, injury and damage to furniture when used incorrectly with hot objects.
About this model

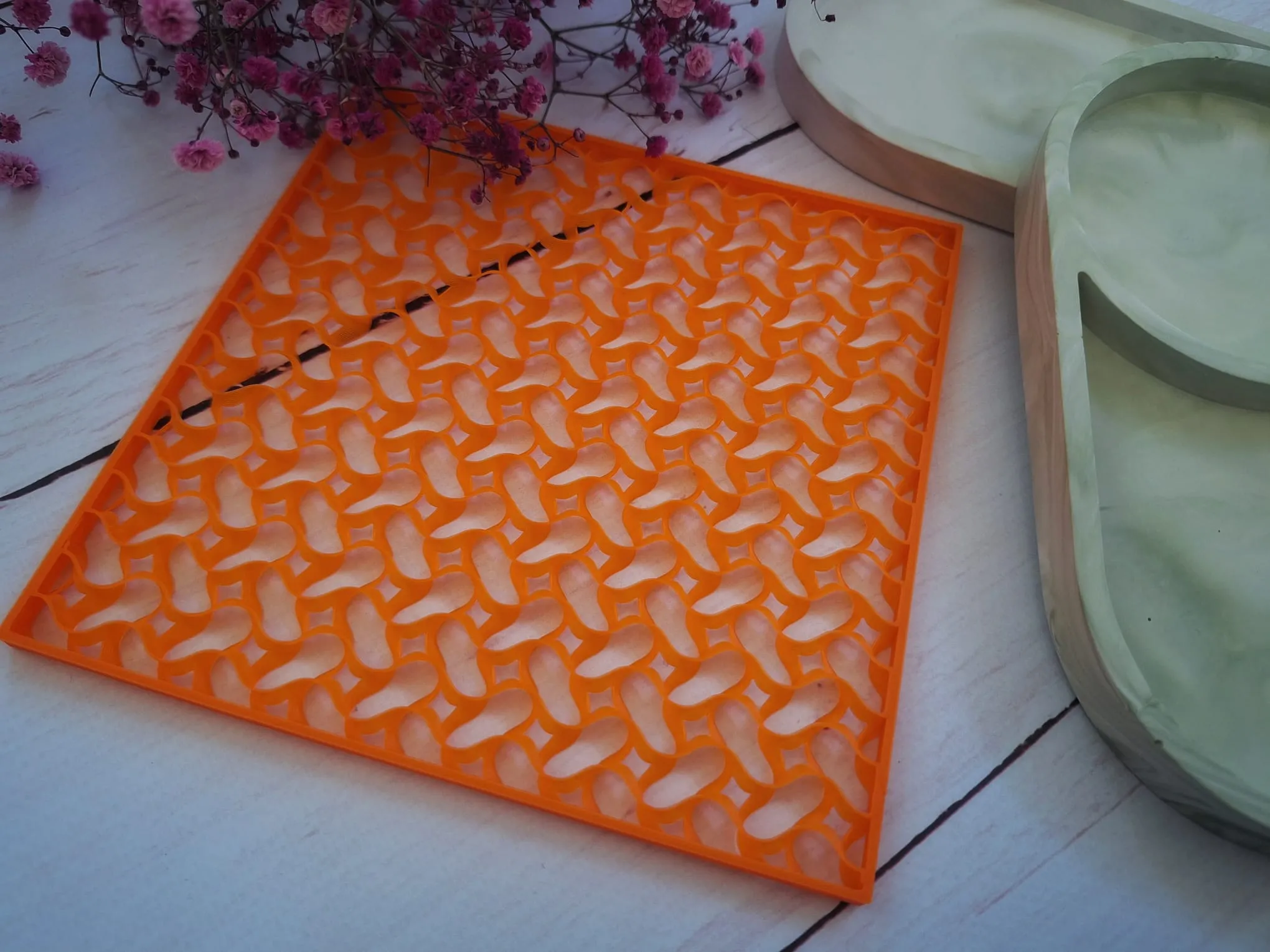

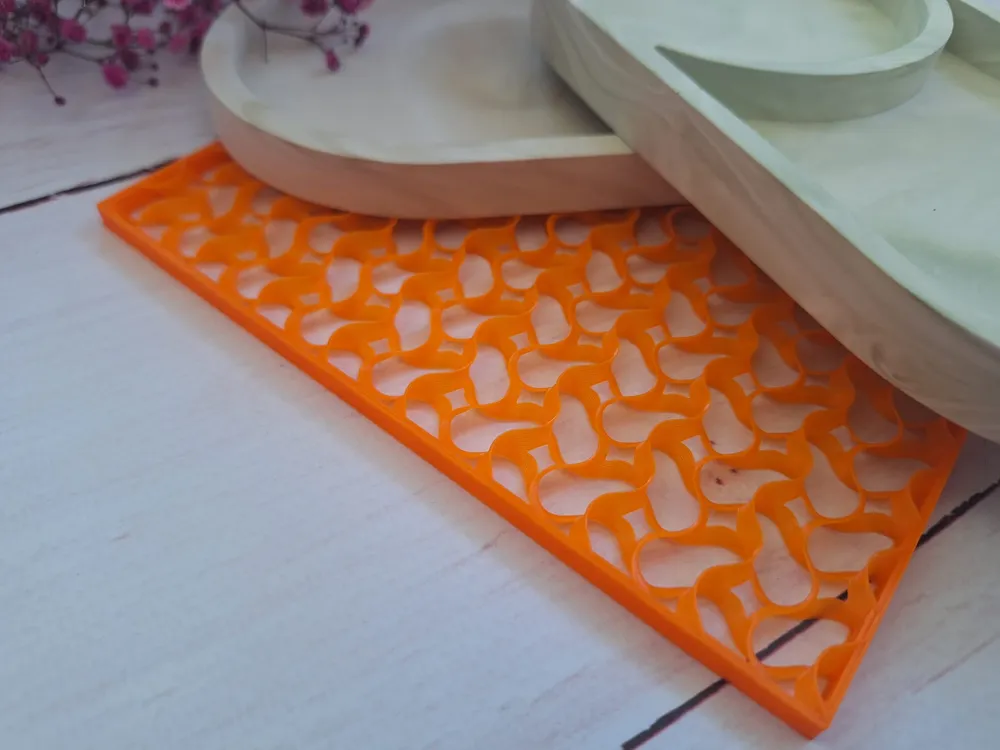

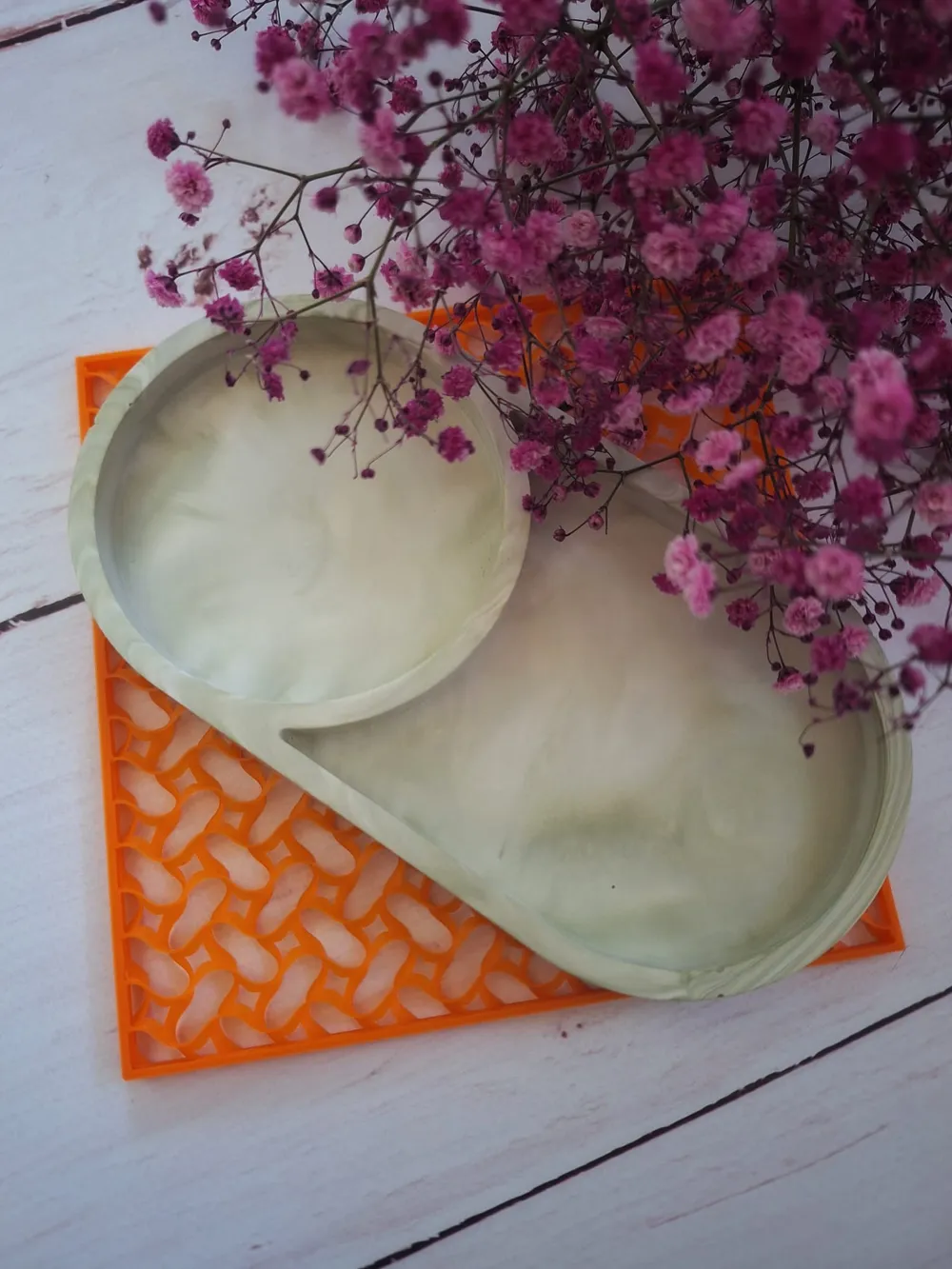

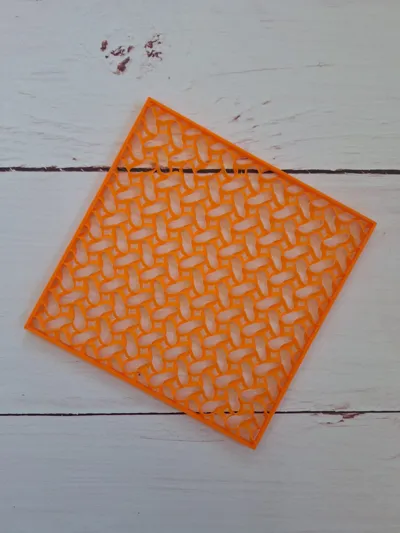

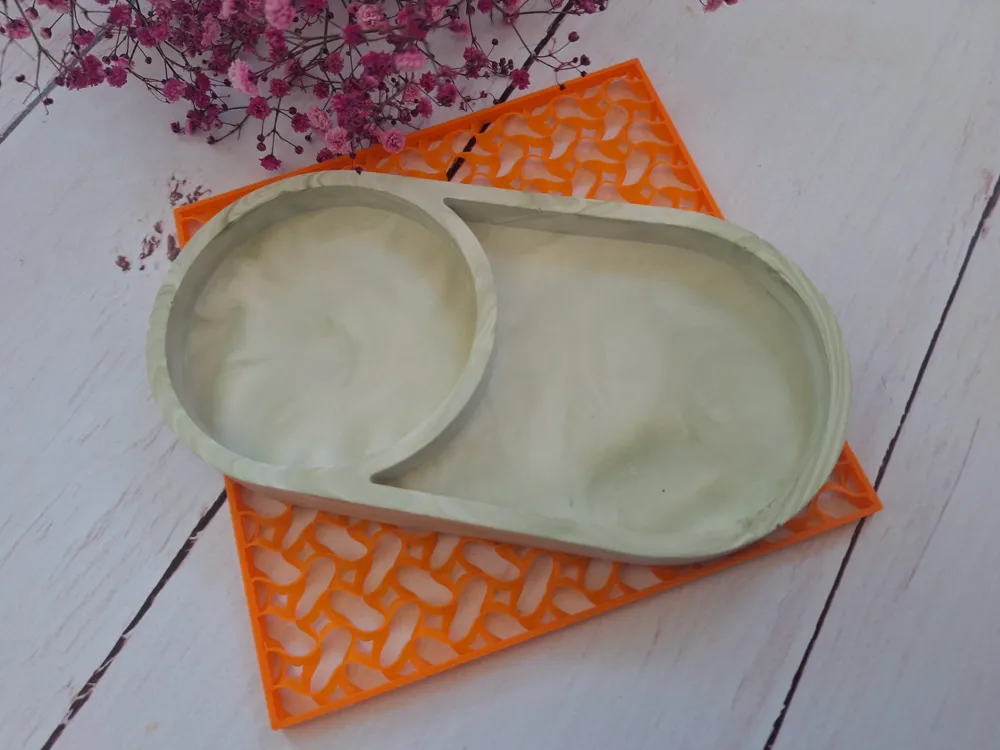

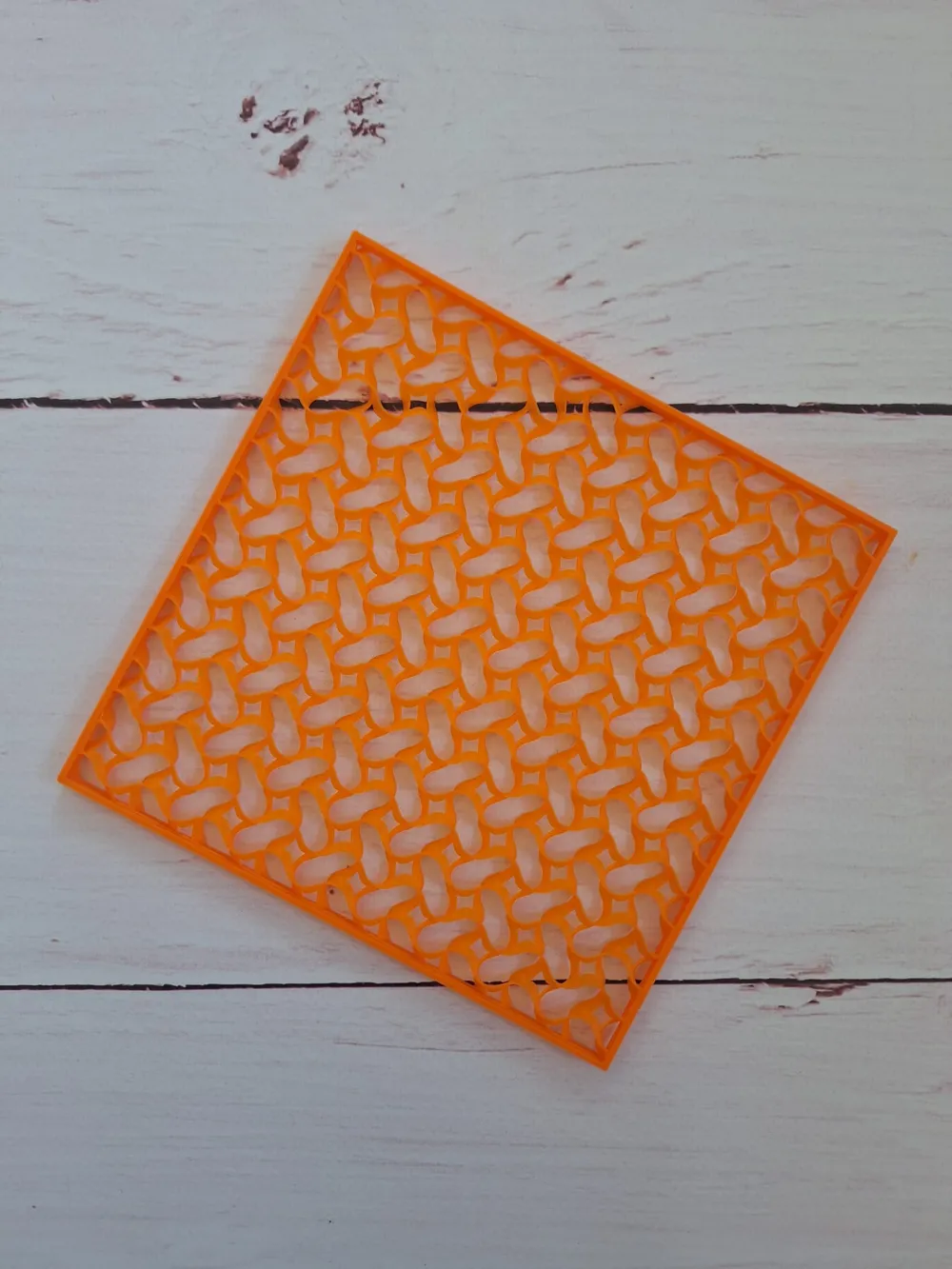

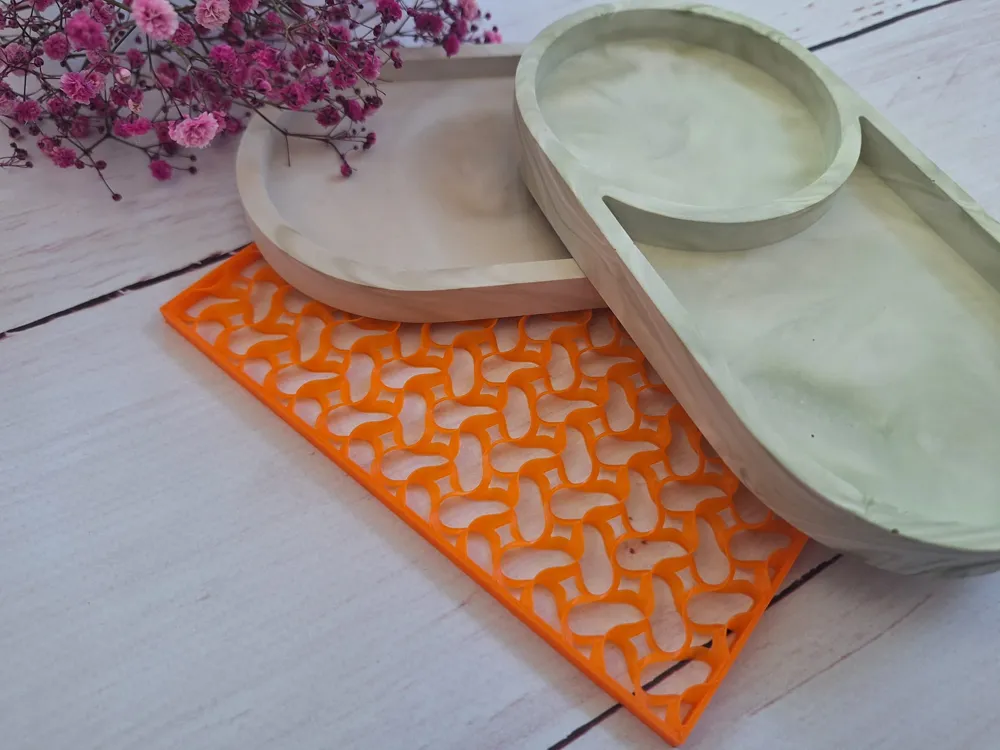

This is a model of a drying mat that can be used to provide better drying conditions to your polymer plaster / gypsum. When drying, a good air flow from the bottom allows your art to dry faster. These can be printed in multiple numbers to increase the area of the drying mat. I also recommend using paper towel underneath to gather all the moisture that shows when drying.
Filament used | Model printing time | Size |
|---|---|---|
~13g | < 17 minutes | 15cm x 15cm x 0.5cm |
Adjusted settings
The model has adjusted settings for an optimal use case. Among these changes are:
| Adjusted setting | Value | Description |
|---|---|---|
| Layer height | 0.24mm | Used for faster printing and to reduce filament waste. |
| Top/Bottom shell layers | 0 / 0 | Since we want to expose top and bottom for an airflow, these shell layers are removed. |
| Infill Type | Gyroid | Gyroid seems to be the best looking infill type with good stability/printing speed ratio. |
| Infill % | 6% | Low infill % allows for better airflow while reducing filament use. |
| Size | 15cm x 15cm x 0.5cm | Adjusted for A1 Mini printing bed, can be scaled up for bigger printers. |
Feel free to customize your experience with different patterns/infill % - just remember that since there is no bottom/top layers, it has to stay connected to the side walls, e.g. do not use “concentric”. Otherwise you will have trouble getting it of the plate and/or it will be unusable.
