ski vise
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
8.1 h
2 plates
0.2mm layer, 2 walls, 15% infill
6.8 h
2 plates
80% size to print for the a1-mini
4.2 h
2 plates
Open in Bambu Studio
Boost
235
738
42
39
688
393
Released
Description
Description
Ski vise. For working on waxing skis or fixing your skis/snowboard.
You can put your ski/snowboard vertically or horizontally on the vise.
The units of the drawing in the picture are mm.
Material
- PETG (PLA should also work) for main body, screw, and screw insert
- Note that the screw and screw insert must be printed with 100% infill.
- In the print profile, I also add a modifier in the clamp body to add more infill for clamp strength.
- TPU 95A for pads
Change log
- V1 (2023-12-23): First upload
- V1.1 (2024-02-13): Top TPU pads were upgraded
- Increased top surface friction as I found the ski tends to slide during scraping.
- Rounded edge to prevent hurting your hand when using it.

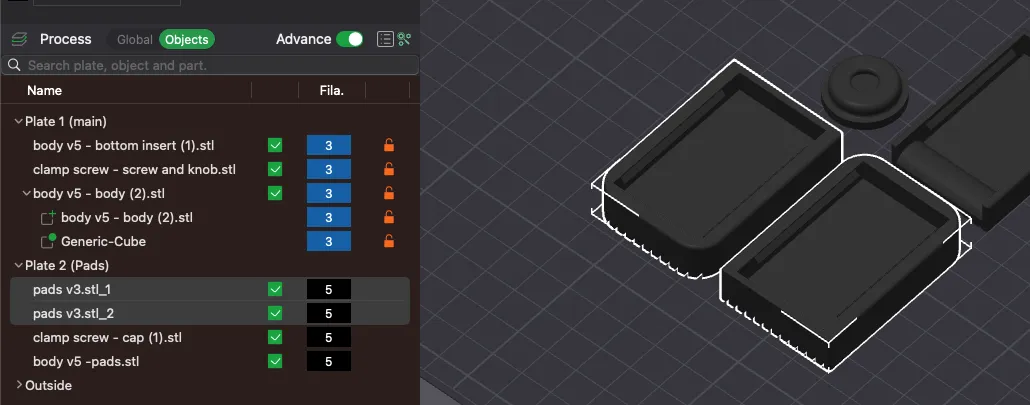

- Compatible with V1 body. (For those who have printed the V1 version, you can simply select `pads v3.stl_1` and `pads v3.stl_2` from the TPU plate in the print profile. Remember you usually need 4 pads as one vise requires 2 pads to work.
