Speed Square 90 + 45 degree angle Scheppach PL55 - Free 3D Print Model

Search models, users, collections, and posts

Petersen012

Tools>Measure Tools

IP Report

Print Profile(1)

All

P1P

H2D Pro

X1 Carbon

H2C

H2S

H2D

X1E

P1S

P2S

X2D

A2L

0.24mm layer, 2 walls, 15% infill

Designer

1.5 h

1 plate

4.7(10)

Open in Bambu Studio

Boost

203

224

113

Released

Description

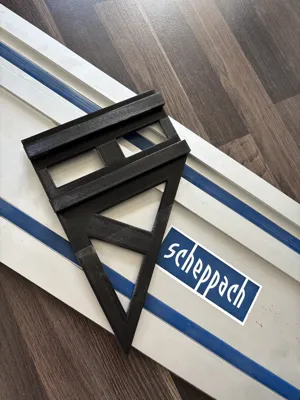

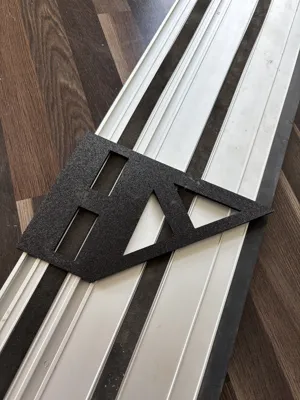

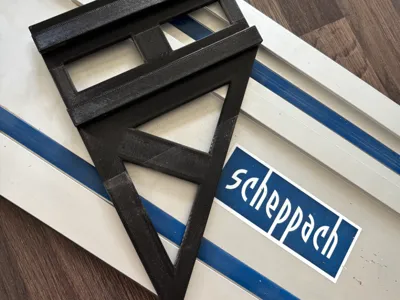

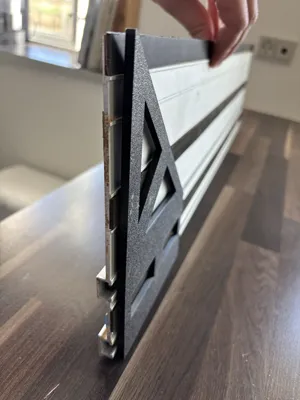

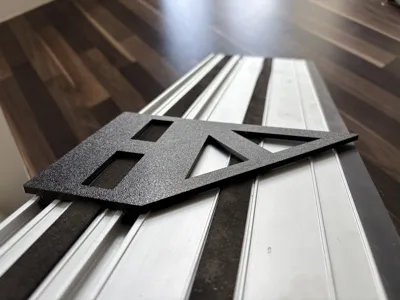

A 90 and 45 degree (speed)square for the Scheppach PL55 track/tracksaw. The square slides into the track/guiderail with a tight fit, so it can't slide away on its own, its sits securely.

Comment & Rating (23)

@malyice

bottom is not flat (if you look at sliced model - first layer is only on rectangle part), that's why people are having issue with adhesion. after auto orient and arrange in bambu studio it should work fine

The designer has replied

@Petersen012

Thanks for the feedback - I'll fix it and re-upload the model

@Petersen012

Replying to @Petersen012 :

Should be fixed now

@user_667858522

Print Profile

0.24mm layer, 2 walls, 15% infill

it worked well but three attempts failed fourth time worked maybe because I am a beginner in 3D printing

Show original

@user_2932188441

Print Profile

0.24mm layer, 2 walls, 15% infill

@user_2363812550

Boosted

Print Profile

0.24mm layer, 2 walls, 15% infill

Bed Adhesion Issue:failed twice for me using bambu labs PLA. I don't think the bottom on the model is completely flat and so only adheres on 30% of the model. the rest slowly bends up during printing

The profile uploader has replied

@Petersen012

Sounds like you have adhesion issues on your bed, you could try cleaning it thoroughly and try again. The model is 100% flat, the print in the pictures is printed with this profile. It only gets a bit crooked in use because of the tight fit in the track.

@user_2363812550

Boosted

I reprinted with 0.2mm layers (strength profile) and it finished without issue. Very tight fit in the track, which is great, will knock the edges down with sandpaper. I wonder if the issue is the 0.24mm profile and the bambu labs PLA. Moght be worth changing up the profile for print reliability? I have not had adhesion issues so far, the plate is clean and only a few months old.

(Edited)

@Flior

I have the same issue 😕

Show original

@Dub_Sidious

As others have printed put, the "bottom" is not flat. Fantastic idea but 2 failed prints before i realised it isnt completely flat.

The designer has replied

@Petersen012

Thanks for the feedback - I'll fix it and re-upload the model

@Petersen012

Replying to @Petersen012 :

Should be fixed now

@doomron

Boosted

Just what I was looking for. Thanks

The designer has replied

@Petersen012

Thank you very much for the boost and your feedback!

@user_1453116341

Print Profile

0.24mm layer, 2 walls, 15% infill

Works great. Thank You.

@doomron

Boosted

Print Profile

0.24mm layer, 2 walls, 15% infill

Printed perfectly and fits my track nice and tight

@lankygibbon

I have also had the same issue whereby the underside of the triangle bit seems to start higher than the rest of the model. I'm sure the model is flat but something strange is going on in the gcode.

@user_4233929377

Boosted

Print Profile

0.24mm layer, 2 walls, 15% infill
