Console Splitter for Toyota Sienna 2011-2020

🚗 Toyota Sienna Center Console Splitter (2011-2020) 🔧

Upgrade your minivan’s storage with this 3D-printed console divider! 🎯 No more digging through a cluttered center console—this custom-fit organizer creates neat sections for easy access to your essentials. 🛠️✨ Designed for a snug fit, hassle-free installation, and maximum functionality, it’s the perfect solution for keeping your Sienna tidy! 🏆🚀

Toyota Sienna (2011-2020) Console Splitter – Assembly Guide 🚗🔧

Overview

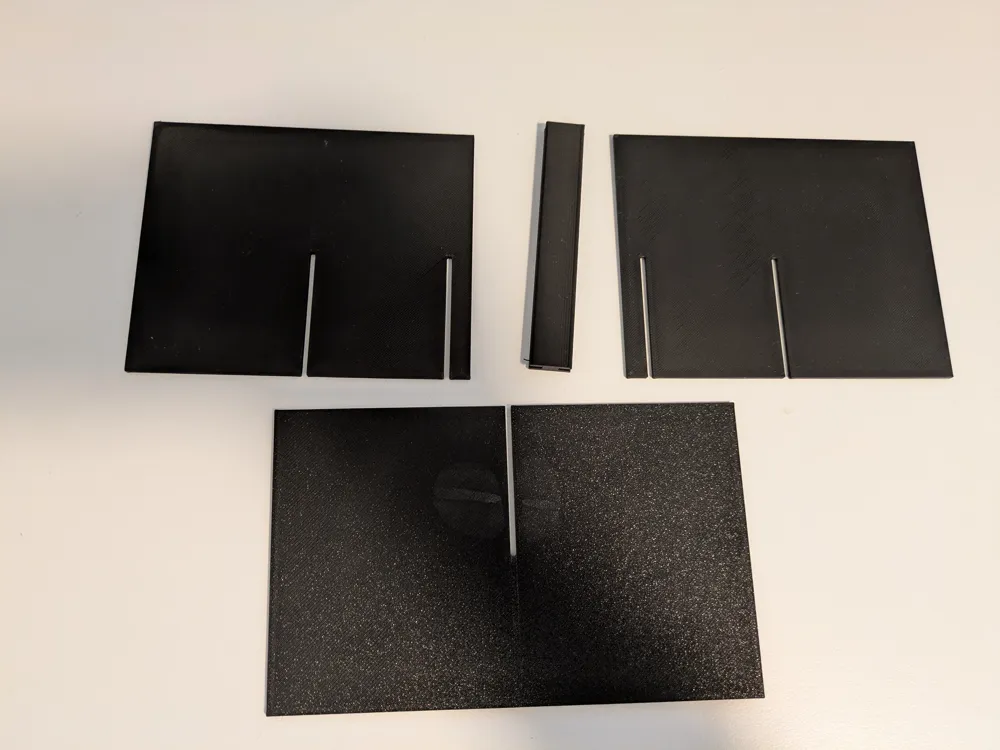

This 3D-printed console splitter transforms the large center console in your 2011-2020 Toyota Sienna into an organized storage space. The design consists of:

✅ 1 Side-to-Side Piece (2mm thick) – Spans the width of the console.
✅ 2 Front-to-Back Pieces (2mm thick, joined with a connector) – Two versions available:

• Adjustable Version: Features slots for customizable compartment sizes.
• Fixed Version: No slots for a set compartment size.
  ✅ Connector – Joins the two front-to-back pieces.
  ✅ Glue (Optional) – For extra stability if desired.

📌 Note: At least one of the front-to-back pieces must have slots to hold the side-to-side piece in place, forming a plus (+) shape for structural support.

Step-by-Step Assembly Instructions

1️⃣ Print the Parts

• Print all pieces according to your preferred configuration (adjustable or fixed compartments).
• The front-to-back piece is split into two parts to fit on any build plate.

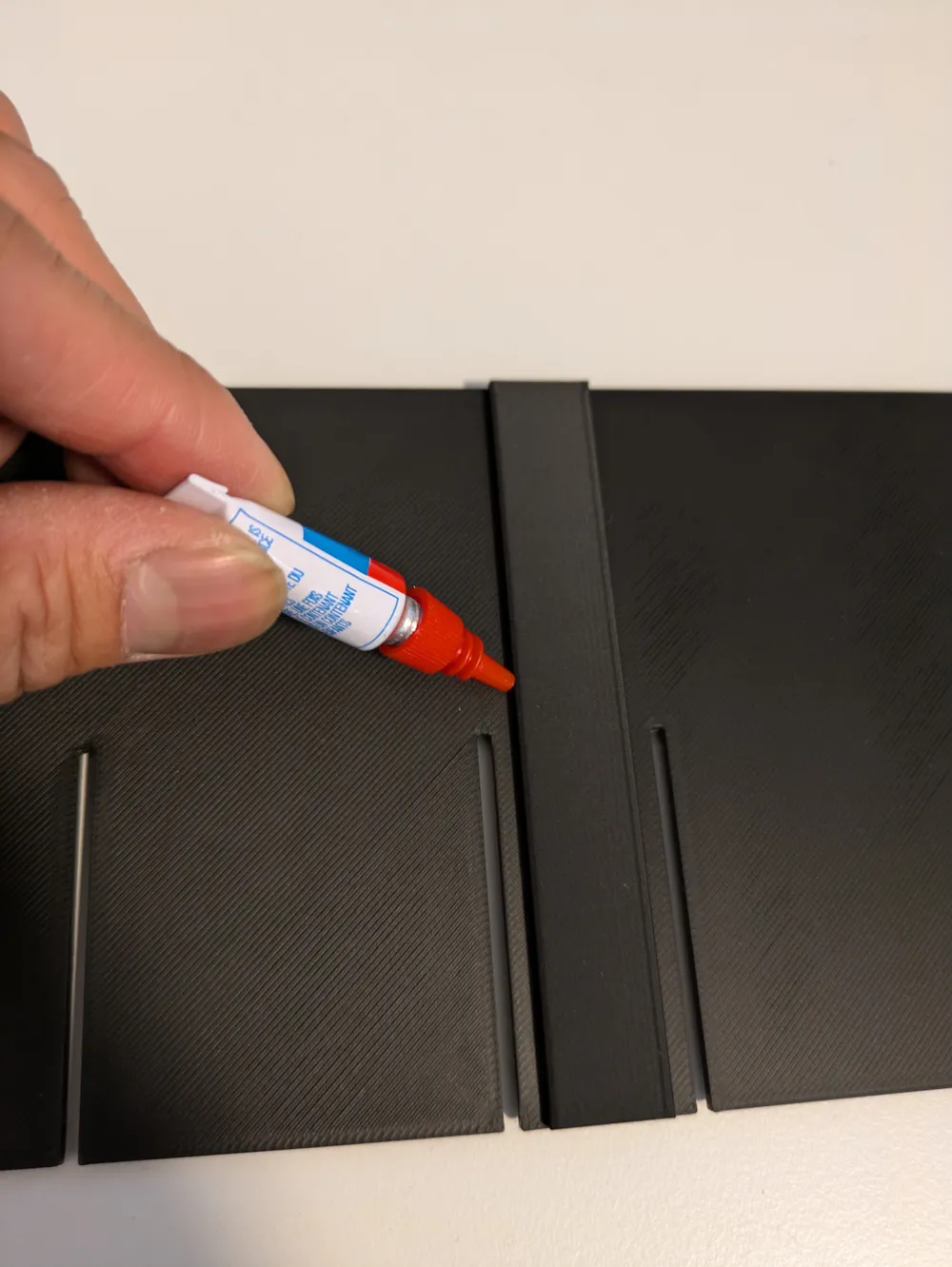

2️⃣ Connect the Front-to-Back Pieces

• Use the provided connector to join the two front-to-back pieces together.

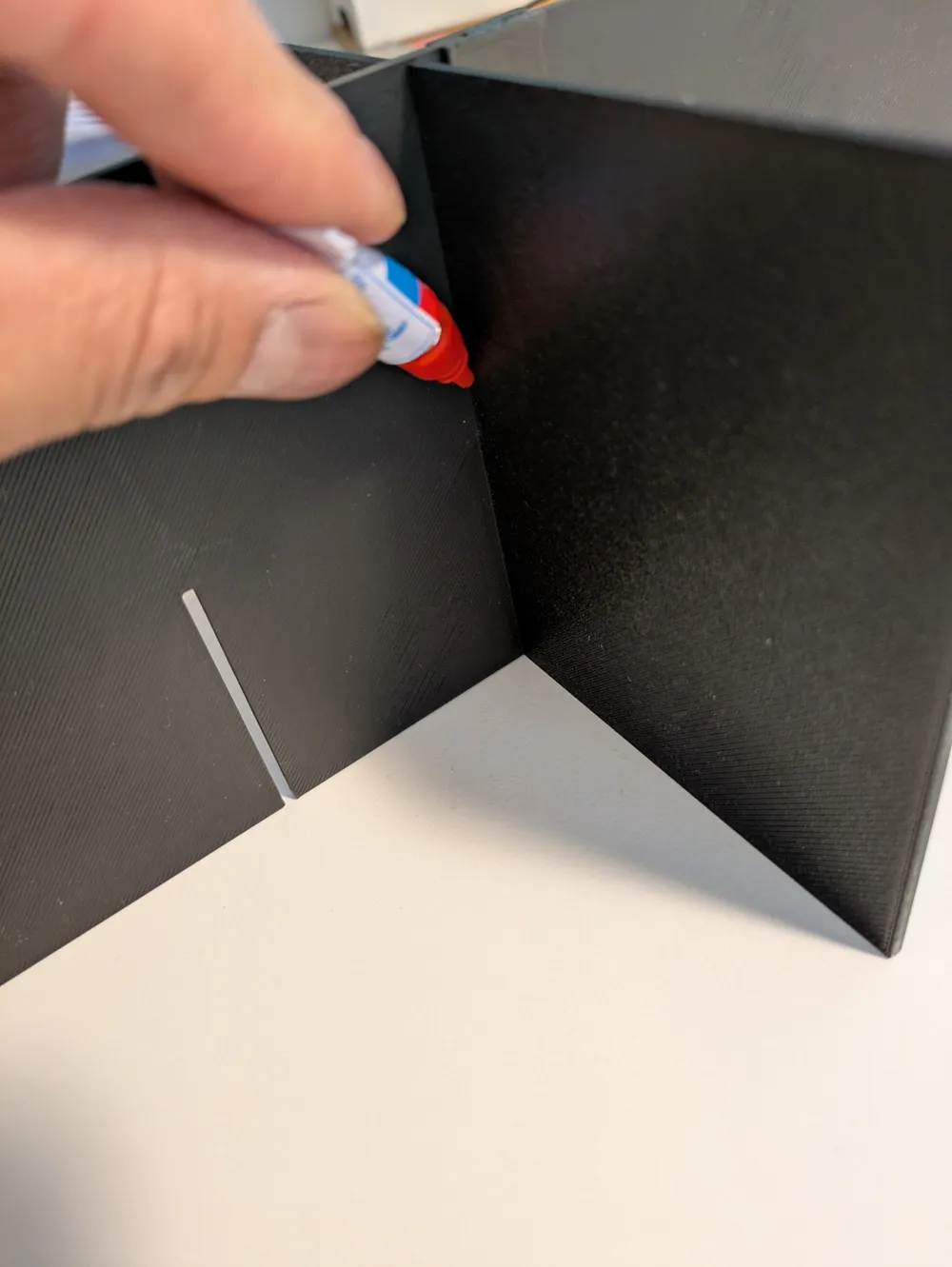

• Optional: Apply a small amount of glue for extra strength.

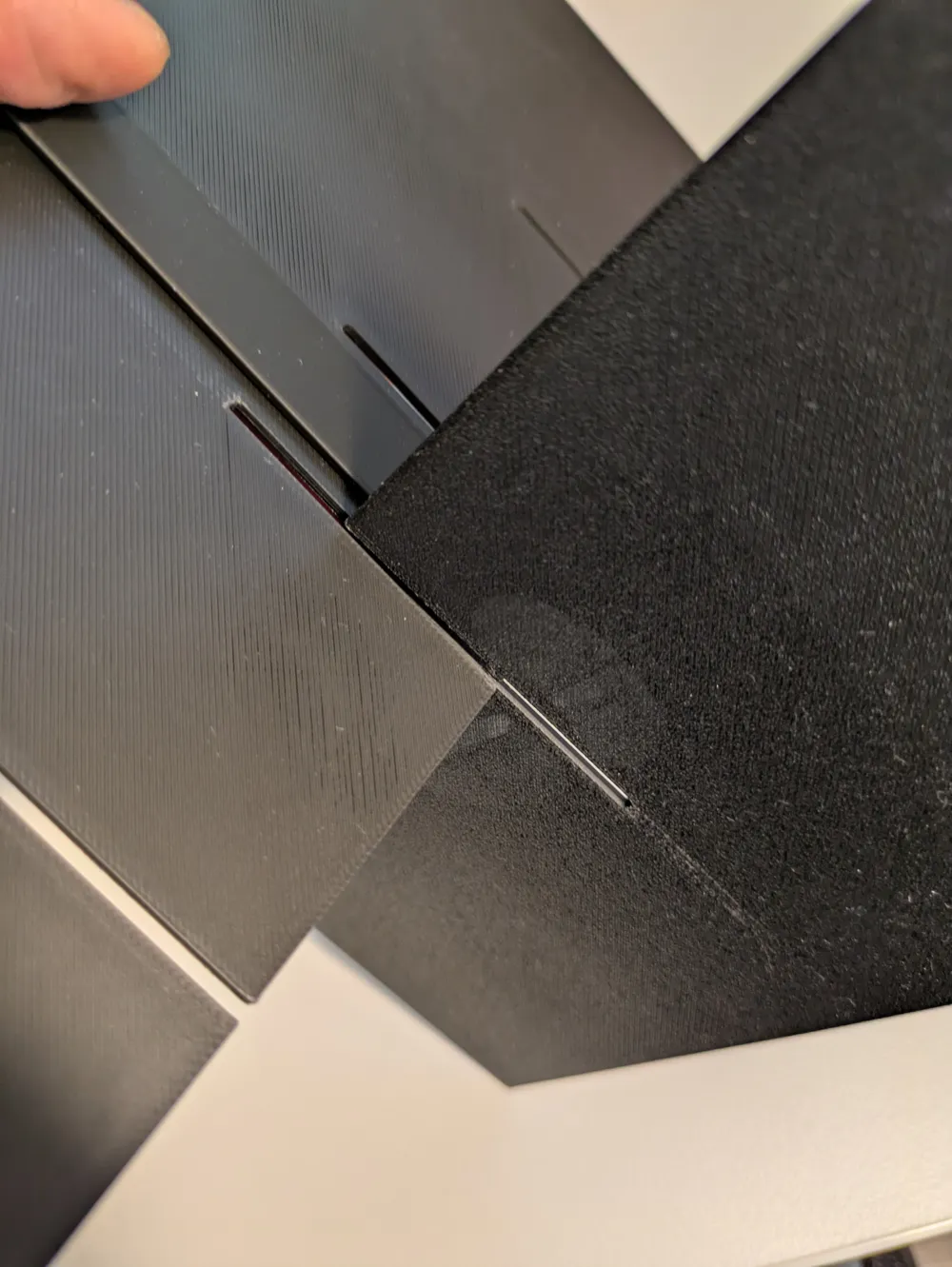

3️⃣ Insert the Side-to-Side Piece

• Slide the side-to-side piece into the slots of the front-to-back piece to lock everything in place.
• If using the fixed version, ensure all pieces are aligned properly.

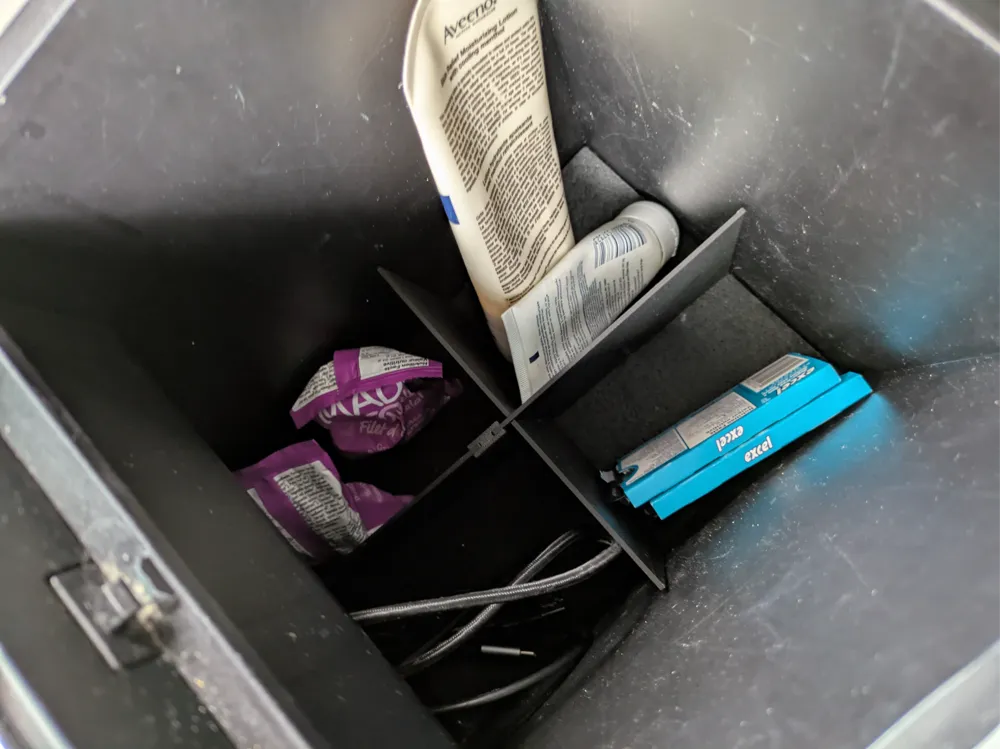

4️⃣ Place the Assembled Splitter in the Console

• Simply drop the fully assembled splitter into your Toyota Sienna’s center console.
• Adjust as needed for a snug fit.

5️⃣ Organize Your Console! 🎉

• Start using your newly organized storage space to keep your essentials neatly arranged.

Additional Tips

✅ If you prefer a stronger hold, use double-sided tape or small adhesive strips at the base.
✅ Want to customize the compartments? Use the adjustable version for flexible storage solutions.
✅ If you need extra durability, consider printing in PETG or ABS for heat resistance.

Enjoy your newly organized Toyota Sienna console! 🚗✨
