Armless square servo horn MG90S
Print Profile(2)
Bill of Materials
Description

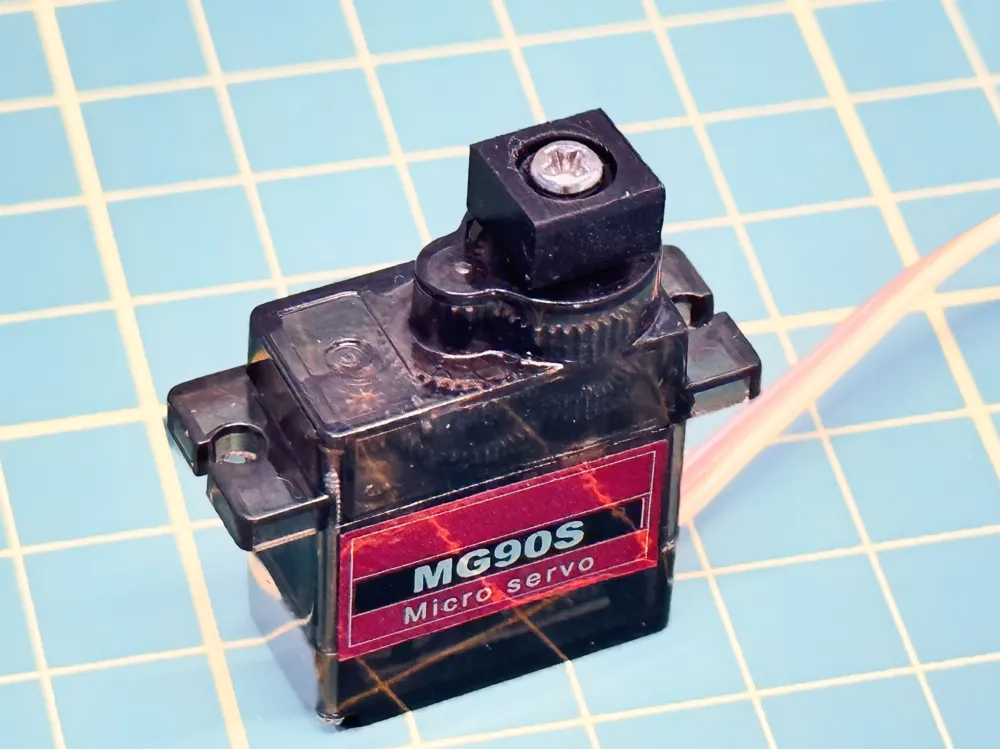

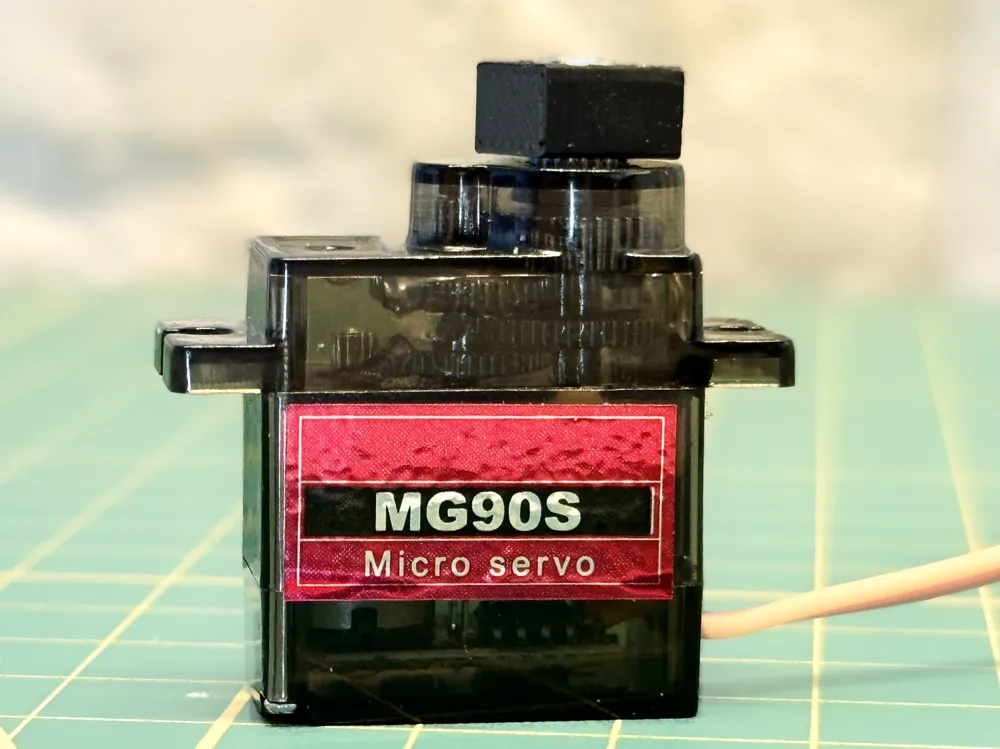

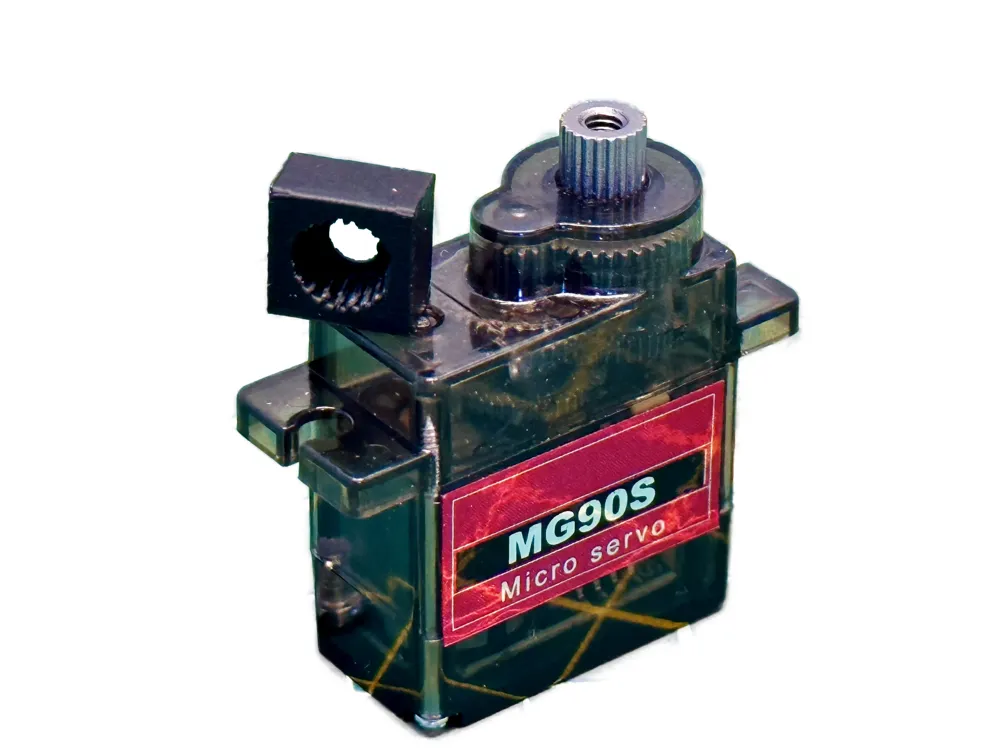

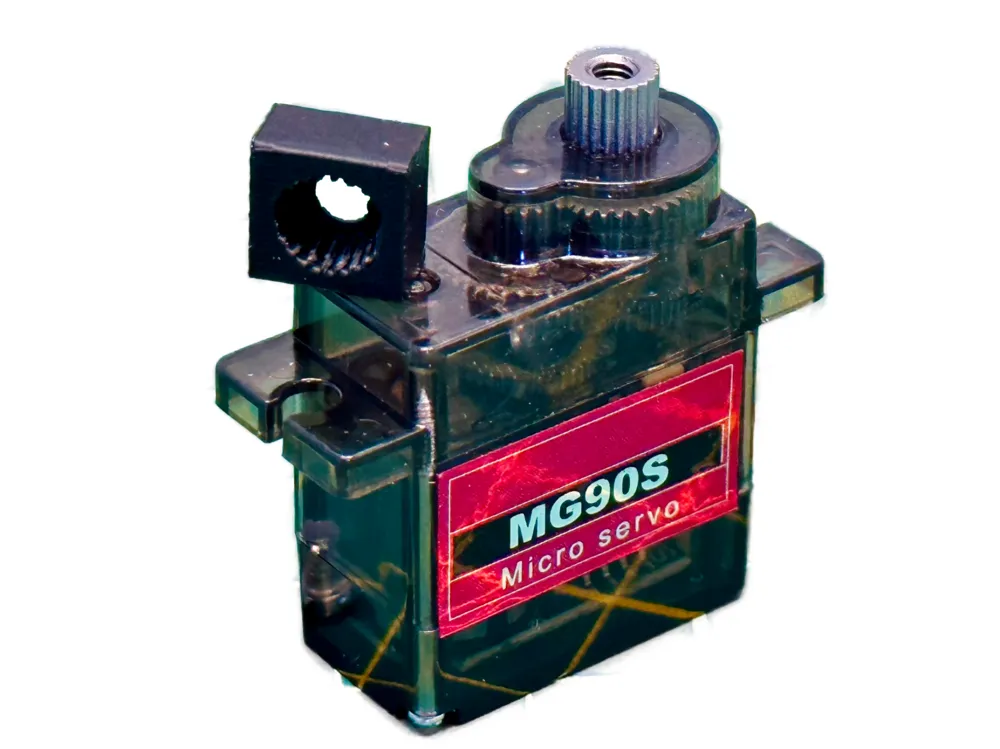

A square, armless horn for the MG90S servo with a hole for the included bolt for additional fixation.

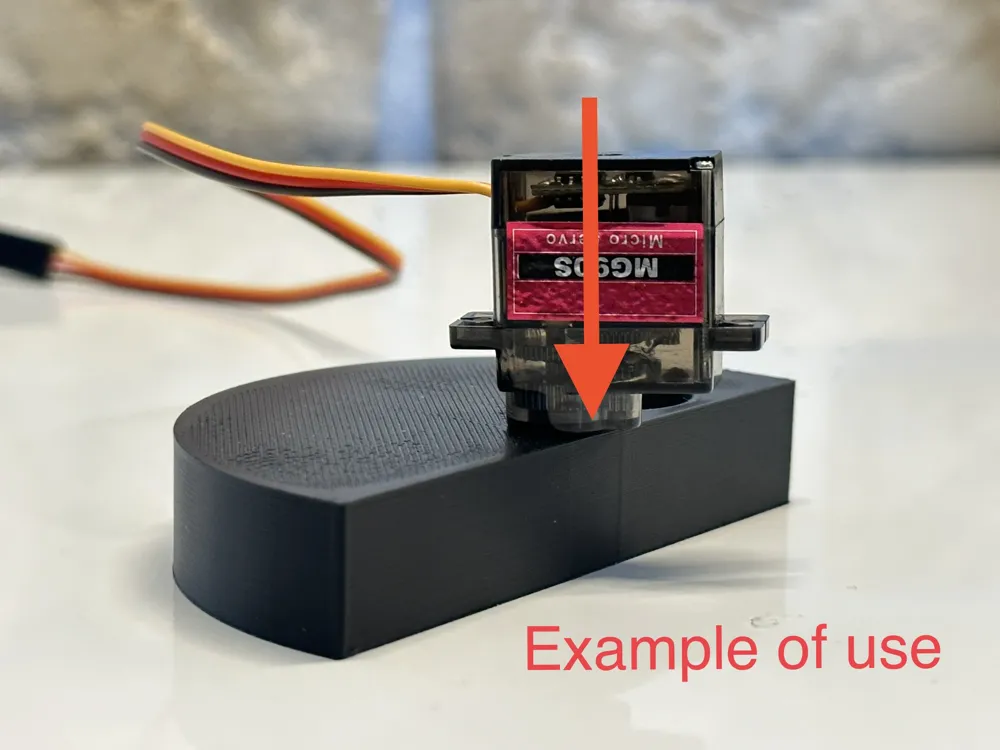

It is designed to easily connect this servo to an existing 3D object — just cut out an 8x8x4.8mm block from the object (plus a small gap on each side)

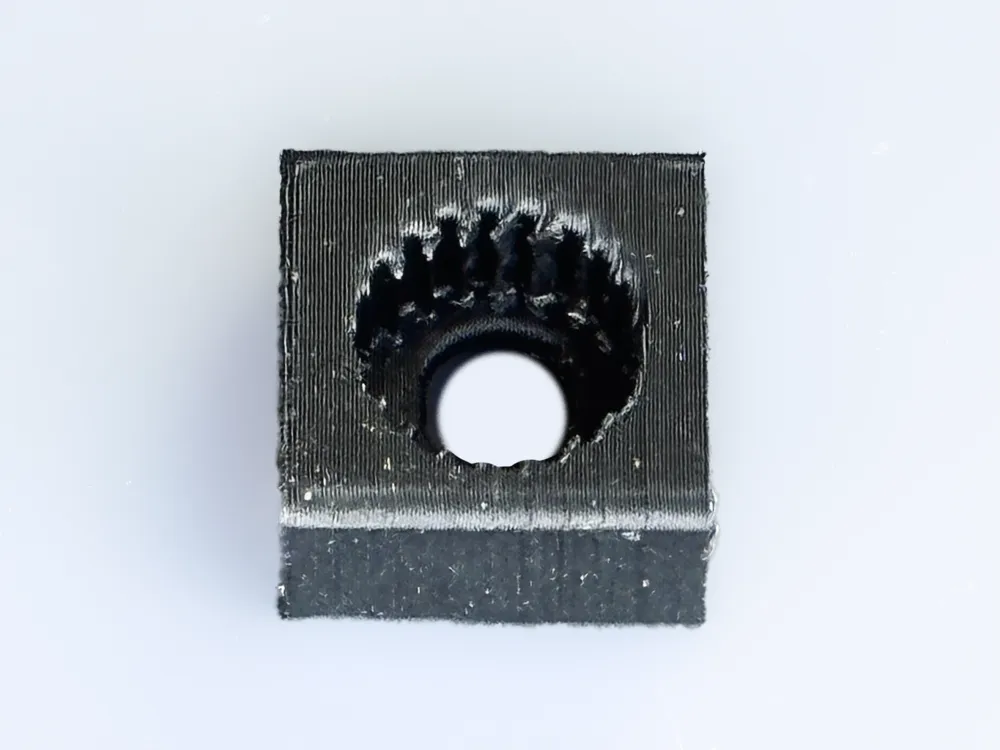

The part should be printed standing up to improve the quality of the gear connectors, with a layer height of 0.02 mm
Tell me in the comments what other versions of this model you would like, I will implement them for you!
