Transformers Wheeljack Autobot

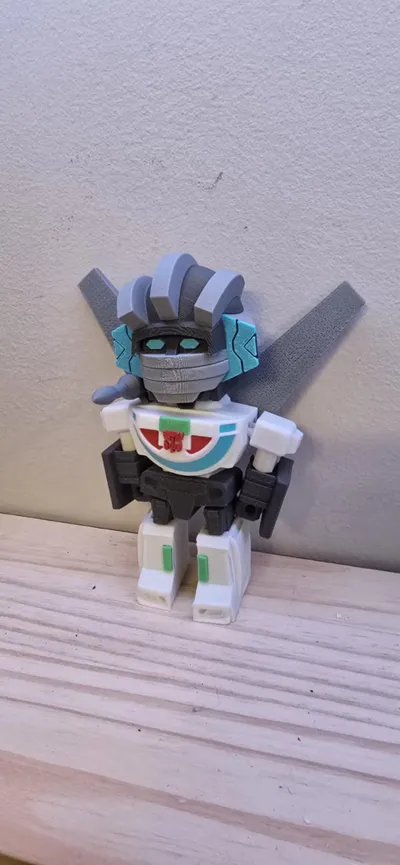

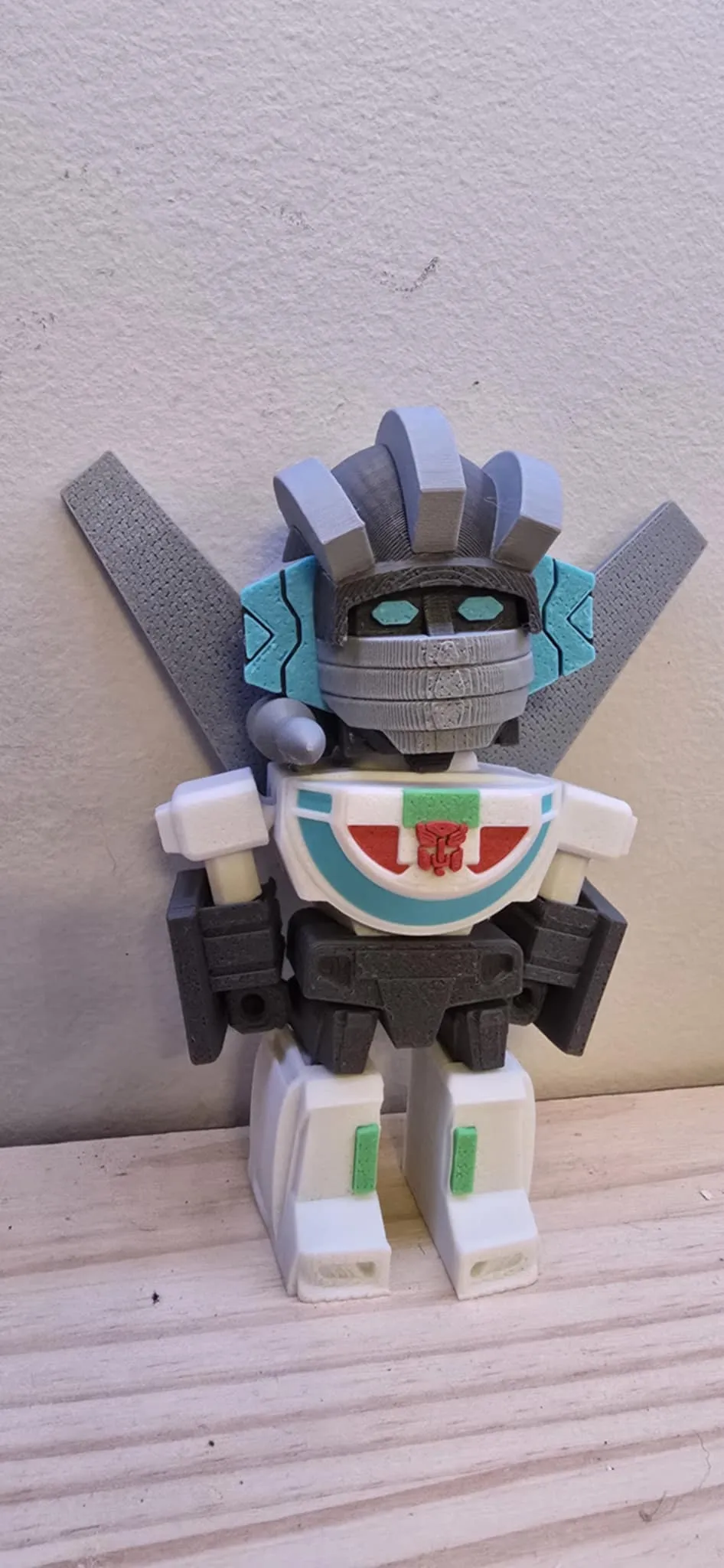

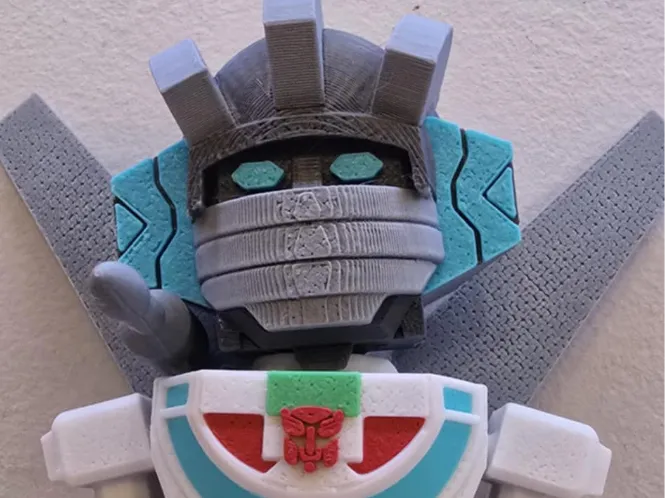

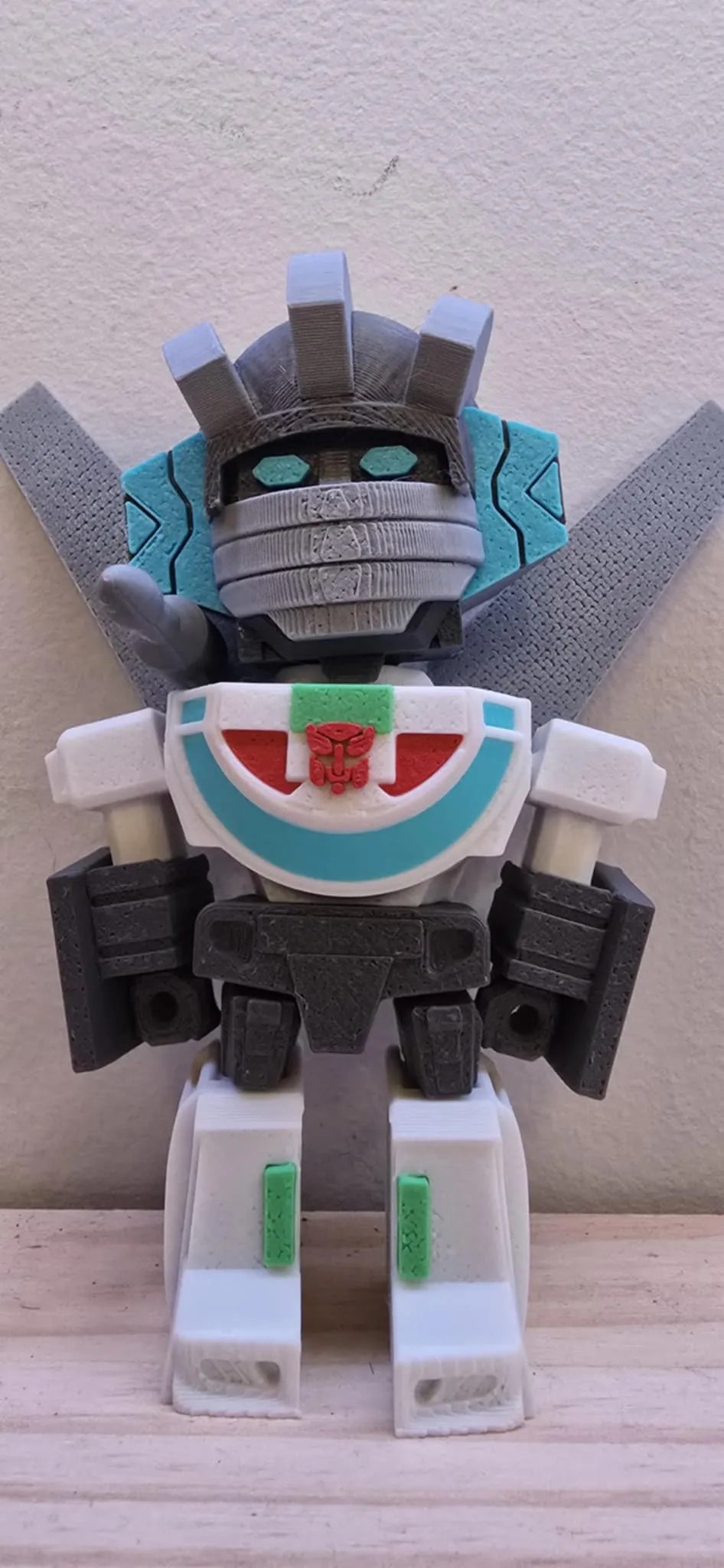

This Is Wheeljack, the Autobot's Mechanic and all around awesome Bot.

Designed style of Articulated Flexi's by HX8 (HAN).

Desiged from scratch in Tinkercad,

and similar in the way to keep up the similarity in line of the mighty

Transformers chibi's.

This is a lot of parts, but its really worth it, no doubt about it.

Again in 6 colors, buuuut, it's separated into parts so It CAN be printed on a 4 color printer. with some glue.. Just a little tho.

Its the little squeezey in parts that suck, And this one need a bit of glue. Did I say that?

Plate 1.

This is the main body of the figure, and should be straight forward, be sure to adjust your purge volumes if you decide to flush to infill.  Its a long print, 11 or more hours, so buckle up. I made 5 at a time and added some objects to flush into, just to reduce the purge waste. It was around 24 hours.

( If you have printed some of these designs I have, You will be happy to know…  No squeeazy in eyes in this guy.. LOL)

Light Blue

Dark Gray ( I made some with black too, but the dark grey is better)

Ash Grey

and White

Plate 2.  The clip in wings for the back and the shoulder cannon laser or whatever,, The Gun.

Also ash grey

Plate 3.

The chest plate.. This is the glue in part.. I tried to get it to snap in, you know, and it kinda of does, but then it falls out again.. so I used glue.. two little dots of superglue, and bottom in first, and then line up the top ( It will kind of snap in as I mentioned.. ) Then set it aside to dry, Orrr, do this next part first.

Plate 4.

The little green leg thingys…  argh.. Yeah, so they have a 7 degree angle on the top, and it looks great one the screen all big and stuff… But anyway… Make sure they are the right orientation before trying to…. Slide the bottom into the track all the way, and then press it down . Make sure it is all the way to the bottom, and the angle is the right direction.. Then use your trusty usb charger ( hard plastic square) and press it in until it makes that clicky in sound.. No Glue needed, in fact, if it goes in right… just try and get it out.. I dare you  LOL..

Ok there you have it!  Wheeljack ready to build cool Autobot stuff!!

Feel free to boost me up so I can get some filament to make the rest of the team…

By the way.. I am interested in suggestions..
