18650 Powerwall trays
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 50% infill
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
12
26
5
0
69
20
Released
Description
Boost Me (for free)
Like this project? Give it a Boost and help it take off! 🚀

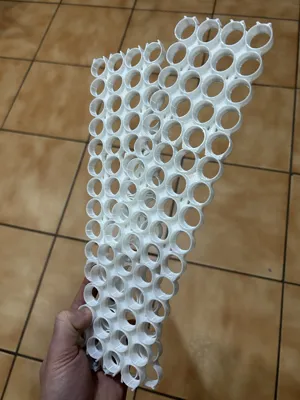

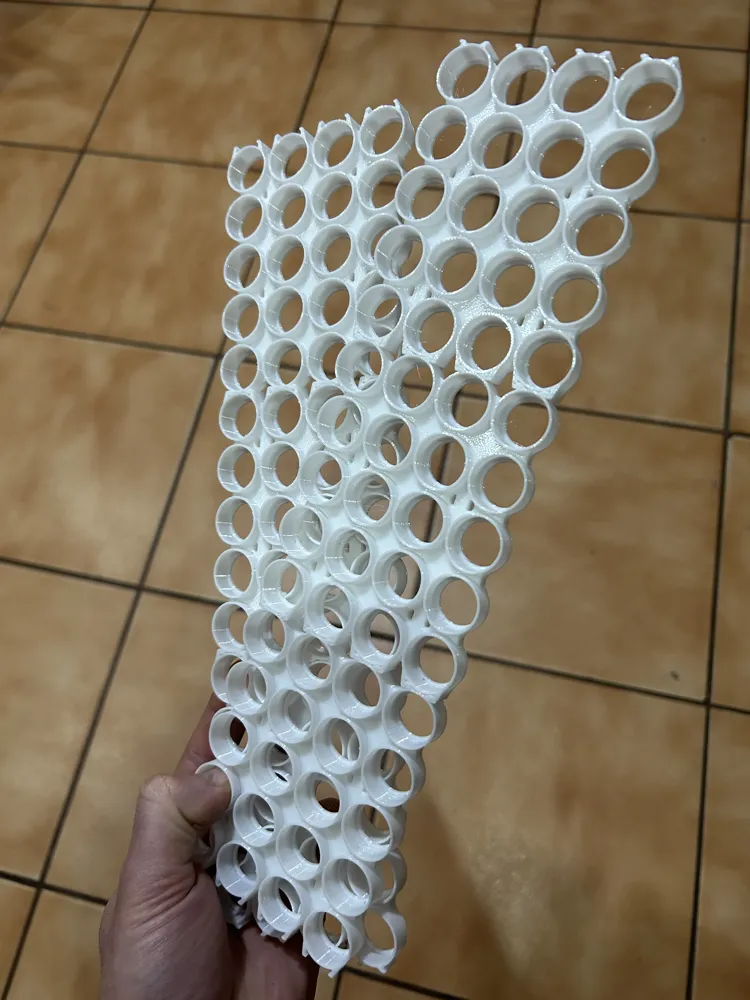

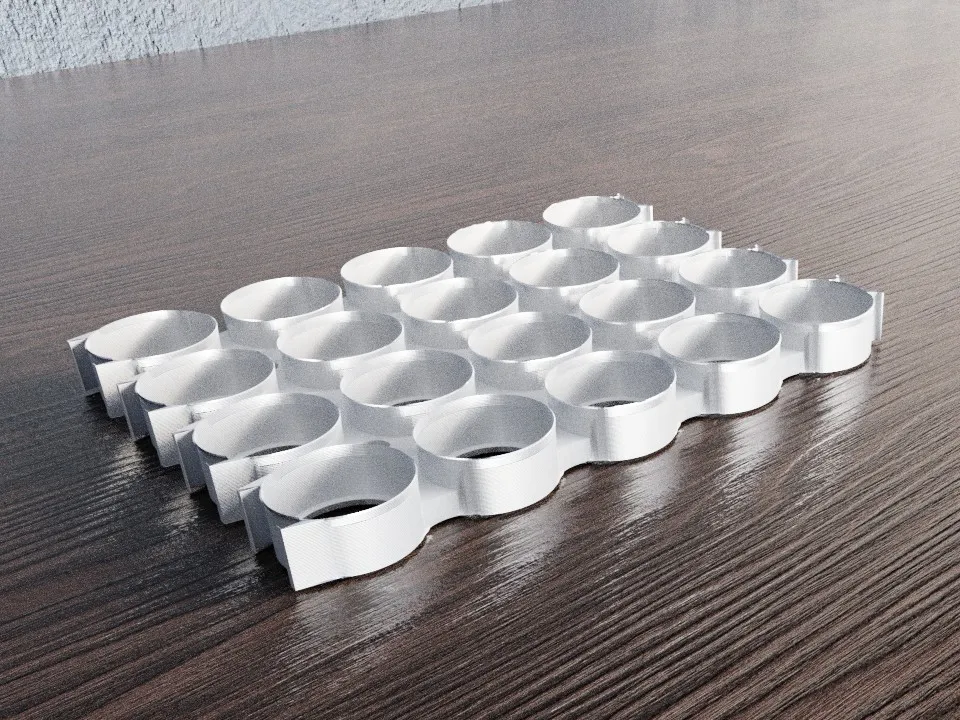

I designed these trays for my 7s60p 18650 li-ion cells powerwall. They have 20 slots and they are modular so you can make it as long as you want. I made 7 packs of 60 cells in parallel using 6 trays for each pack (3 for the front and 3 for the back). The fitment is tight, you can use some glue between trays for confidence but is not really necessary. Also i put some holes between cells to tie the busbar. Printed in PETG.
