Adjustable Photography Light

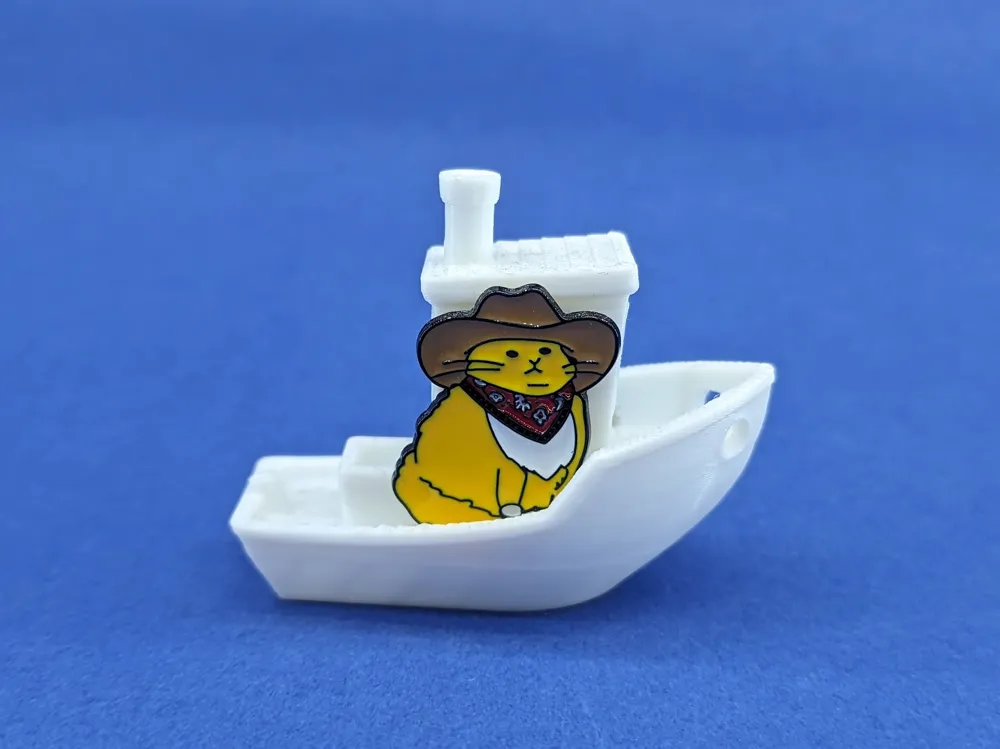

I wanted a way to better illuminate my 3D prints for photography.

I used the Bambu 6500K White LED Strip to create bands of lights that can be adjusted to illuminate the subject.

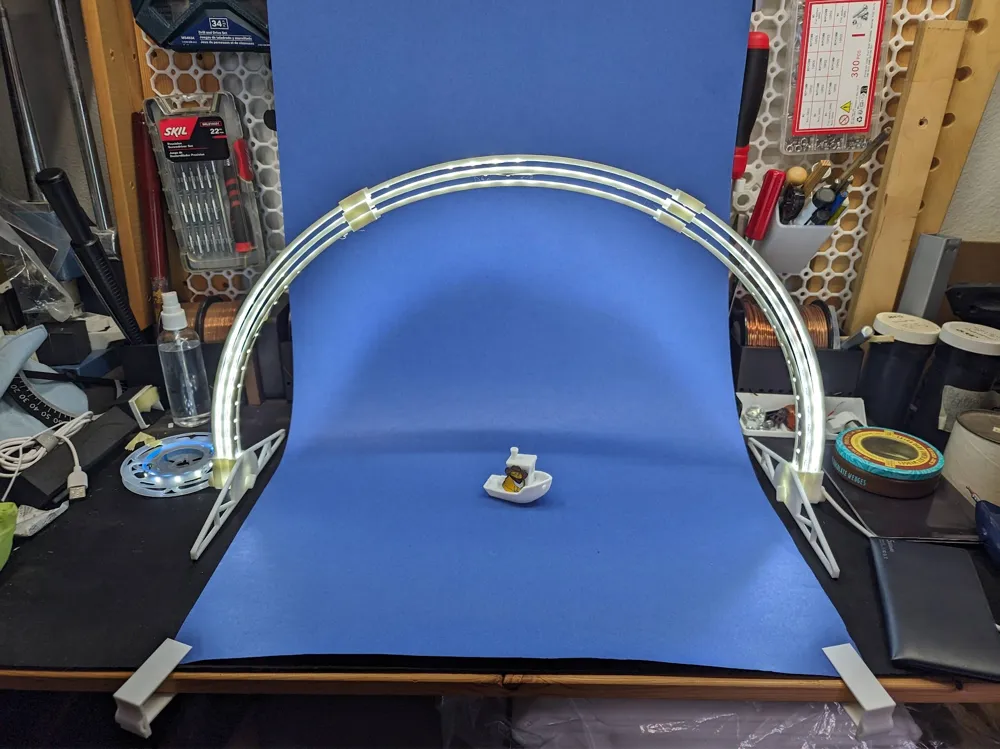

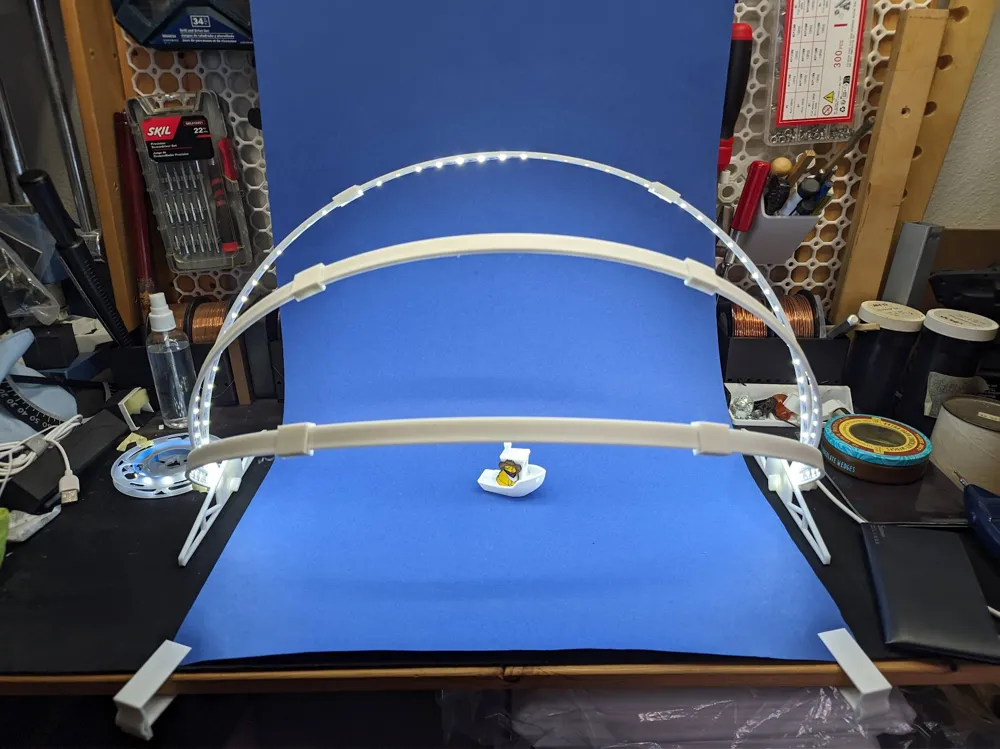

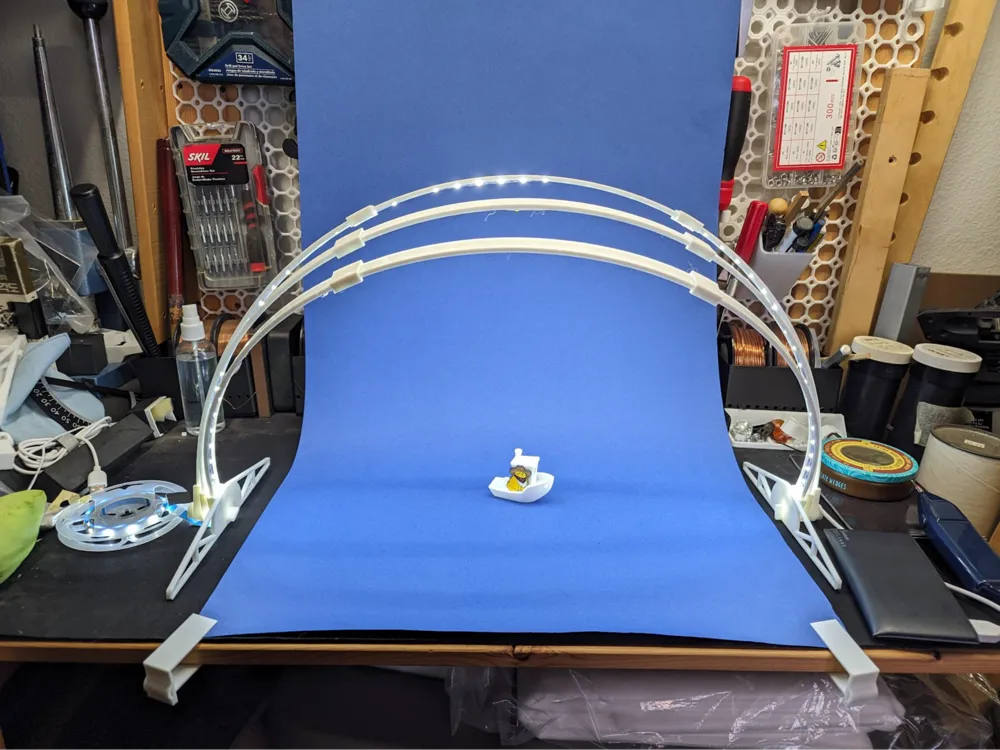

The bands can be adjusted to different angles and can be collapsed to a minimal profile when not in use.

Everything prints on one plate with no need for supports.\

Assembly is relatively easy.

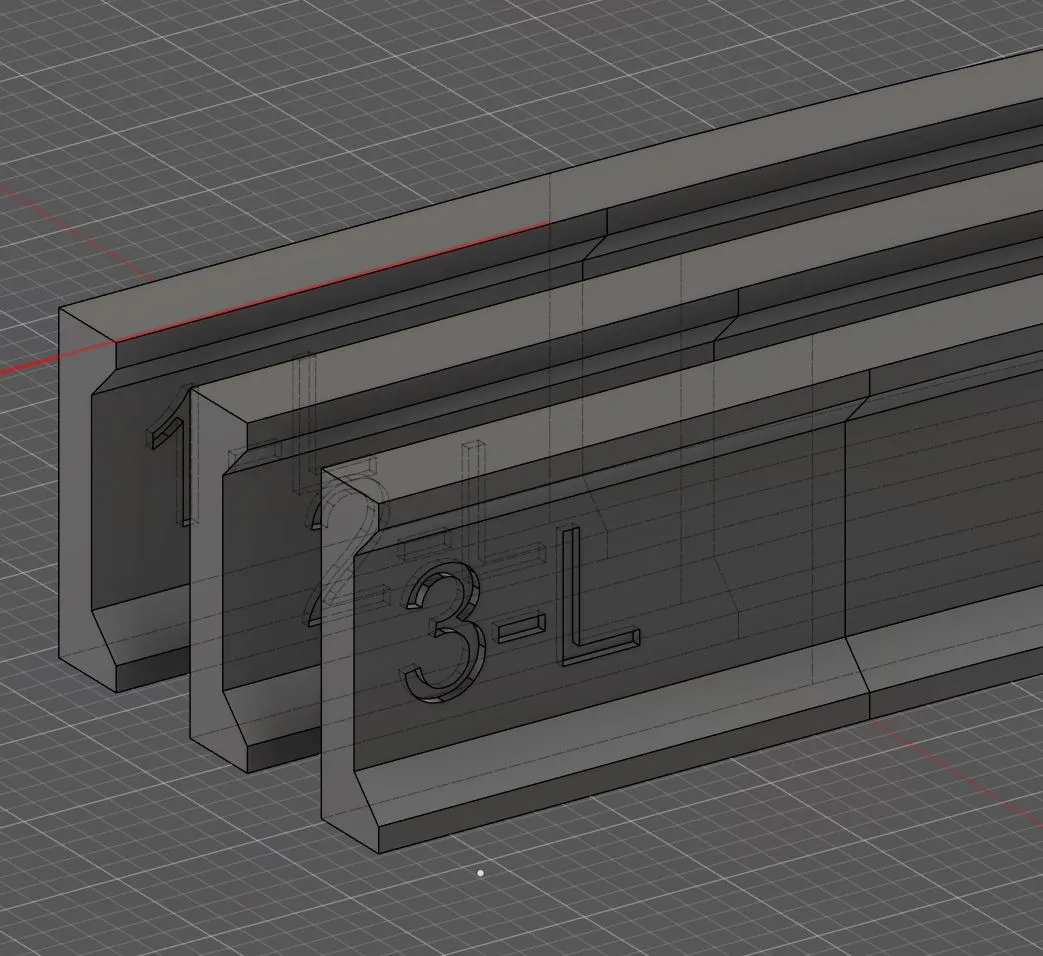

The bands are all labeled. Connect all the 1, 2, 3 bands together. “L” means left, “C” means center, and “R” means right.

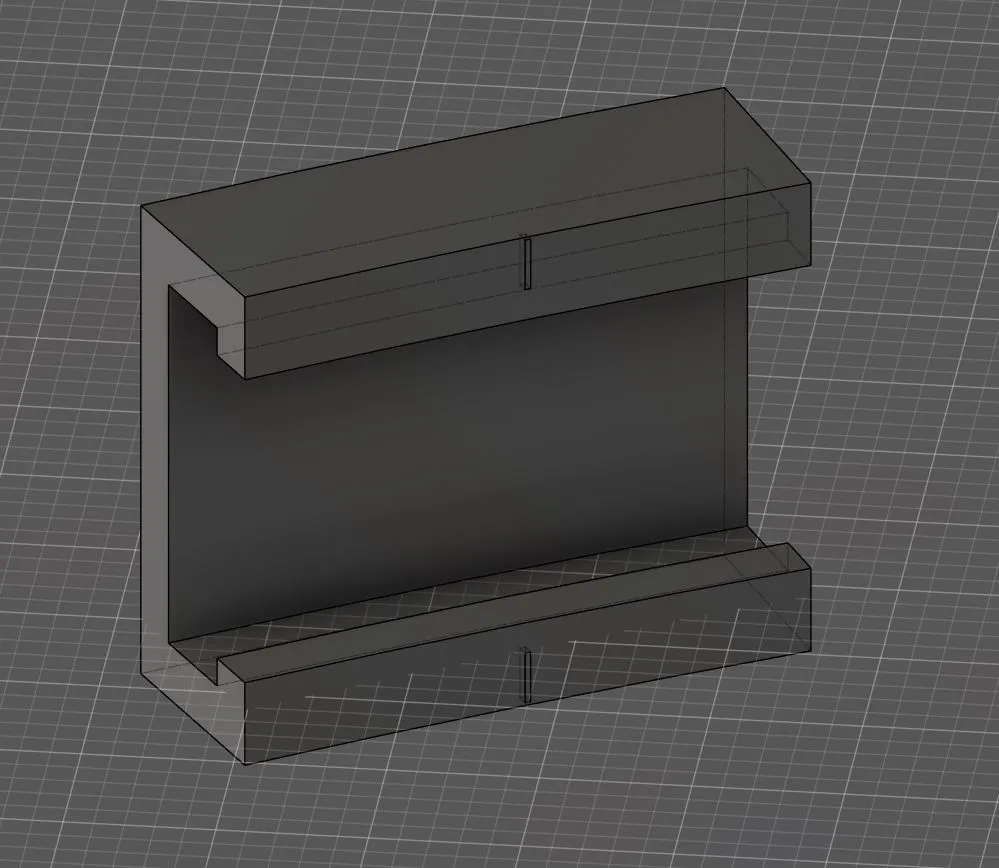

The connector pieces are all the same. The band connectors are the ones with out a hole. The middle point is marked on the piece.

It can be a tight fit but shouldn't be too bad. You can scale the band connectors a bit if you find the fit a bit too tight.

The end connectors have a hole in them. The flat solid piece should face in.

 The base should be assembled to be on the inside.

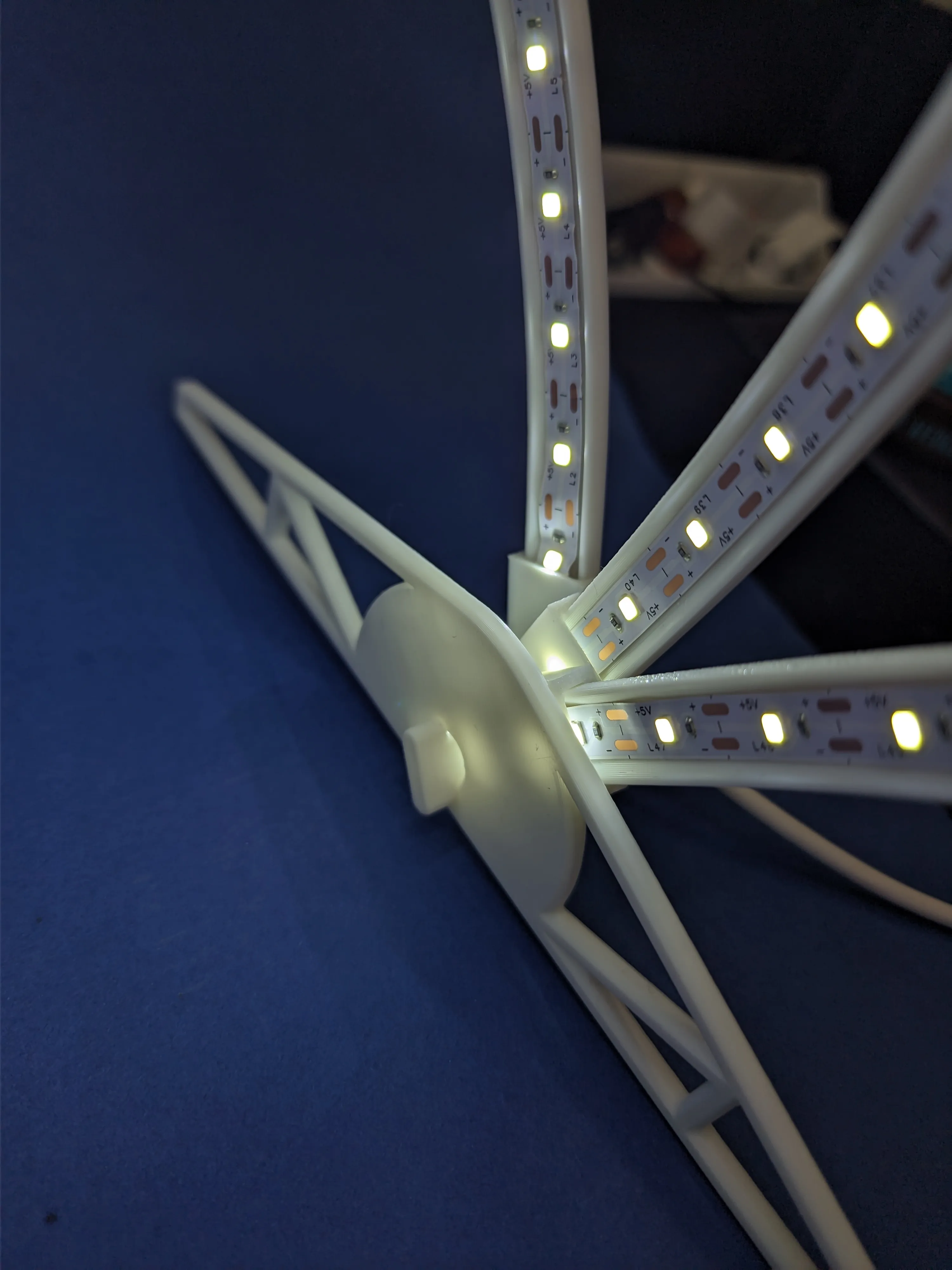

For the light strip, start from the USB plug side first and peel and stick the light strip. At each end the flat bolt should give enough room to snake the light strips past the bolt to the next band. I recommend giving a little extra length of light strip before making the turn to allow for full range of movement.
