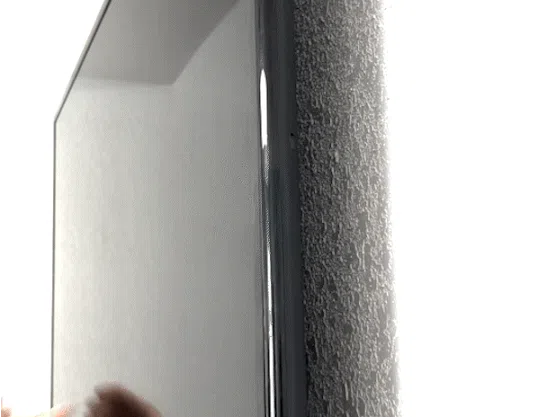

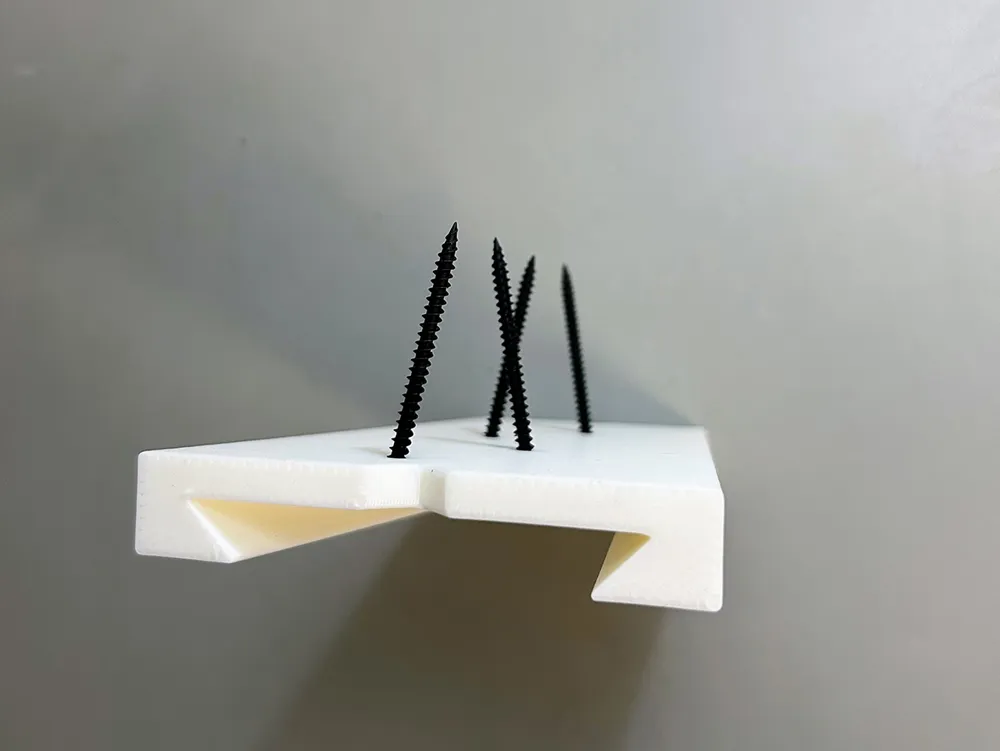

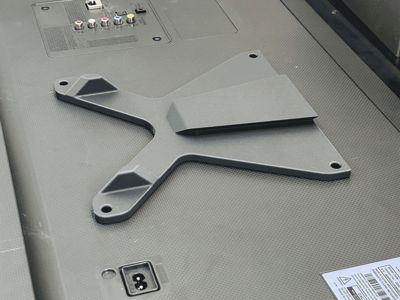

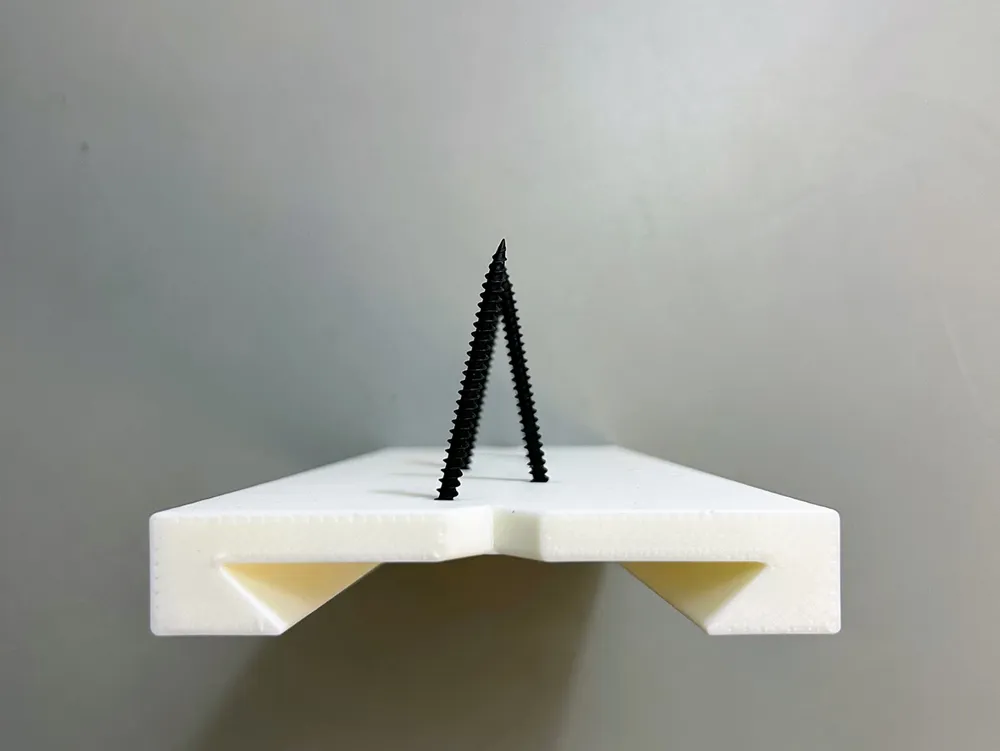

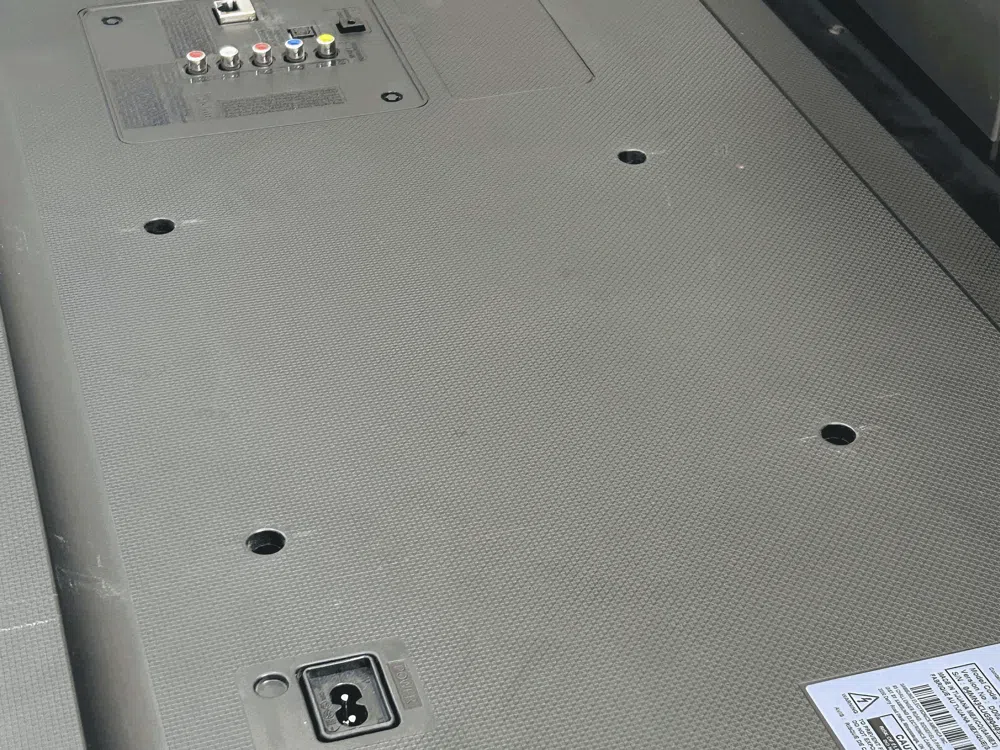

Wall mount your TV without being limited to one location! 👍 This makes use of a tapered dovetail joint which allows you to easily move the TV from location to another. It also makes aligning the TV bracket with the wall bracket a breeze! The brackets just need to be near each other and the mount will self-align as you lower your TV. 🤯 This is specifically made with the 200x200mm VESA hole pattern which fits most TVs up to 60" (definitely check your TV before printing!).

Print the STLs as oriented for best strength!

I hope you find this print useful and please post your makes!

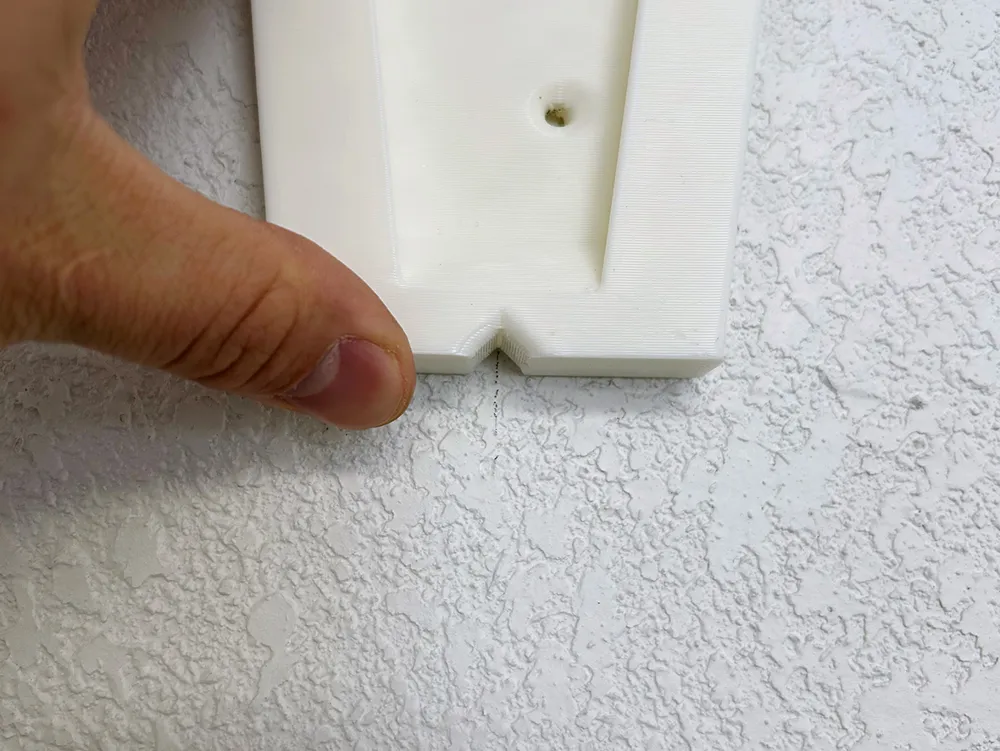

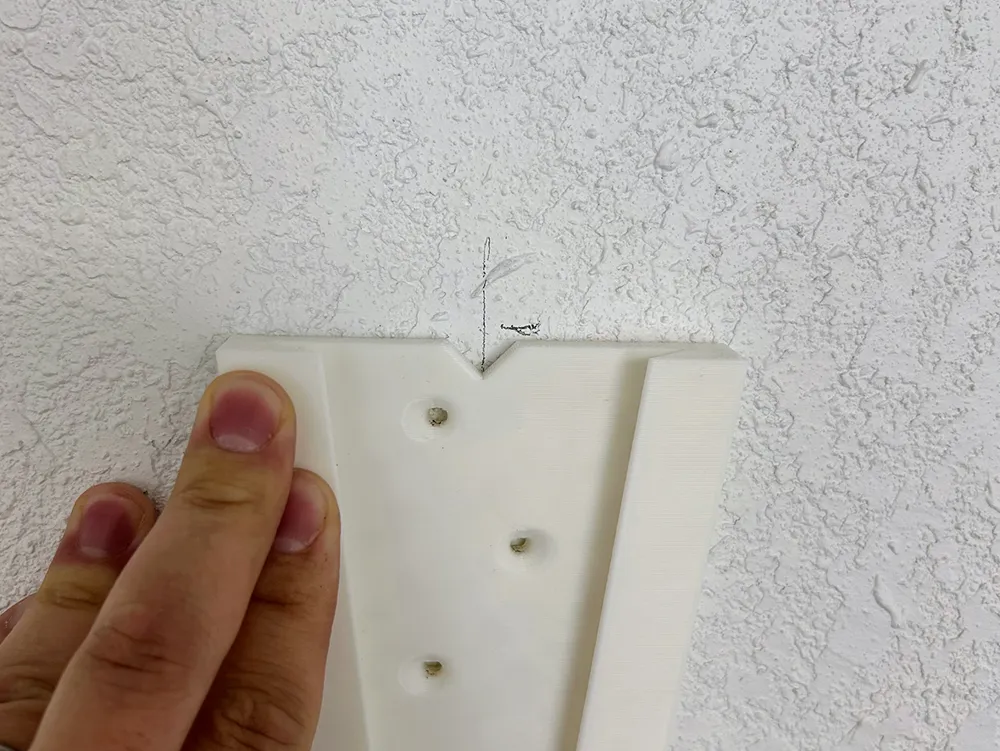

Important! Mount the wall bracket to a stud - not bare drywall!

Printed in PETG and PETG-CF - PLA may work but I have not tested it.

Perimeters/Walls: 4 or more with a 0.4mm nozzle (I printed 3 walls with a 0.8mm nozzle)

Infill: 20% - Increase for more strength

Brim: Not Necessary

Supports: None - designed with printable overhangs.

NOTE: Use at your own risk! I am not responsible for any broken displays!

If you love this model, please consider Buying Me a Coffee or maybe send a tip via Cash App! ♥️
https://buymeacoffee.com/claytr0n
https://cash.app/$claylinco

Boost Me (for free)

If you found this model helpful or entertaining, please boost it!

Comment & Rating (22)

@user_3318066744

Boosted

Pinned by Designer

Print Profile

0.2mm layer, 4 walls, 20% infill

It fit my TV perfectly! (43" TCL). I needed two more screws as the TV only came with the top 2. I am in the US: M6-1.00 × 20 flat metric Phillips machine screws worked perfectly and they were like two bucks at Lowe's. The print needed no supports and printed perfectly the first try.

The profile uploader has replied

@claylinco

freakin score!! glad this worked out so well for you! thanks for the make, the 5 stars, and the boost!!

@gagegu

Print Profile

0.2mm layer, 4 walls, 20% infill

I reduced it by 50% and used M4 screws, it works great

The profile uploader has replied

Show original

@claylinco

turned out great! thanks for the make and the 5 stars!

(Edited)

@user_1036373369

Print Profile

0.2mm layer, 4 walls, 20% infill

fits perfectly on my 50 inch 4k TCL android TV ill just need get some more screws that fit the bracket/tv but all in all a solid 10 out of 10 print and looks and feels very sturdy / strong very happy well worth the print time =) thankyou so so much =)

(Edited)

The profile uploader has replied

@claylinco

awesome! that's great to hear! thanks for the 5 stars, the make, and the feedback!!

(Edited)

@Sarquijo

Print Profile

0.2mm layer, 4 walls, 20% infill

Perfect, Thank you

The profile uploader has replied

Show original

@claylinco

de nada! thanks for the cinco stars and the make!

@victric

Boosted

Print Profile

0.2mm layer, 4 walls, 20% infill

it works!

The profile uploader has replied

@claylinco

thanks so much for the make, the 5 stars, and the boost!! love the aesthetic of your room, by the way!

(Edited)

@claylinco

Another TV mounted! Just waiting to see if anyone else finds this as useful 😁

@Borto83

Print Profile

0.2mm layer, 4 walls, 20% infill

Fantastic solution, I scaled everything to have a 100mm hole spacing, the TV is hung and with very little effort. Five stars are not enough

The profile uploader has replied

Show original

@claylinco

🎉 our first user!! I've been waiting for someone to finally give this model a go and it sounds like you definitely see the ease of use and benefits of it! thanks so much for your feedback and 5 star rating! also, I never thought about simply scaling the model down to fit the 100x100mm vesa pattern... brilliant! I'll make another profile using that technique.

@Borto83

Replying to @claylinco :

Hello, I resized it but then I had to adjust the holes with a drill bit suitable for an M5 screw, working in a mechanical workshop, let's say it wasn't a problem for me. I resized it to wall-mount a 22-inch TV in my son's bedroom

(Edited)

Show original

@user_1486264001

Replying to @claylinco :

Hi I am about to try the same - 22” TV as well! Can I ask how you got it to scale correctly for the measurement you wanted?

@cfrlab

What bore does the VESA adapter plate have

Show original

@user_2995389790

Print Profile

0.2mm layer, 4 walls, 20% infill

The profile uploader has replied

@claylinco

thanks for the 5 stars!

@Mechanicg20

Print Profile

0.2mm layer, 4 walls, 20% infill

The profile uploader has replied

@claylinco

thanks for the 5 stars!

@Johni5

Print Profile

0.2mm layer, 4 walls, 20% infill

(Edited)

The profile uploader has replied

@claylinco

thanks for the 5 stars!
