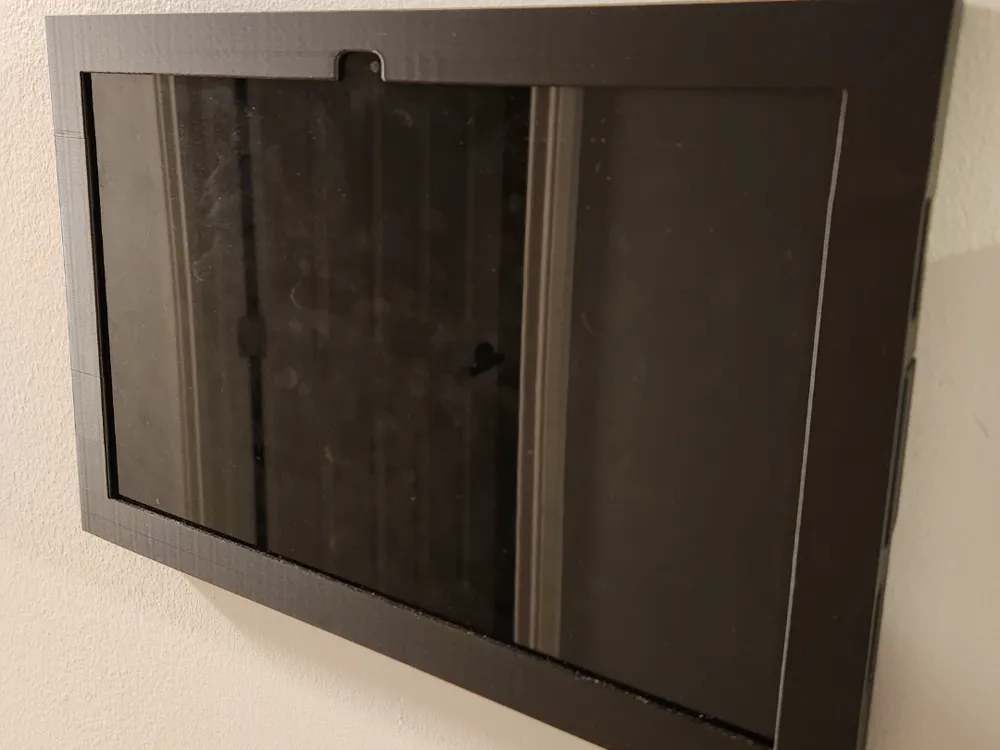

Tablet Wall Mount for Samsung Galaxy Tab A9+

This tablet wall mount converts a Samsung Galaxy Tab A9+ (aka the 11 inch model) into a wall mountable dashboard primarily to be used as a Home Assistant dashboard. This model is too big for the A1 mini and is not compatible.

The screws for the holes are #8 screws with a round head.

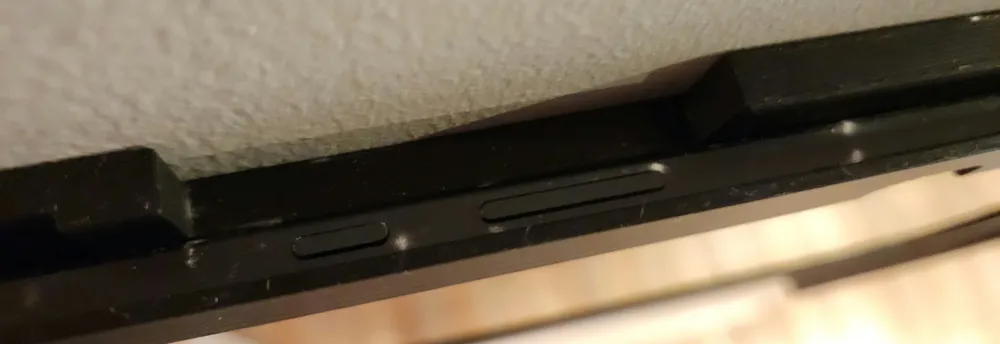

I've included multiple access holes and openings for the speakers, camera, and charge port, as well as for pressing the volume and power buttons on top. This fits a Tab A9+ rather tightly and will not work with other tablets. Check the pictures for close ups of all the opening and access points.

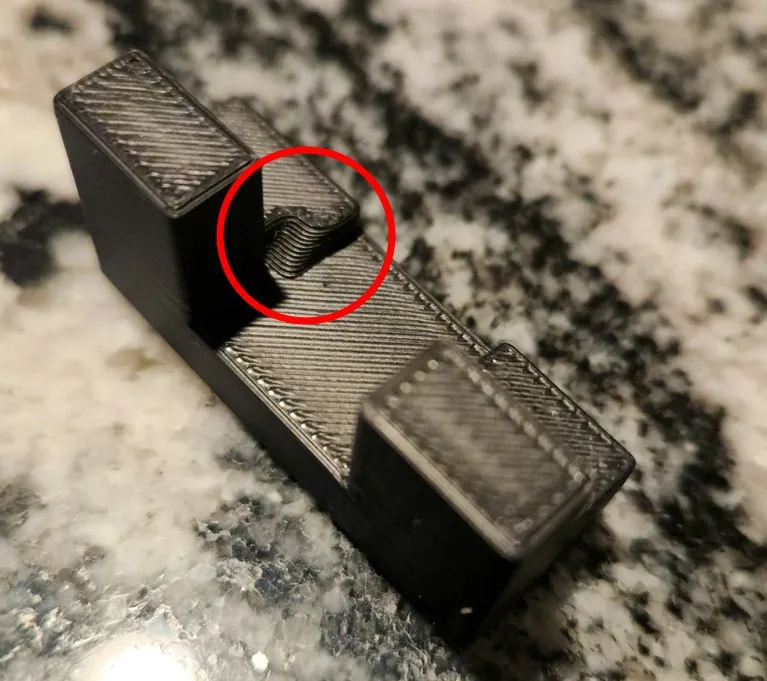

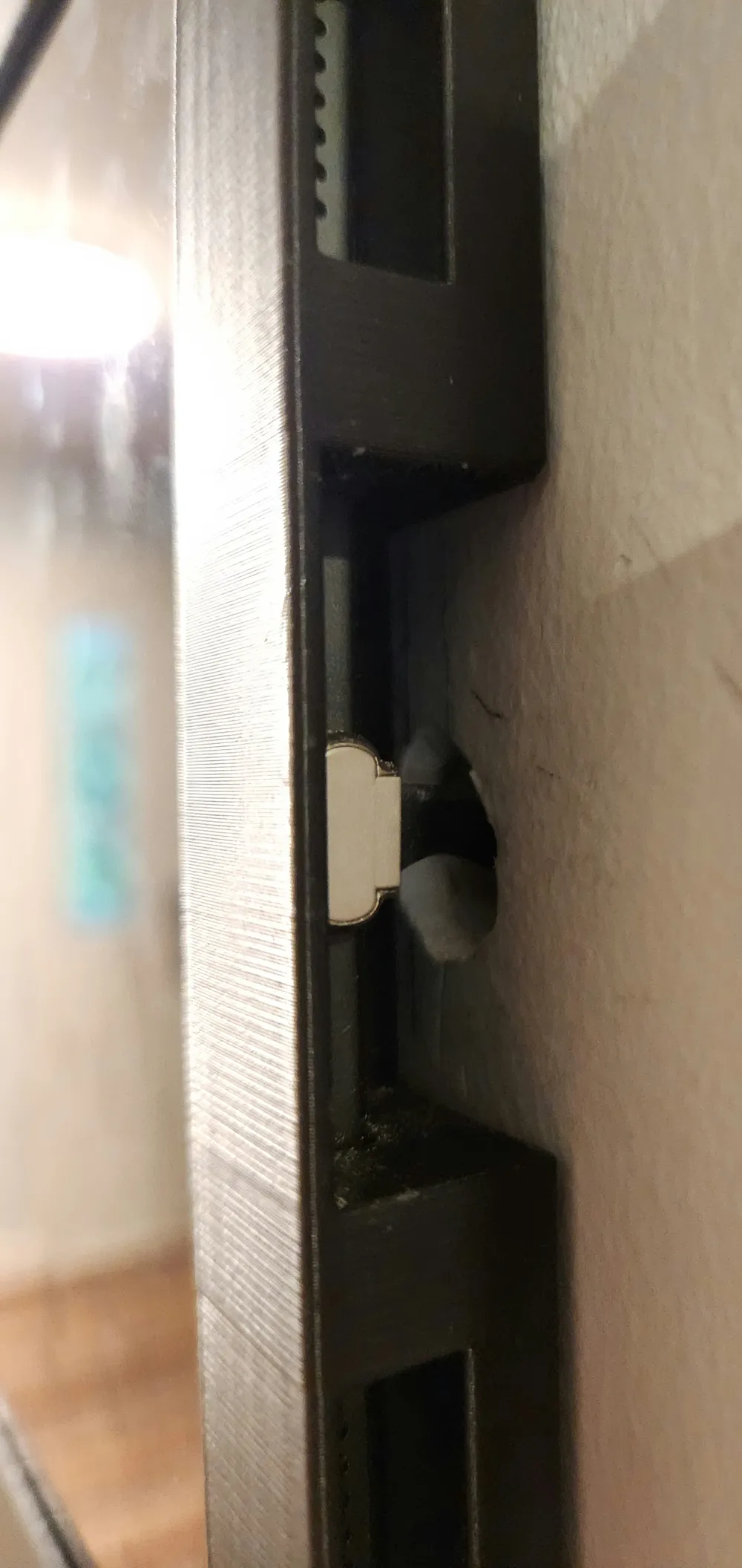

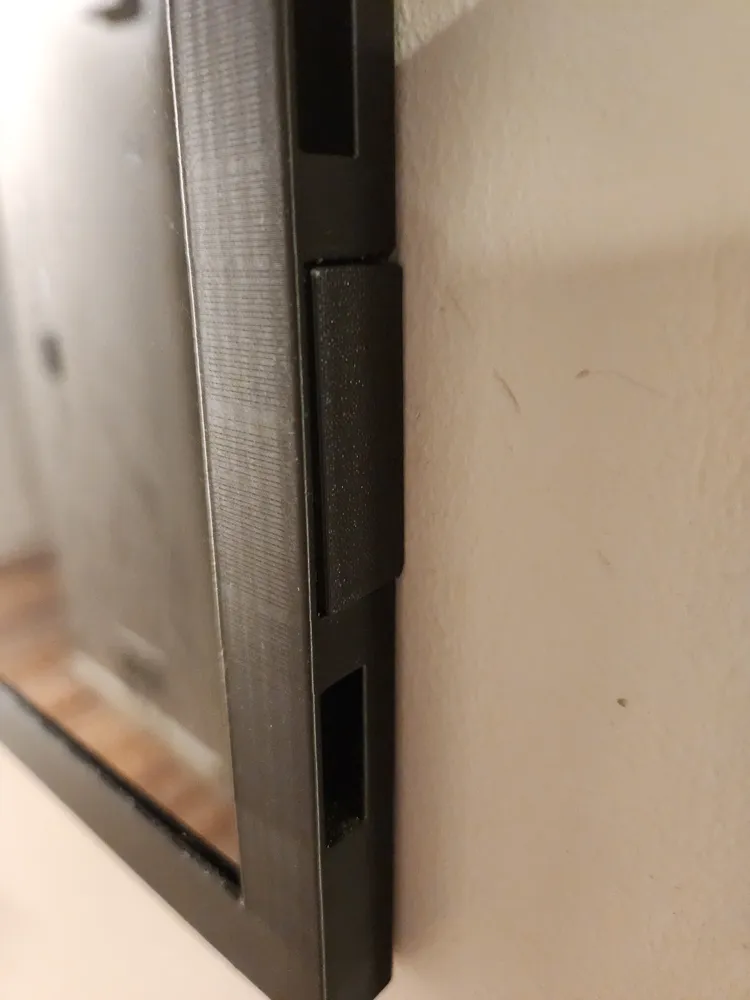

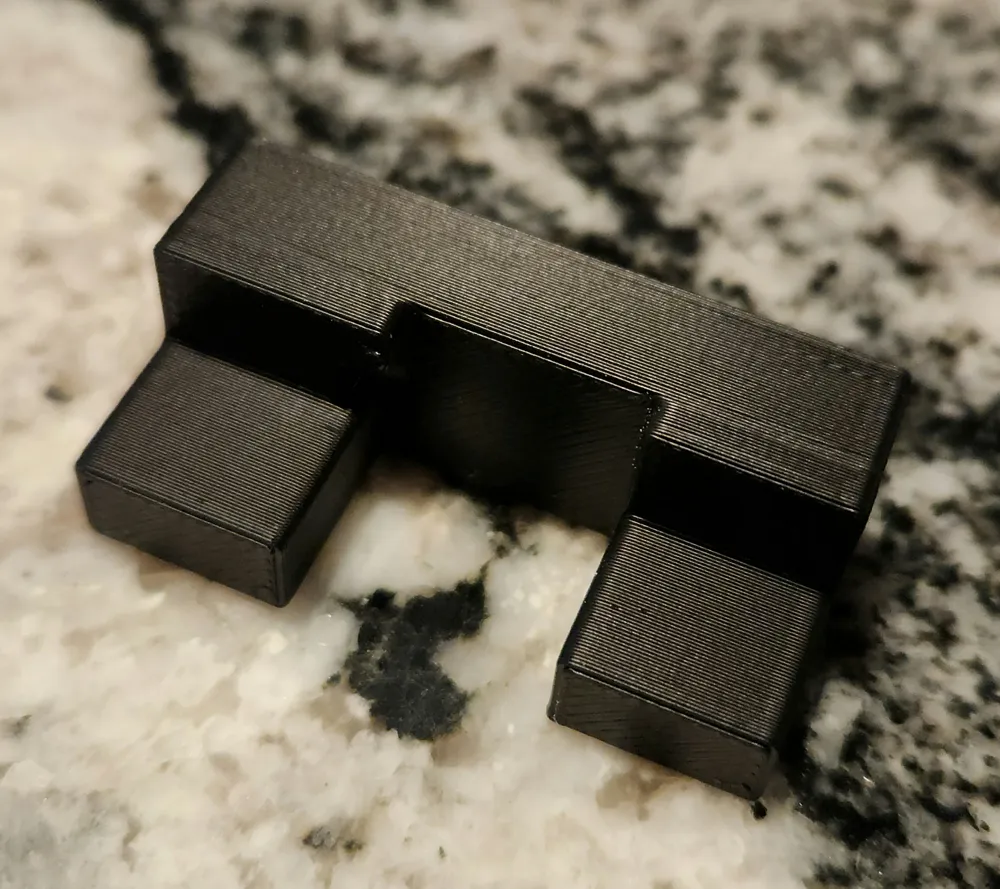

The charge port access is a special case as it can be used with a right angle USB C cable for a clean look with the cable going into the wall for power elsewhere, or it can come straight out to the right to plug into an outlet on the same wall. The end cap print profile attached to this model is designed to cover up the exposed hole in the wall. There's a slight curve in the cap design that meshes with the USB C right angle cable that allows the end cap to be popped out simply by pushing the tablet upwards.

Right angle USB C cable used with the end cap (make sure to pick the length you need for your setup):

https://www.amazon.com/dp/B0C7GCQVC6?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1

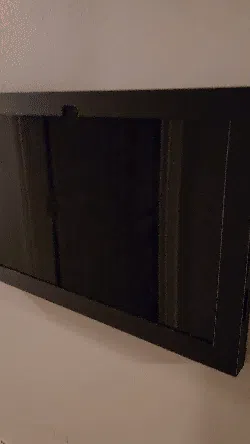

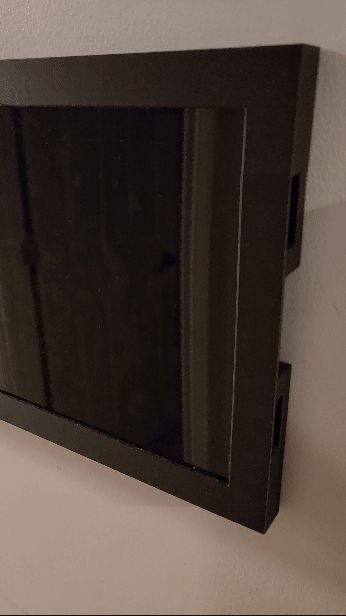

Here is how the end cap removal process works:

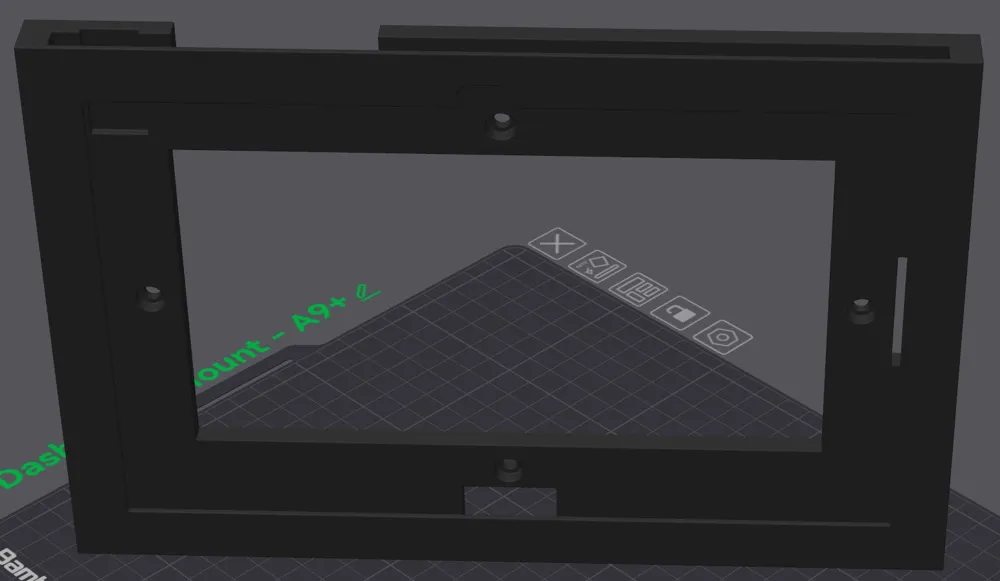

This was printed on a P1P with PLA but should print well on other printers and other filament types.
