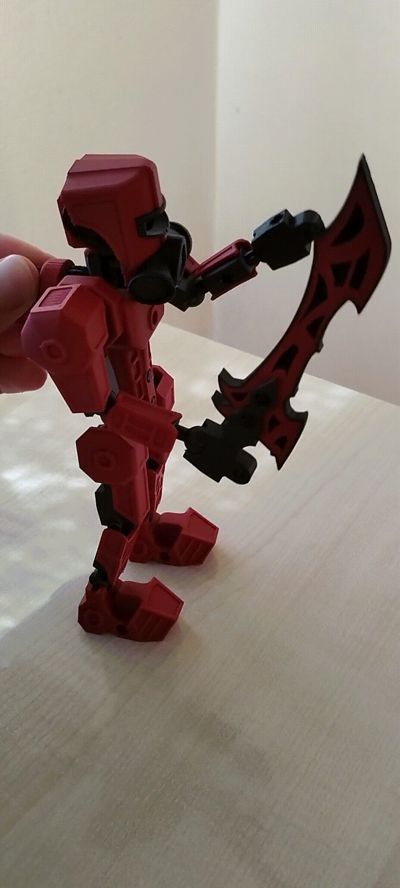

Inferno - Fully articulated robot
Fully articulated robot with a gear system that allows you to control the movement of the arms. The model is inspired by the famous Bionicle, which have been reinterpreted according to my aesthetic taste.
Boost Me (for free)
There are months of work behind this project, including designing the couplings, drawing the aesthetic parts and printing tests. If you liked the model, consider leaving a boost, this would give me great support. Once you reach 20 boosts, a new robot will arrive!
Please read Carefully!
The model has 45 pieces, NO glue is needed for assembly and supports are reduced to a MINIMUM. The components can also be printed in PLA. The use of an engineering plate or super tack, 50% infill for greater consistency and resistance is highly recommended. The variation of temperature parameters (of the plate and the nozzle) is NOT recommended, to avoid problems with the coupling of the parts.
Choose a print profile that suits your needs:
1) "High speed" to significantly reduce printing times
2) "High quality" with 50% filling and low speeds to have an excellent aesthetic result
3) "A1 mini" for all owners of this printer
UPDATE [04/30/2025]:
FUNCTIONAL MODIFICATIONS:
Hinges have been introduced at the shoulders to also allow movement of this joint.
Greatly reduced the printing time of high quality profile.
COSMETIC CHANGES:

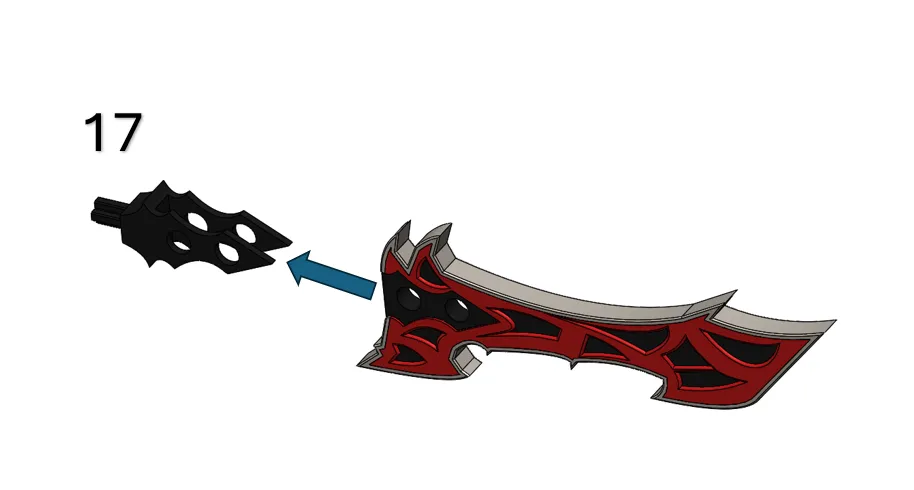

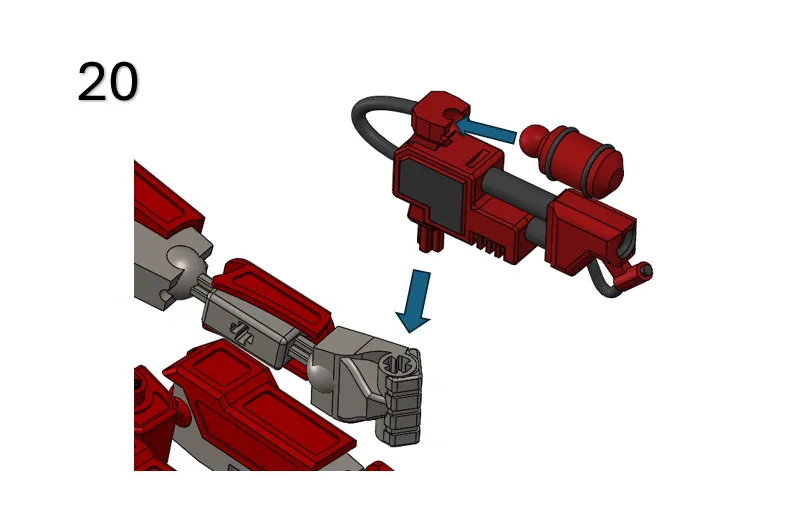

A flamethrower pistol has been added to complete the weapon set for this model.
Parts have also been added to more accurately simulate the hands.

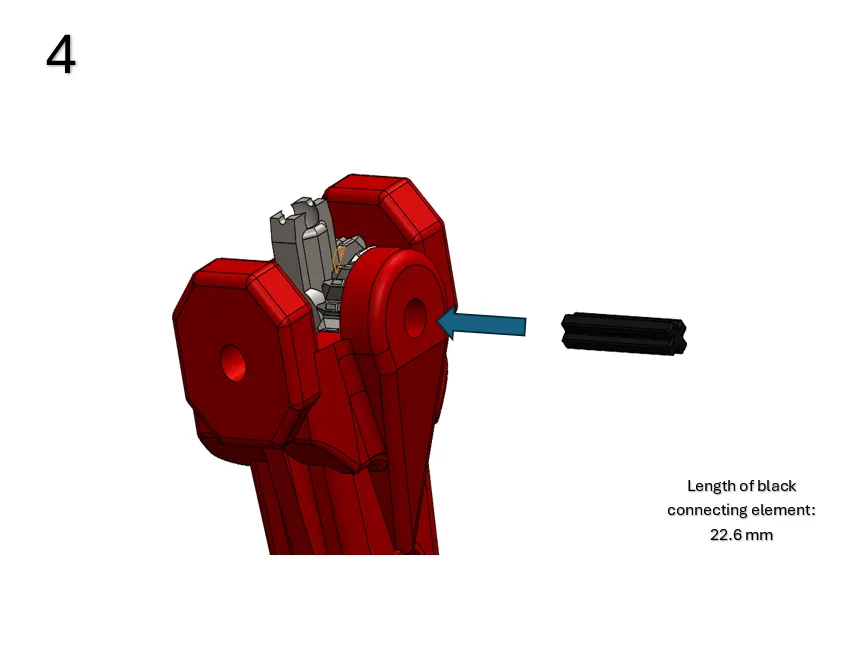

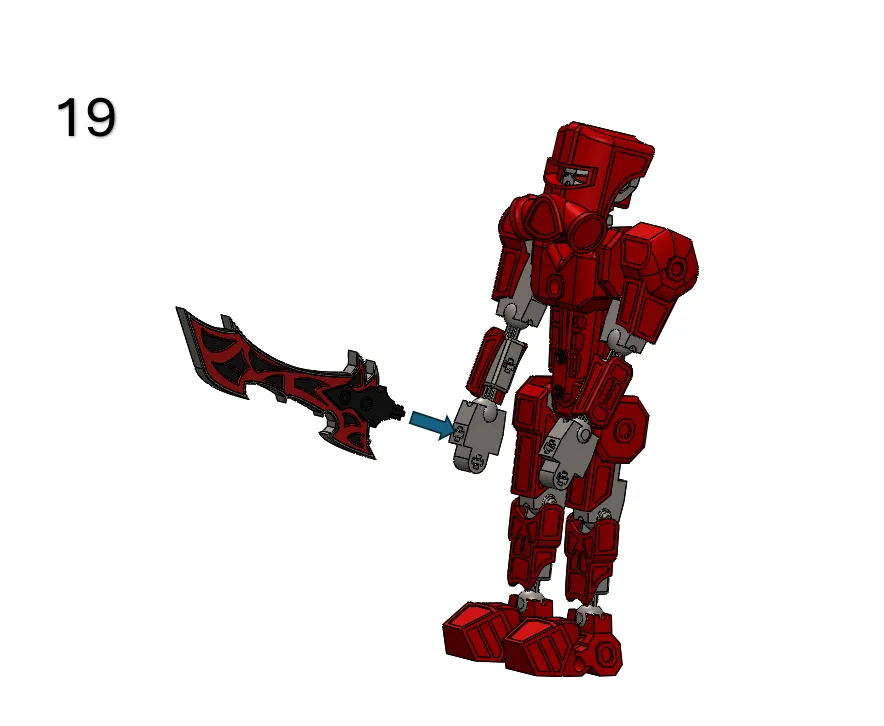

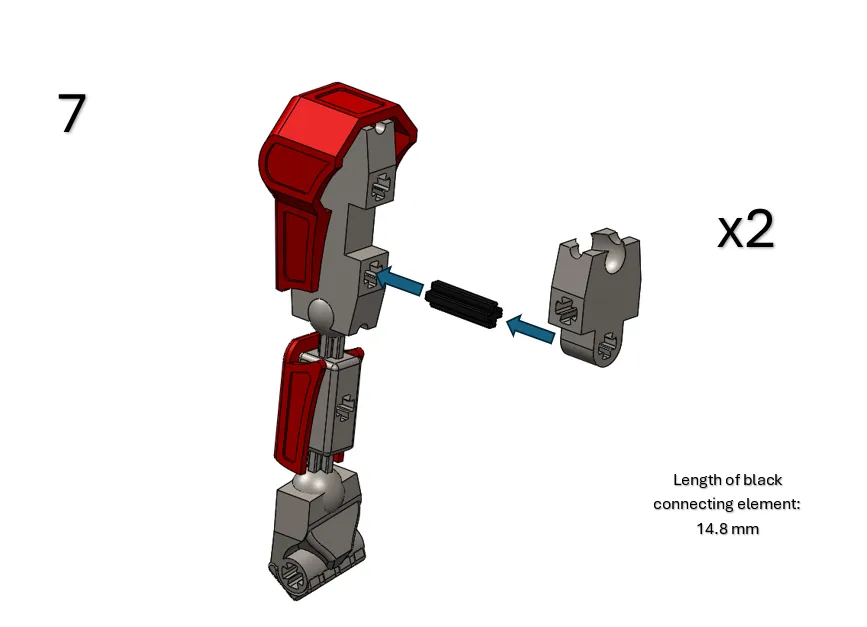

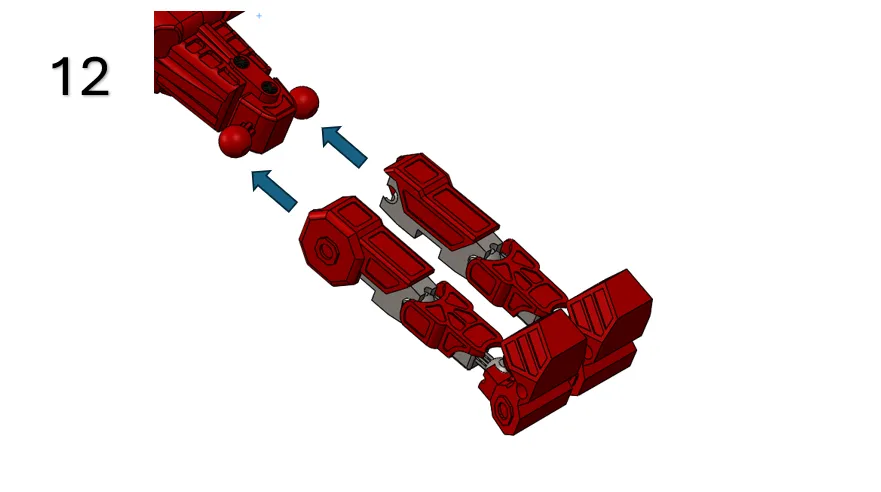

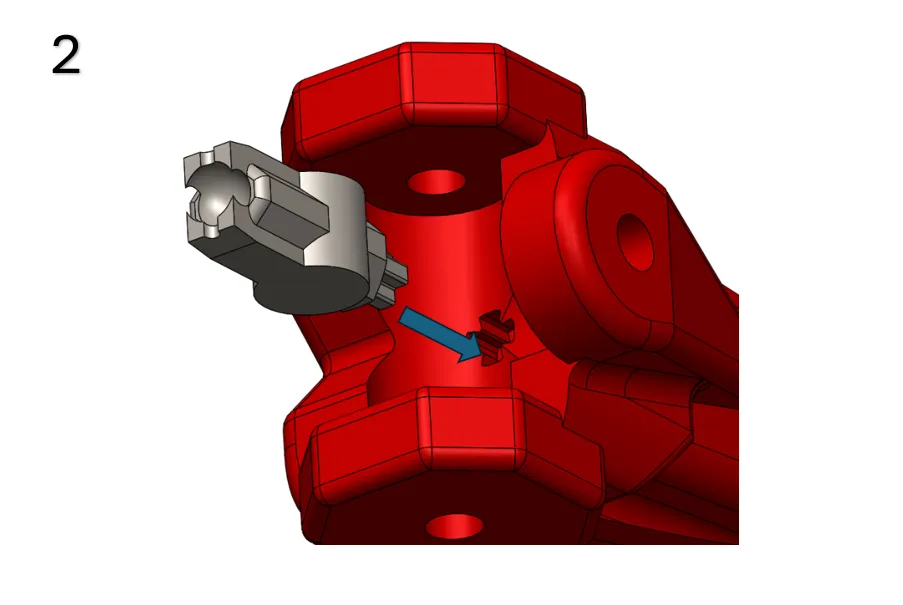

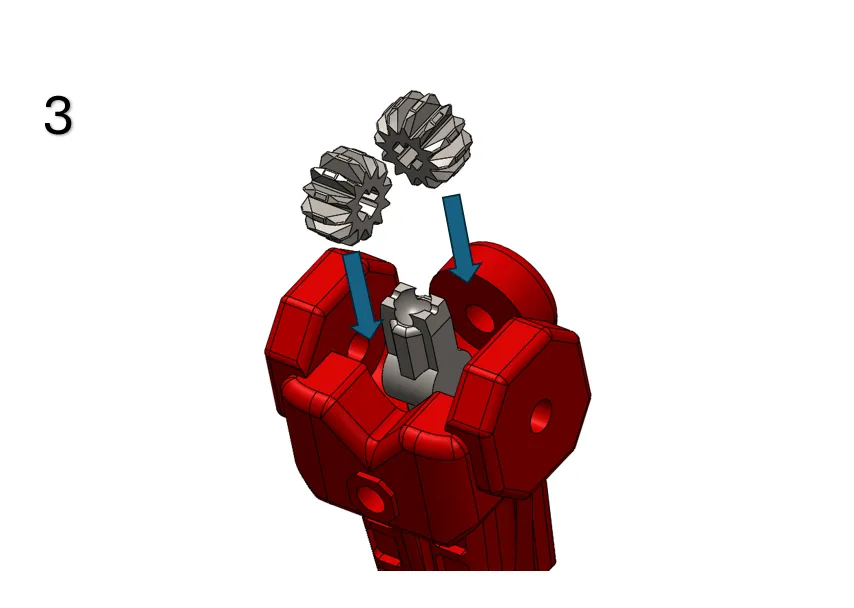

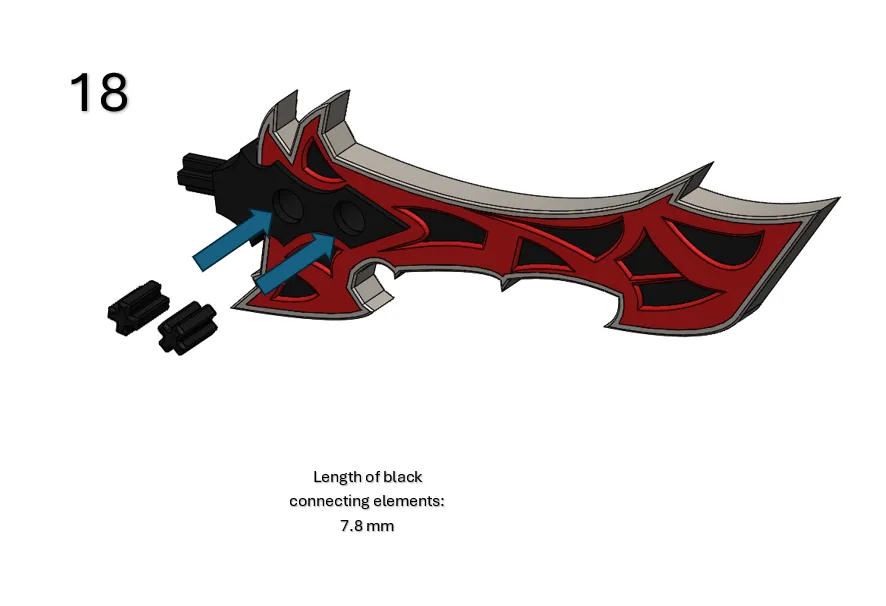

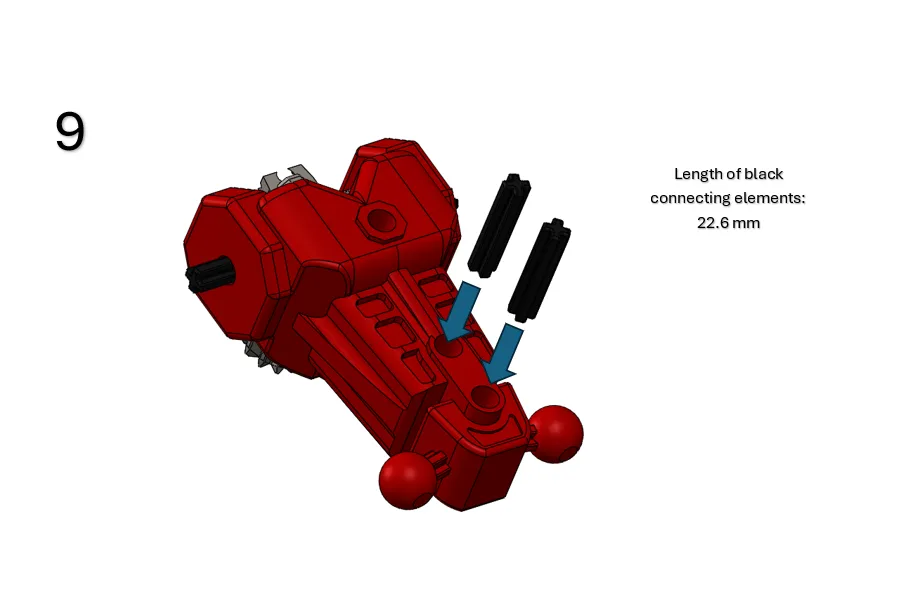

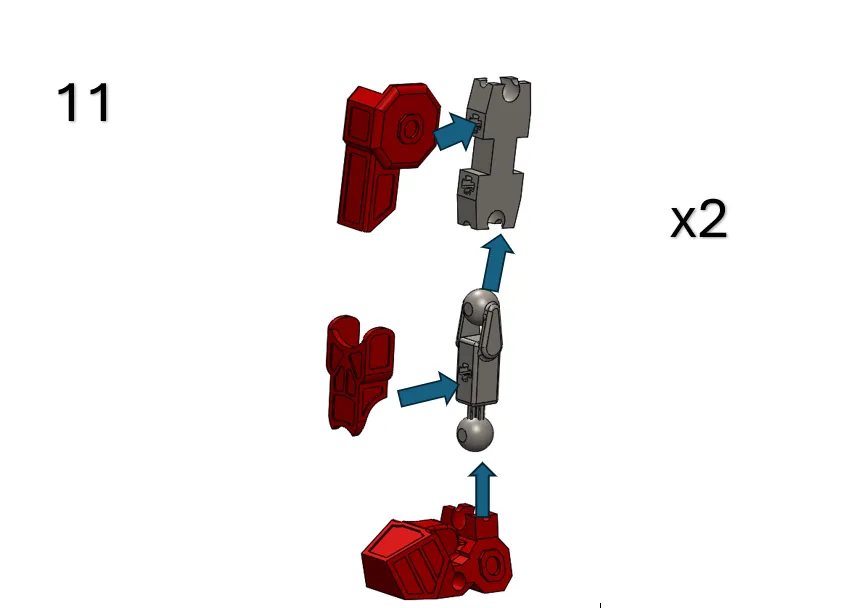

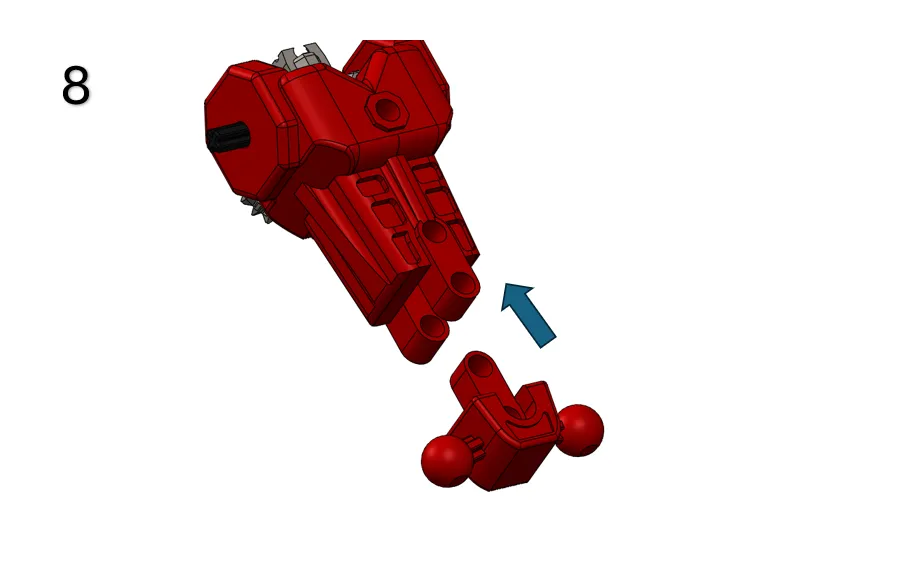

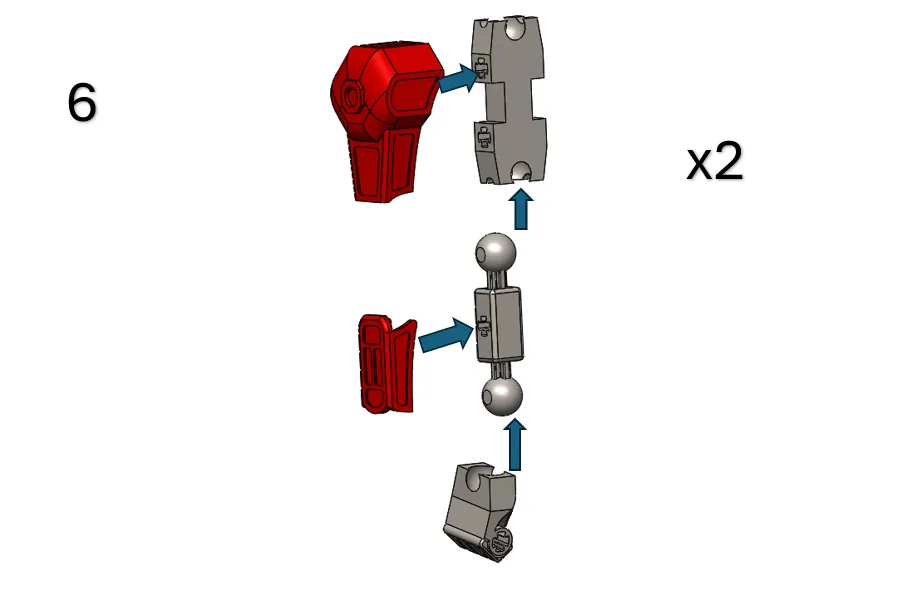

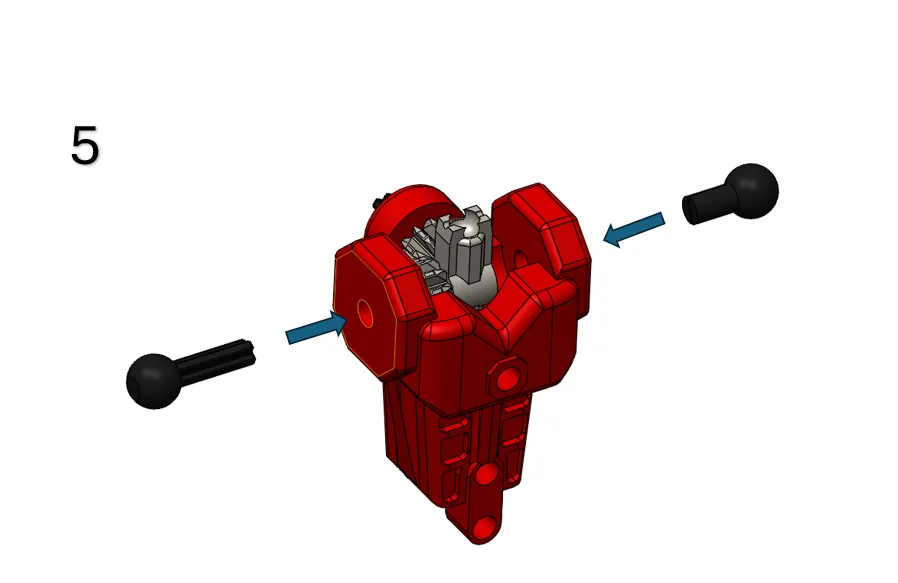

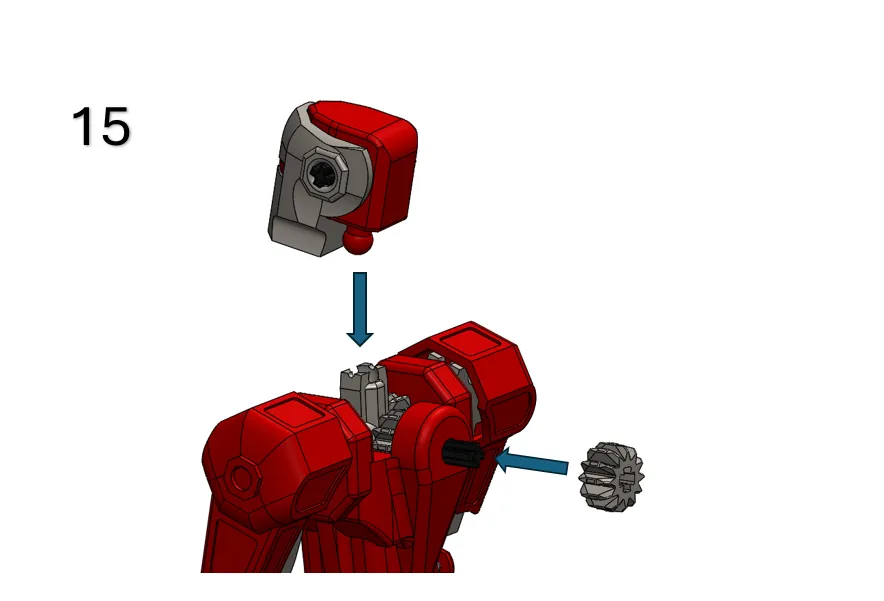

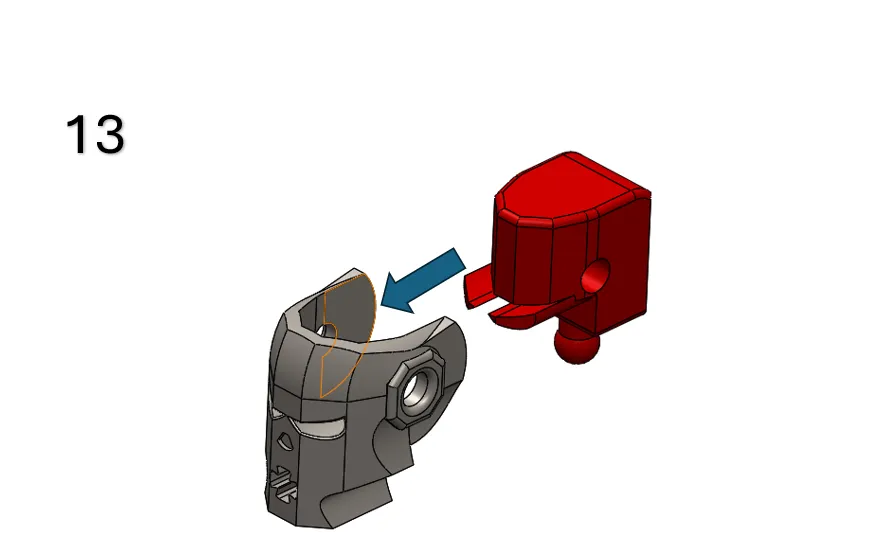

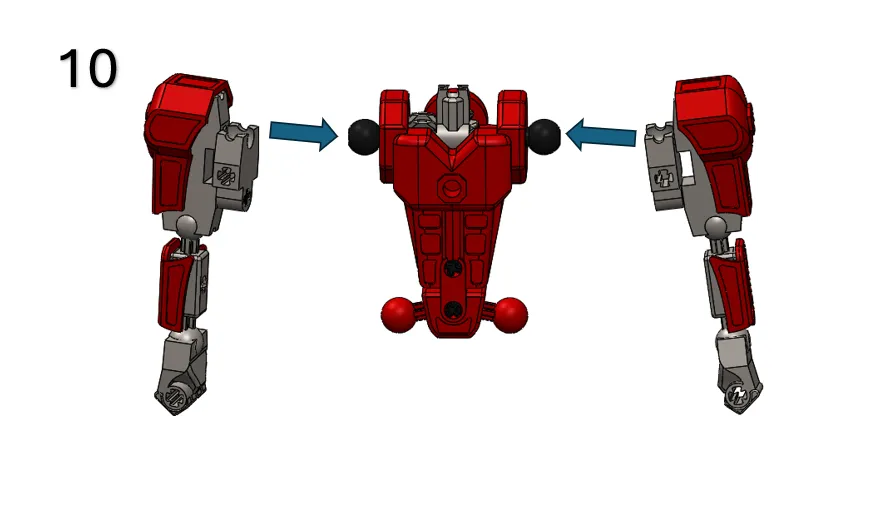

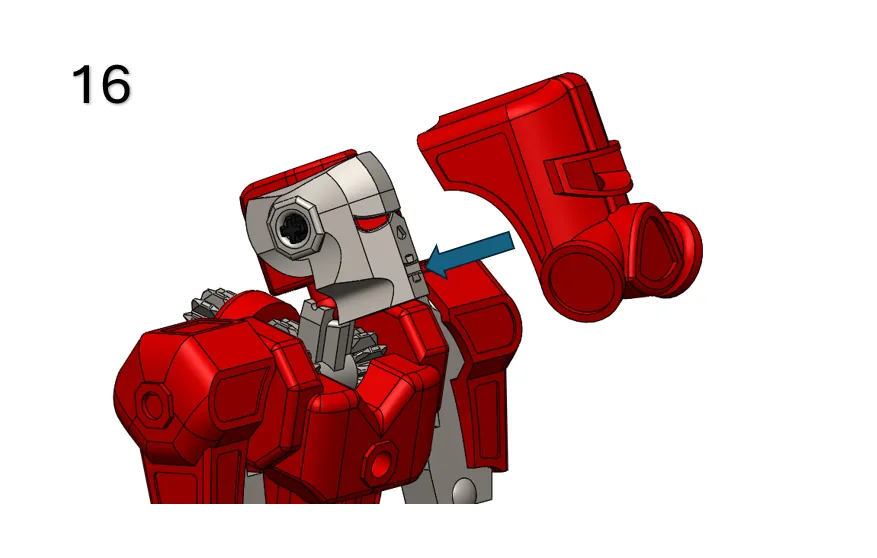

Assembly instructions:
