Motorcycle License Plate Holder with Swiss Plate
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 20% infill
Designer
6 h
3 plates
Open in Bambu Studio
Boost
18
36
5
2
54
16
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- M3 Schmelzmutter x 2:
- M3 Schraube x 2:
- Durckfeder 4.5 x 21 x 0.6 mm x 1:
Description
Content has been automatically translated.

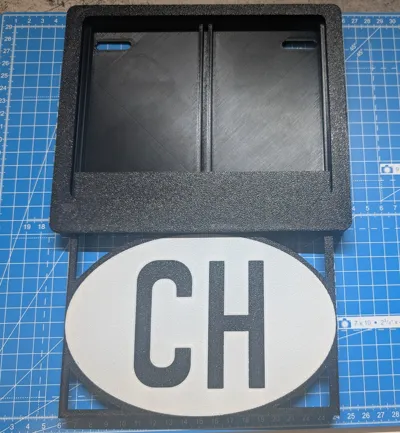

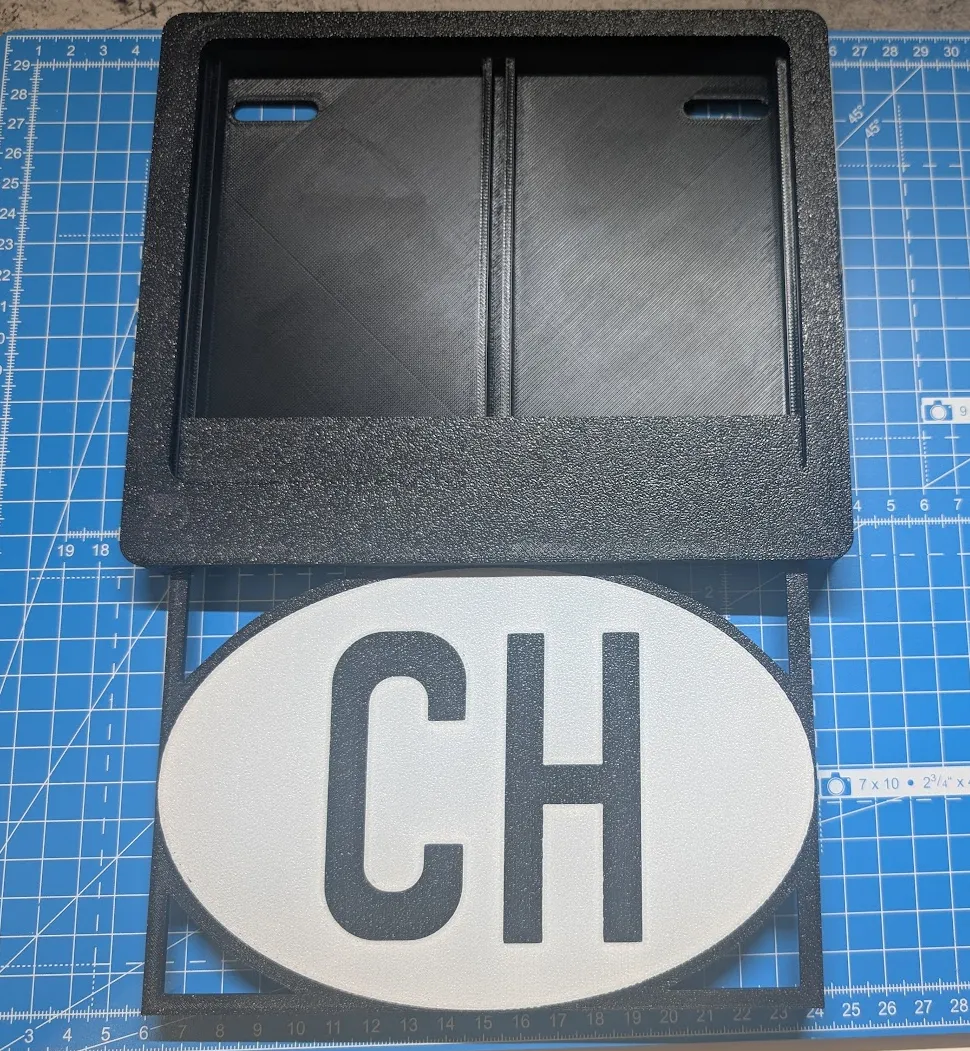

Motorcycle license plate holder with integrated Swiss plate. I recommend PETG.

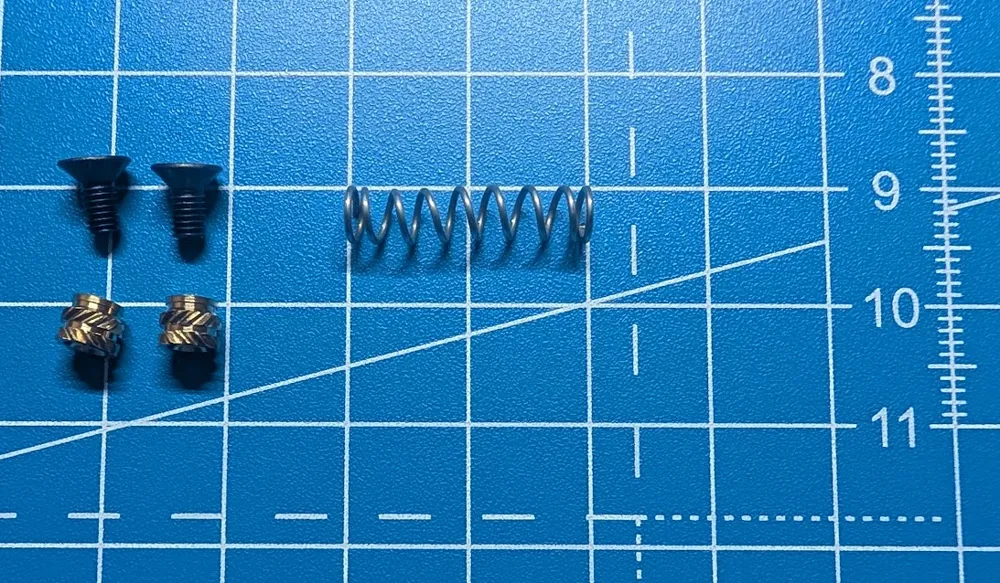

Required parts:
- 2x M3 heat-set inserts
- 2x M3 screws
- 1x compression spring (I use 4.5 x 21 x 0.6 mm from Jumbo) The holes are 5mm, so the spring needs to be slightly thinner.
Assembly:

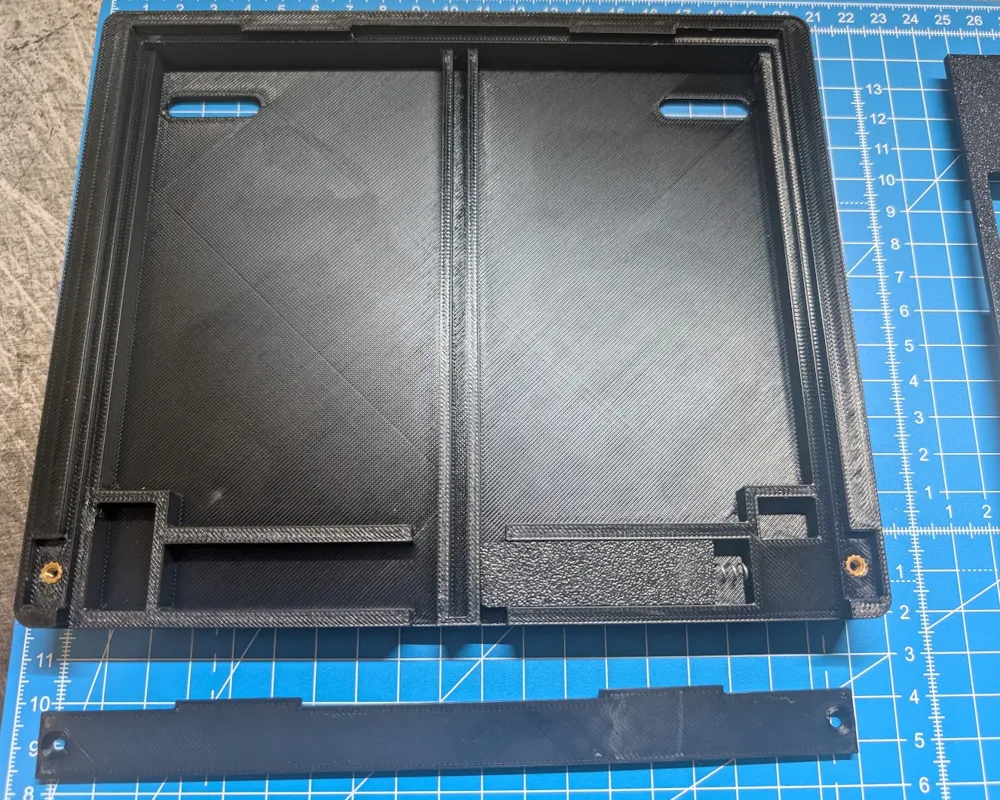

- Melt heat-set inserts with a soldering iron

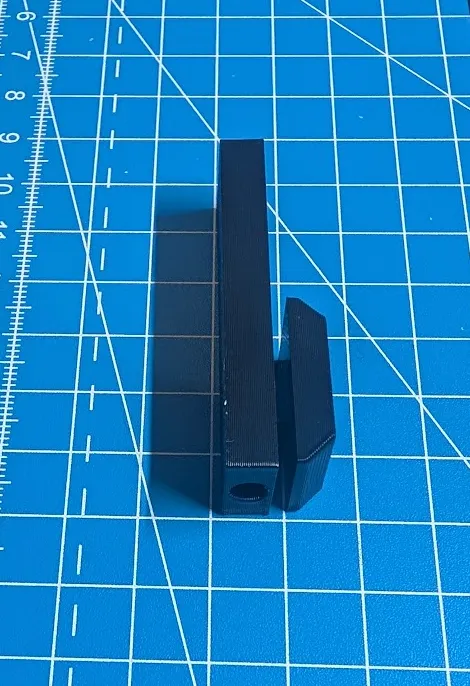

- Position the spring in the hole in the base
- Position the slider
- Glue the button to the slider with superglue (do not glue the slider to the base)

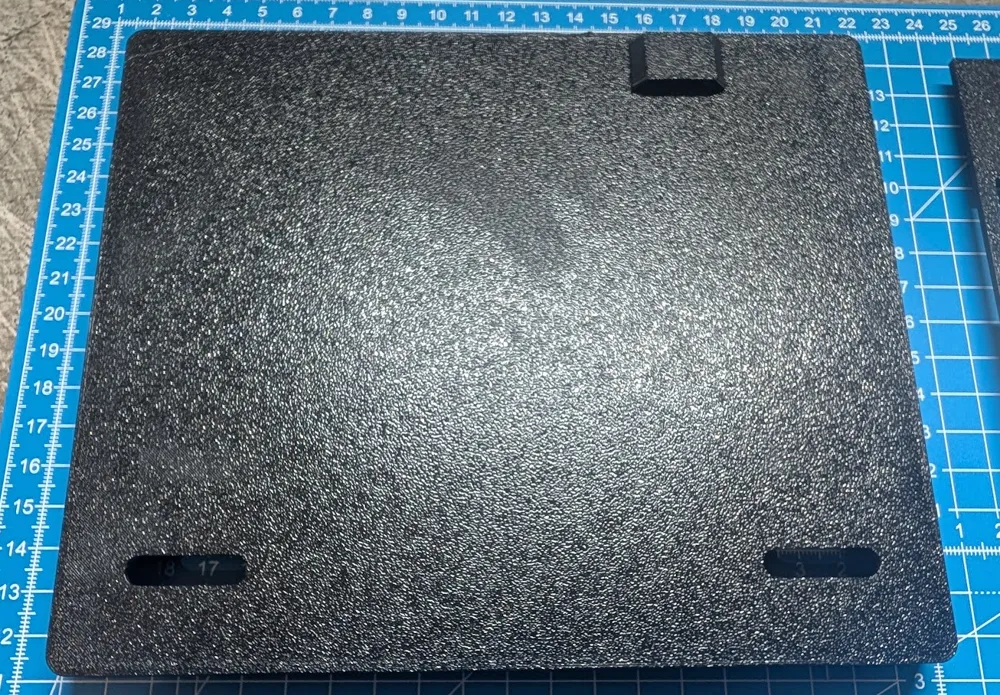

Now screw the base to the motorcycle.

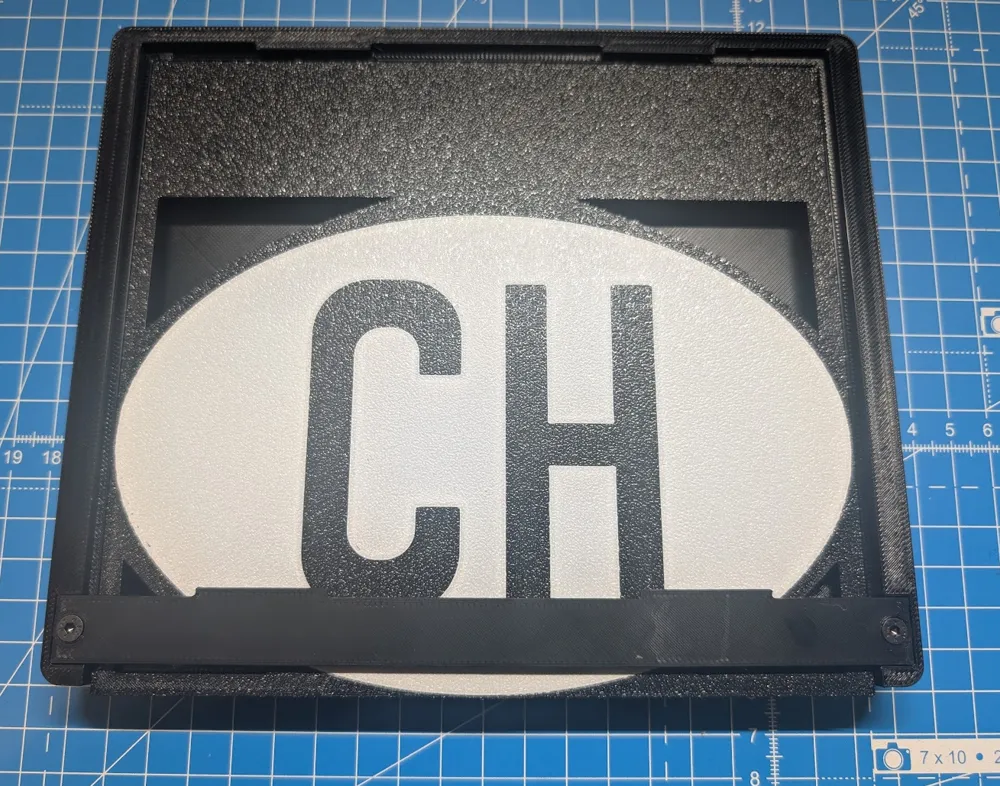

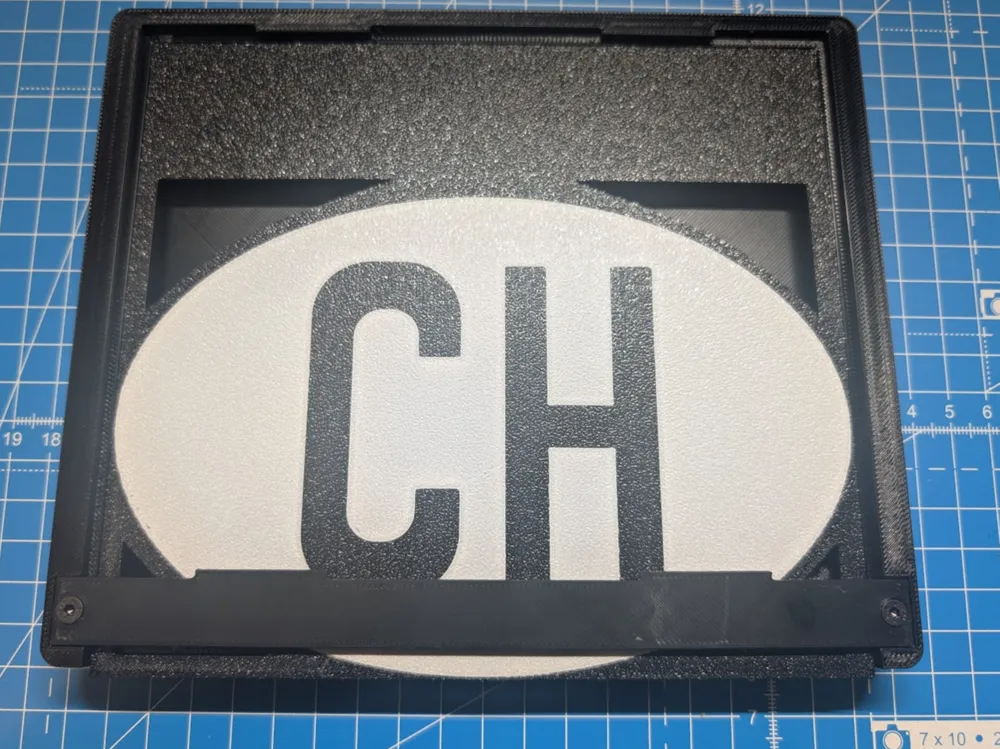

- Insert the Swiss plate

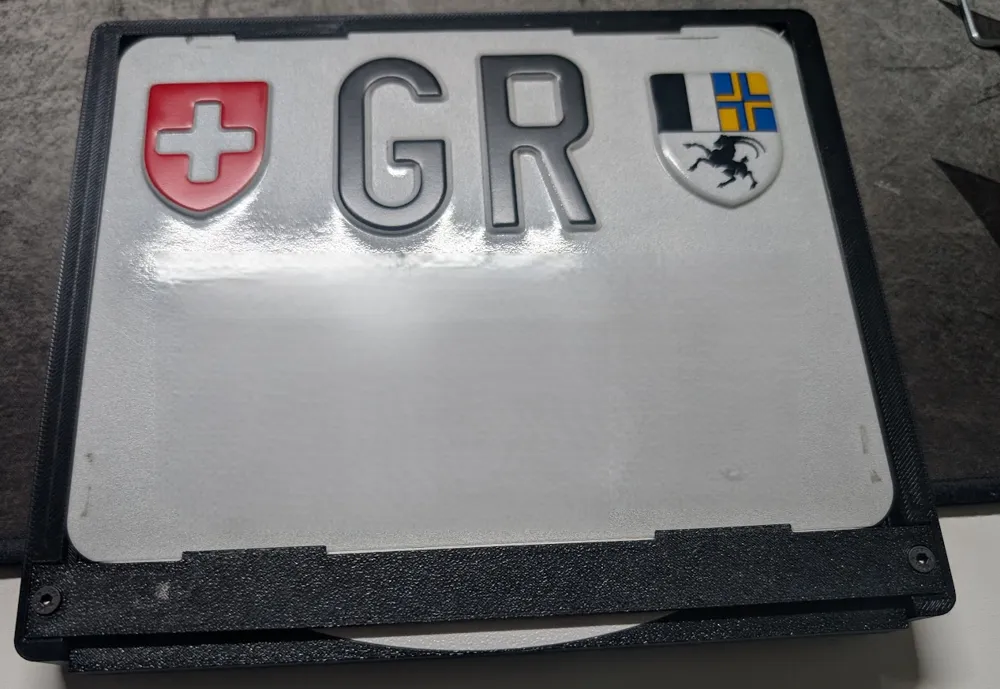

- Insert the license plate
- Screw on the strut

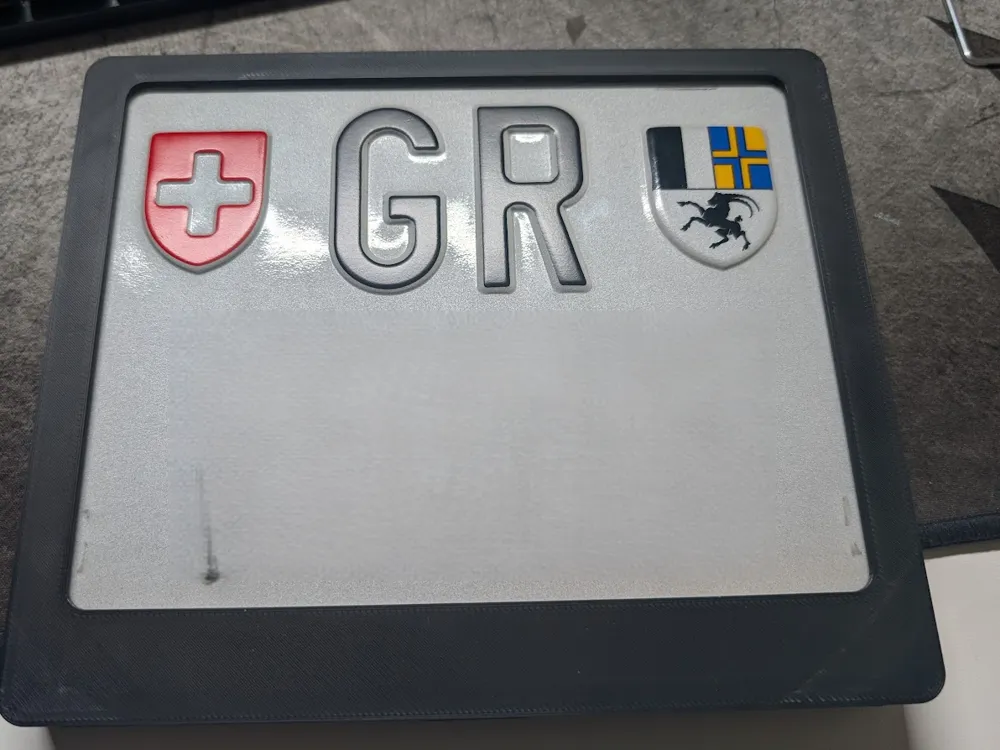

- Mount the cover
