VIDGA Rail Connector with Screw Lock

Overview

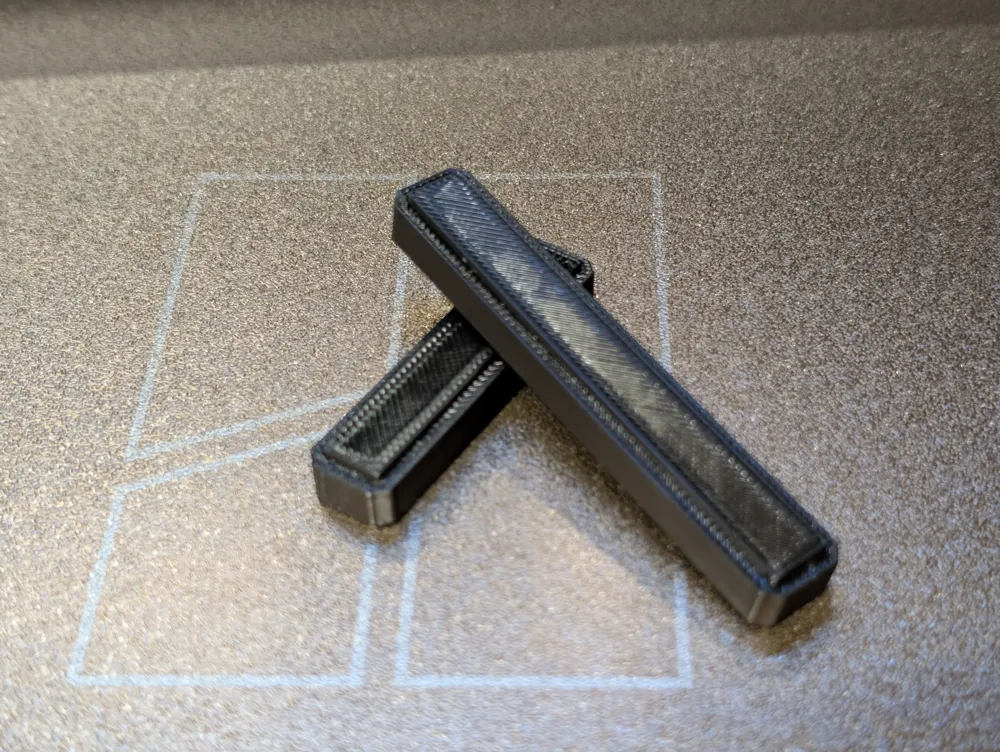

A custom-designed connector for joining two IKEA VIDGA curtain rails seamlessly. This part inserts halfway into each rail, creating a clean, stable, and well-aligned connection.


Available in both a standard friction-fit version and an improved locking screw version for extra security.

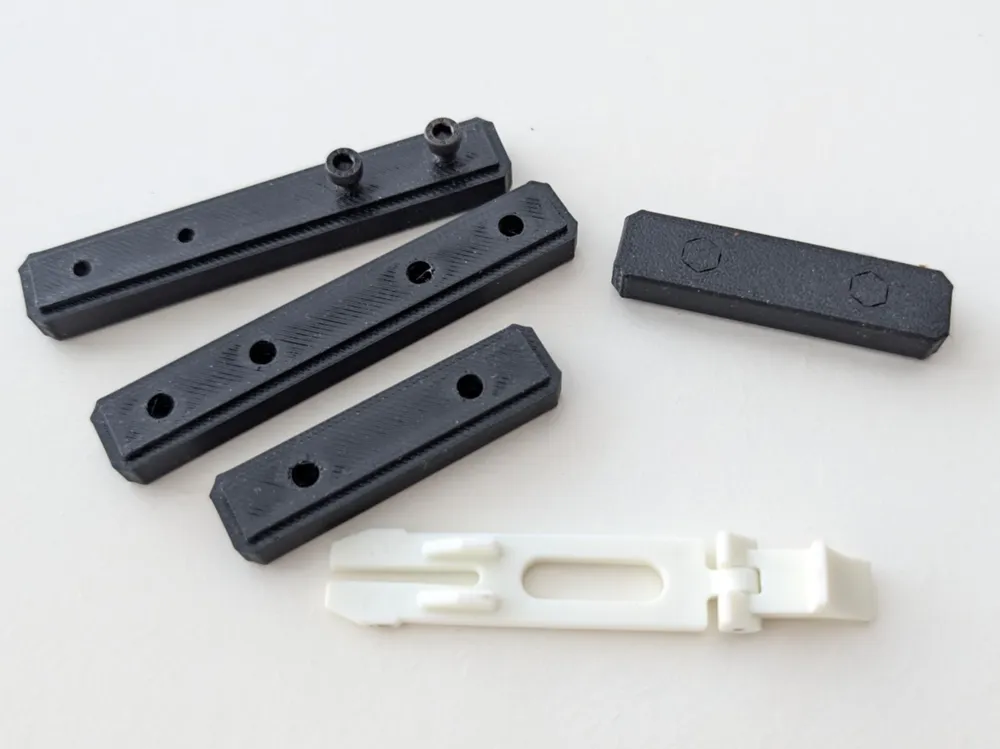

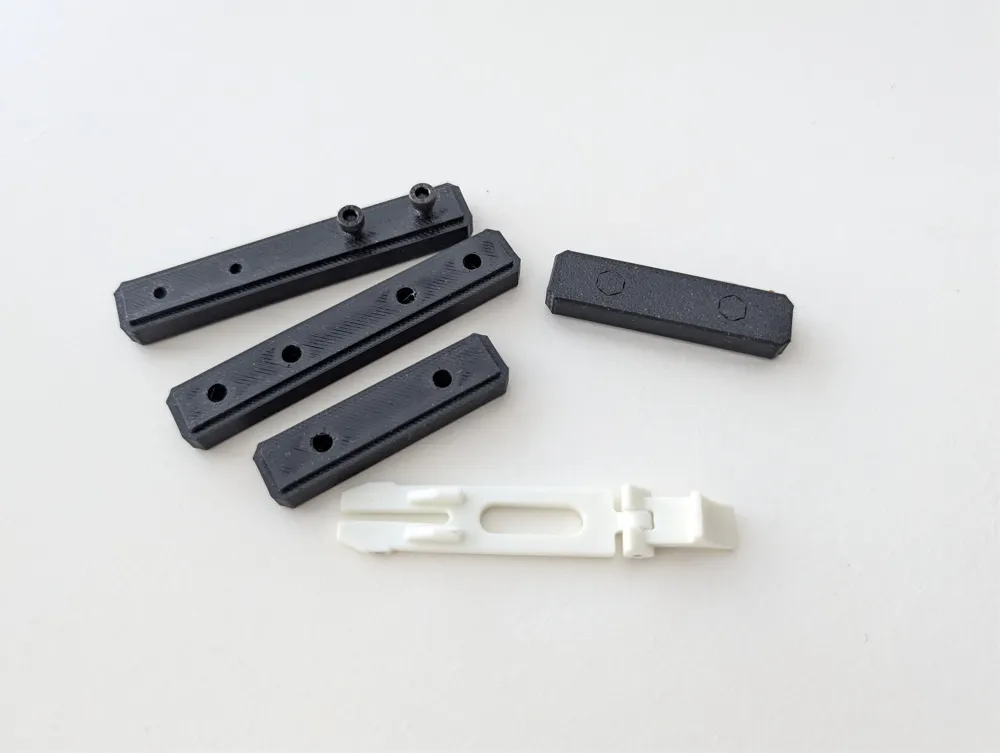

Variants

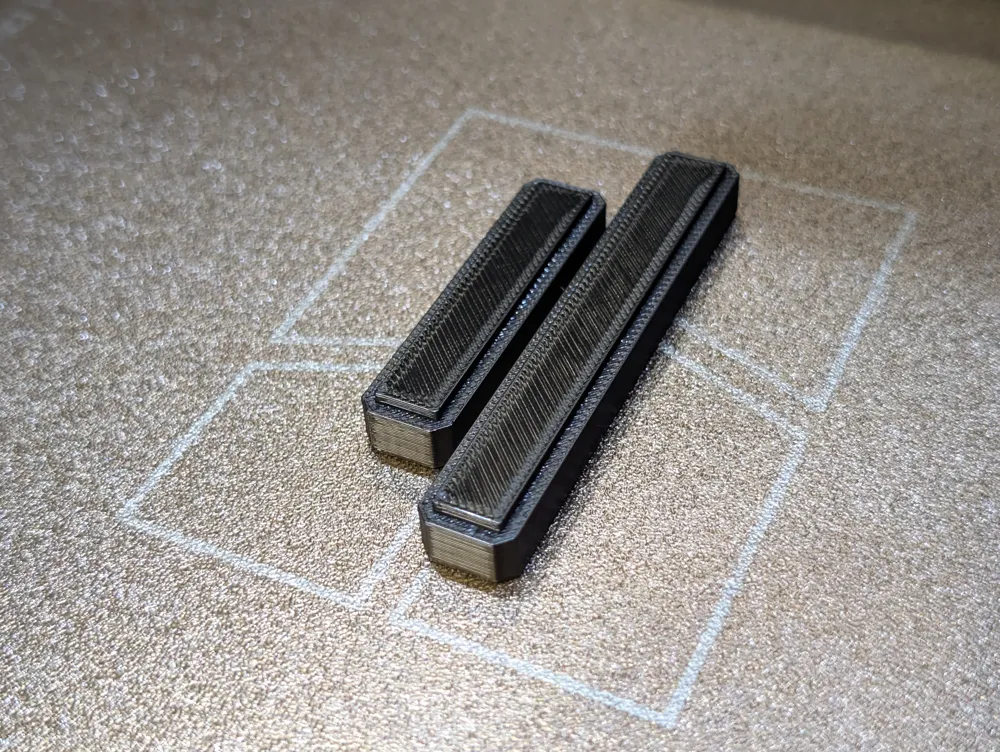

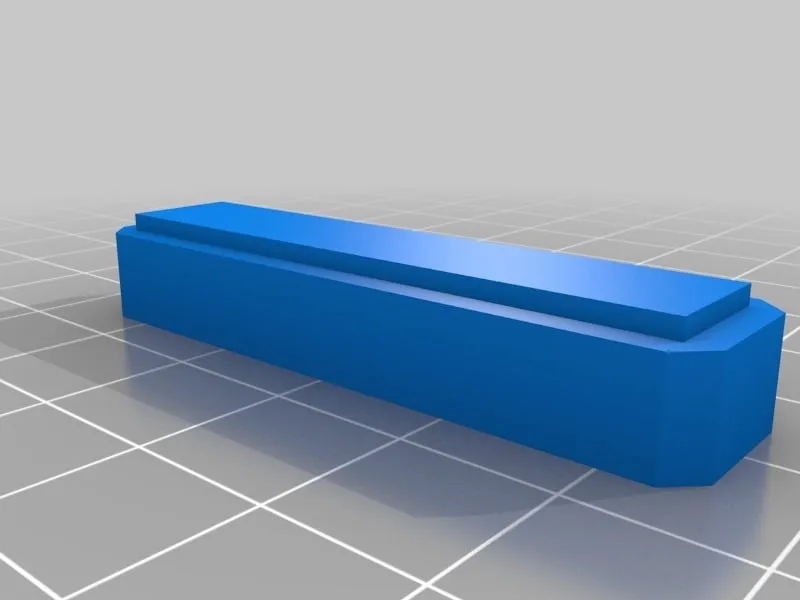

Standard Version (Original Design)

• 50 mm
• 75 mm
• Simple press-fit connection
• No hardware required

Locking Screw Version (New)
Designed for a more secure and permanent connection.

Recommended screw length: 10 mm for optimal fit and performance.

• Lengths:
  • 50 mm (2 screw holes)
  • 75 mm (4 screw holes)

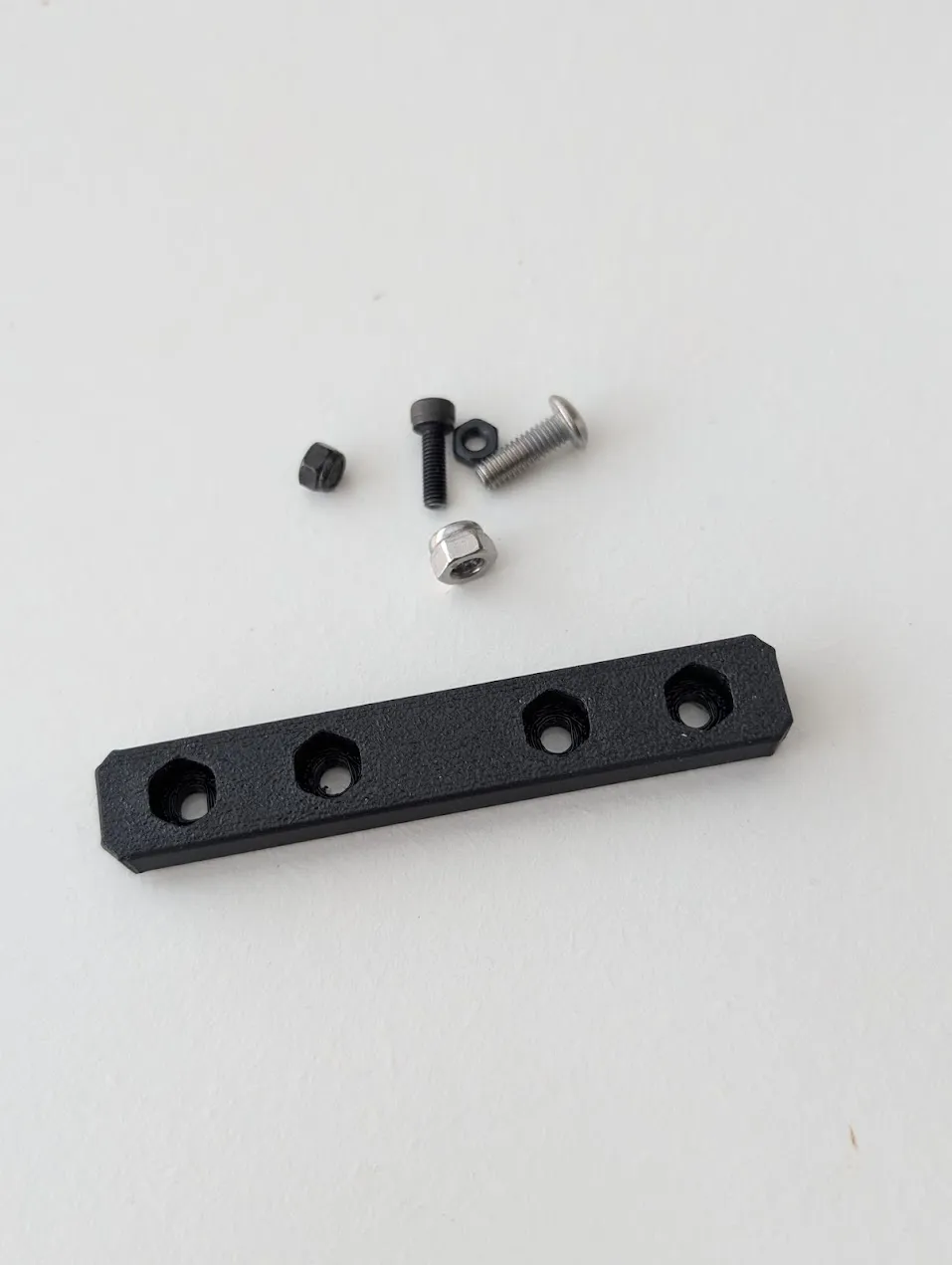

• Screw Options:
  • M3 (3 mm screw + nut)
  • M4 (4 mm screw + nut)

How It Works (Locking Version)

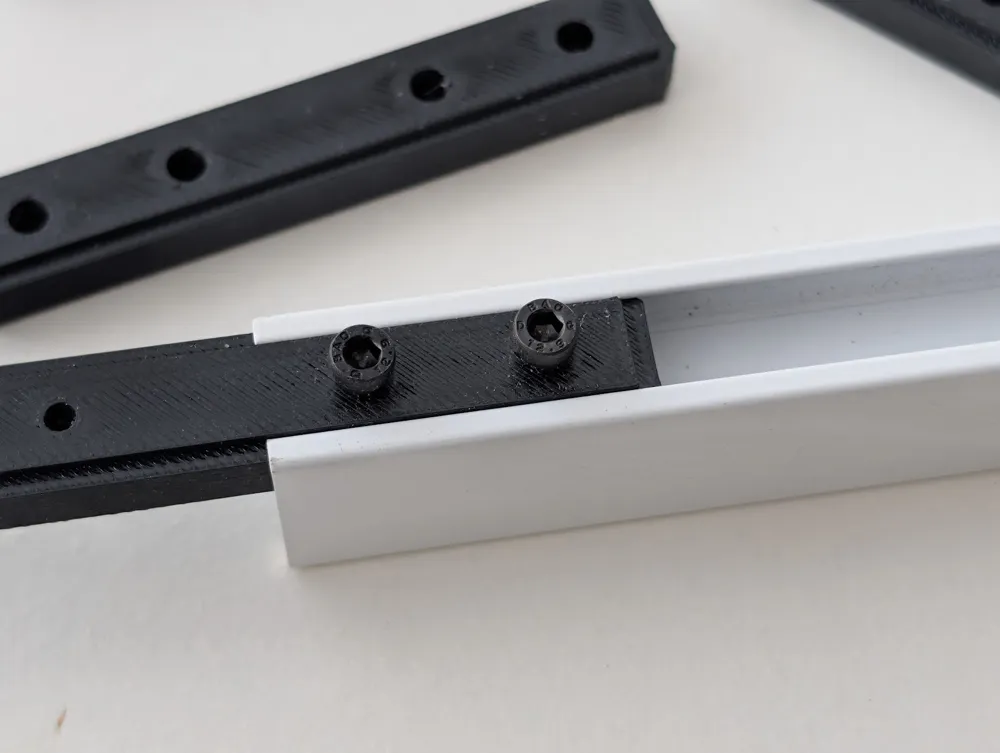

The connector is inserted into the rails just like the standard version.
Then:

• Screws are inserted from the top

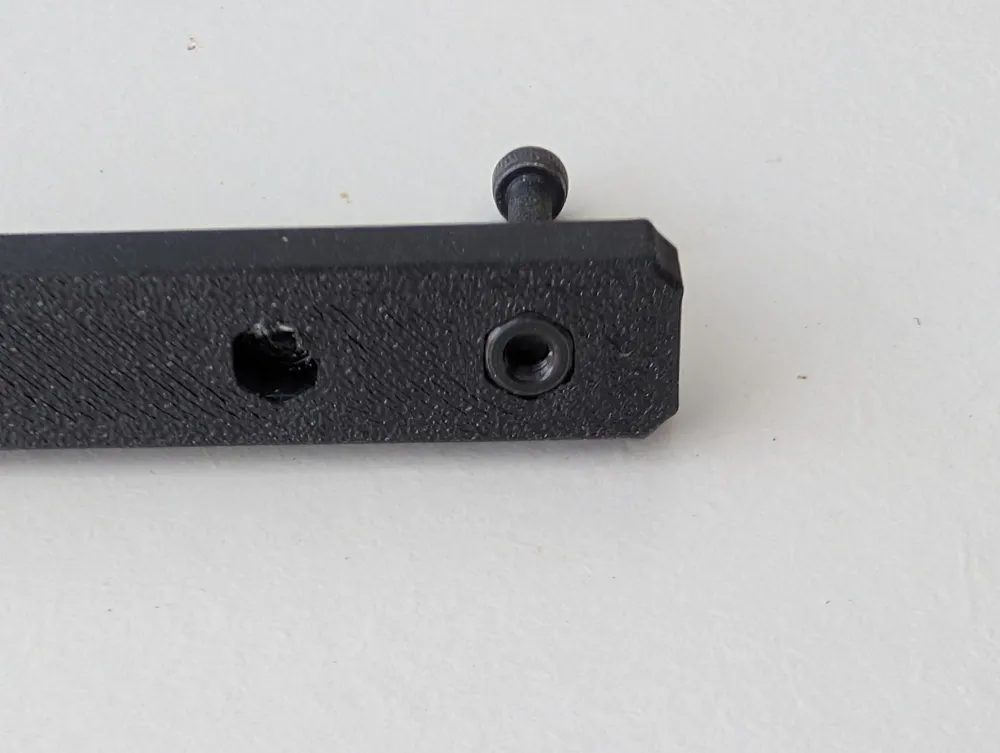

• Nuts are press-fit from the bottom (tight tolerance keeps them in place)
• Tightening the screws expands the grip, locking the connector firmly inside the rails

This creates a much stronger hold, especially useful for longer rail setups or heavier curtains.

Installation

Standard Version:
Simply push the connector halfway into each rail.

Locking Version:

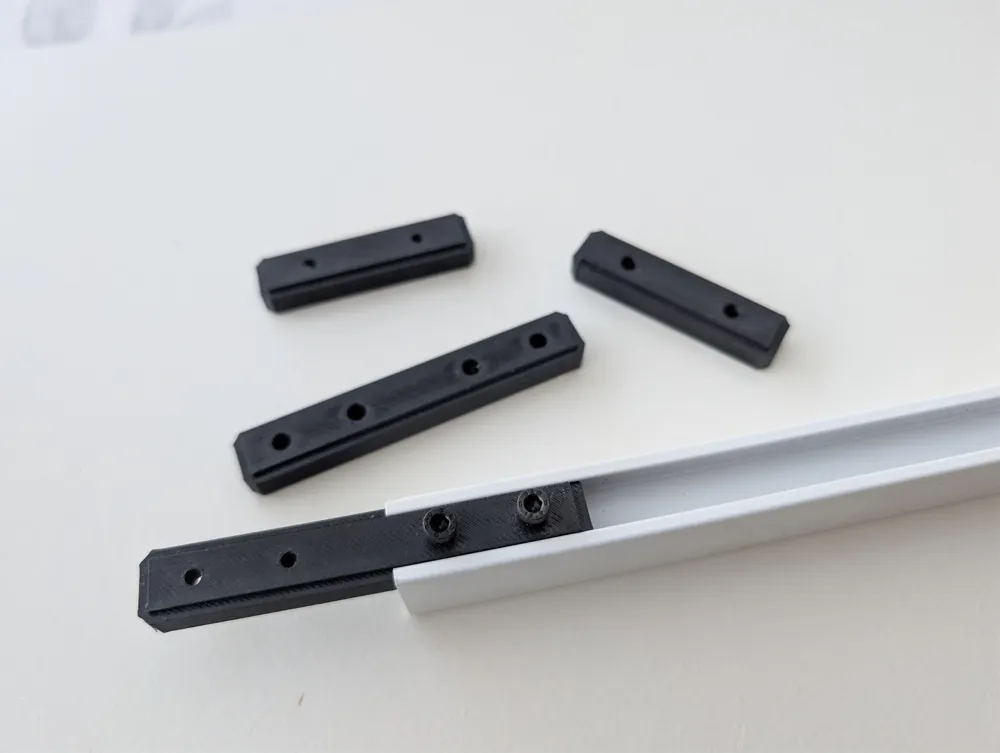

1. Insert the connector into both rails
2. Press-fit the nuts into the bottom holes
3. Insert and tighten screws from the top
4. Tighten until the connector grips firmly

Durability & Fit
Designed specifically for the VIDGA rail profile to ensure a precise fit.
The locking version provides additional mechanical retention for improved stability and long-term reliability.

Why Choose This Design?

• Clean and invisible connection between rails
• Multiple lengths for different needs
• Optional screw-lock system for extra strength
• Tight-fitting nut design (no loose parts during assembly)

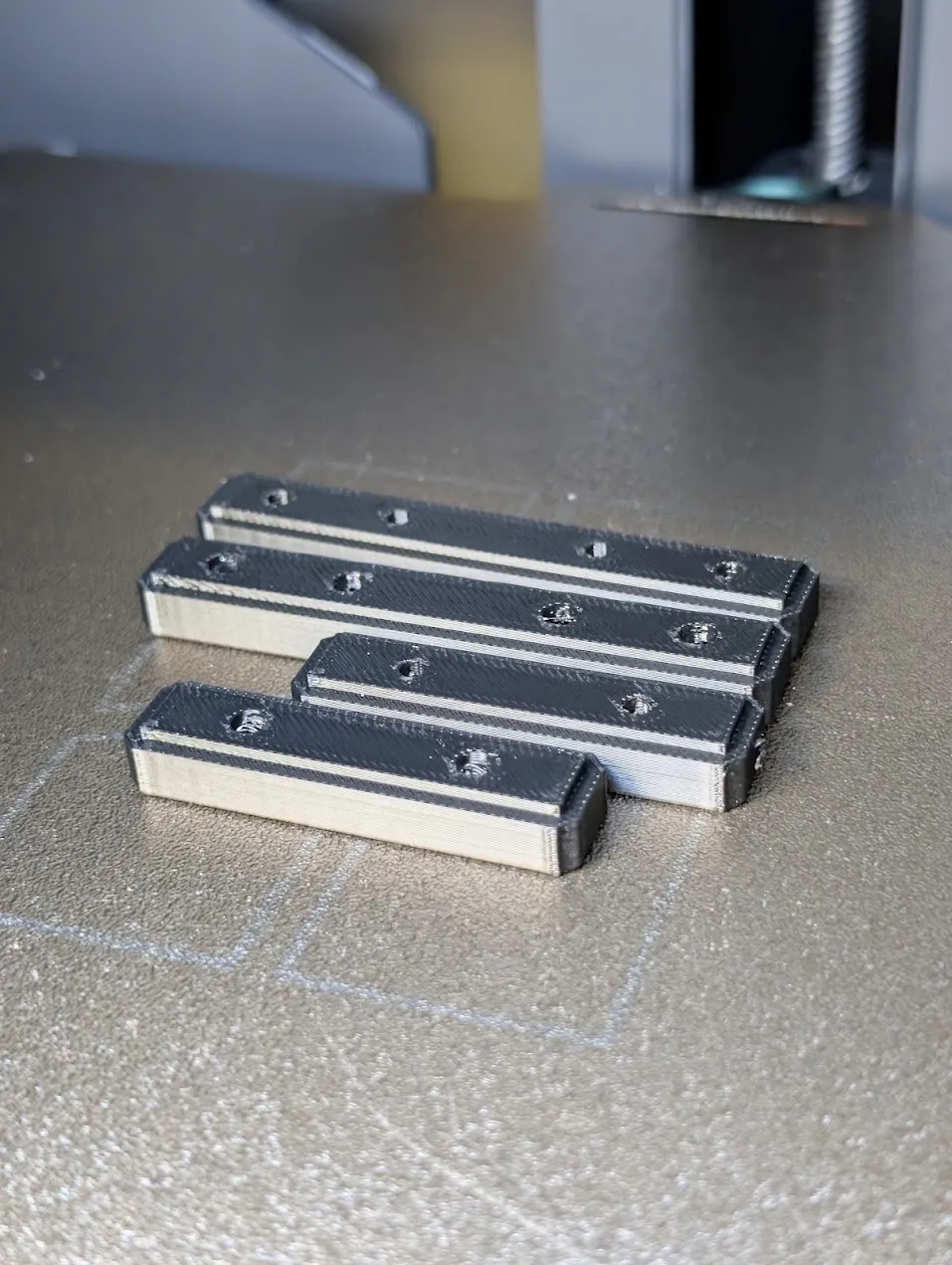

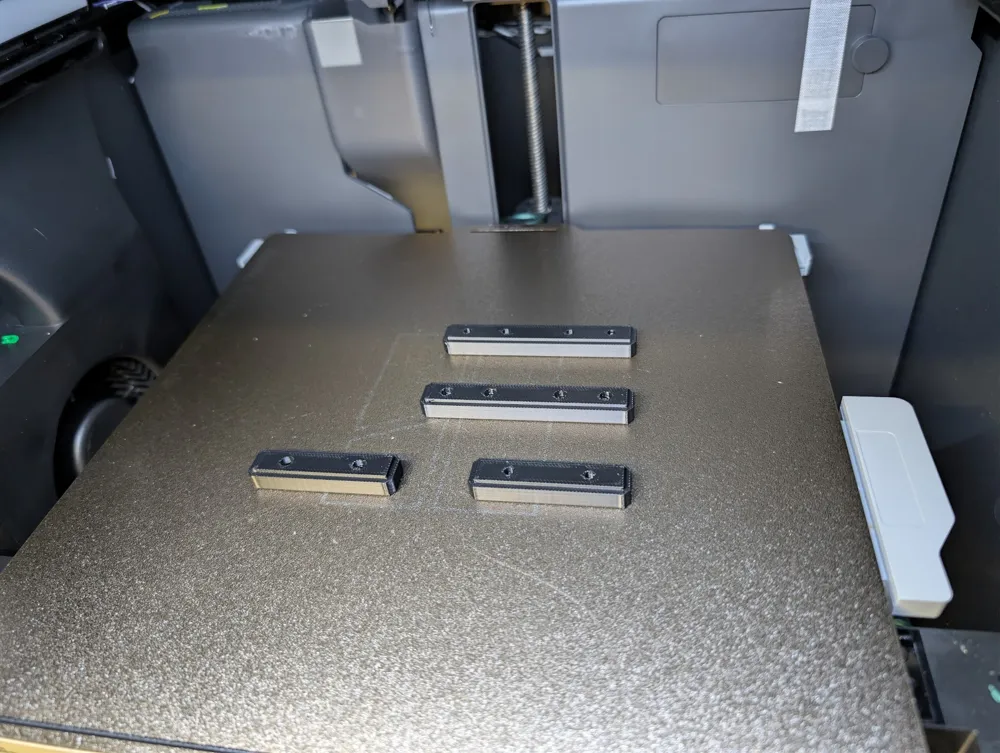

• Easy to print and install
