Curtain Rod Bracket – Vertical & Side Installation

Overview

A versatile curtain rod holder designed for easy installation, allowing the rod to be mounted flush against the ceiling.

Bracket & Arm System

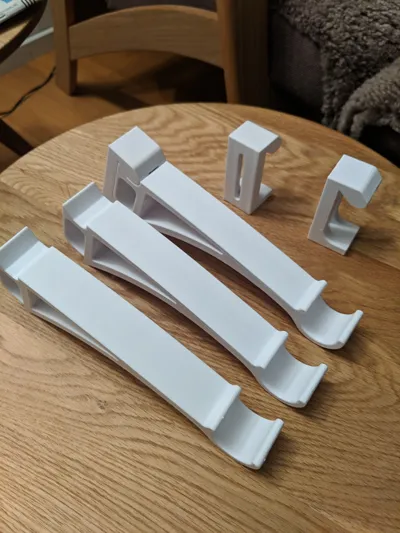

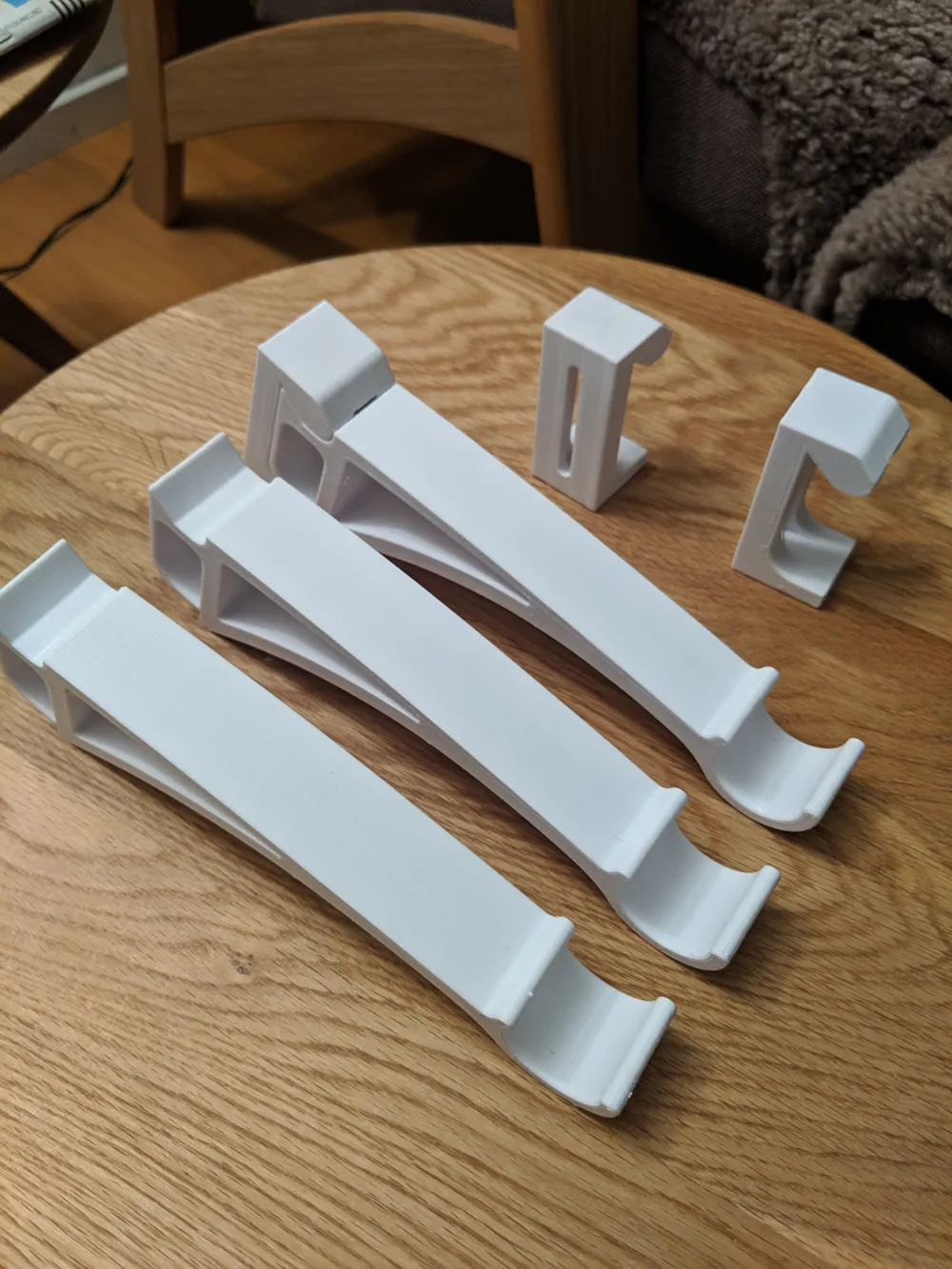

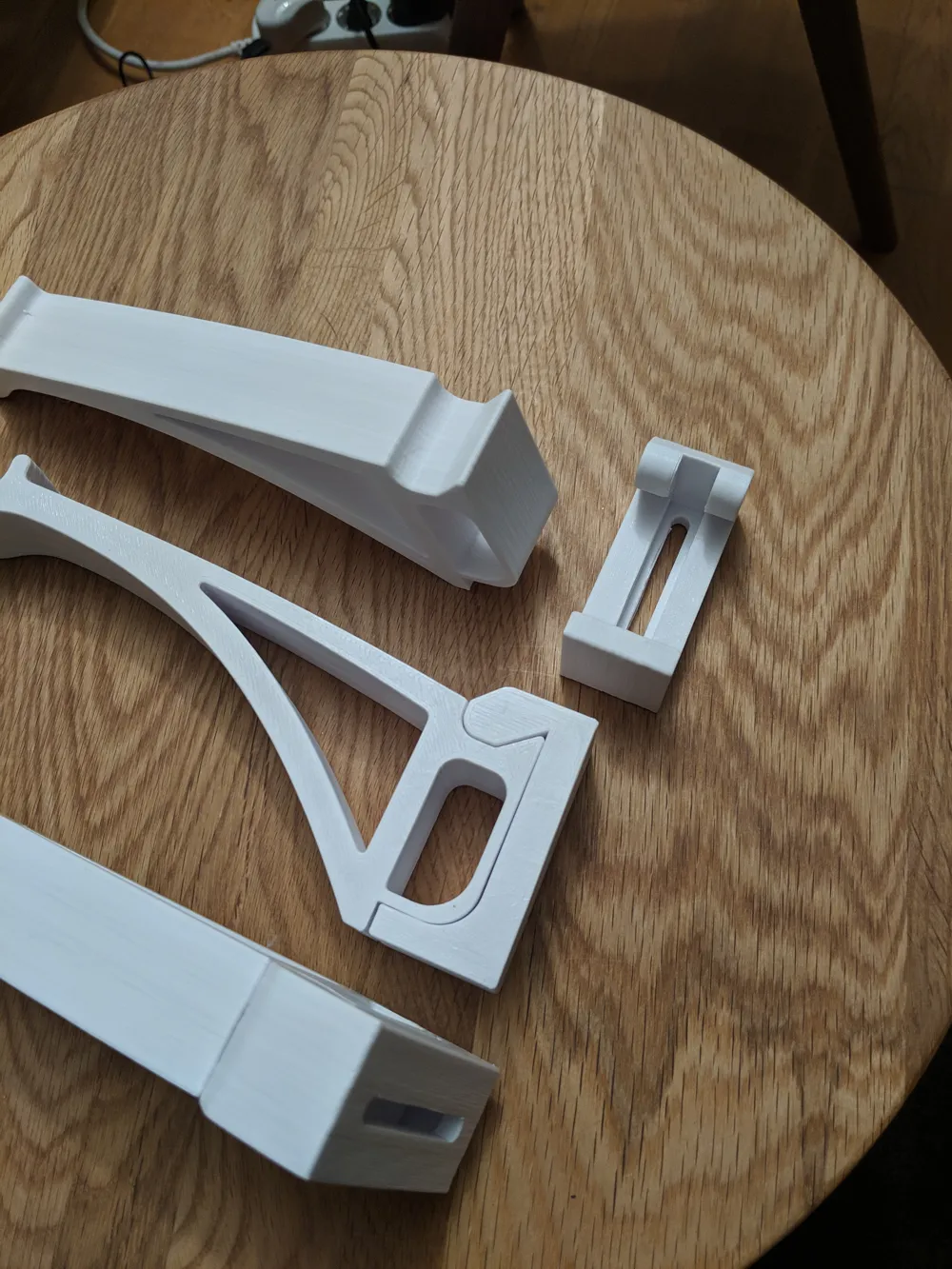

This holder consists of two parts: a wall-mounted bracket and a detachable arm. The same bracket is compatible with multiple arm lengths, ensuring flexibility. No scaling is required for a proper fit.

Dimensions

• Maximum rod diameter: 25 mm (approx. 1 inch).

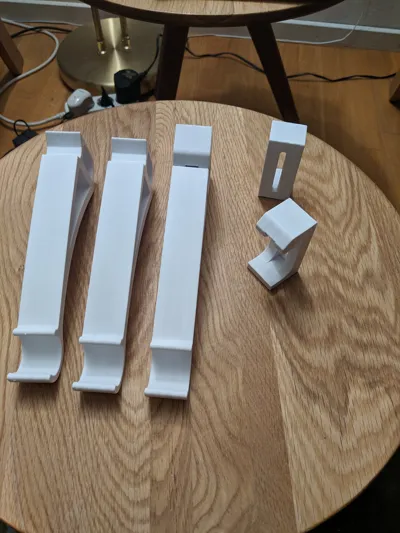

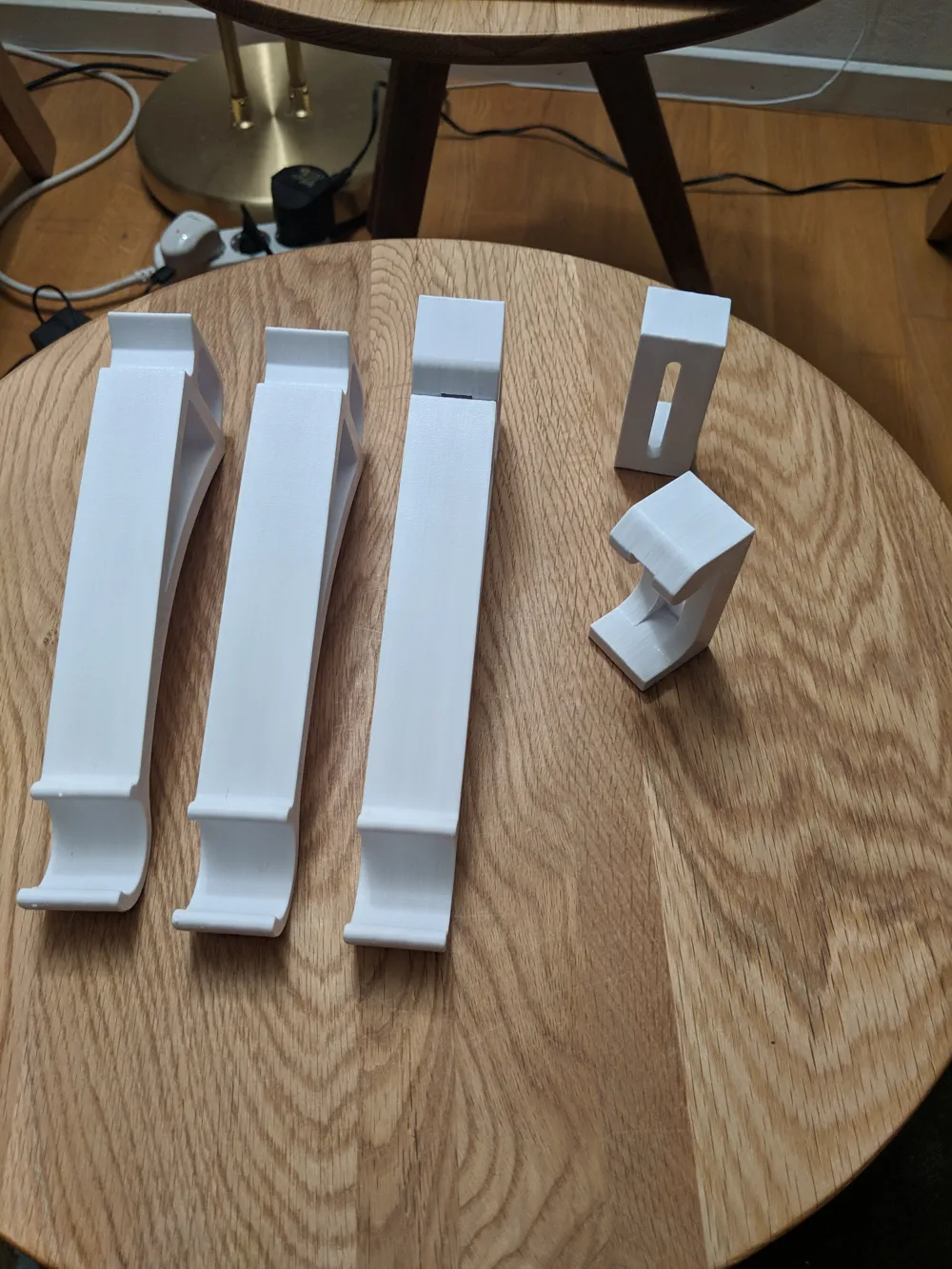

• Available arm lengths (mm): 50, 60, 70, 80, 100, 120, 140, 180, 200.
• The arm length indicates the distance from the wall to the center of the hook where the rod rests.

Quick & Easy Installation

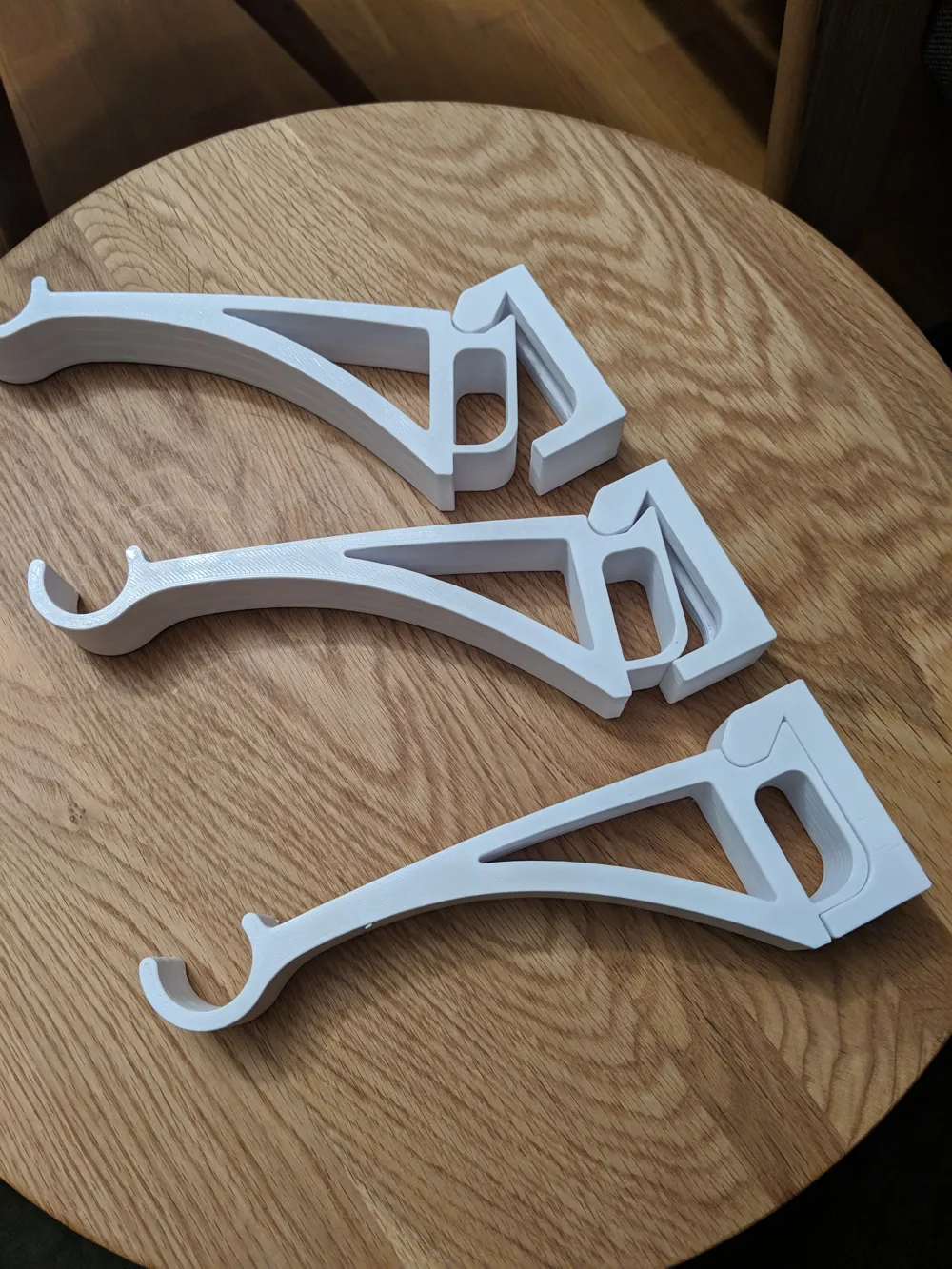

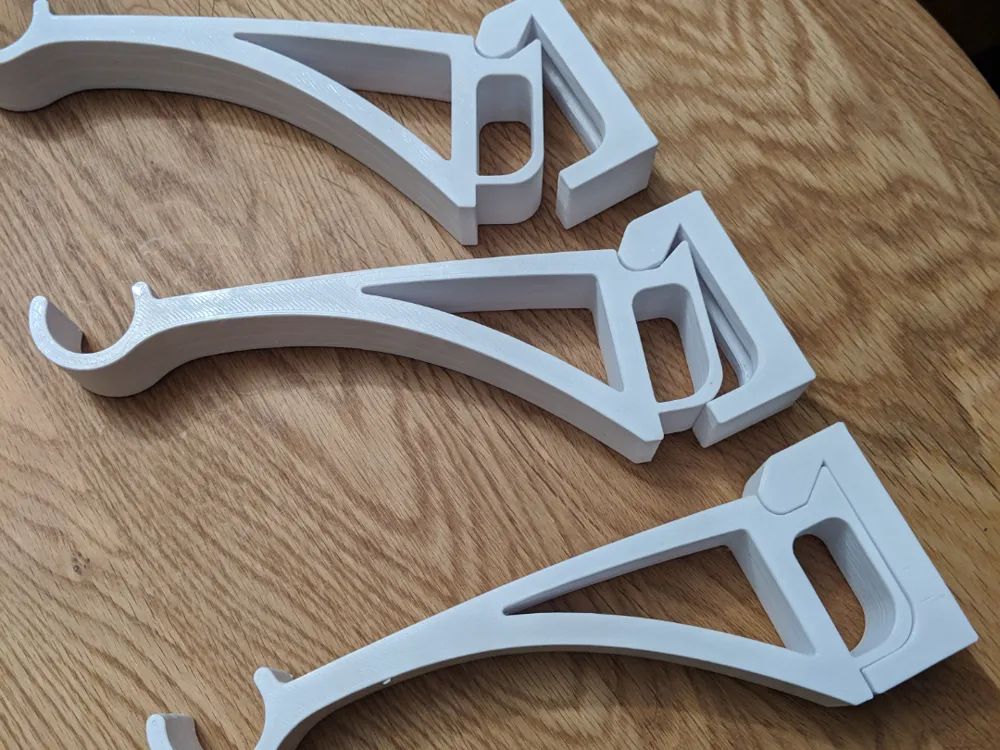

The arm can be attached in two ways:

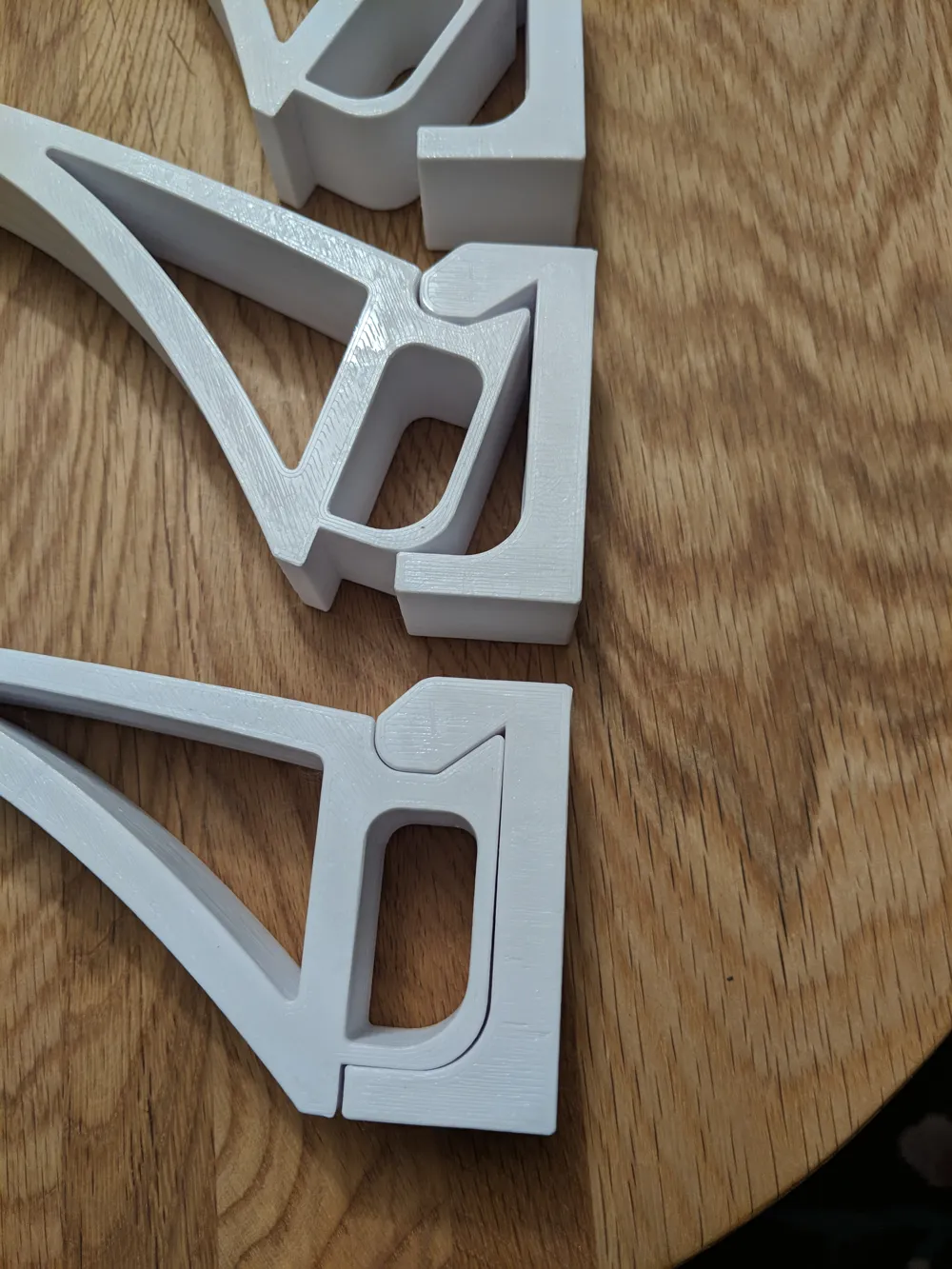

1. Side attachment – Simply slide the arm into the bracket from the side.
2. Angled lock-in method – Insert the base at an angle, then lower it into place for a secure fit.

Flush-to-Ceiling Mounting

The side attachment option allows the rod to be positioned directly against the ceiling, maximizing space and providing a seamless look.

Concealed Screws

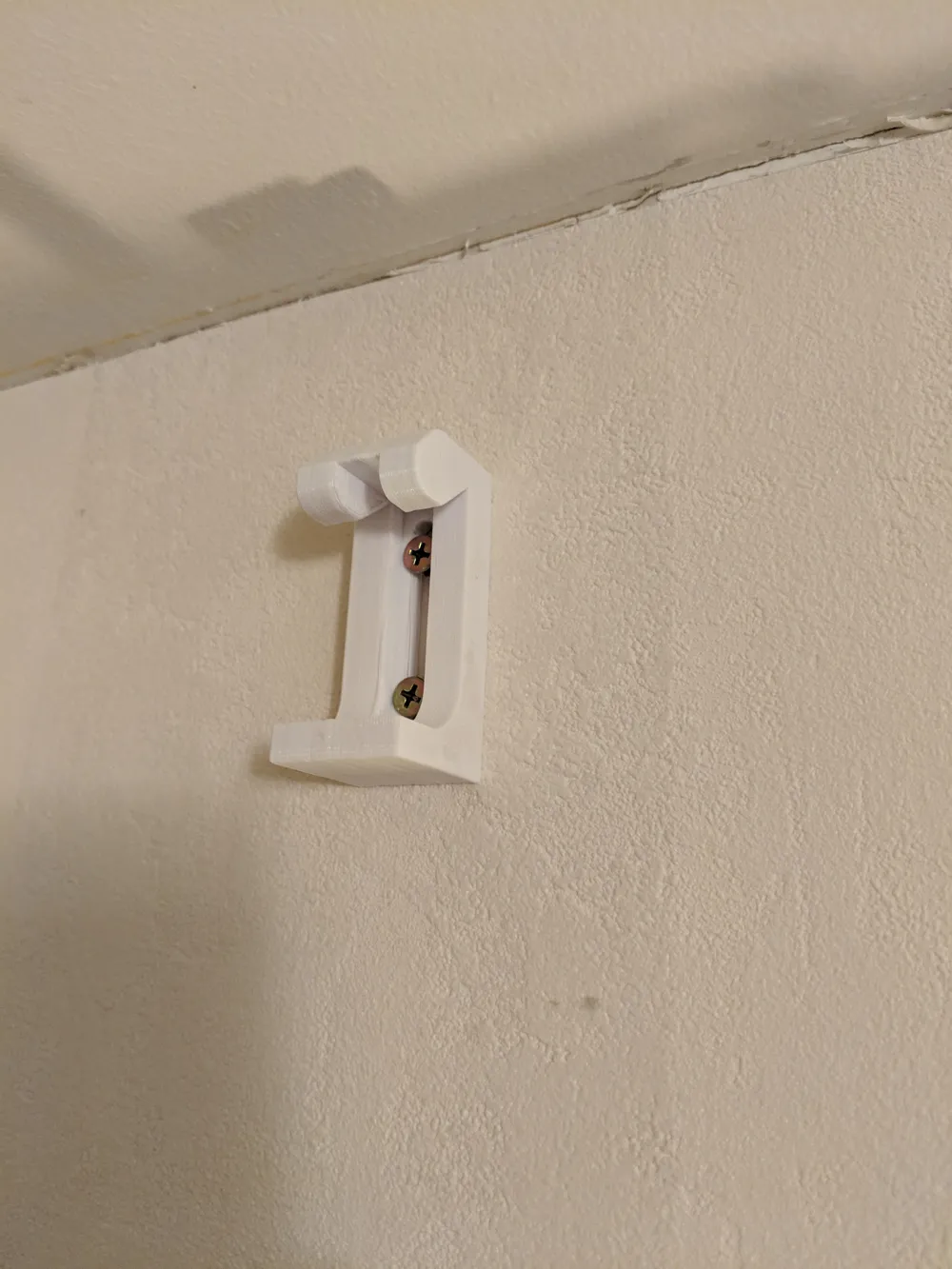

Once the arm is in place, the mounting screws are completely hidden, maintaining a clean aesthetic.

Durability & Strength

• Bracket and arm width: 27 mm (just over 1 inch).
• Engineered for strength and stability, ensuring long-lasting support.
