H2D Poop Chute – Slim · Fast · Efficient

H2D Poop Chute – Slim · Fast · Efficient

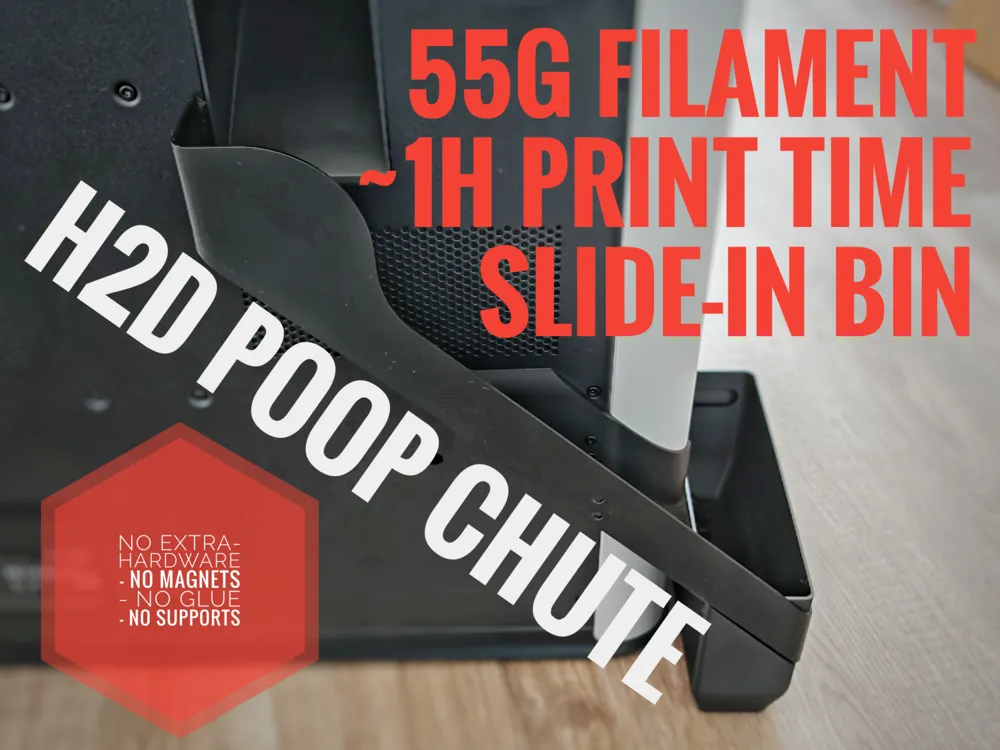

A sleek and space-saving poop chute designed specifically for the Bambu Lab H2D. This minimalist chute guides filament purge waste directly into a matching slide-in bin – no extra hardware, no supports, and no glue required.

With just 55g of filament and a ~1 hour print time, it’s the fastest and most efficient poop chute solution available.

Key Features:

• Slim Design: Fits tightly along the printer – ideal for enclosures and limited space.
• Fast Print: Just 55g of filament and approximately 1 hour of print time.

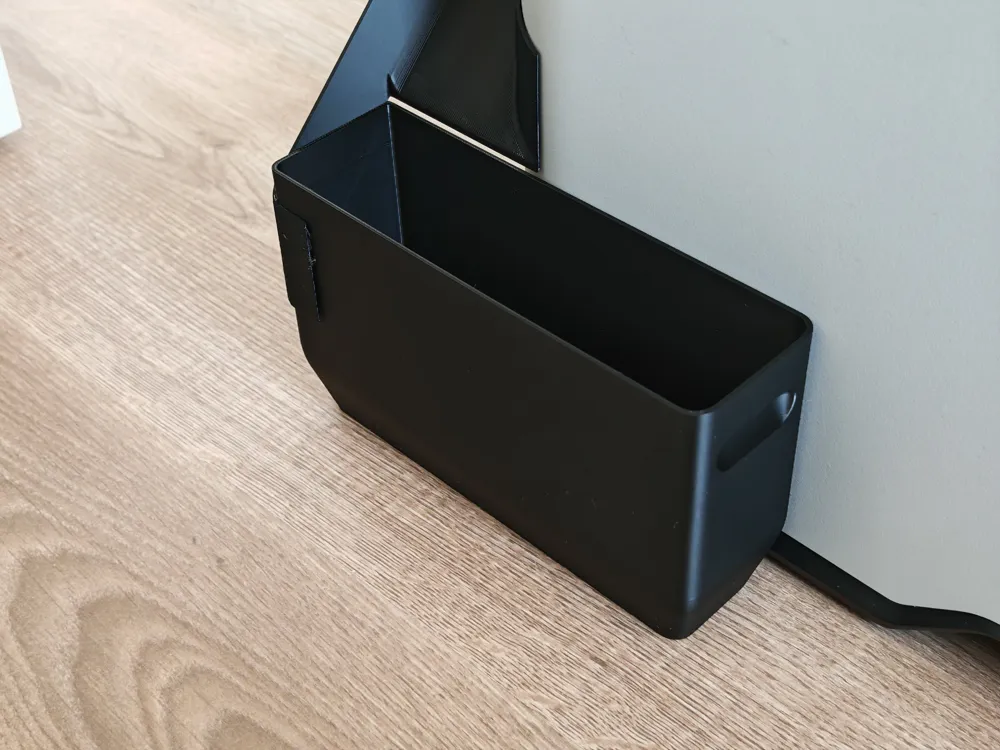

• Slide-In Bin: Custom bin slots easily into place and can be removed for emptying.
• No Extra Hardware Needed: Uses one of the spare spool holder screws included with your printer.
• No Supports or Glue: Prints cleanly and assembles without hassle.

Assembly Instructions:

1. Print the chute and bin – no supports required.
2. Locate the mounting point for the bottom spool holder on the rear of the printer.

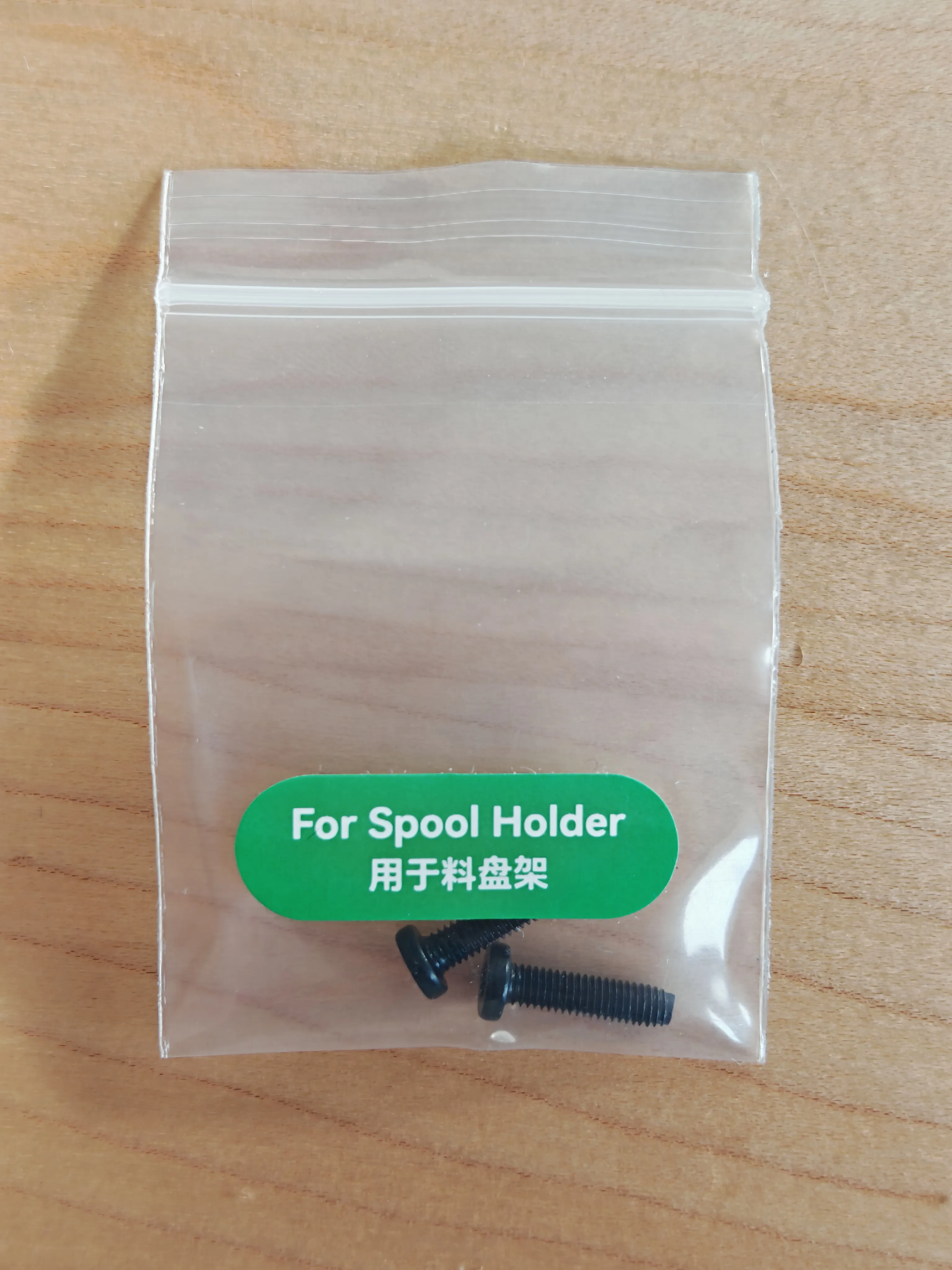

3. Use one of the spare screws labeled “For Spool Holder” from your accessories toolbox.

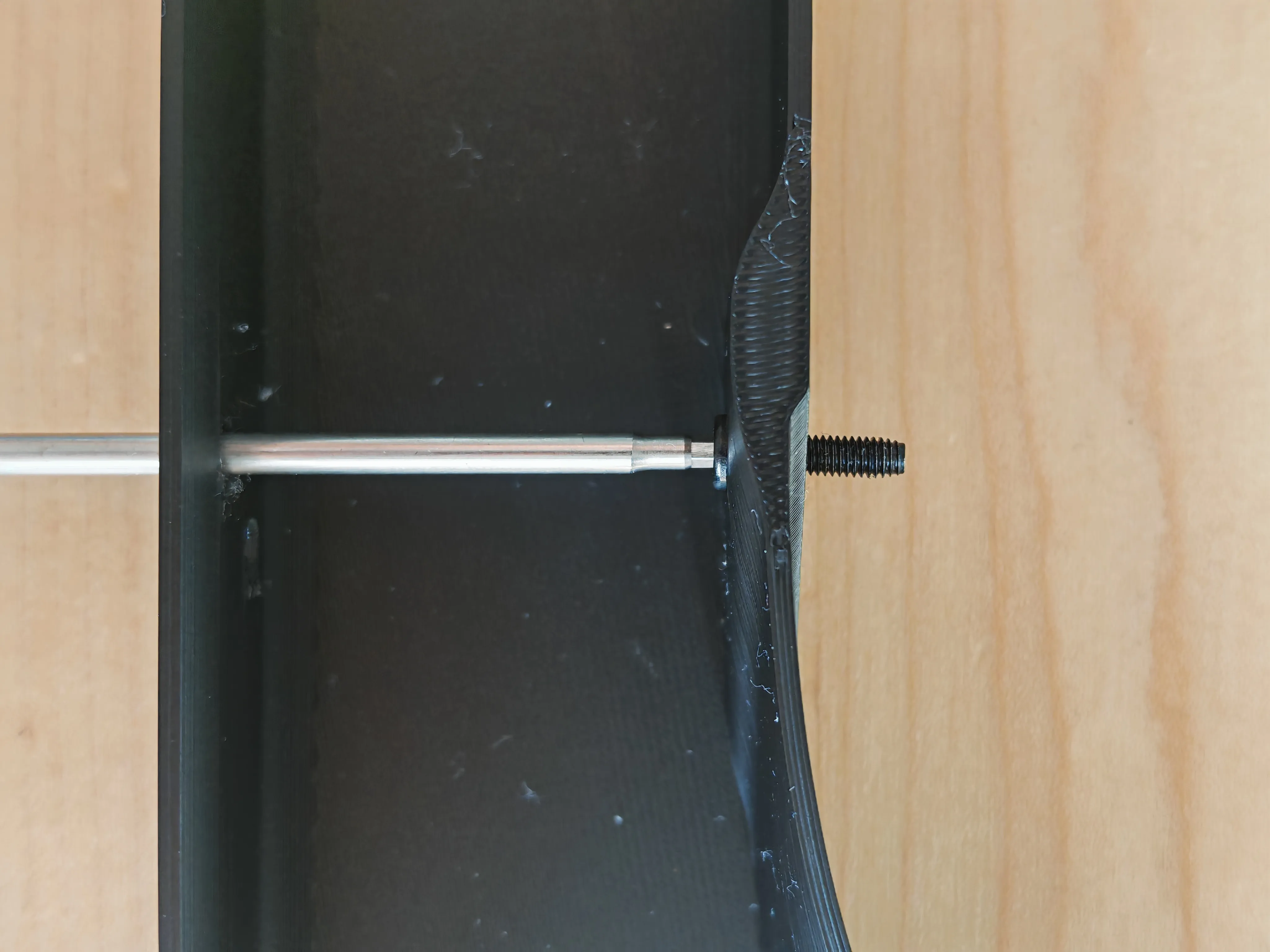

4. Attach the chute using that screw.

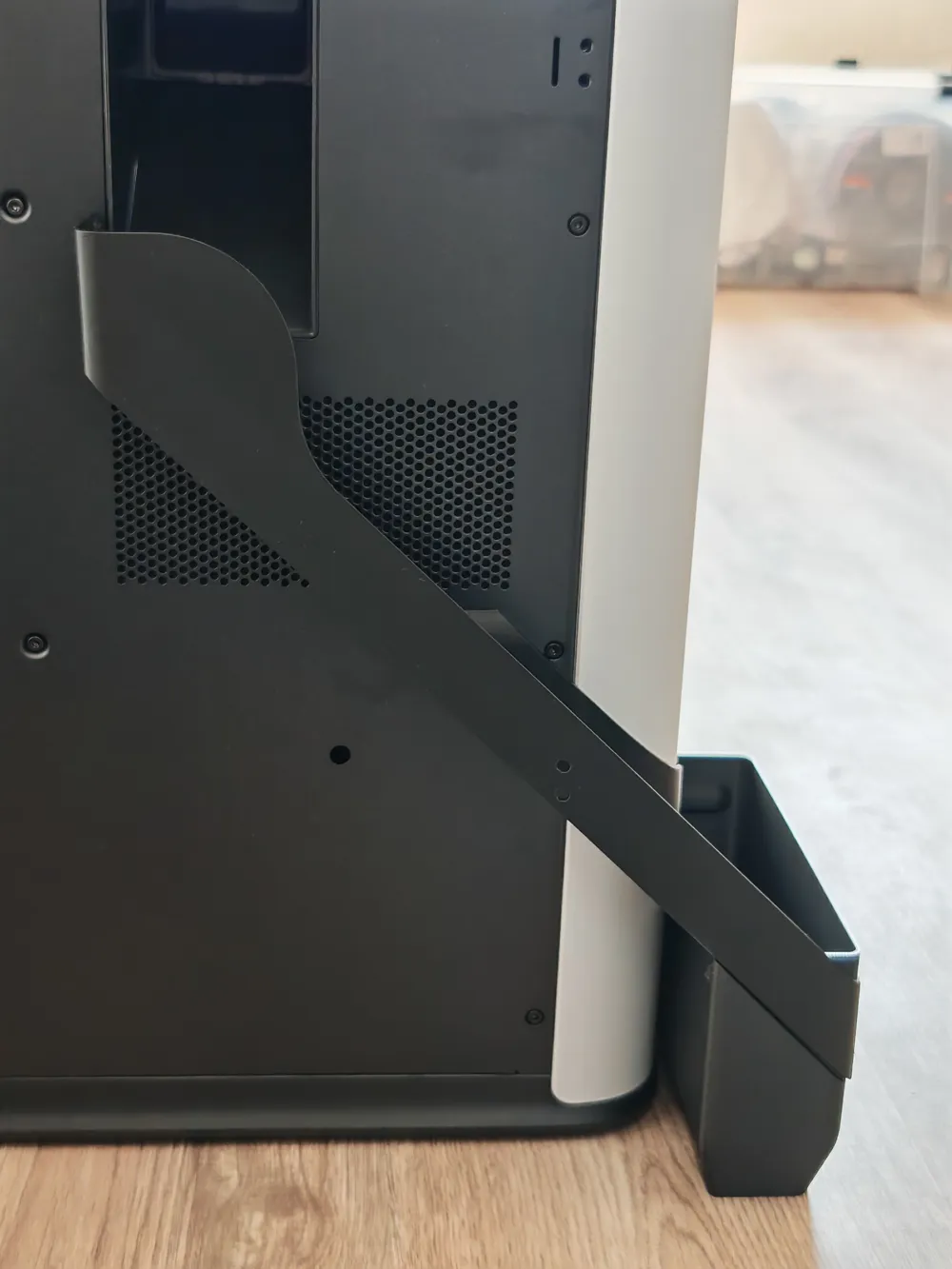

5. Slide the printed bin into place under the chute.

That’s it – simple, functional, and ready to go.
