Plate Mate: Universal Build Plate Holder for H2D
Print Profile(2)
Description
The PlateMate is a versatile, efficient build plate holder designed for the Bambu H2D series build plates but also compatible with a wide range of 3D printer plates, including smaller sizes. This fanned-plate solution is perfect for organizing and storing up to five build plates, keeping your workspace tidy and your plates easily accessible.
Boost Me (for free)
Boosts are nice if you like my work.

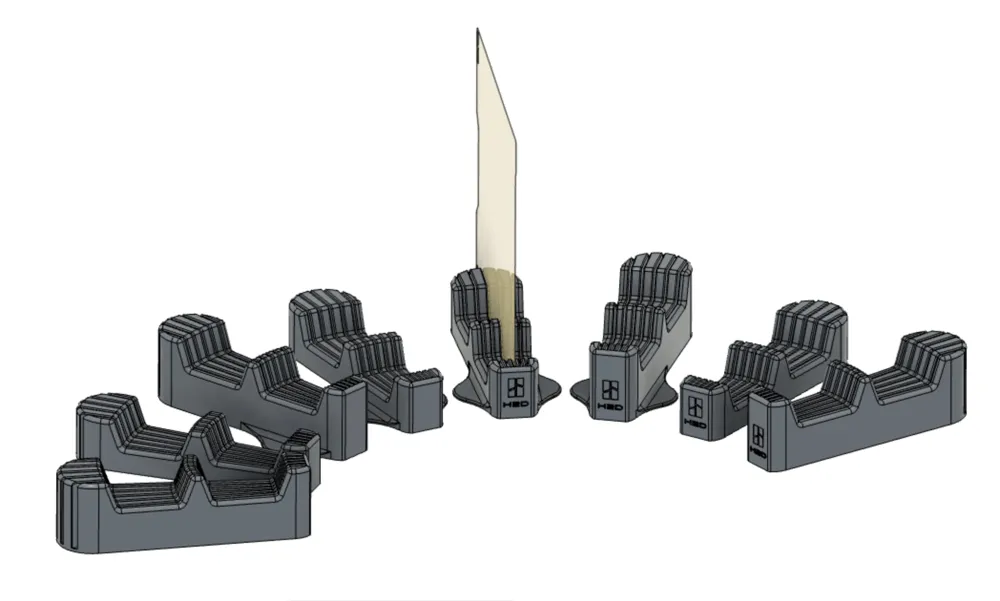

Whether you’re awaiting your new H2D printer or simply need a practical storage solution for plates up to ~325x325mm, the PlateMate has you covered. It’s available in 8 configurations, including variations with or without stabilizing feet and the option to feature the H2D logo.

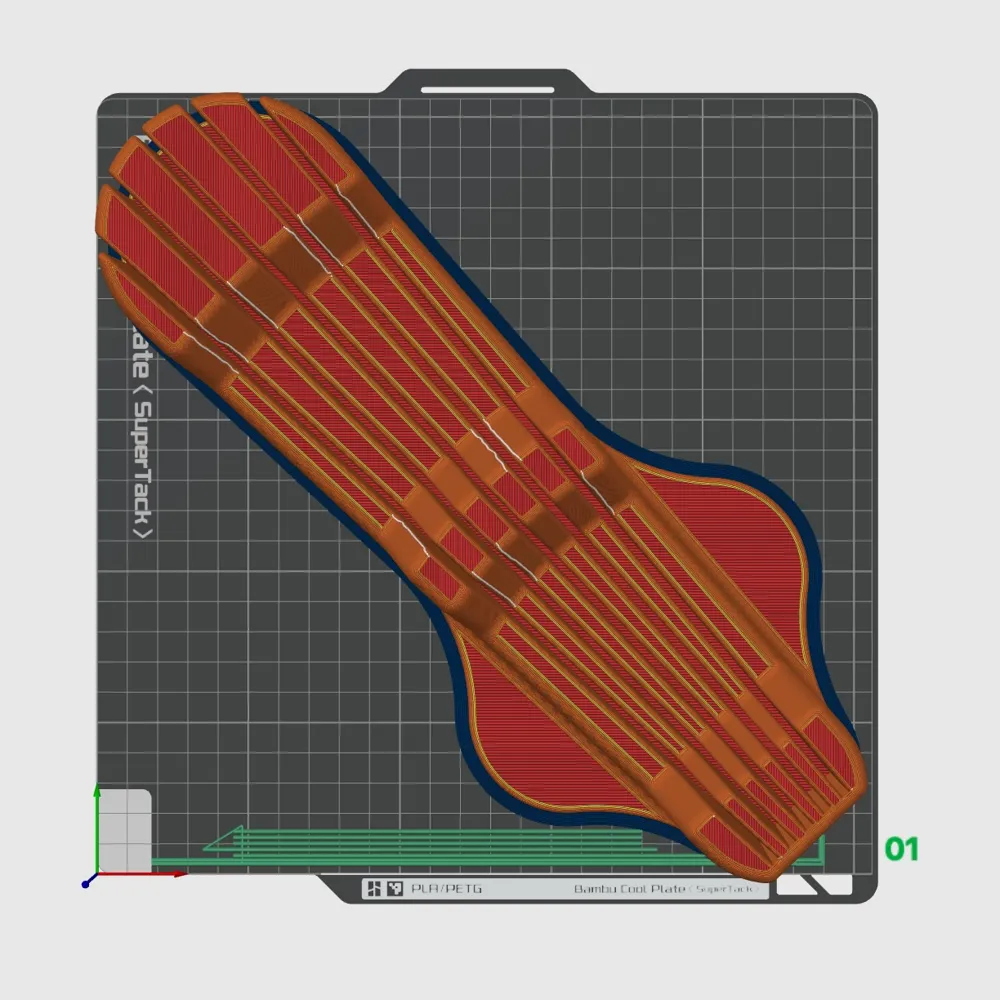

Print the PlateMate on your existing X1/P1 series build plate while you wait for your new printer to arrive! Made from durable PLA or PETG, this design offers convenience and functionality. Pre-sliced 3MF files for Bambu Slicer are included, along with generic 3MF and STEP files for easy customization.
Key Features:
✔ H2D-Compatible – Perfectly designed for Bambu H2D build plates.
✔ Universal Fit – Works with plates up to ~325x325mm, including X1/P1 series. Up to ~2.5 mm thick plates supported.
✔ Space-Saving Design – Holds up to five plates to keep your workspace organized.

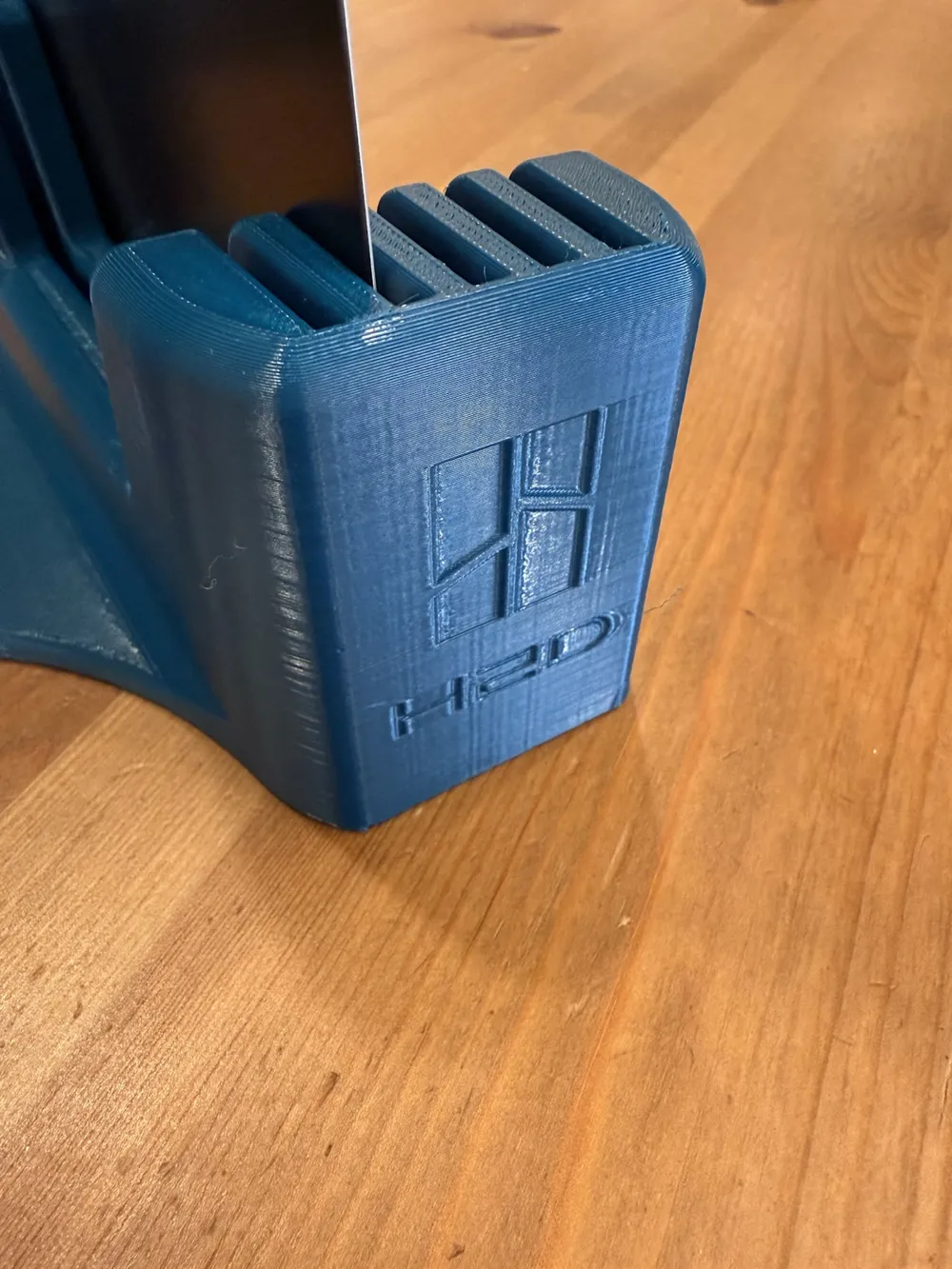

✔ Multiple Configurations – Choose from different heights, stabilizing feet, and logo options.
✔ Durable & Customizable – Print in PLA, PETG, or other filaments, with pre-sliced files for Bambu Slicer.

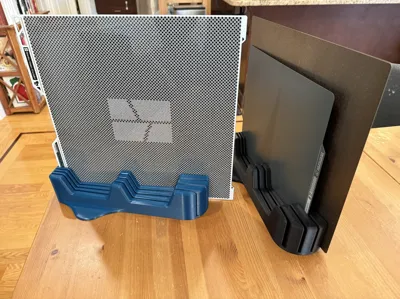

Shown here is the “Short + Logo + Feet” version in blue PETG and black PLA. This file is the “PlateMate v8_PlateMate v8_Short v30_1.3mf” one.
Printing:
- 0.2-0.16 layer heights work well
- Slower outer wall speeds work well for a nicer finish
- Outer brim with 0.0 mm gap recommended for adhesion (anti-warp)
- There is occasionally a little layer-time change “bump” toward the front of the holder depending on the filament used / speeds of your printer. This is a very minor annoyance and may occur on some printers/filaments due to inherent process limits in 3D printing. I optimized it away as much as I could.
Keep your build plates neatly stored and ready for your next project with PlateMate – the ideal holder for H2D and beyond!
