Electric Outboard Motor Propeller
Print Profile(1)
Description
Replace your damaged or worn-out propeller with this propeller. It should fit common brands like Yamaha, Tamforce, Minn Kota, etc.
The hub has an 82 mm outside diameter and a center hole for a 10 mm shaft, with a slot for a 3.5 mm pin. Check the attached drawing for dimensions and feel free to ask if you have any questions before printing.

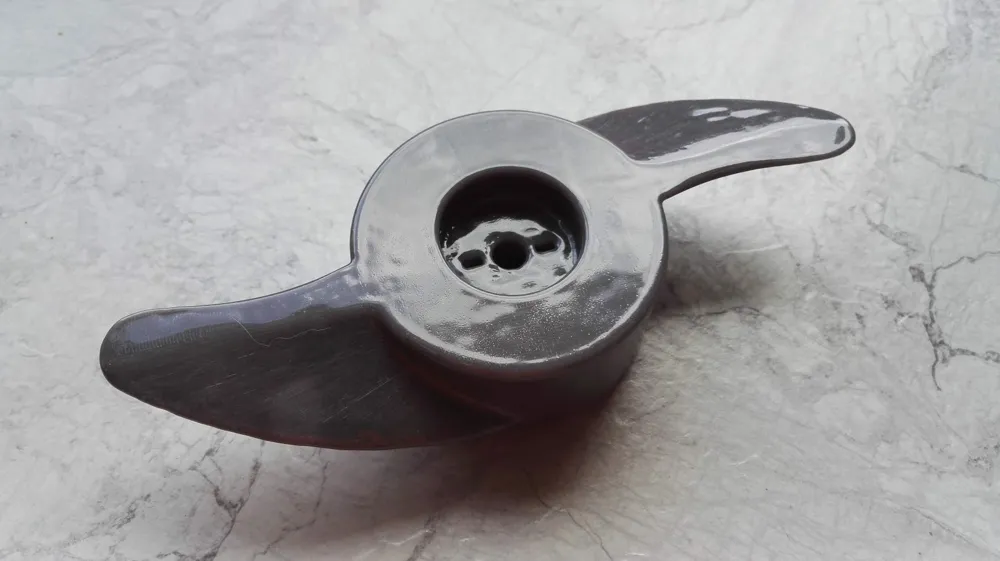

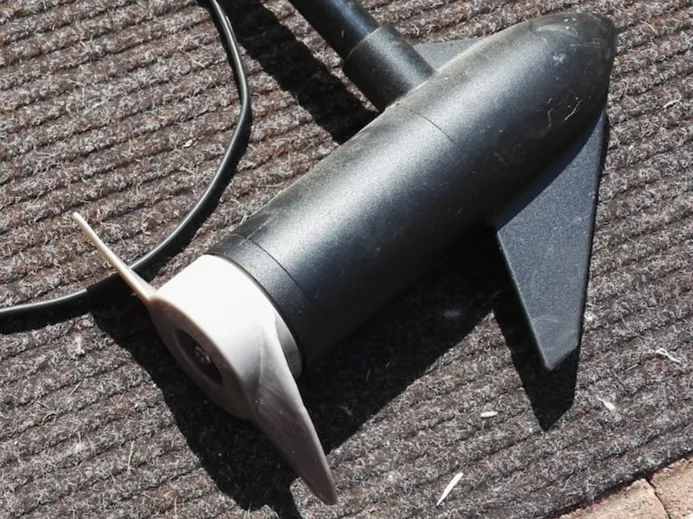

This propeller has been tested with a small 32 lbs electric motor. Print with a strong, weather-resistant filament such as ABS, ASA, or PETG to ensure durability against water and outdoor conditions. I printed it in ABS, then smoothed it with acetone vapor for a nicer finish, improved durability, and better water resistance.
- Ideal for fixing broken or worn-out propellers

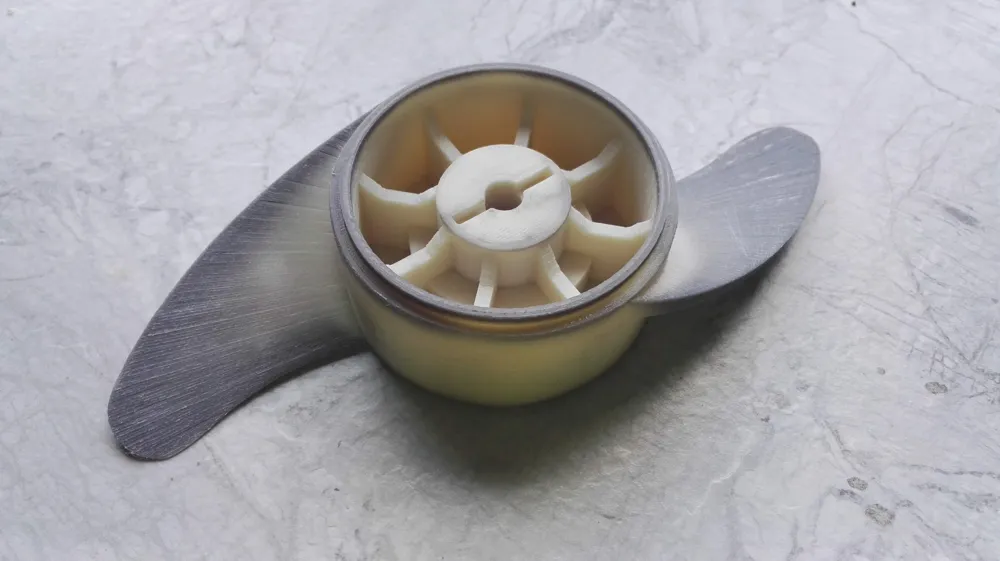

- Reinforced hub adds durability
- 10 mm hole for shaft (drill larger if needed, as some shafts may have slight variance)
April 1, 2025:
- First release
Check my other household items here!
Your feedback and ratings are incredibly valuable and help refine future designs. Thank you! ⚓
