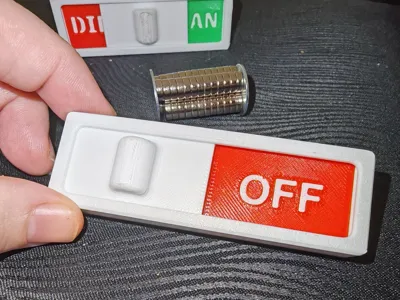

I've seen several models of this slide-in indicator, but none of them really appealed to me.

Some had magnet holes that were too small or poorly inserted, causing them to come out. Others required glueing the cover because it would come out and fall off.



I've redesigned this one so that:

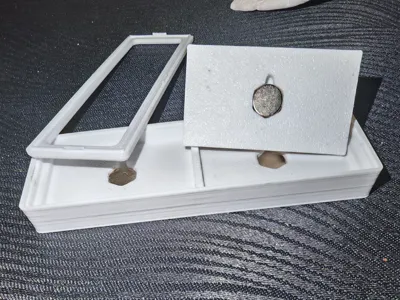

  • The magnets are inserted from the inside more easily, regardless of their depth, ensuring they won't fall out.
  • The cover snaps into place with tabs, so no glue is required.

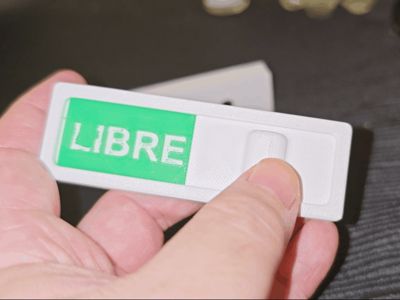

  • The indicators have been modified so you can use the ones that best suit you, making use of the dual color of the AMS.
