Alexa Enabled - WLED Lithophane Lightbox Cube (100x100mm Lithophanes)

An elegant lightbox for your lithophanes.

There are 2 variants available:

1. WLED based

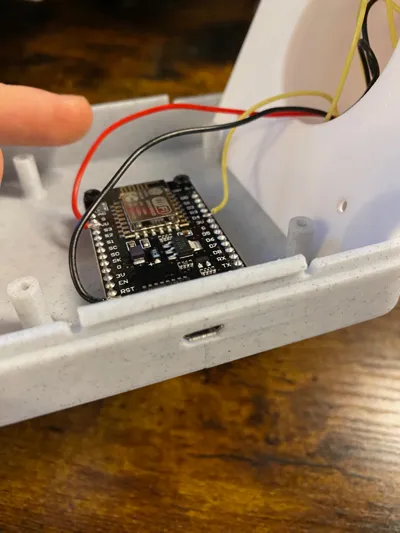

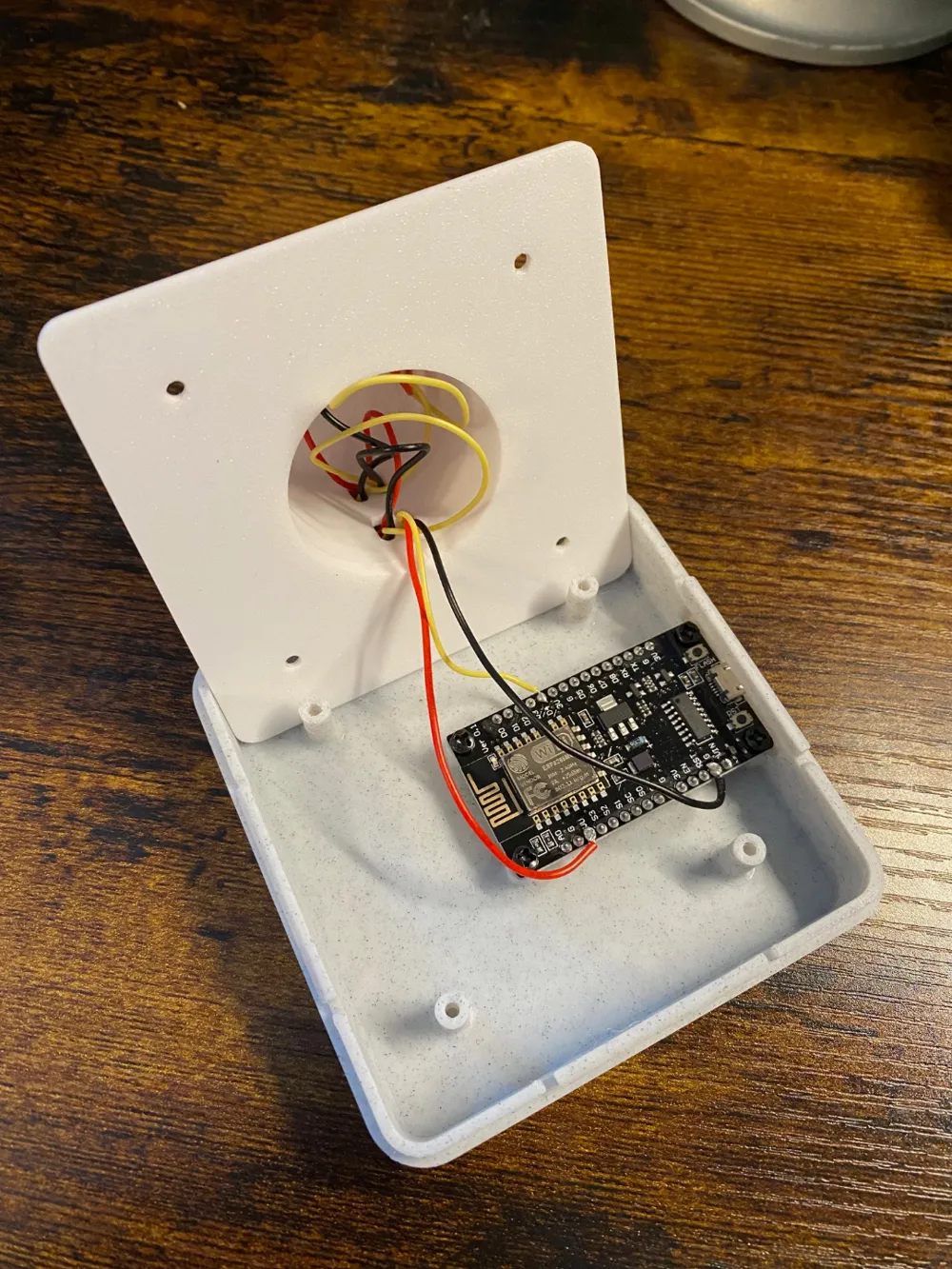

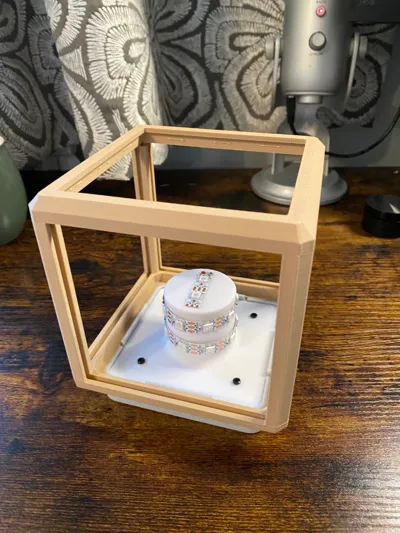

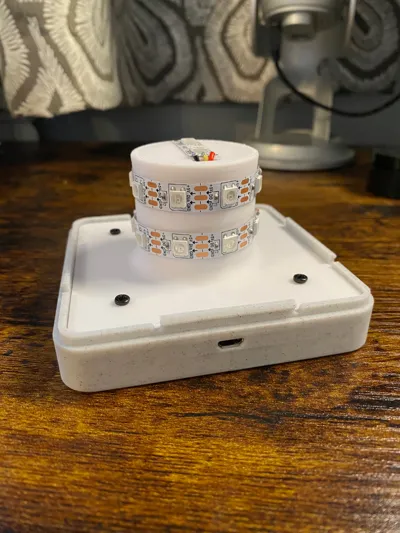

This variant is designed to be used with an ESP8266 running WLED and an addressable LED strip (WS2812B). This option is great as it means you have the ability to control the colour and brightness of the LEDs, patterns and also integrate the lightbox with Alexa. This means you can use Alexa commands like “Alexa, turn on lightbox”, “Alexa, change lightbox colour to green”, or “Alexa, change lightbox brightness to 50%”. This version with require you to do some soldering.

This version is powered by the micro-USB port on the ESP board.

2. Battery powered-tealights or similar

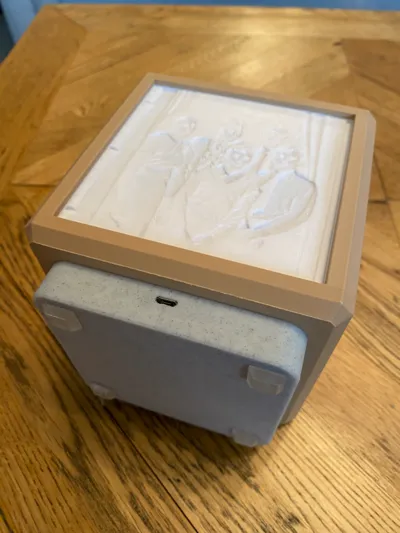

This variant has a 50mm hole in the base so you can place the lightbox over a battery-powered tea lamp or similar. This is a good option if you don't want to do any soldering.

Parts required:

• For all variants:

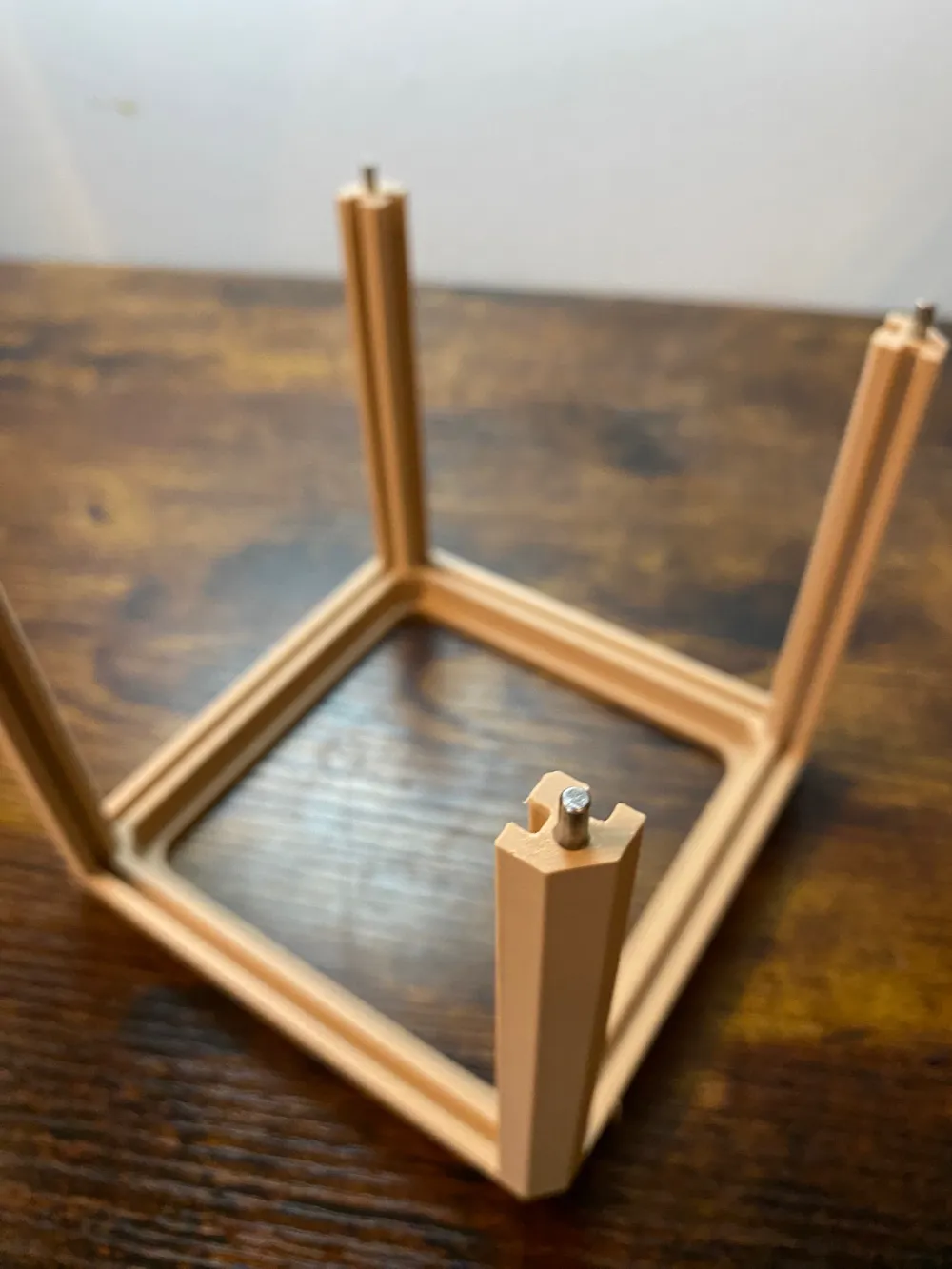

  • Both designs use 3x12mm metal dowel pins to secure the top: https://www.amazon.co.uk/dp/B08ZCM6KX6?ref=ppx_yo2ov_dt_b_product_details&th=1&_encoding=UTF8&tag=hallum37-21&linkCode=ur2&linkId=3b4b35db19347bf1c65fdac6f8d28704&camp=1634&creative=6738 (note: this is more robust than printed pins when frequently changing lithophanes. You could try printing dowel pins if you don't want to use metal ones)
• For WLED variant:
  • ESP8266: https://www.aliexpress.com/item/1005005977505151.html?spm=a2g0o.order_list.order_list_main.11.53811802p24FuJ
  • WS2812B 5V LED strip (up to 18 LEDs): https://www.aliexpress.com/item/1005006047094128.html?spm=a2g0o.productlist.main.7.2c6250ccfBVhQK&algo_pvid=a9895f12-e131-4ffe-856c-7286efa5346c&aem_p4p_detail=202401061221445319238381399040003920244&algo_exp_id=a9895f12-e131-4ffe-856c-7286efa5346c-3&pdp_npi=4%40dis%21GBP%2113.80%2110.63%21%21%21121.90%21%21%40210386d117045725040452161e0a46%2112000035479287650%21sea%21UK%212857257406%21&curPageLogUid=PGT4QpJNNVhM&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=202401061221445319238381399040003920244_4
  • 8 x M3x6mm screws: https://www.amazon.co.uk/dp/B09NDPGJG1?ref=ppx_yo2ov_dt_b_product_details&th=1&_encoding=UTF8&tag=hallum37-21&linkCode=ur2&linkId=85a047f809f4529124ac174c1be4fcc0&camp=1634&creative=6738

Lithophane settings

You can generate lithophanes for the lightbox here: https://lithophanemaker.com/Framed%20Lithophane.html

The settings you want to use for compatibility are:

• Width = 106mm
• Height = 106mm
• Depth = 3mm
• Base Height = 3mm

Leave all other settings as defaults.
