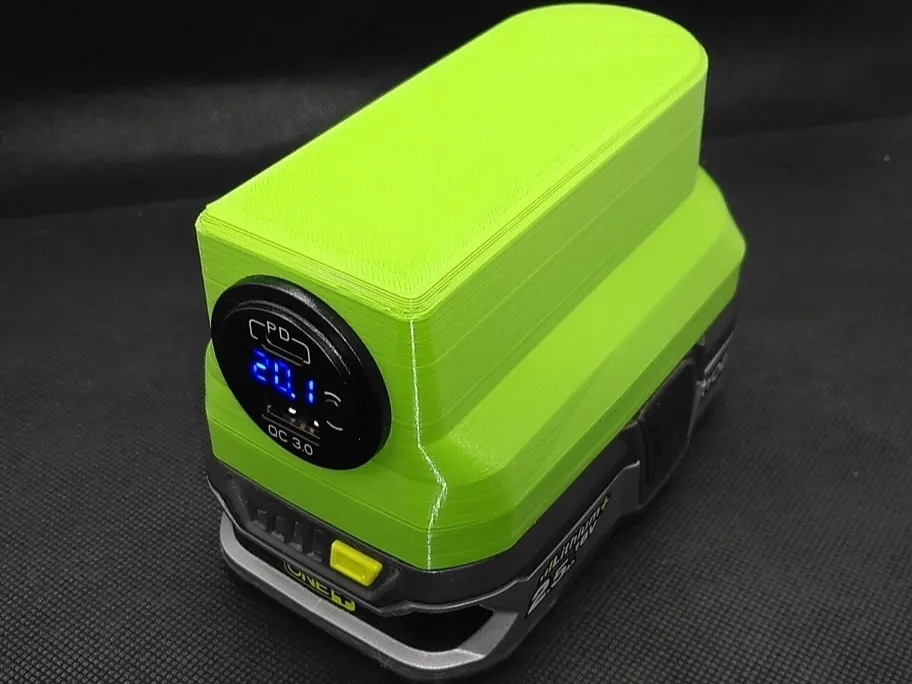

USB power delivery Power Bank Ryobi One+
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill monochrome
Designer
2.6 h
1 plate
0.2mm layer, 2 walls, 15% infill multicolor
Designer
2.8 h
1 plate
Open in Bambu Studio
Boost
165
575
35
29
233
151
Released

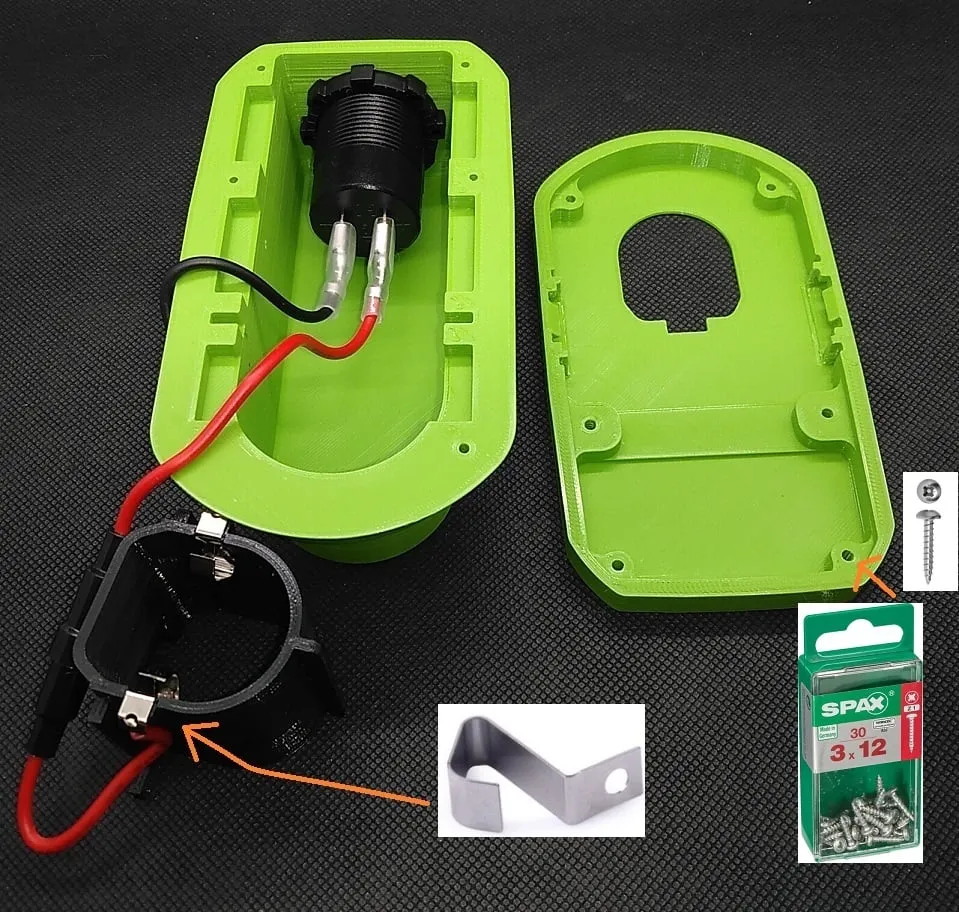

Bill of Materials
List other parts
- PD/QC3 charger with fuse x 1:
- battery spring x 2:
- M3x12 screw x 6:
- M2x8 screw x 2:
Description
designed with Freecad
add
- PD/QC3 charger with fuse
- battery spring ( https://fr.aliexpress.com/item/32946601230.html )
- 6 screw (M3x12)
- 2 screw (M2x8) for v3

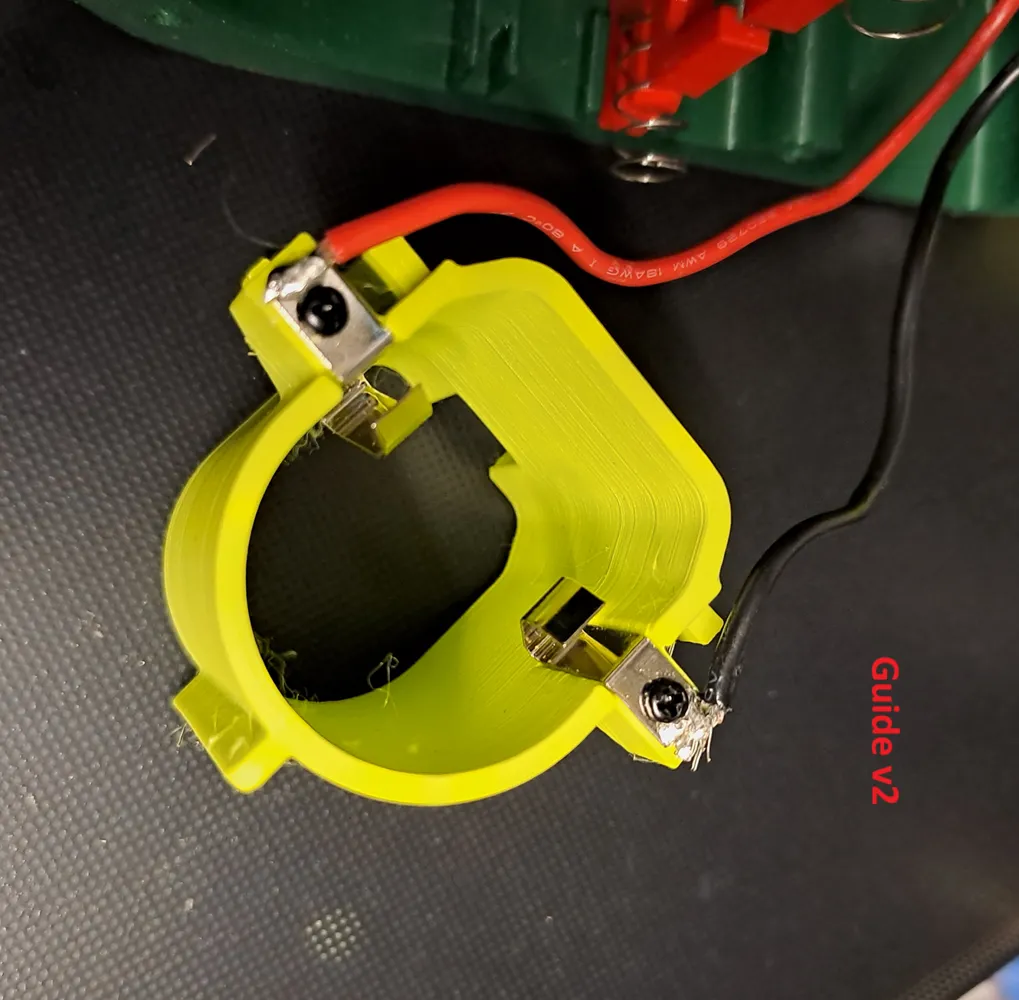

V2: glue the Spring Contact Plates with epoxy glue (scratch the contact surface for better glue adhesion) for screw
V3: screw the spring contact plates
