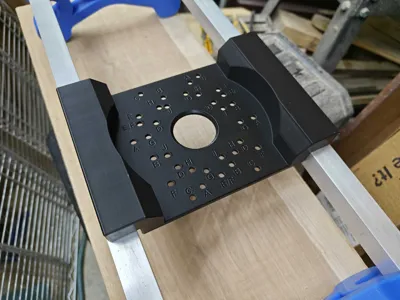

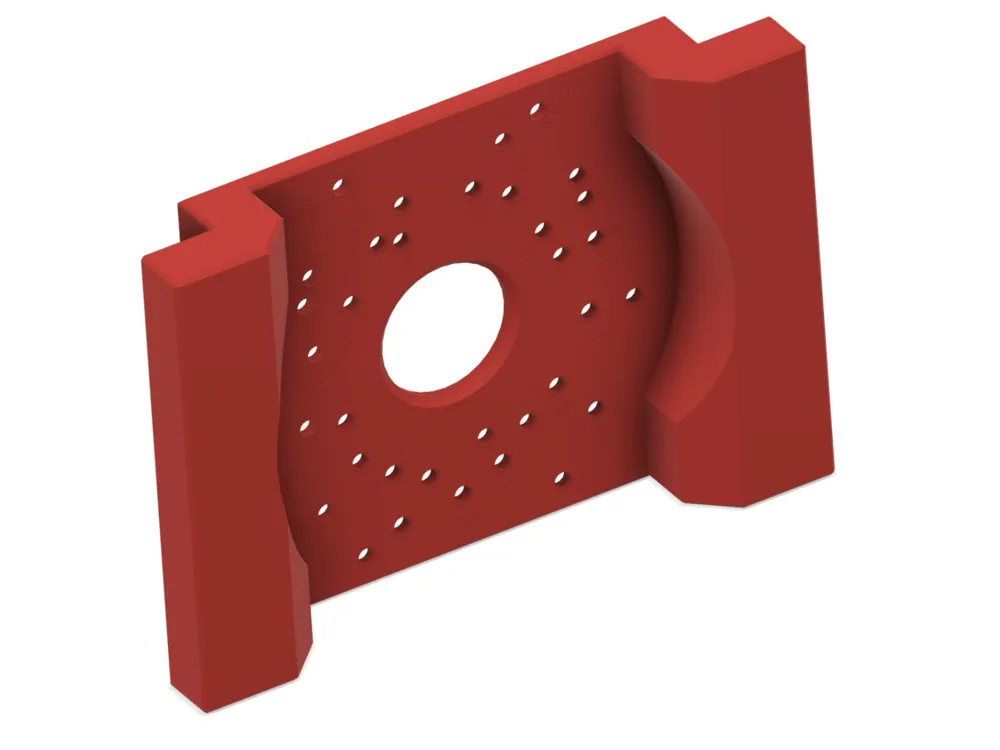

Universal Base for Trim Router Slab Flattening Jig
Print Profile(1)
Description

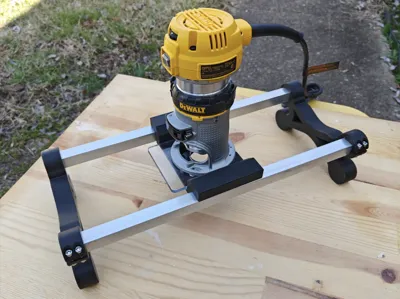

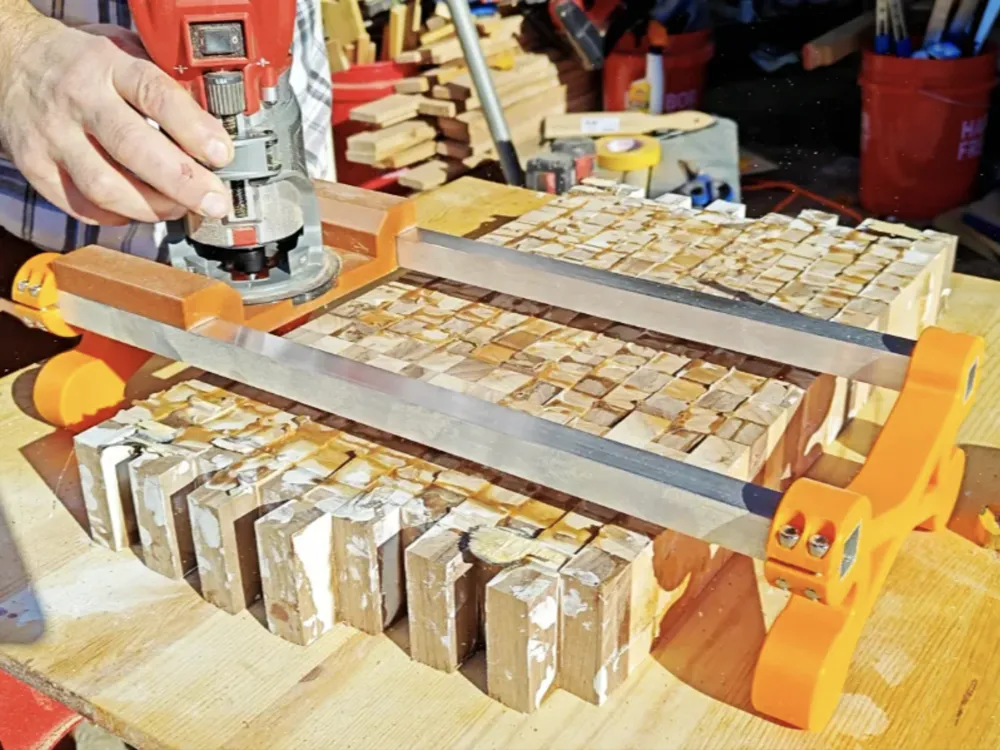

This custom-designed 3D-printed jig is the perfect accessory for your router. Designed to simplify slab and cutting board flattening, this jig is sturdy, lightweight, and easy to use, offering precision and consistency with every pass.

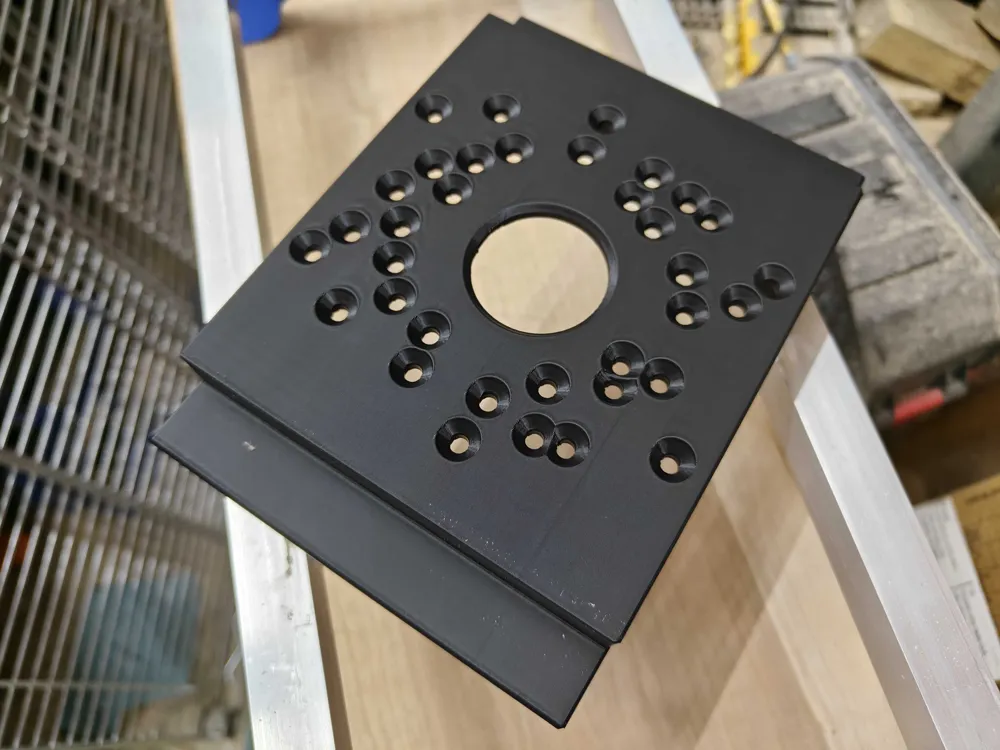

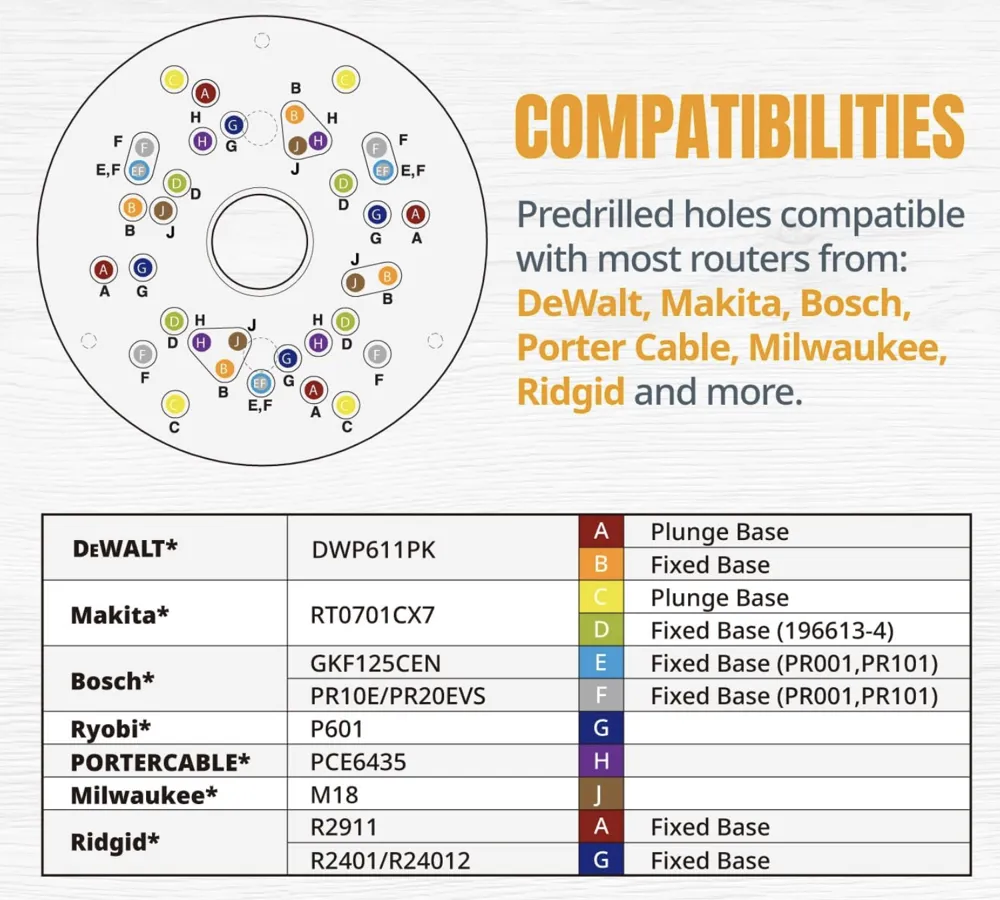

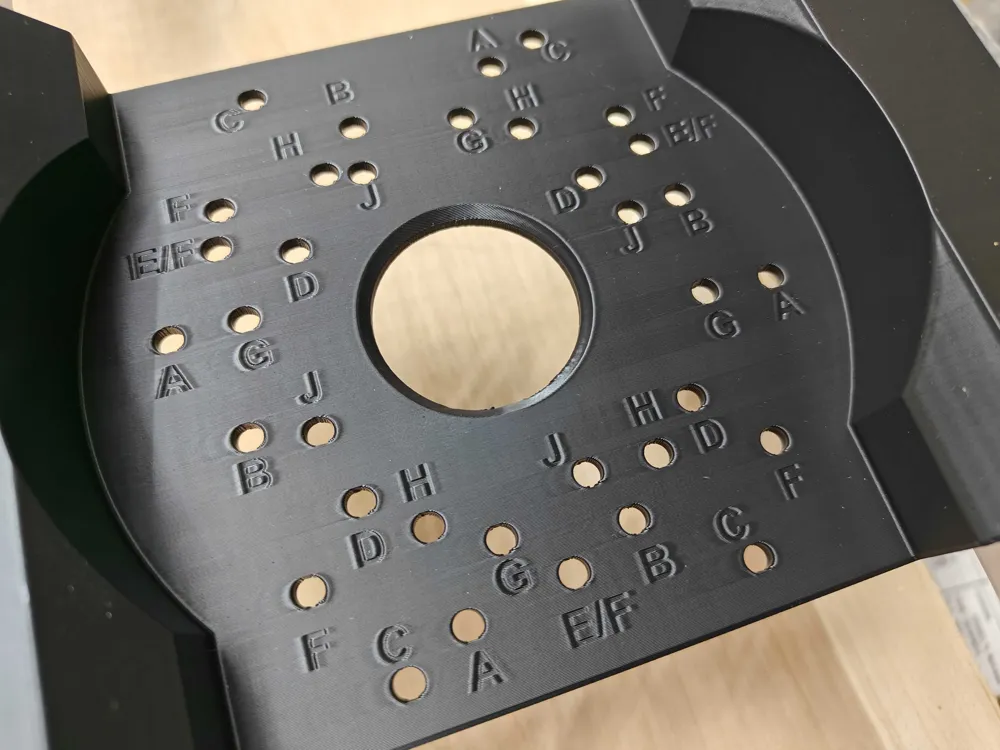

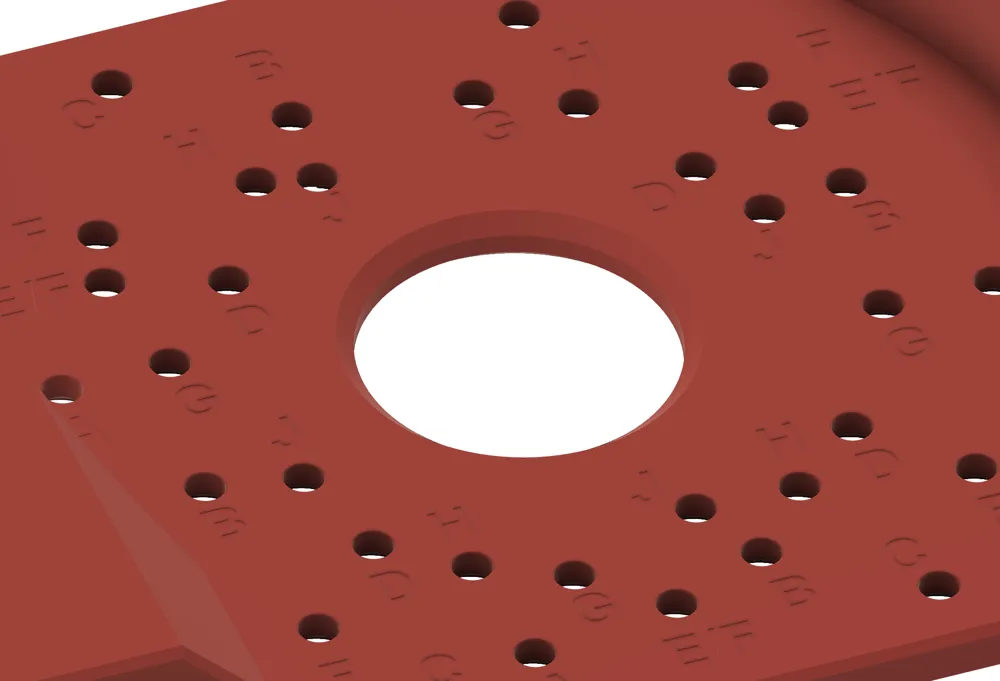

*This seems to line up correctly on my router but I don't have all the different routers to try it on. I hope the hole patterns are correct but please test it! I would love some constructive feedback rather than low ratings.
This design uses the legs from the Milwaukee M18 version. The international legs from that version can be used to make this a international version (20mm square aluminum tubing)
Furthermore, it's span can be custom fit for your specific needs by using aluminum tubing of different lengths.
Requires 8x M5 hex nuts, 8x M5x20mm bolts, and 2 equal lengths of ¾" square aluminum tubing.
I used this router bit: https://amzn.to/3DX17x7
These nuts: https://amzn.to/4g3vBL2
These bolts: https://amzn.to/4heekAB
This aluminum tube: https://amzn.to/40CRlcm
Check out the Milwaukee M18 Version of this: https://makerworld.com/en/models/1004915
Check out the Dewalt DCW600 Version of this:: https://makerworld.com/en/models/1112382
