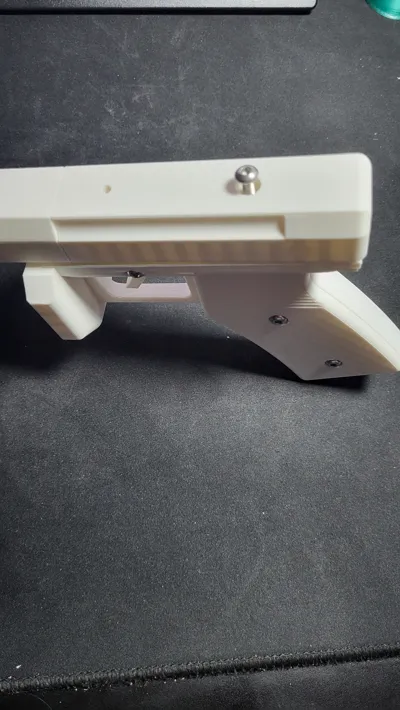

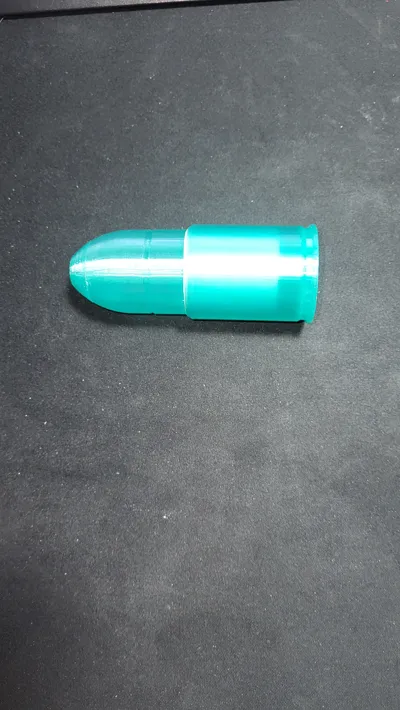

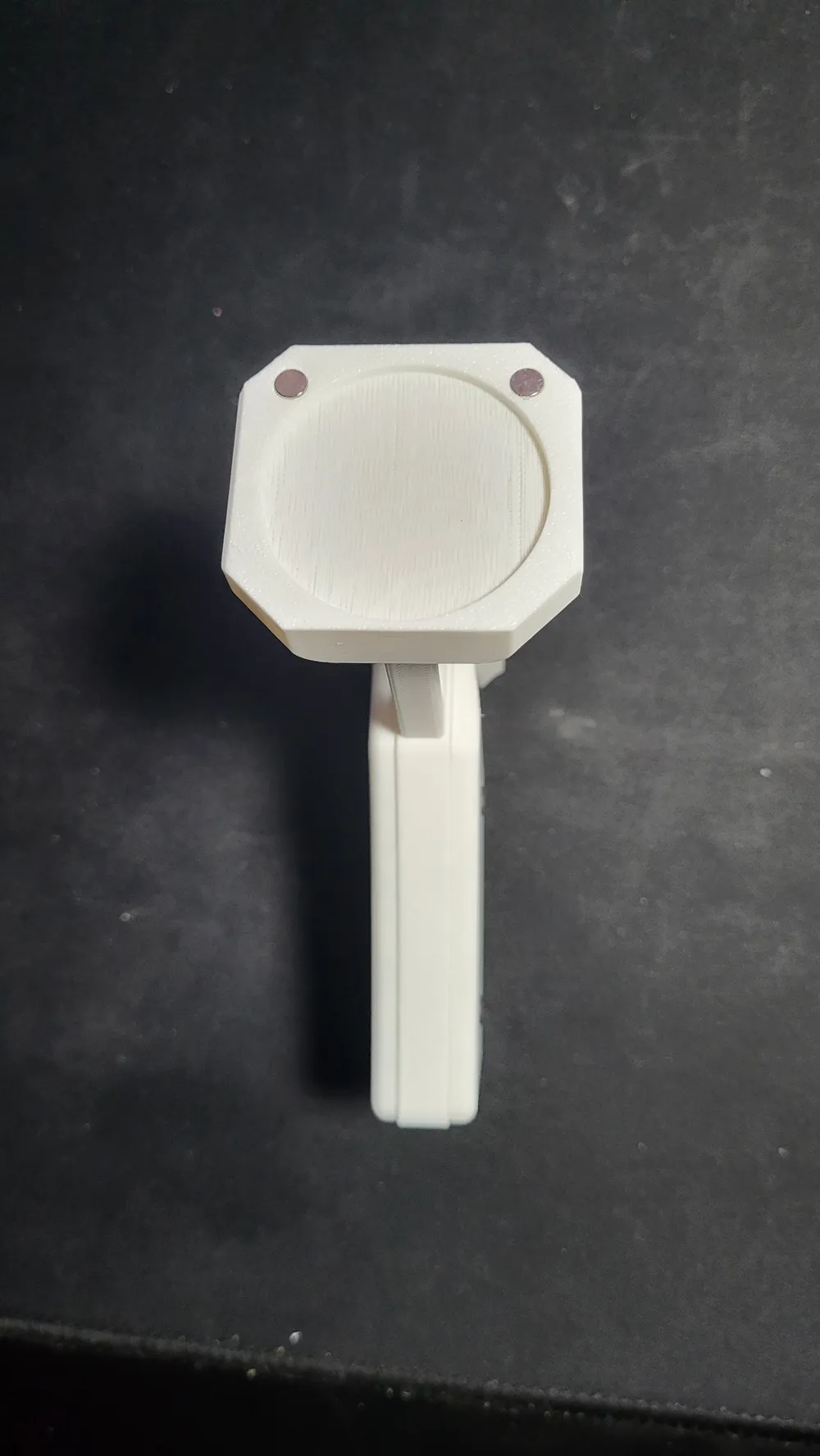

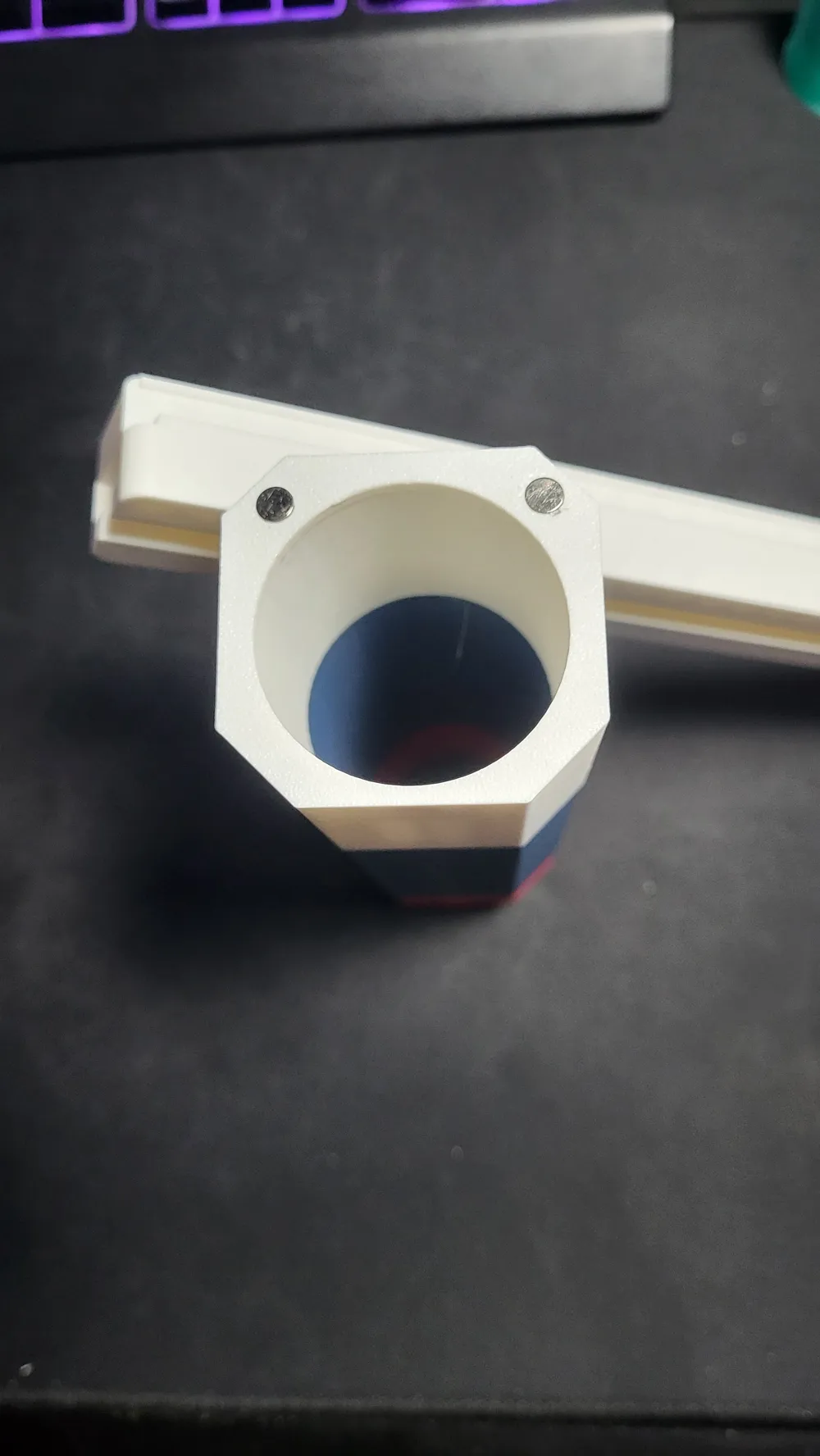

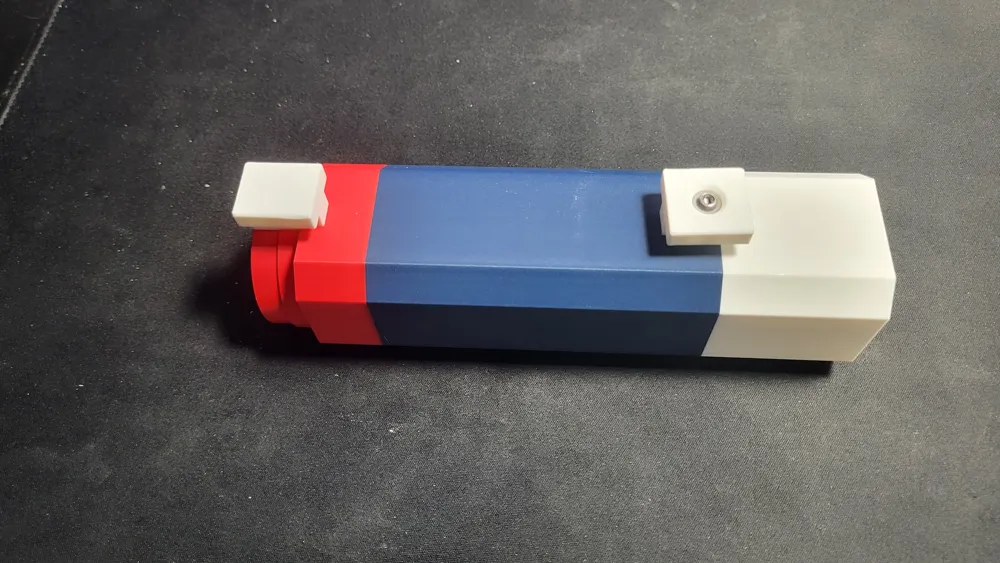

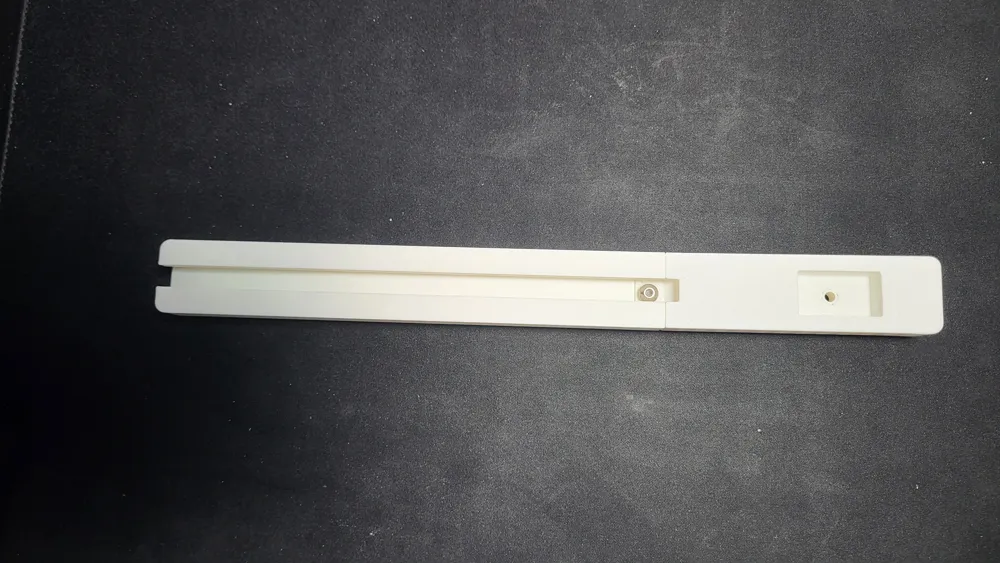

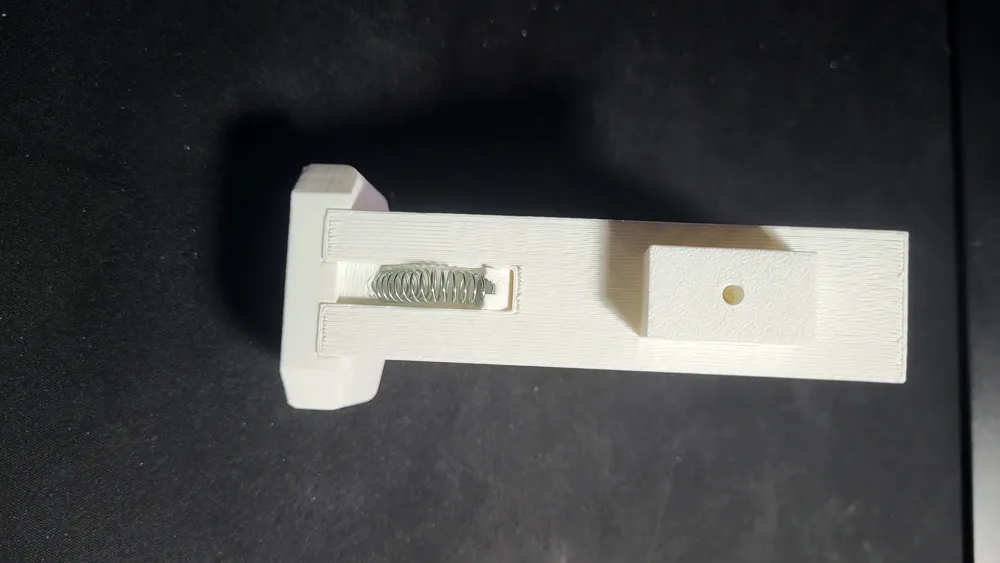

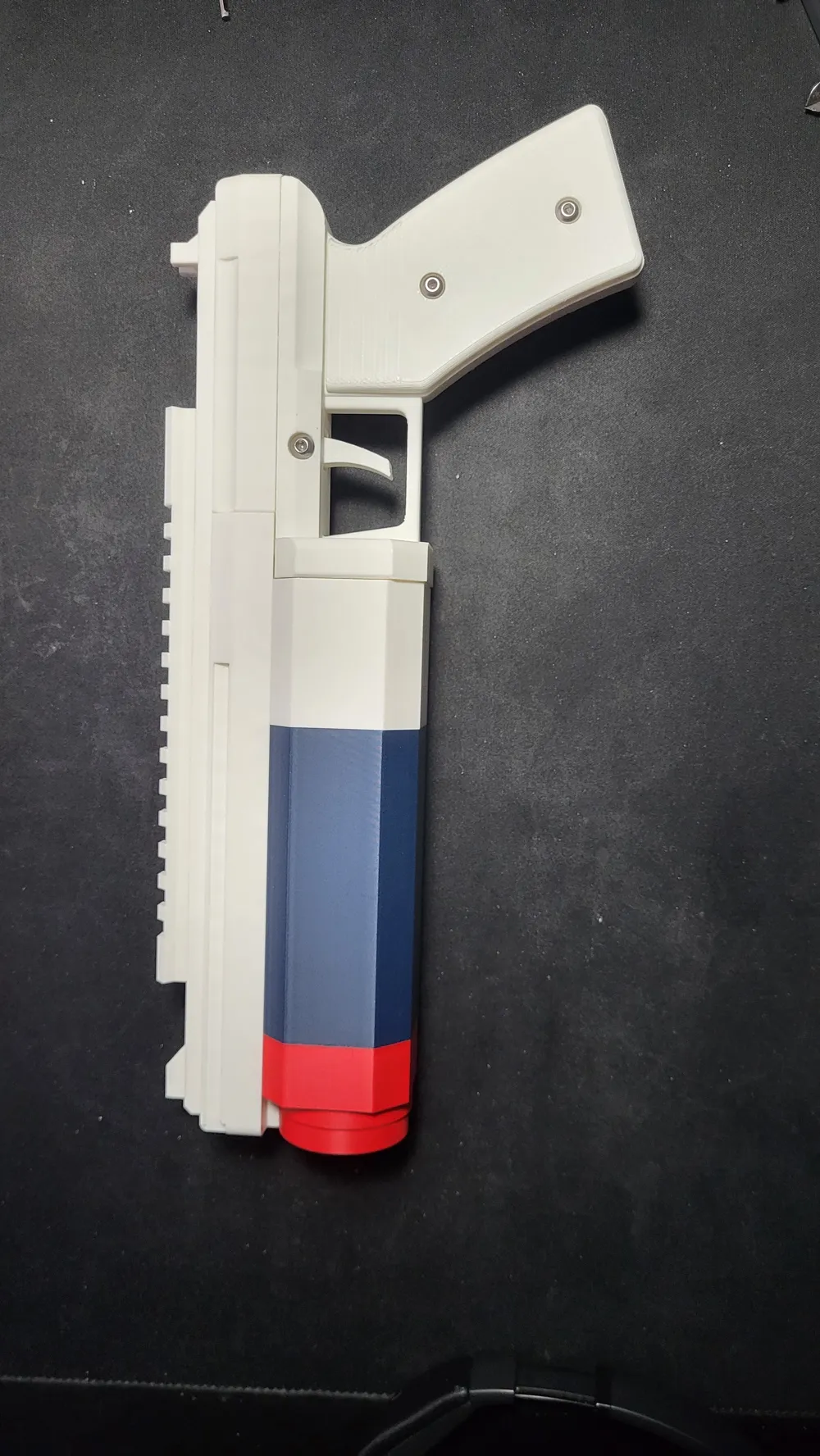

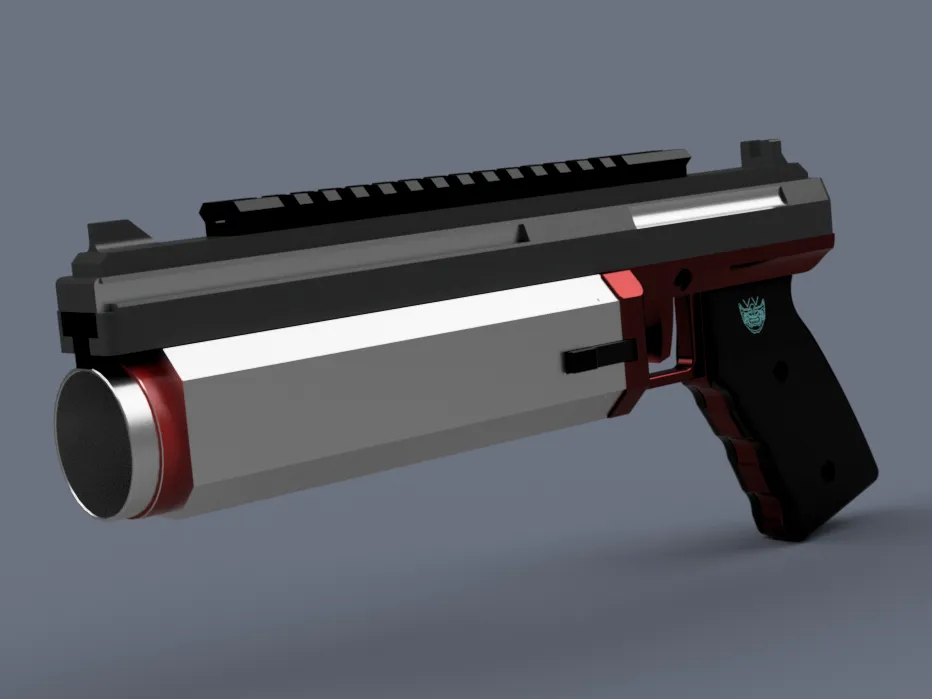

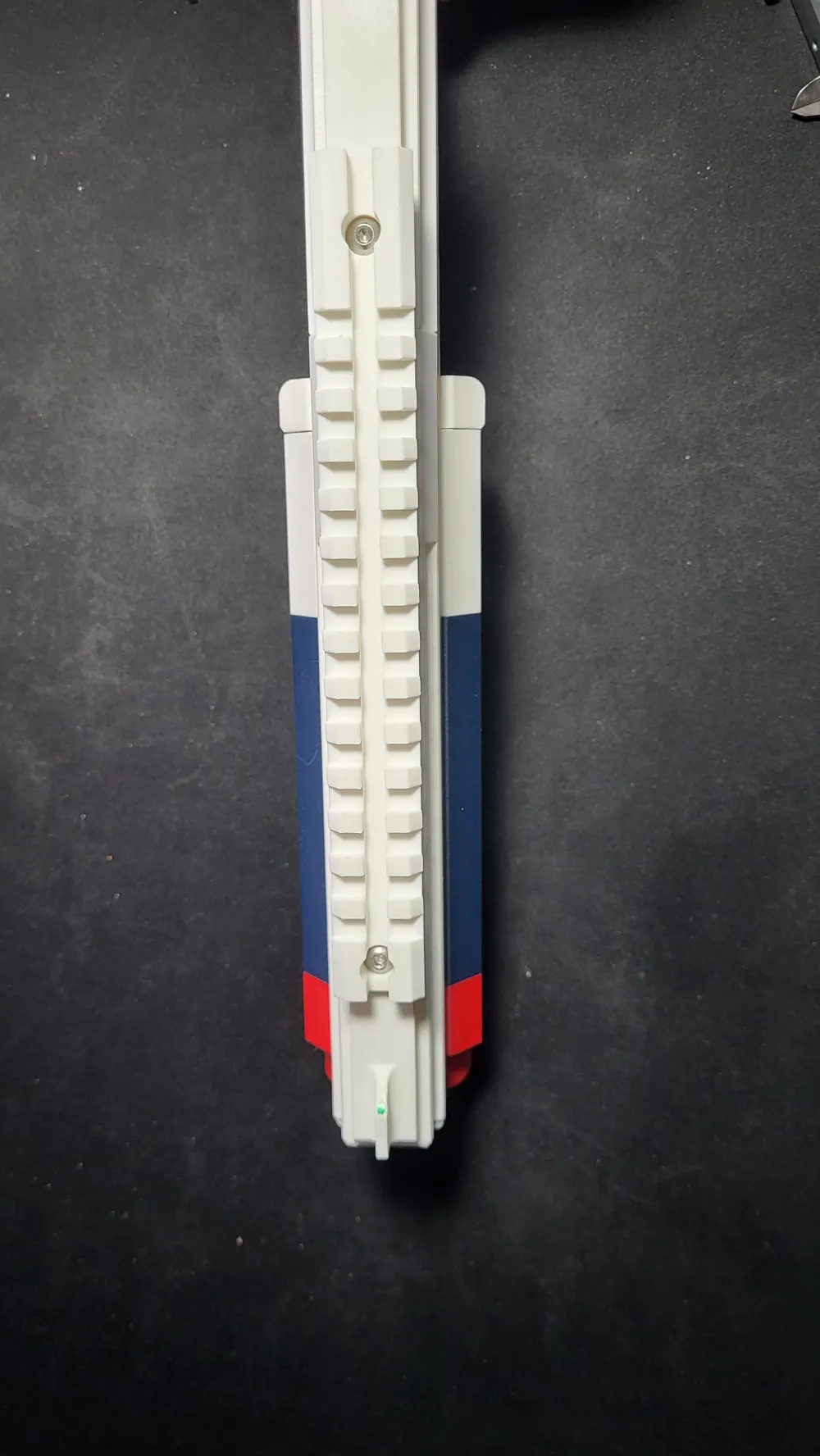

Modeled the grenade pistol from Helldivers 2. It works just as it does in game with the under barrel being able to slide out and pivot to allow you to put a 40mm Grenade into. I modeled the grenade from real life 40mm grenades so I don't know if they'll be a direct match. It is still a work in progress but the initial version came out fine. I ran out of filament printing V1 of this so thats why the barrel is 3 colours. Safety switch might be added at a later date. The iron sights just use 1.75mm filament. no glue required but you can if you want to.

DOES NOT FIRE

BOM
6.5mm OD x 30mm L (For Trigger)
5mm OD x 10mm or 15mm long (For grenade Latch) (haven't tested new version yet)
4x M4*8mm Button Head
4x M4*12mm
M4*16mm
M4*6mm
1mm OD rod >20mm
4x 5mm OD x 2mm Magnets (For Barrel)

Comment & Rating (11)

@user_2048691126

Such an excellent design warrants a prominent watermark, as some individuals have recently been pilfering models from the Hell Divers 2 community and selling them commercially

(Edited)

The designer has replied

Show original

@vvolverine252

Thank you for the warning. I will be sure to add one to the images and model

@user_2654375132

You can make it fire by using 40max shells. They are desighned to be the dimentions of a 40mm grenade and then it will be compatible with airsoft and nerf bbs and darts. It will also be able to fit the mechanism inside of it due to the in game launcher being desighned around the grenade.

@schmerzdj

make it fire!

The designer has replied

@vvolverine252

I have a test round that I made with a little thing at the back for the red caps for the toy revolvers but having a mechanism inside with the trigger in a small space has proved a bit difficult. It is in the works, kinda.

@WorldAtWar2

Love this print! exactly what I was looking for. going to make some adjustments to make it work with airaoftgrenades and later on mill it out of aluminium and field it! you did an amazing job with splitting up the parts.
