TYMATE TPMS Sensor Dust Shield / Cover
Print Profile(1)

Description
**There are MANY brands that use similar if not identical sensors, these should fit. Print a test one, and scale if needed.**
Boost Me (for free)
This is my first ever upload to Makerworld so if you use it please do leave a review and or a boost to help drive me to make more functional prints for everyone!

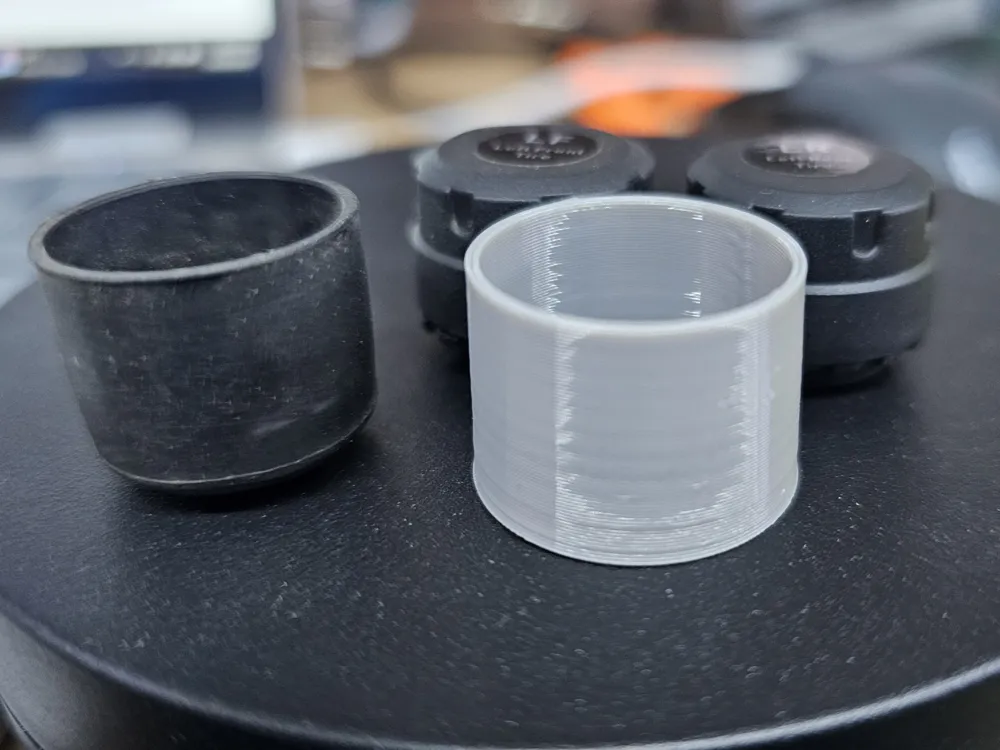

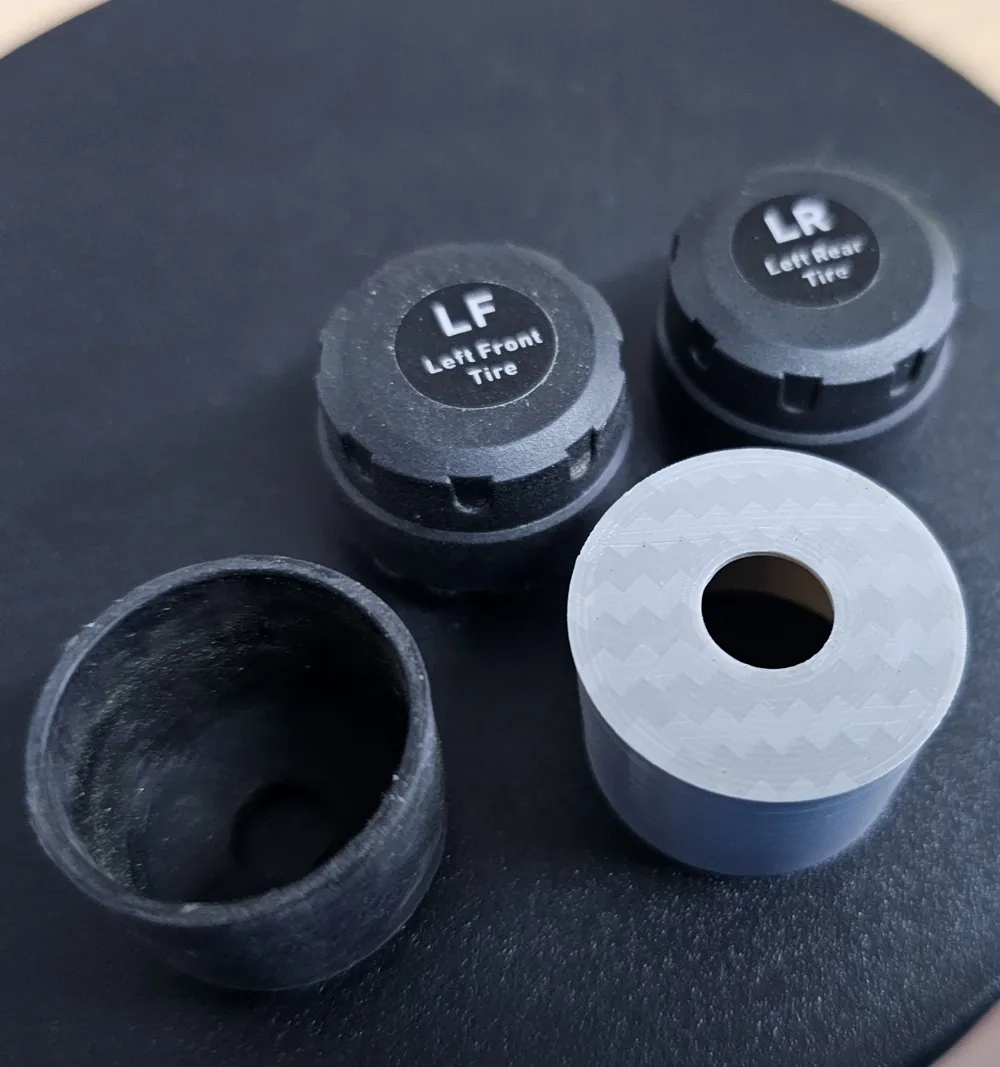

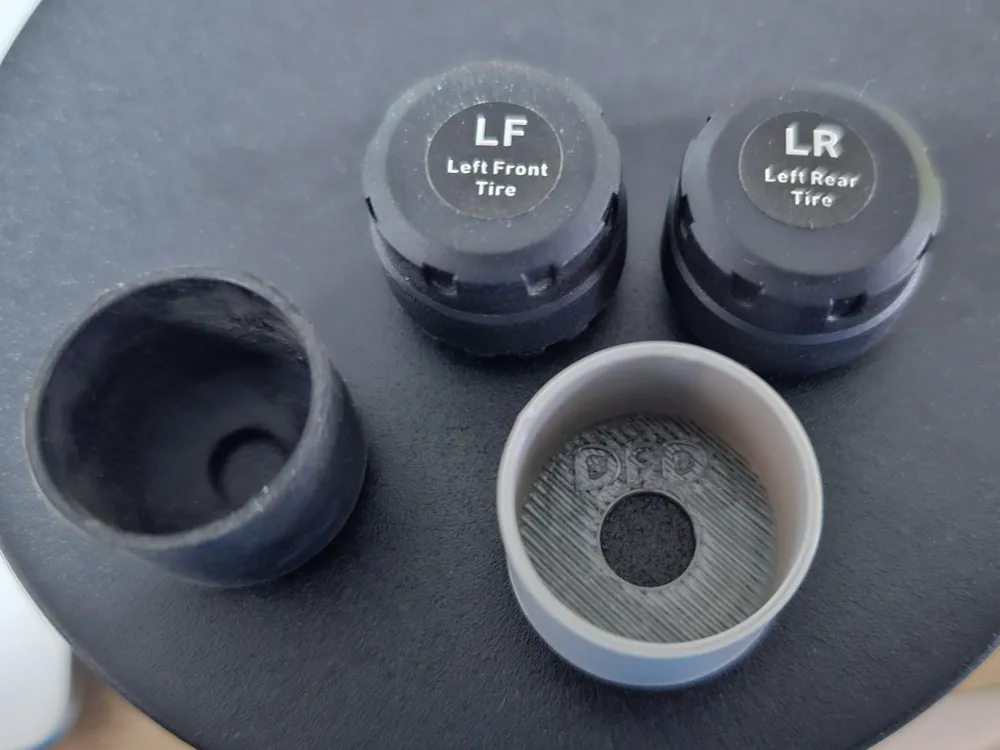

The stock covers that came with my TYMATE TPMS system didn't even last two seasons on my travel trailer.
They dried out and started to tear. Replacements seemed non existent, possibly only available through sales.
There is only one cover on the plate in my profile. Be sure to adjust quantity to your needs.
These are a TIGHT fit. Keeping as much dust and water out as possible.
The 3mf includes no stringing TPU 95a settings, no cooling and 0.24 layer height for excellent layer adhesion.
I have also increased line width to 0.5 on the 0.4 nozzle and the walls are 1mm wide.
Feel free to scale up a few percent to get a looser fit if you wish, but unless you are changing the battery it is not necessary.
The stock retaining nuts will butt up nice and flush to the back of this and with the TPU it'll bite and hold good tension.
I have not tried these in anything other than 95a Priline TPU.
They should work well in any TPU, though you may need to scale up to squeeze them in 98a.
PETG may be possible with a good bit of scaling, but obviously won't stretch to conform and may leave gaps.
