ESP32 Dev Kit C - CP2102 Case Kit - New Version
Print Profile(7)
Description
ESP32 Dev Kit C with CP2102:
New improved case!!

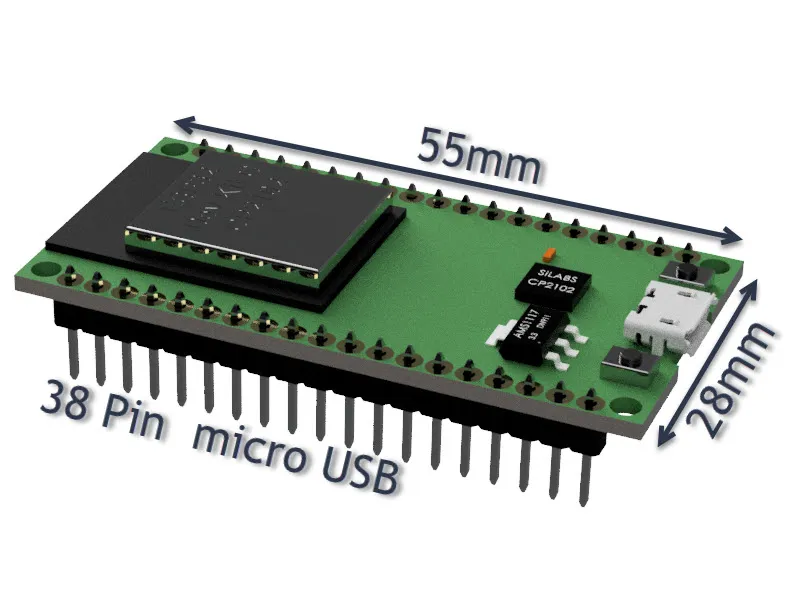

- Size of ESP32 Dev Kit C NodeMCU expected: 55mm x 28mm and Micro USB

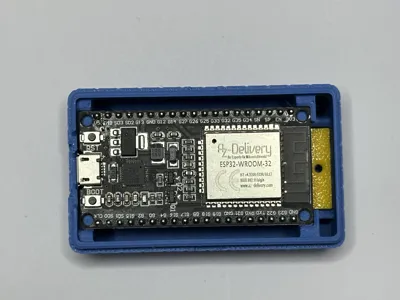

I'm using a version from AZ-Delivery
- Snapfit

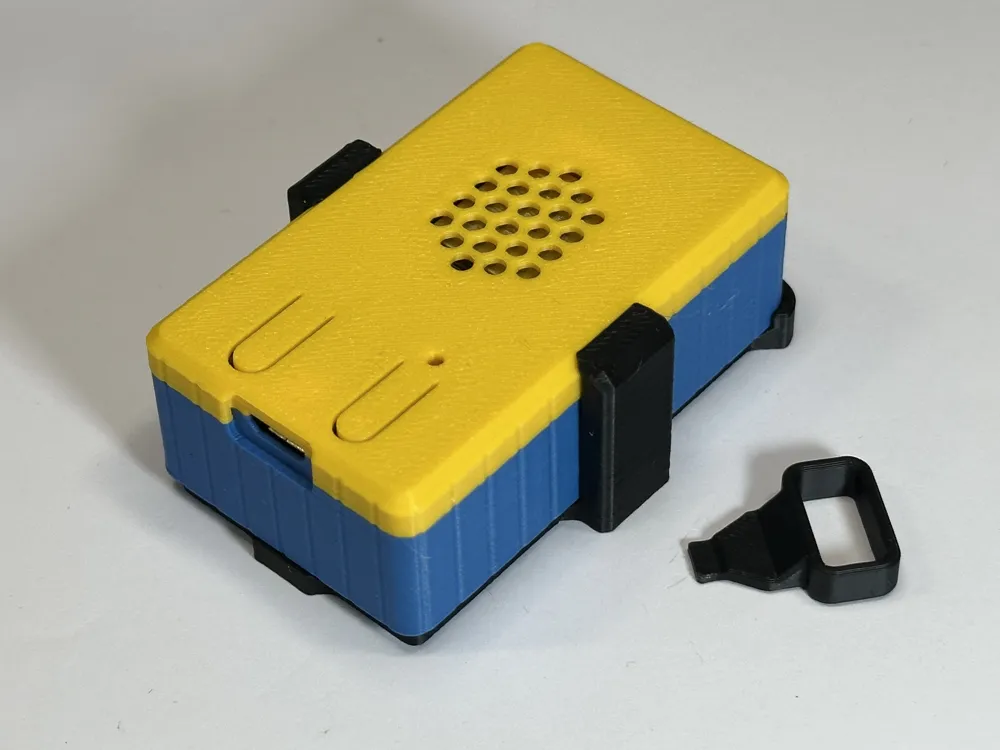

- Wall Mount
- Bootsel button / Reset button
- User led hole tube

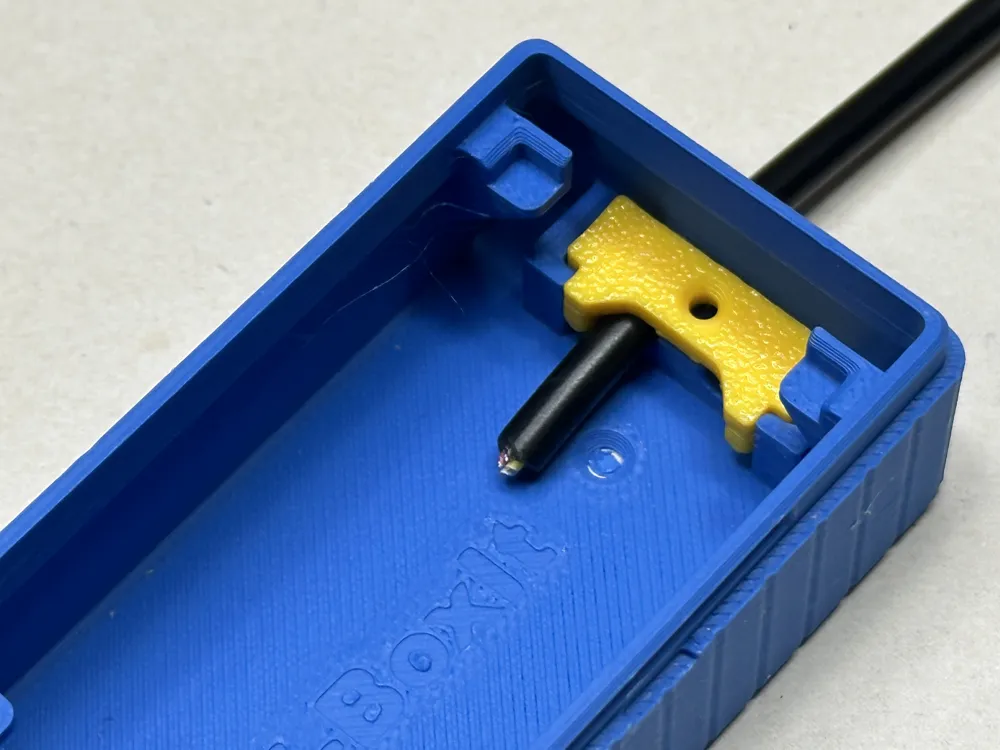

- Connection cable cutout and option to fix the cable
- Cooling grille
- Opener

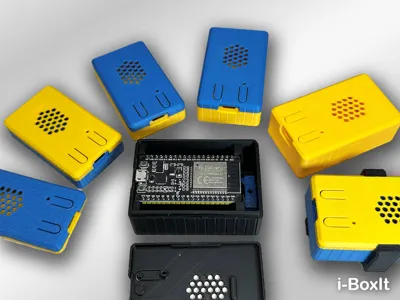

- Size options:
- Header outside (Print profile contains wall mount for those want to use the MCU without headers)

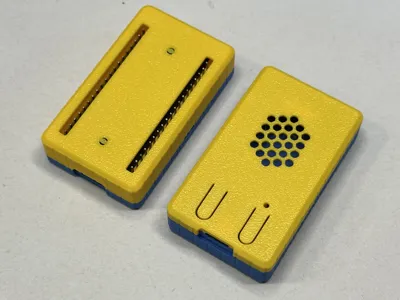

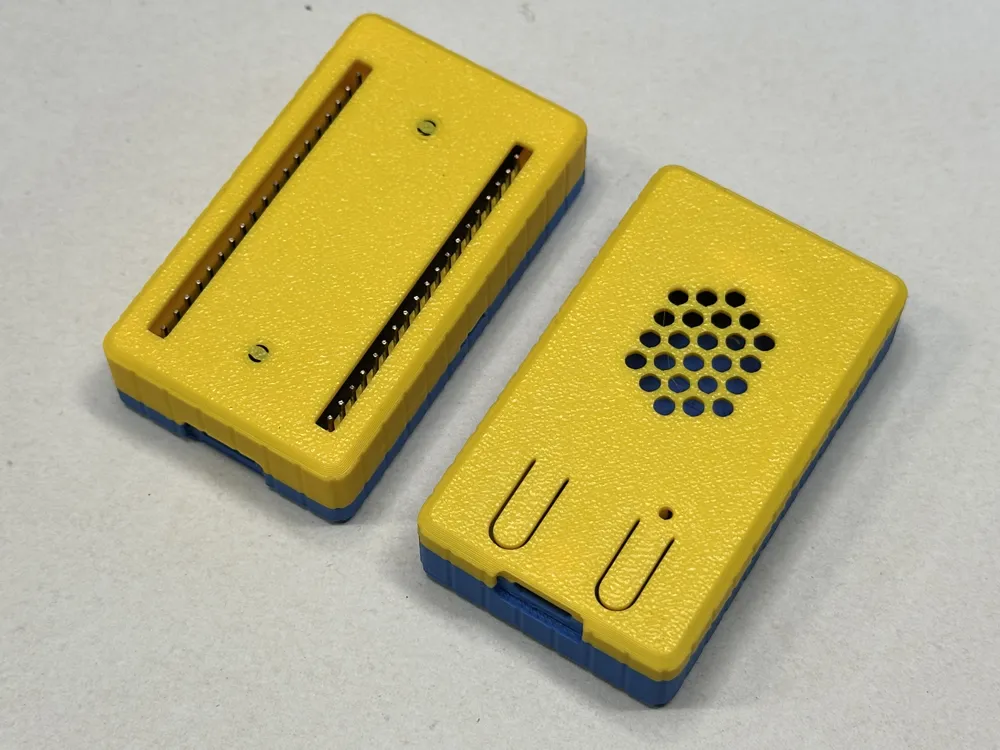

- Header inside / with header holes
- Inside height 10mm
- 12mm
- 15mm / wide / cable holes / cable mount
- 20mm / wide / cable holes / cable mount
YouTube link:

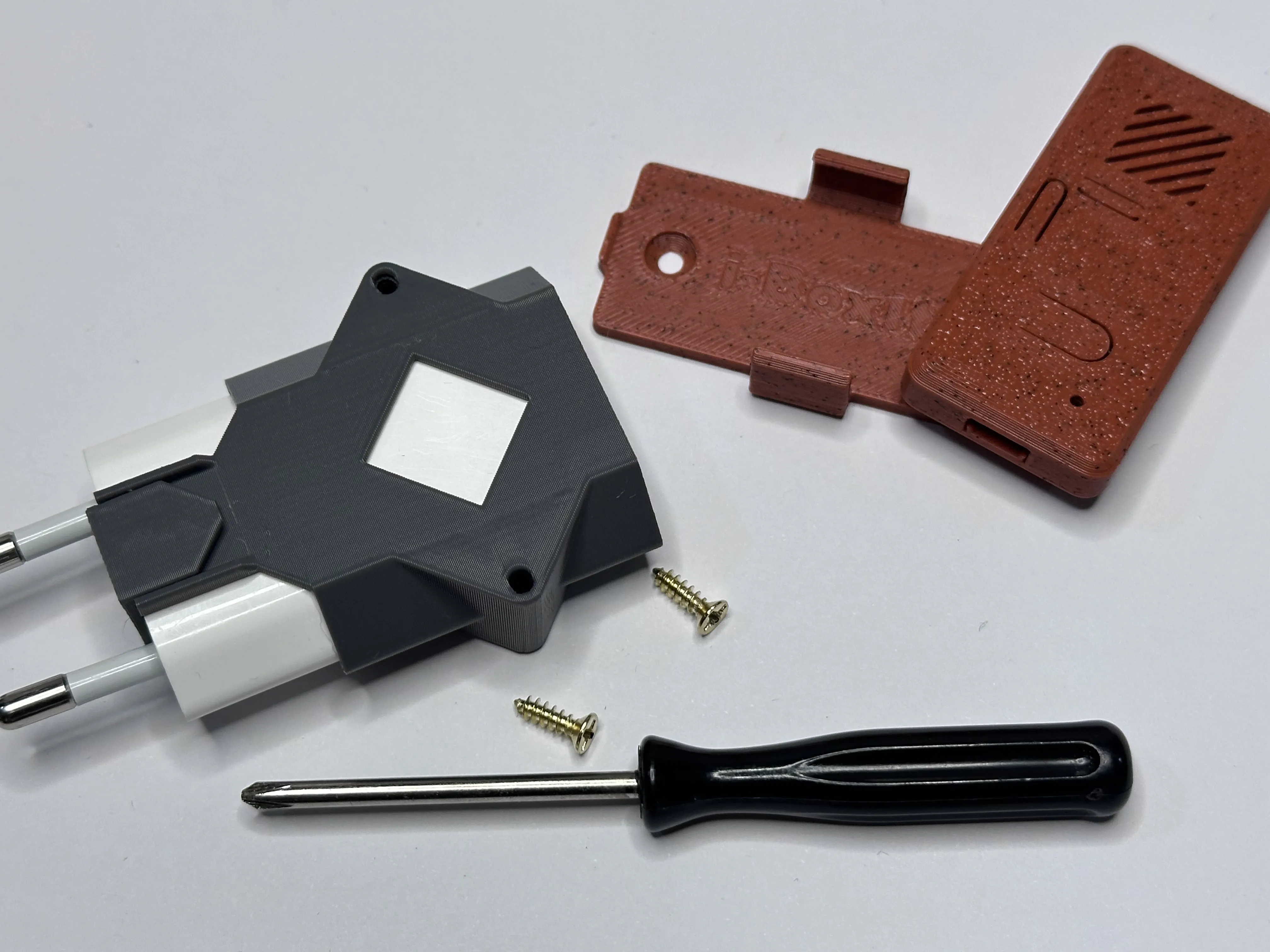

If you want to mount the case to a power adapter, see also:
