Quad Lock adapter for 2016-2018 KTM Duke Gt
Print Profile(2)
Description

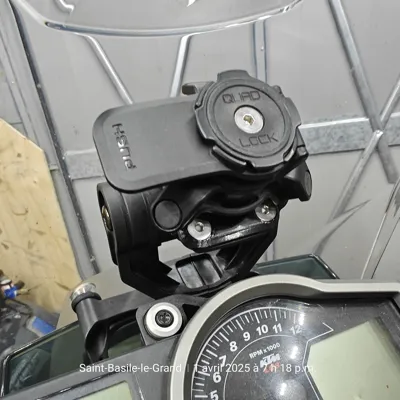

Adapter to fit your Quad Lock system on your genuine gps mount for 2016-2018 Ktm Super Duke Gt.

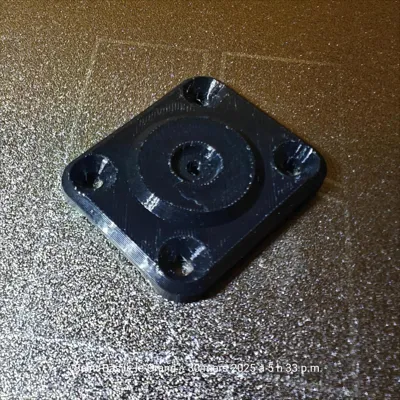

All you have to do after printing is to make treads in the center hole with a M5 tap.

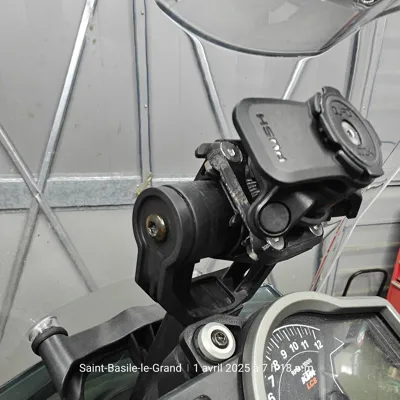

To install the adapter on the bike GPS mount you'll need:
4x M5 flat head screws
4x washers (optional)
4x M5 nuts.
Good to know: Buying stainless steel screws to keep everything clean from rust.

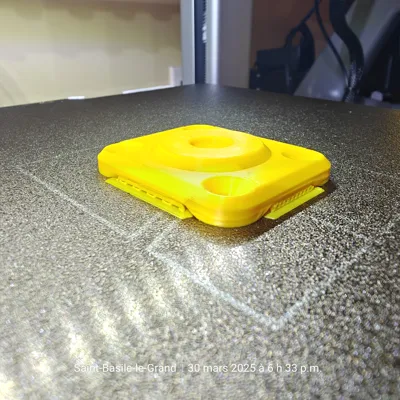

I suggest to print the adapter in PETG, ABS or ASA. I printed mine in PETG.
NOW V2 AVAILABLE:

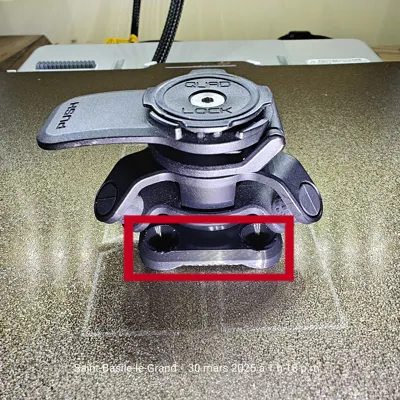

- M5 nut on the back of the part to improve support strength.

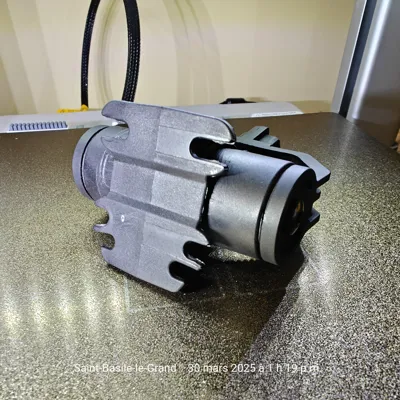

Notches added to the design so the dampener will not rotate.
To install the V2 adapter on the bike GPS mount you'll need:
4x M5 flat head screws
4x washers (optional)
5x M5 nuts.
