Update:
- added a top mount for the cam

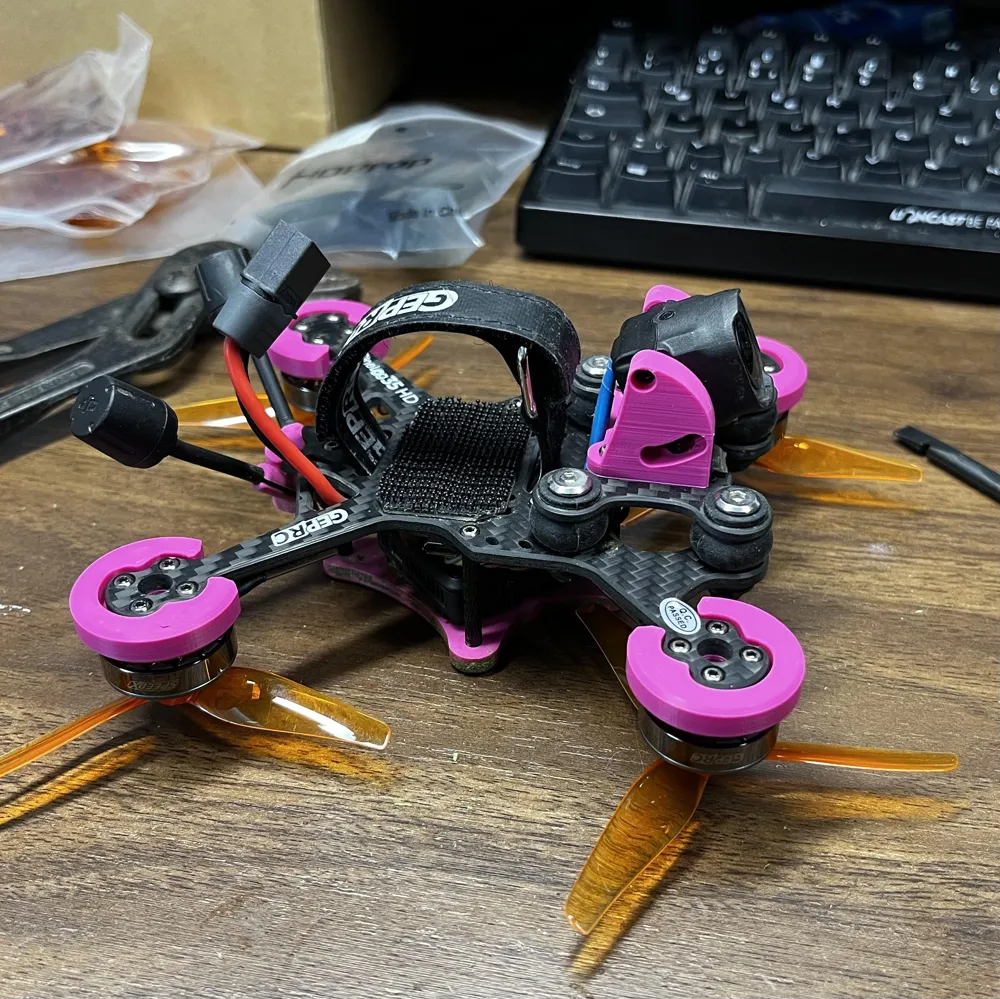

- check out this model to easily remove prop guards as seen in the last picture:
https://makerworld.com/en/models/1336712-geprc-cinelog35-motor-guards-instead-of-propguard#profileId-1376115

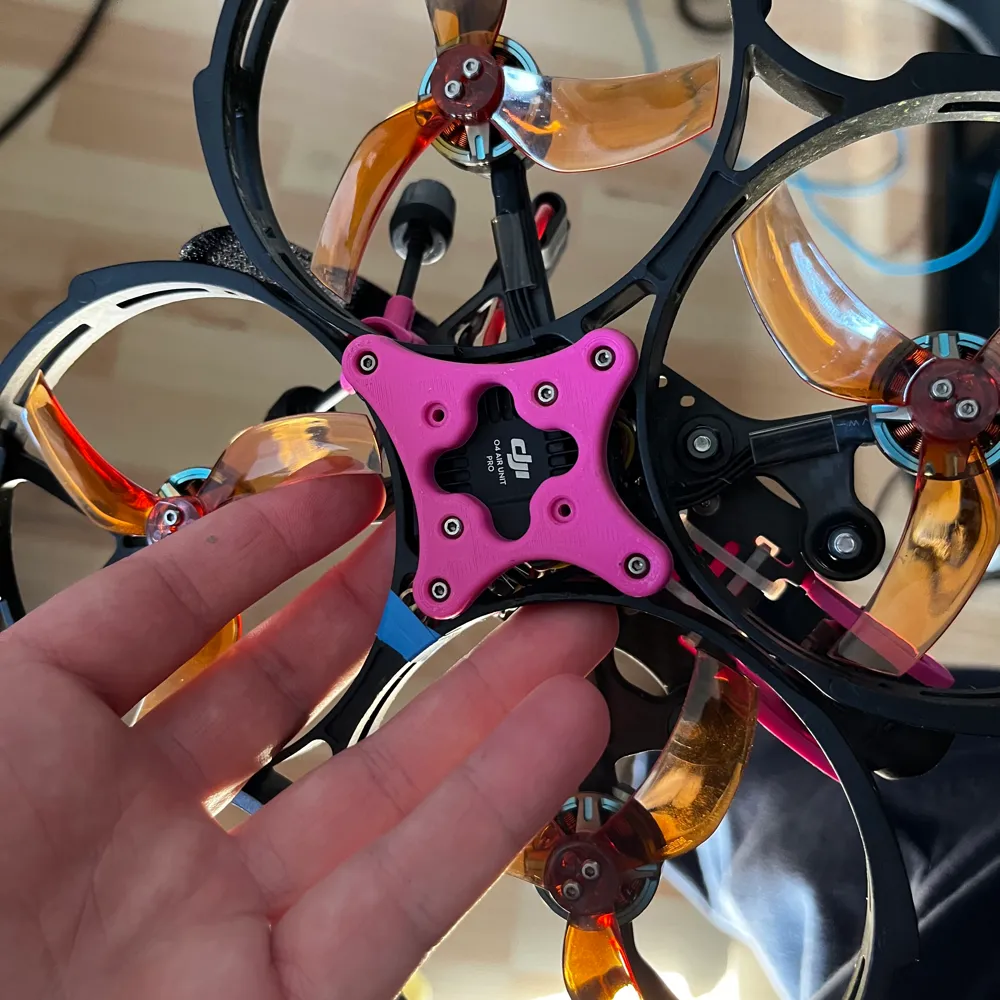

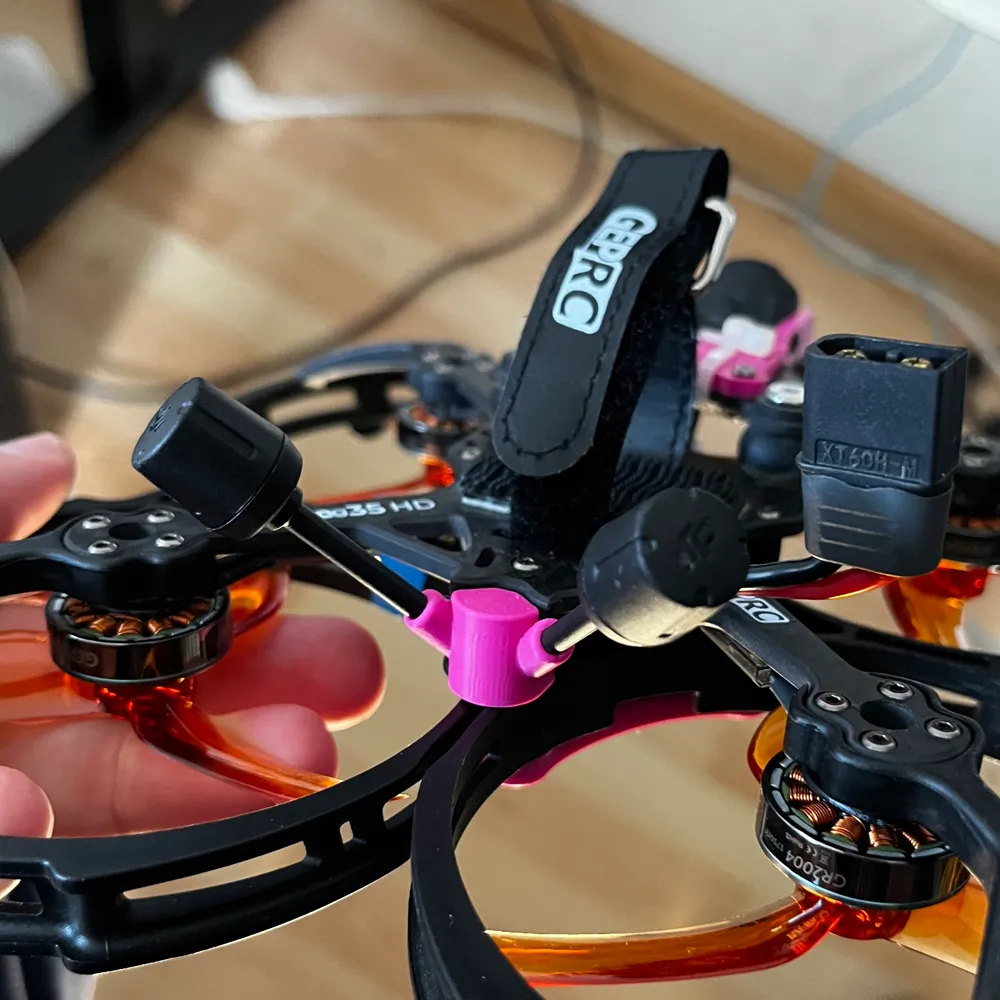

All parts you need to fit an DJI o4 Pro to your Geprc Cinelog35 (v1).

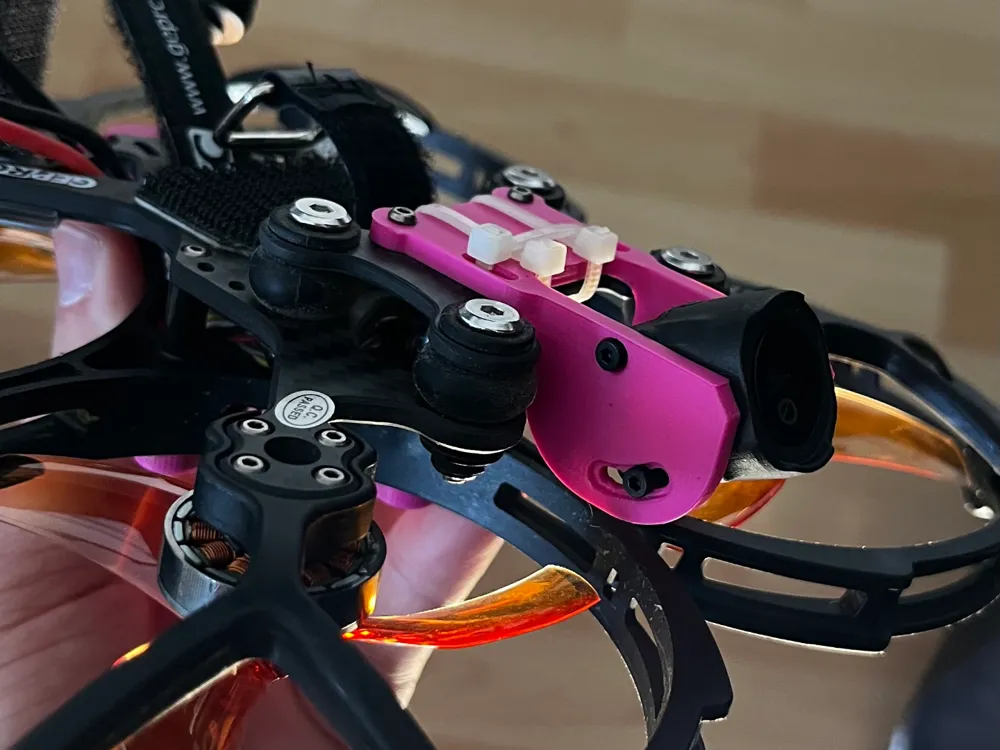

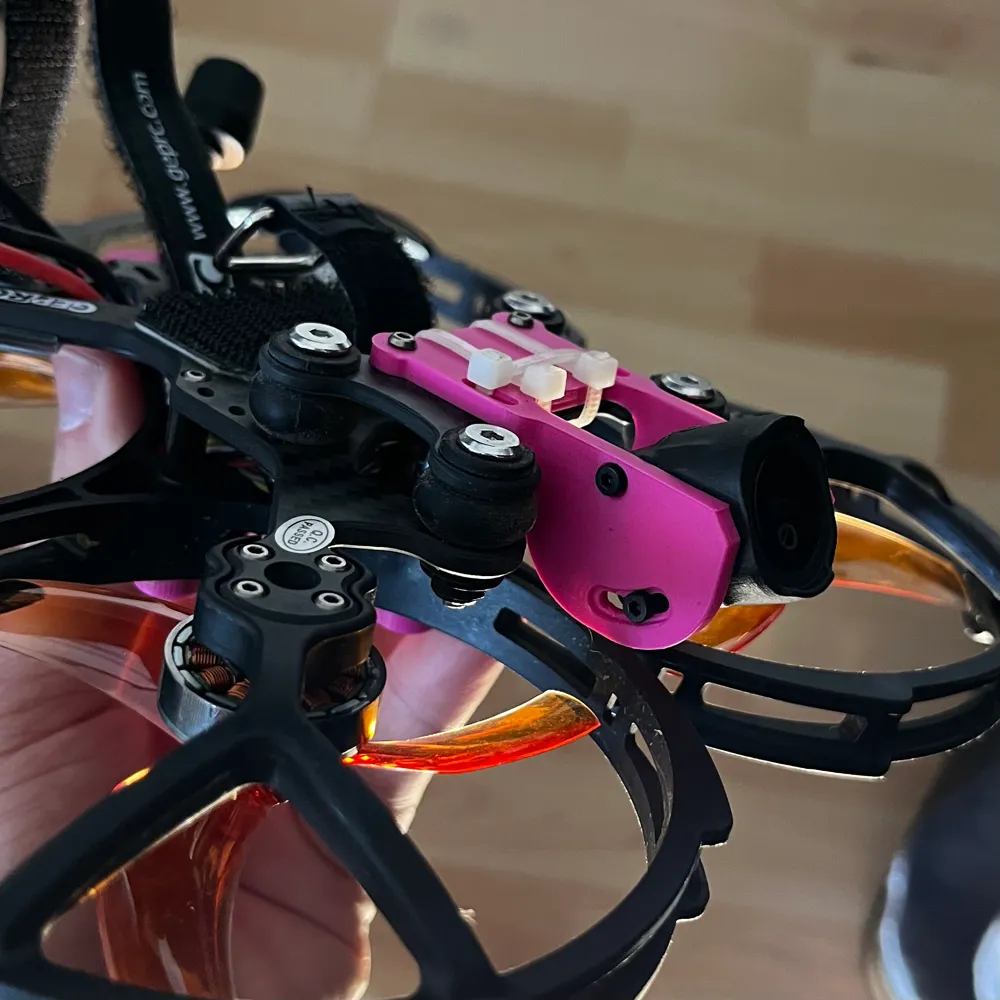

Camera angle can be freely adjusted between 10-40 deg.
You need at least one additional zip tie for the camera mount.



I printed my parts in PLA and so far everything seems to hold up. Only broke the original prop guards ;)
