Fork stand for 30mm high bicycle
Print Profile(1)
Description

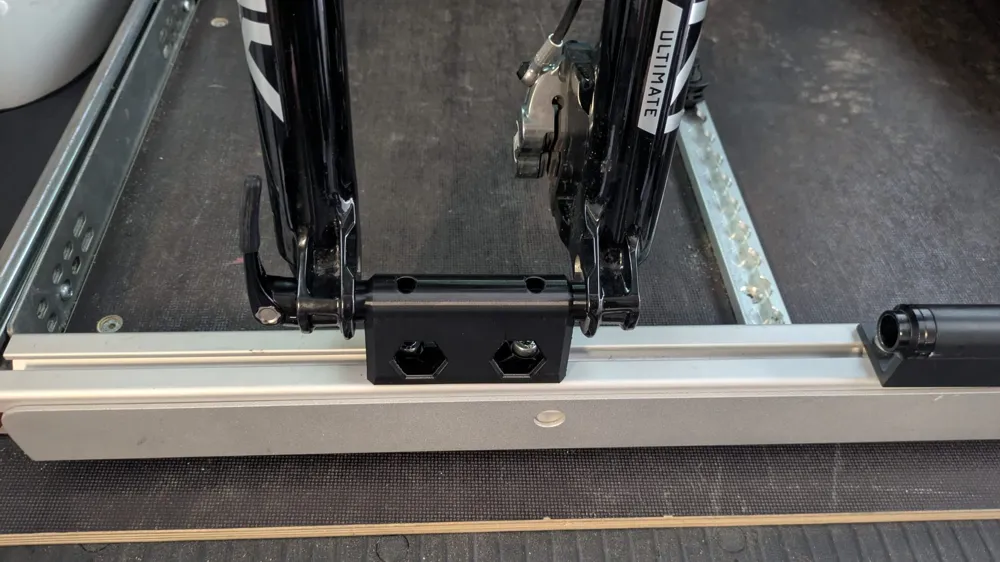

Stand for the bicycle fork to secure the bike during transport Simply remove the front wheel and mount the bike's fork with the axle through the holder done

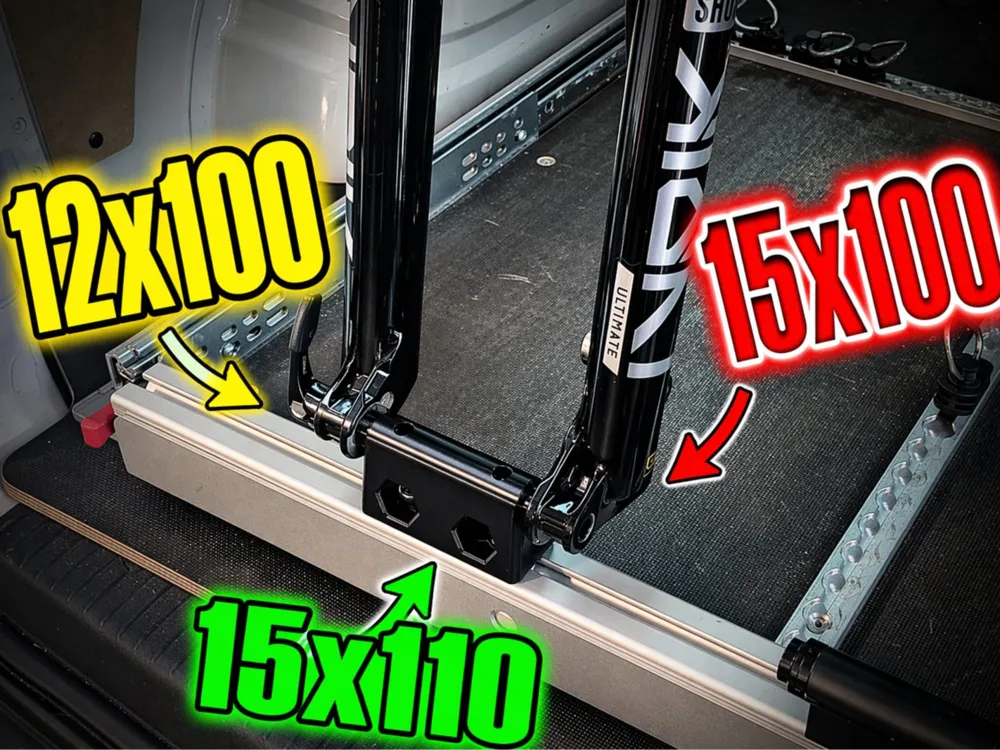

The holder is suitable for MTB forks with the Boost standard (15x110) and for forks with a width of 100mm I have also added a version with 12x100

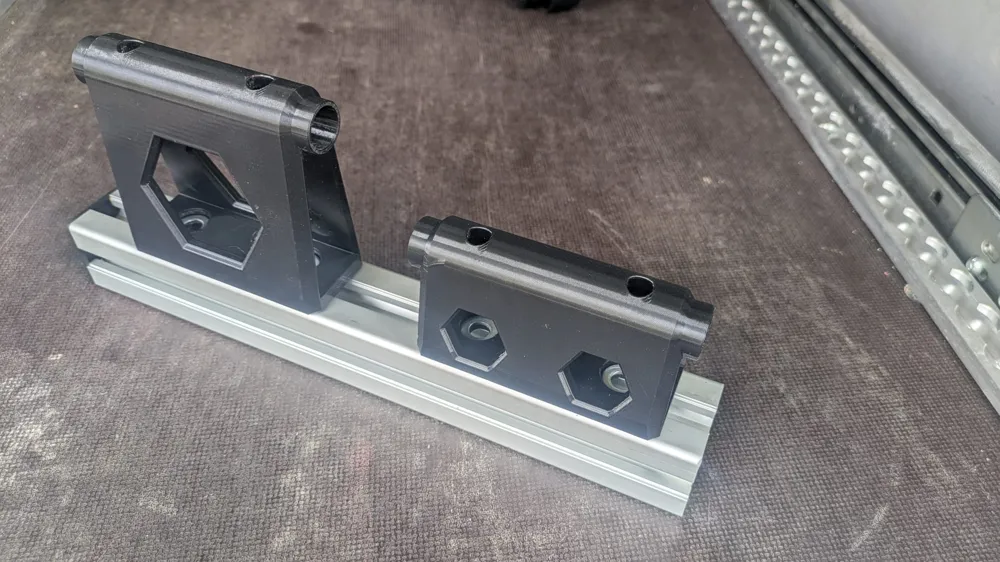

The height from the base surface to the bottom edge of the axle is 30mm Another holder with a height of 30mm can be found in my print files
- Print Profile 1: 15/110 with 8mm wide web for 40mm aluminum profiles (Item, Bosch,…)
- Print Profile 2: 15/110 with 10mm wide web for 40mm aluminum profiles (Item, Bosch,…)
- Print Profile 3: 15/110 without web, for screwing the holder onto a plate
- Print Profile 4: 15/100 with 8mm wide web for 40mm aluminum profiles (Item, Bosch,…)
- Print Profile 5: 15/100 without web, for screwing the holder onto a plate
- Print Profile 6: 15/100 with 10mm wide web for 40mm aluminum profiles (Item, Bosch,…)
- Print Profile 7: 12/100 without web, for screwing the holder onto a plate
- Print Profile 8: 12/100 with 8mm wide web for 40mm aluminum profiles (Item, Bosch,…)
- Print Profile 9: 12/100 with 10mm wide web for 40mm aluminum profiles (Item, Bosch,…)

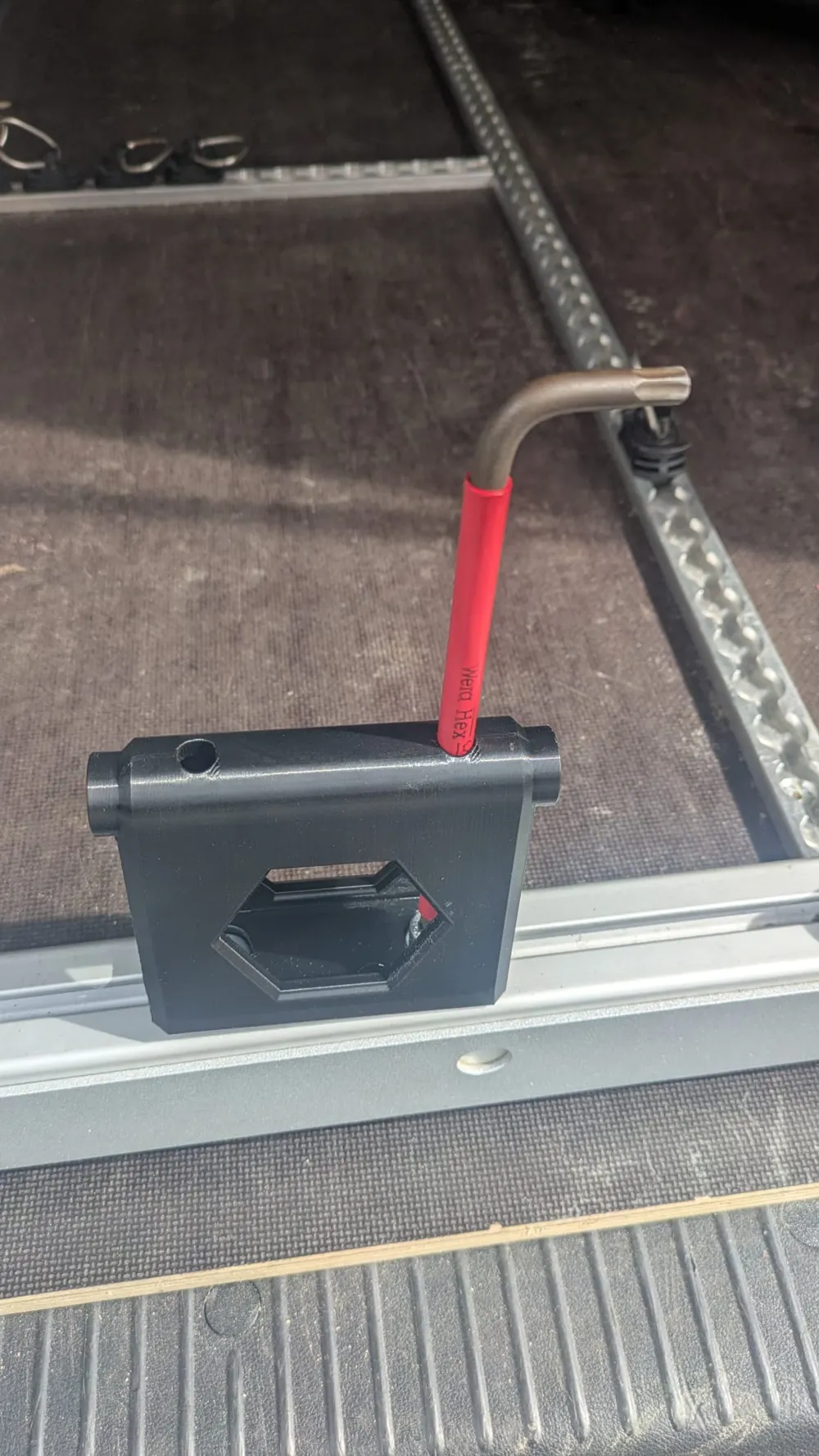

2 M8 screws and matching washers are still needed to mount the holder
