Illuminated Mirror Tile Display Box 150x150mm

Multi-part display box for laser-cut mirror tiles (150 x 150 mm)

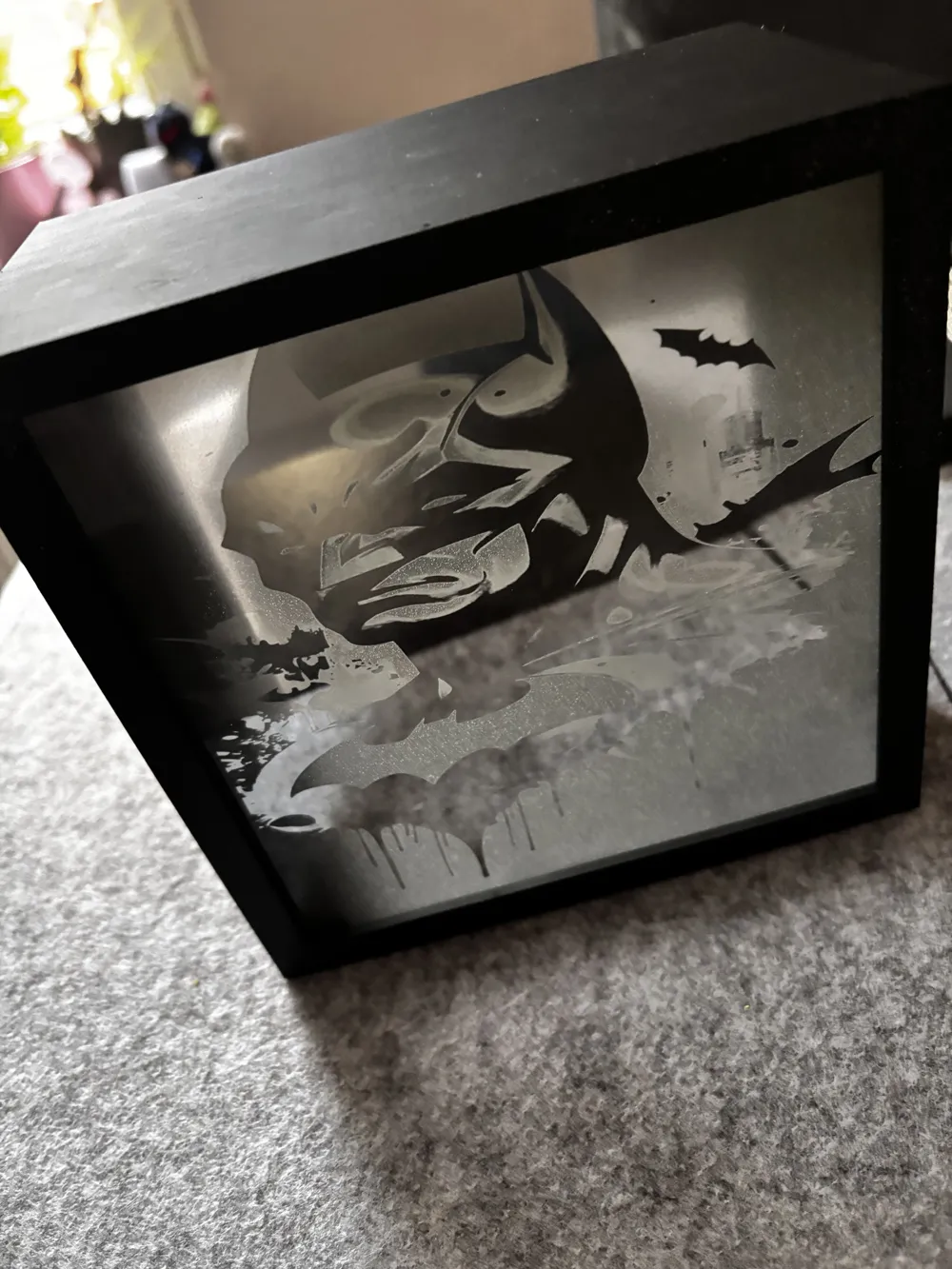

This modular box was specifically designed for the stylish presentation of laser-cut mirror tiles (dimensions: 150 x 150 mm). Ideal for creative maker projects with integrated lighting.

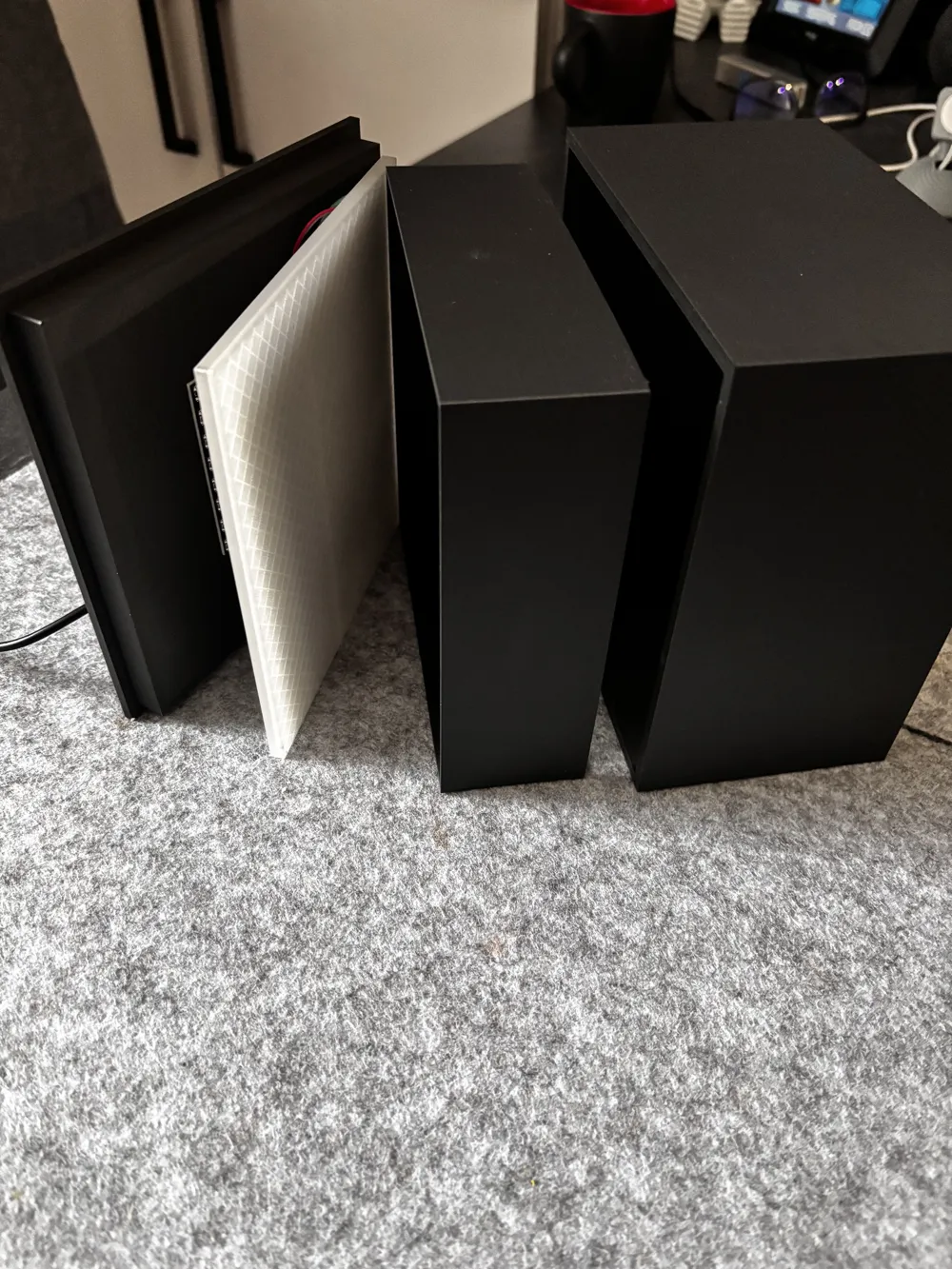

The box consists of several precisely fitting parts:

🔹 Outer frame (160 x 160 x 90 mm):
Stable frame with sufficient space to accommodate all components. The modern, angular design ensures a high-quality look.

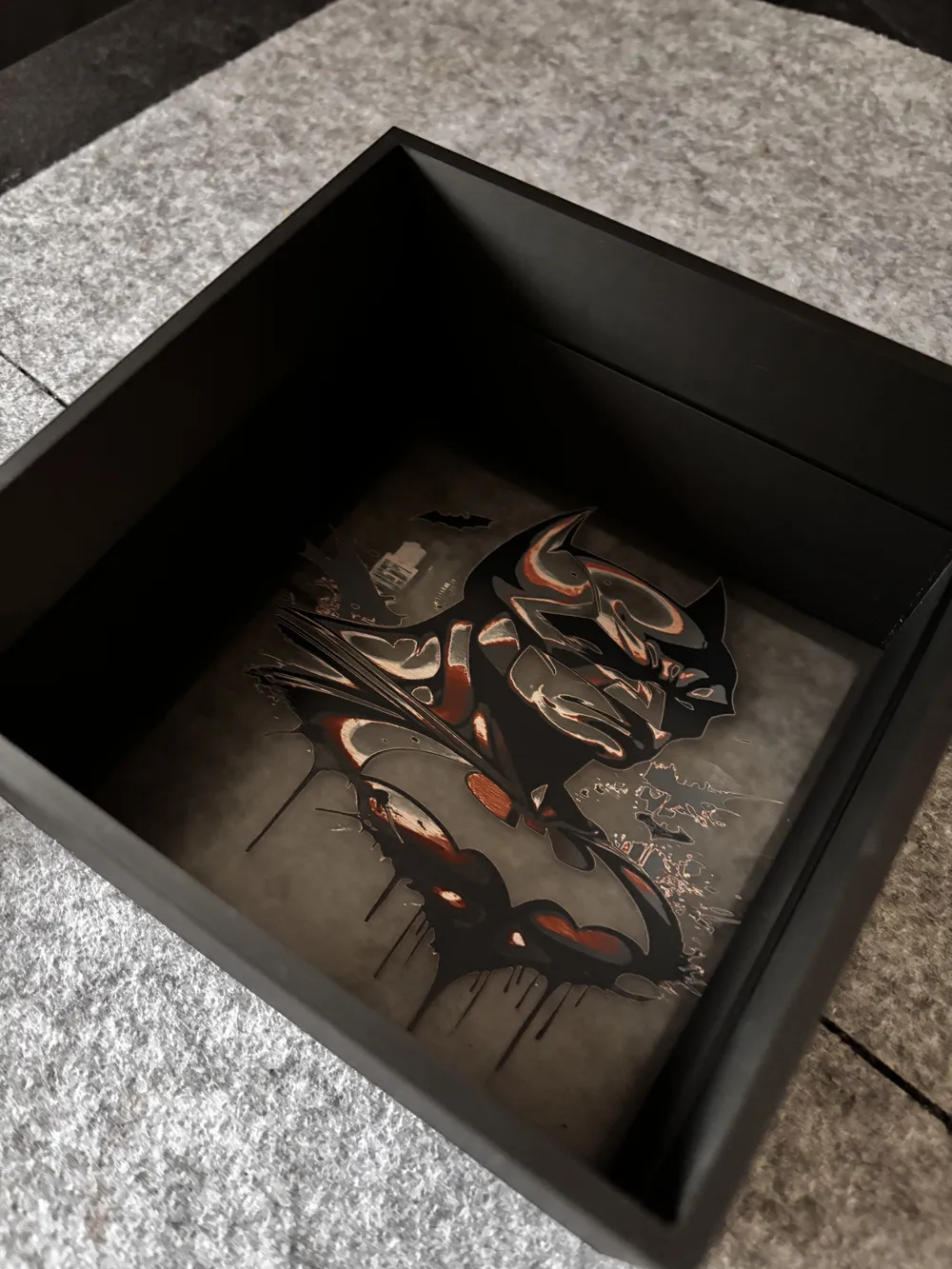

🔹 Inner frame/spacer (150.2 x 150.2 x 50.5 mm):
This fits exactly into the outer frame and serves as a spacer between the mirror tile and the lid. It creates the ideal space for installing LEDs or other lighting elements.

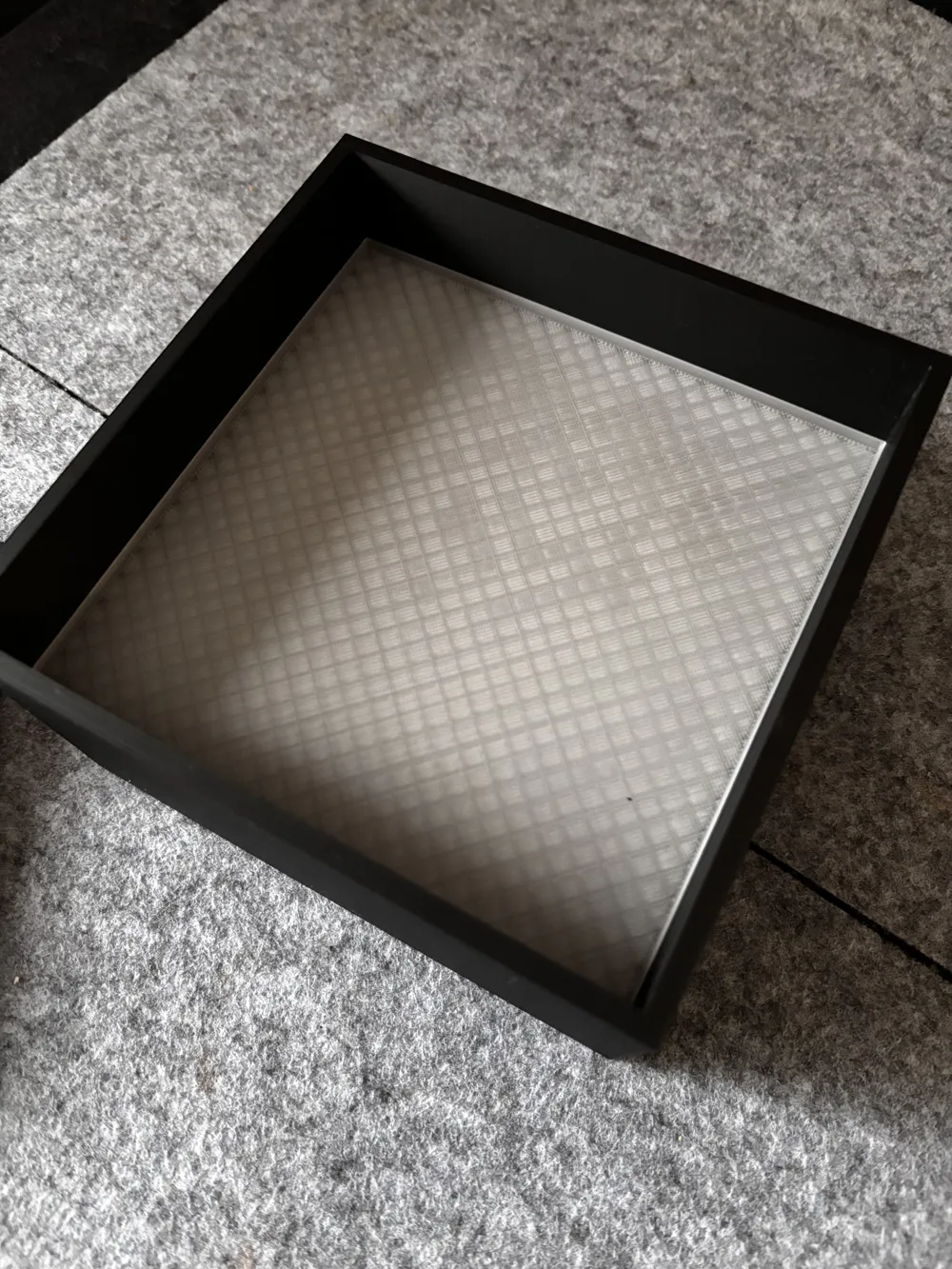

🔹 Diffuser plate:
A transparent or milky plate that sits between the light source and the mirror tile. It ensures even light distribution and makes the illuminated surface particularly soft and atmospheric.

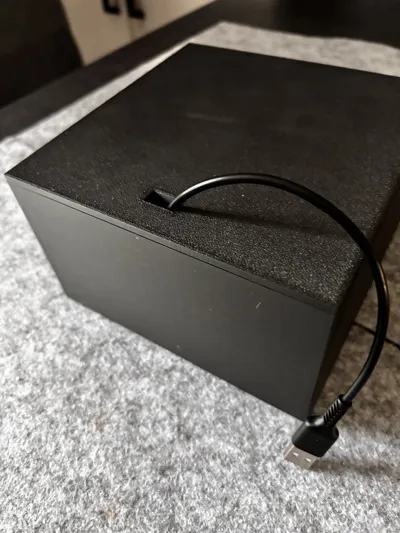

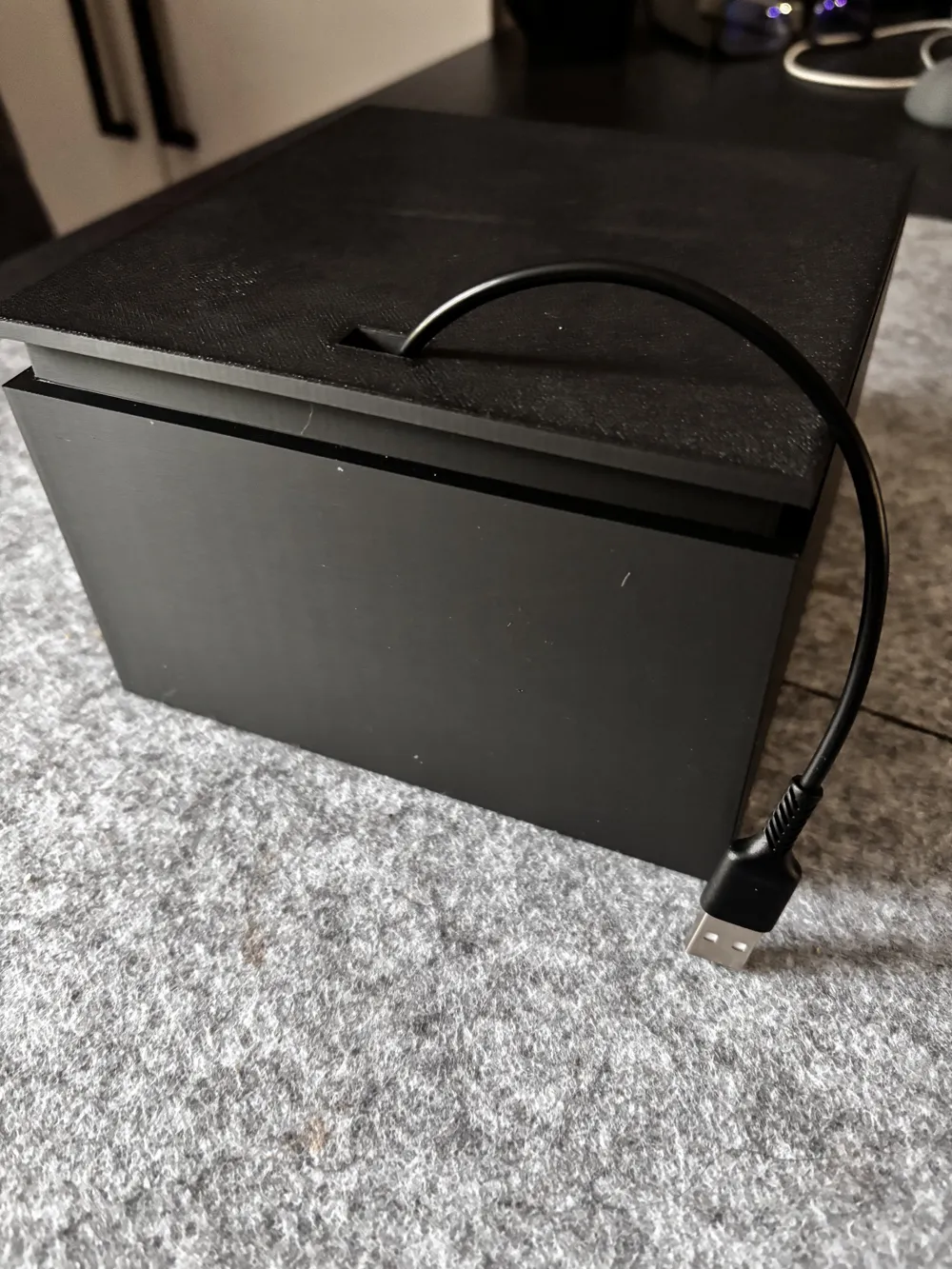

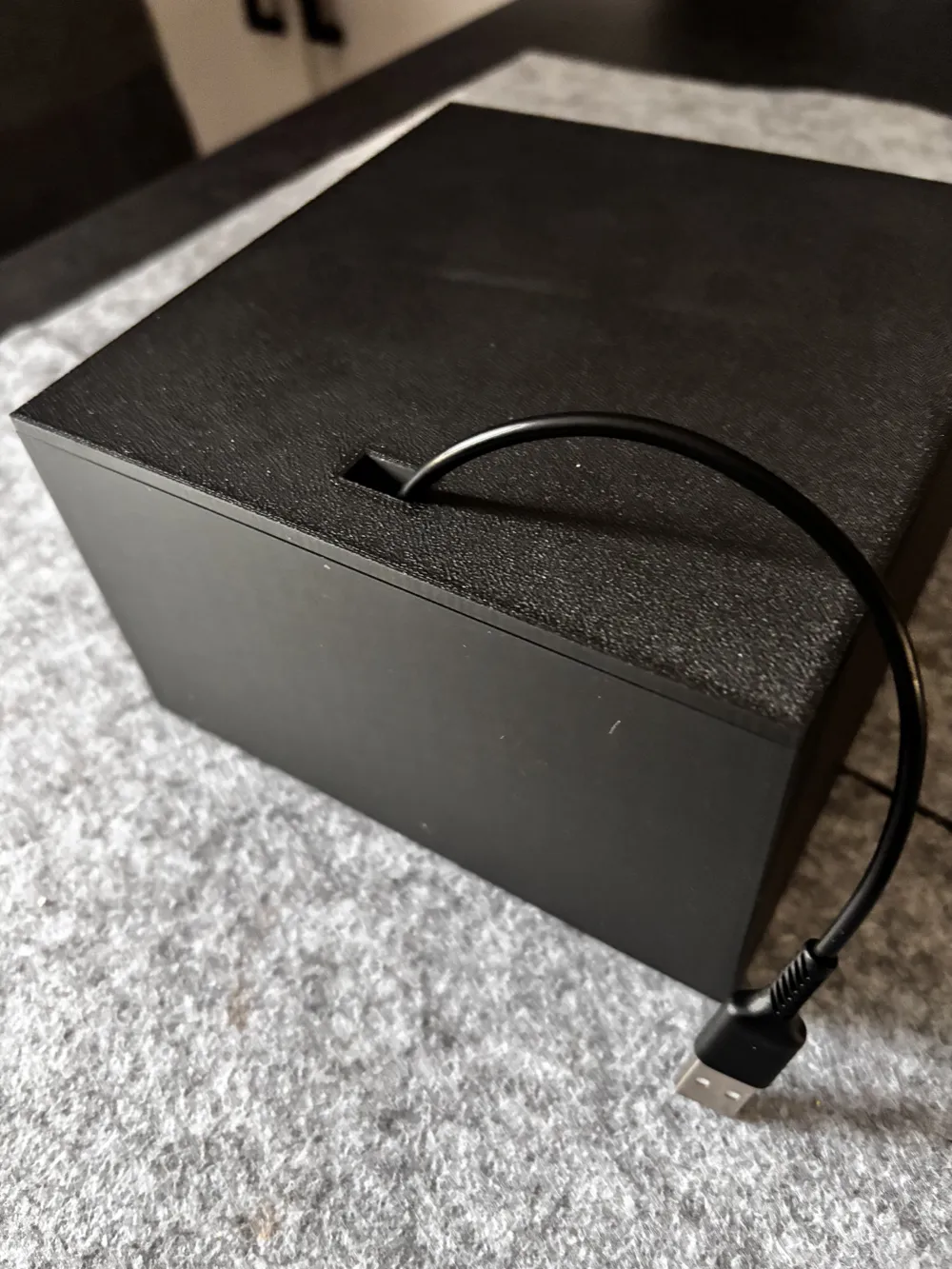

🔹 Lid with USB-C opening:
The lid can be easily slid into the outer frame. The integrated USB-C opening offers an elegant solution for powering your lighting. Ideal for Neopixel plates, LED strips, or other light modules.

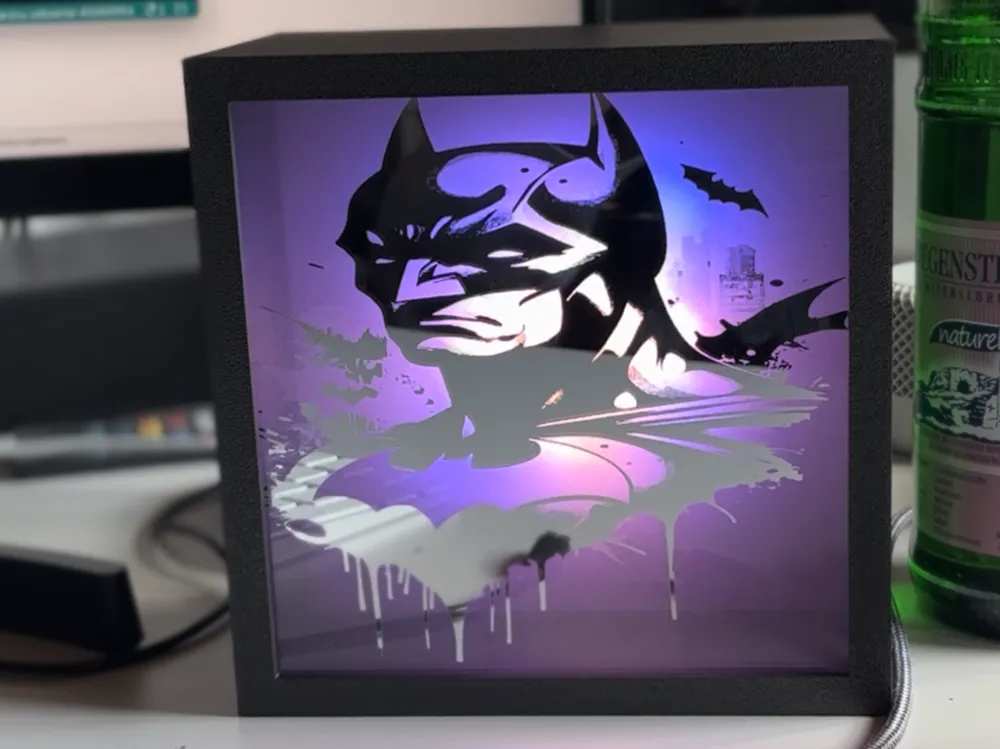

In my example, an 8x8 Neopixel plate with an Arduino was used and fixed directly in the lid. This creates an impressive, luminous effect behind the laser-cut mirror tile – perfect as a decorative element, night light, or geeky art object.
