Introduction

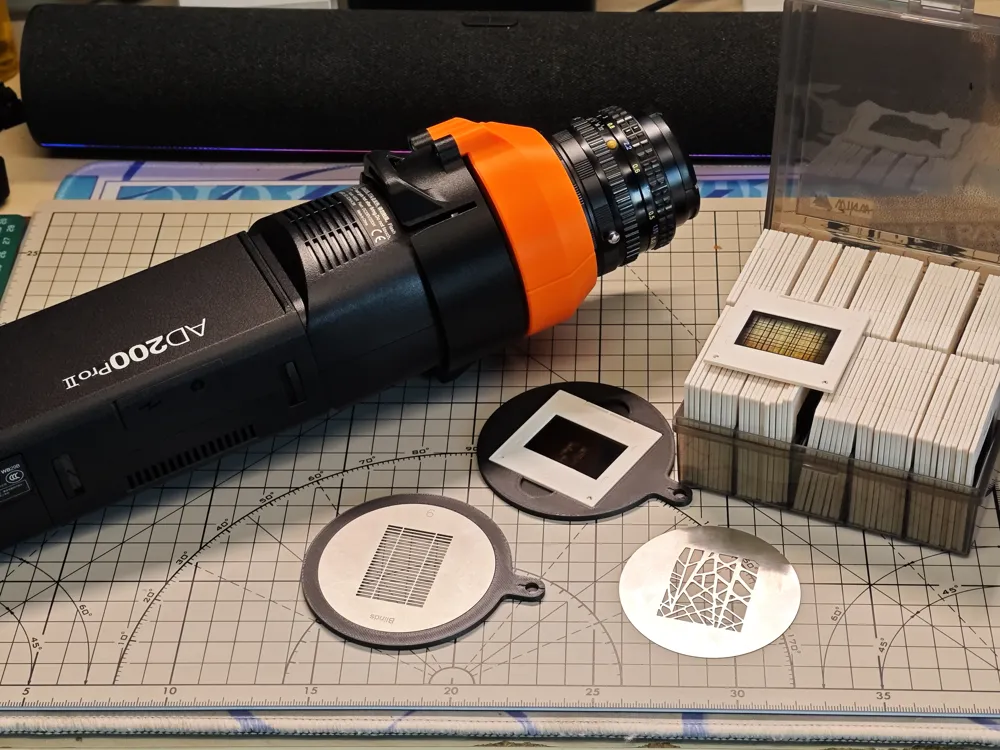

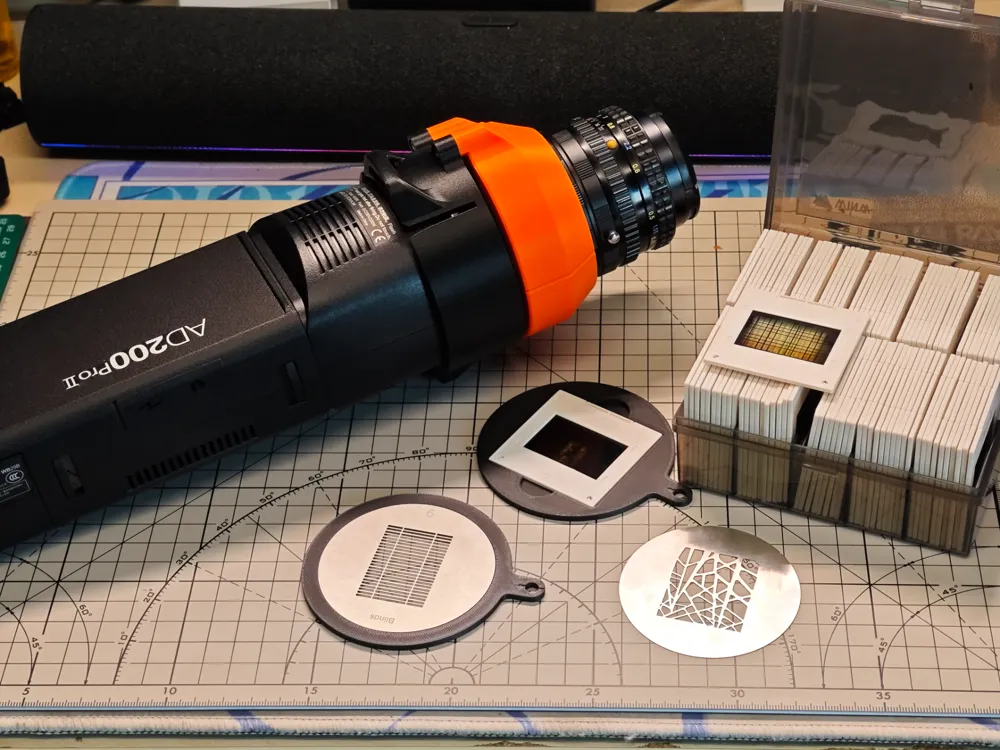

An enhanced flash projector compatible with Godox V1, AD100 PRO, and AD200 PRO flashes equipped with the H200R round head

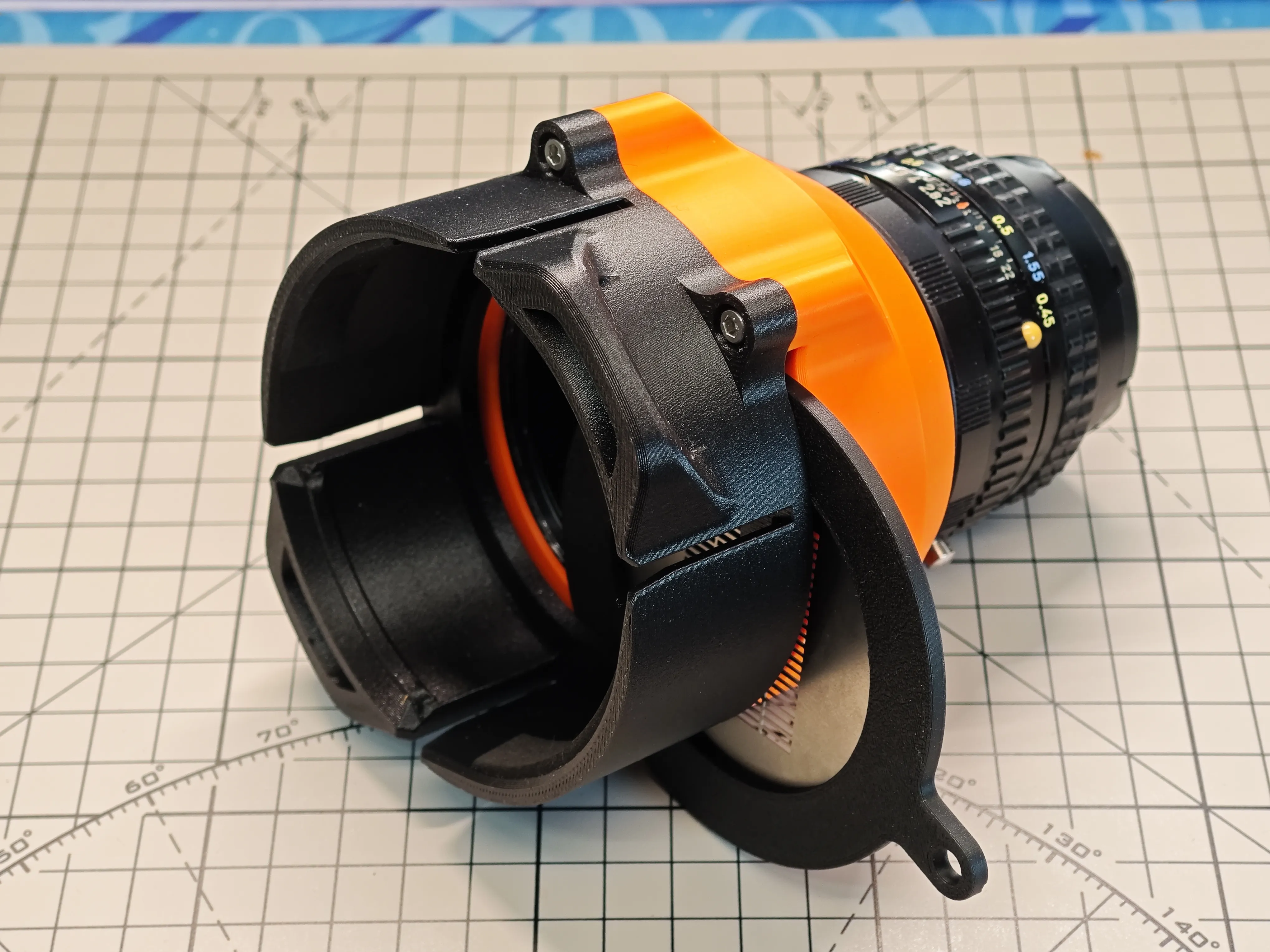

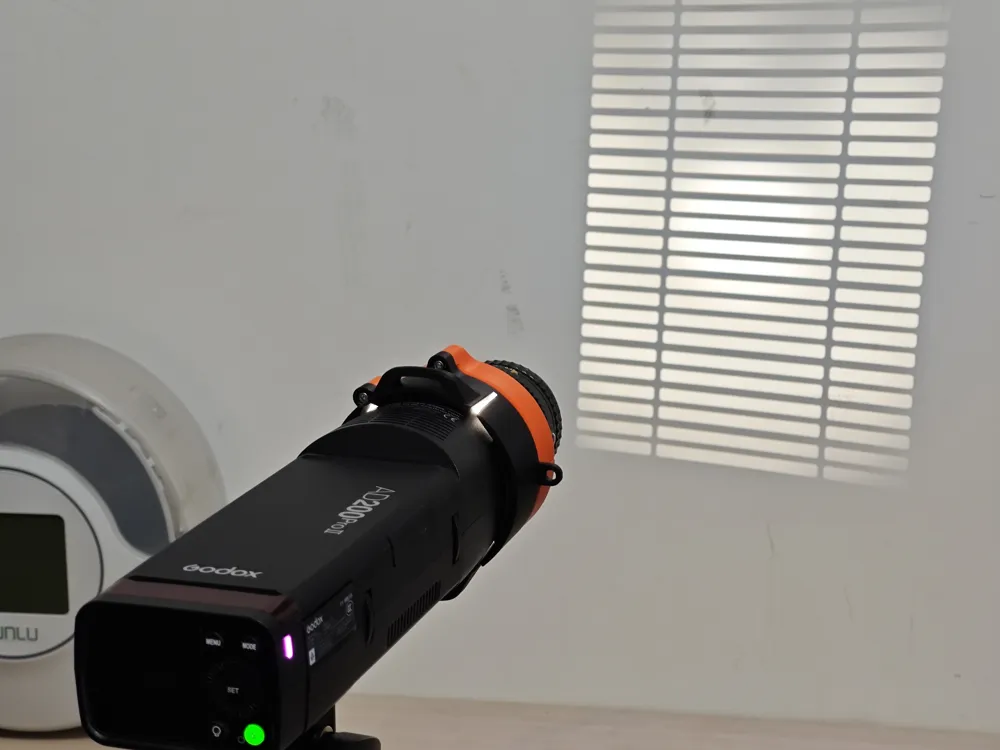

This flash projector utilizes a camera lens to project gobo or film slides. It accommodates 135mm film slides and 66mm gobos
Employing a Pentax A50 lens in my design, I've provided STEP files; you can modify these to suit your lens
Hardware
Pentax A50 lens

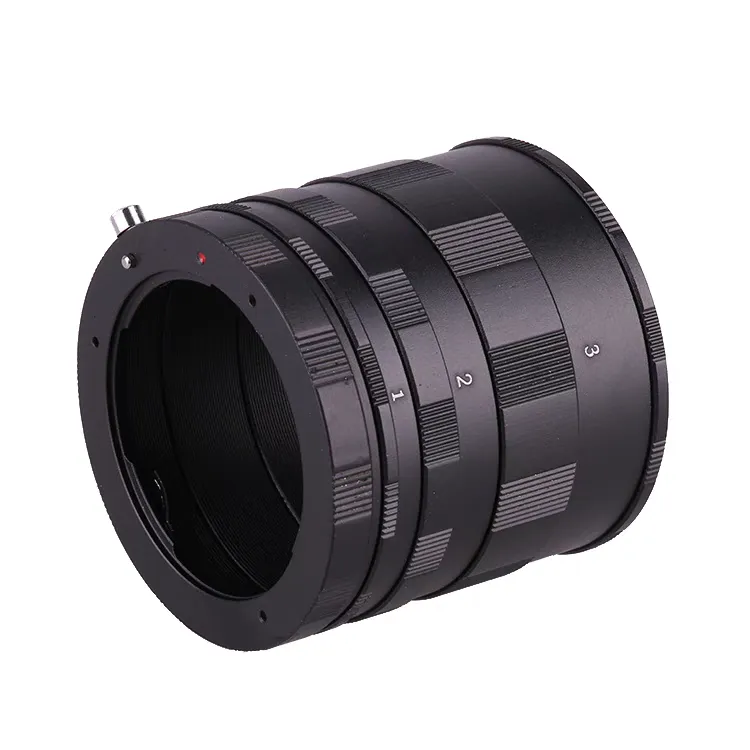

Pentax macro rings (use a No 3 macro ring for internal insertion to secure the lens adapter)
3x ISO 14585 (DIN7981) 2.9mm diameter x 13mm length self-tapping screws
10mm x 2mm single-sided EVA adhesive
50mm x 50mm x 2mm film slide holder

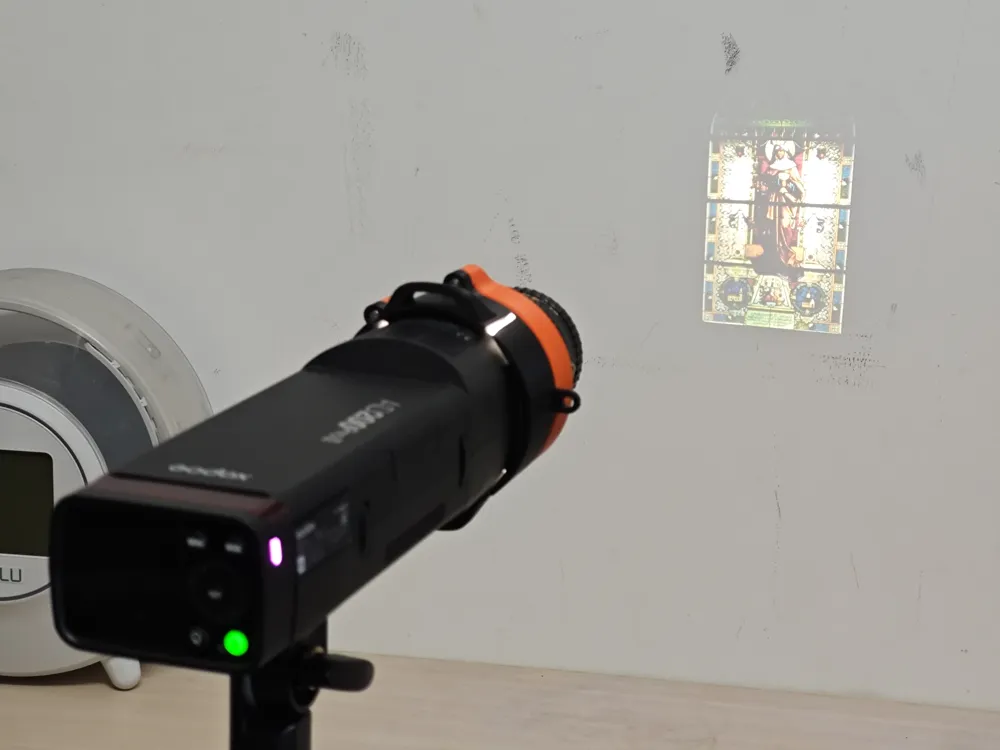

Sample Images:
This remix is based on
