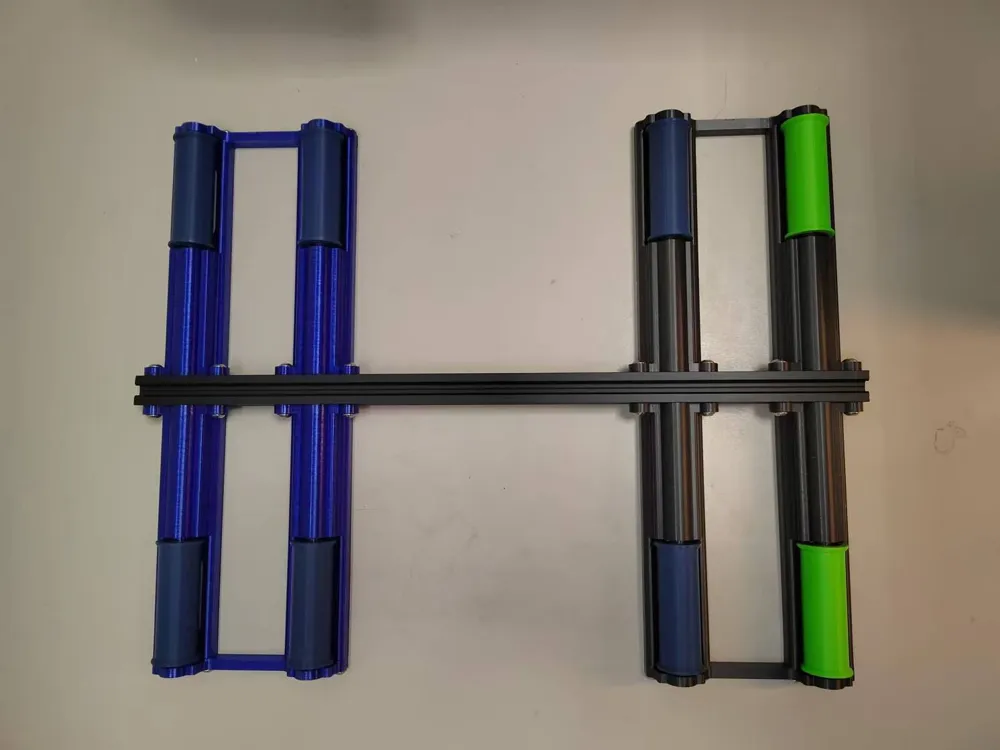

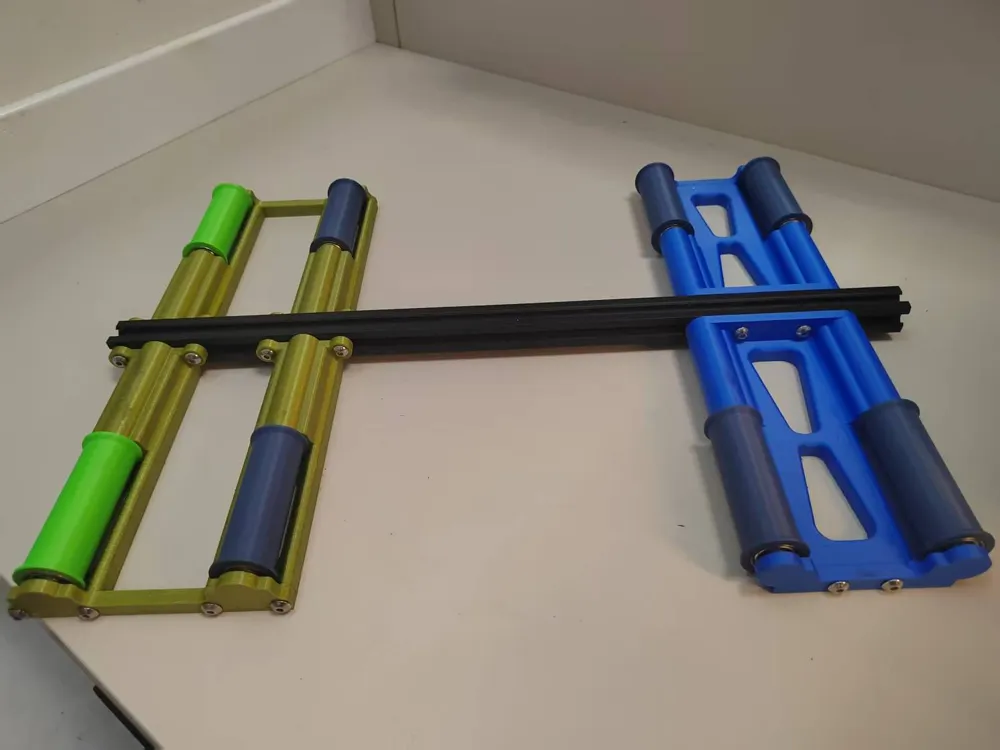

Simple RC test stand, approximately 313mm wheelbase for 8 cars. Tire diameter approximately 110mm.
Two types of distances between the single wheel and the two rollers' axles: 80mm for part B1 and 90mm for part A1.
Materials

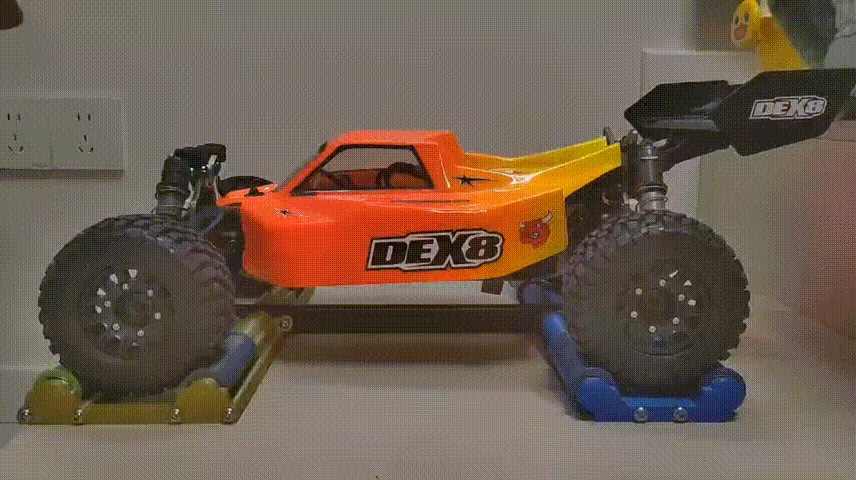

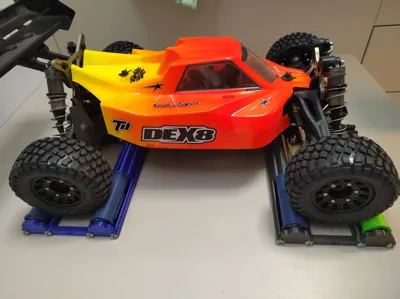

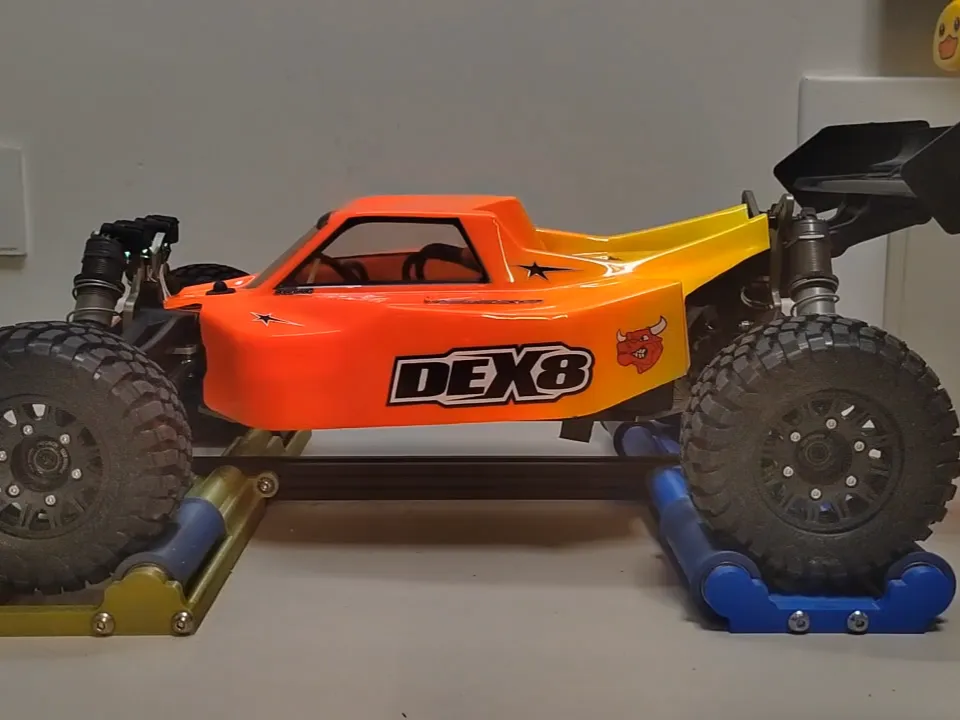

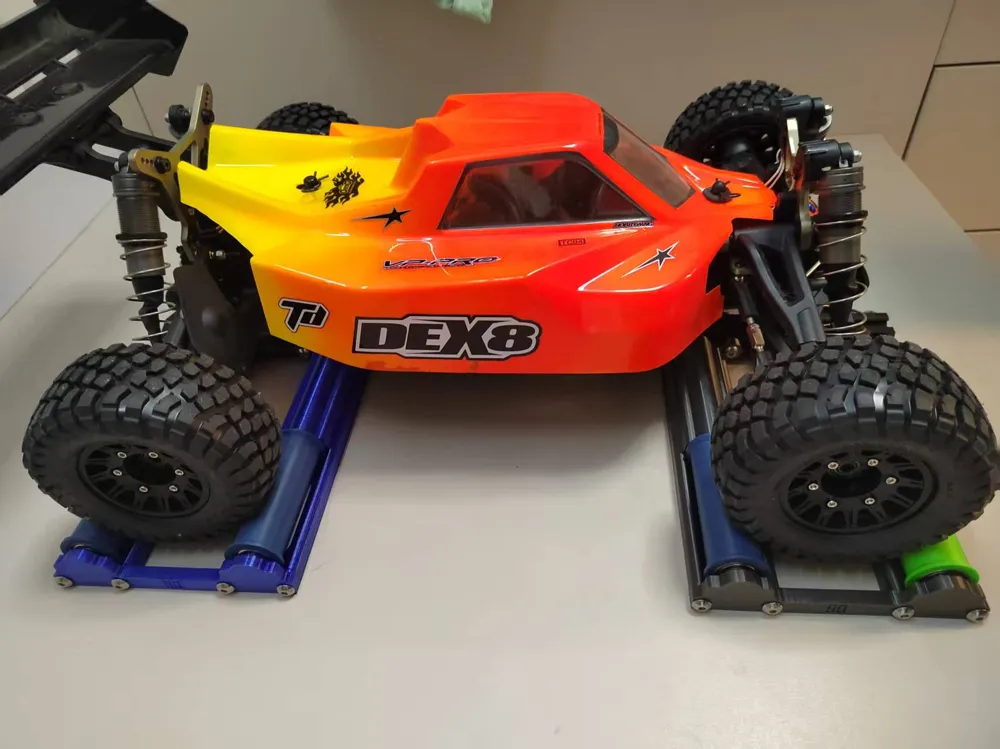

50cm 2020 aluminum profile (or printed), X1. The picture shows an 8-wheel vehicle with approximately 313mm wheelbase; longer profiles may be required.
M5X12mm socket head cap screws, X32
M5 T-nuts, X16
608ZZ bearings, X16
