Description

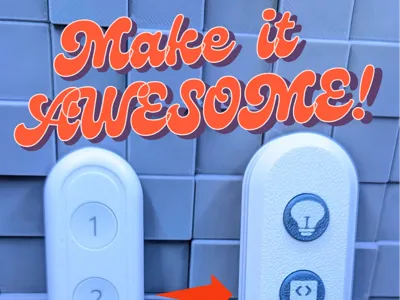

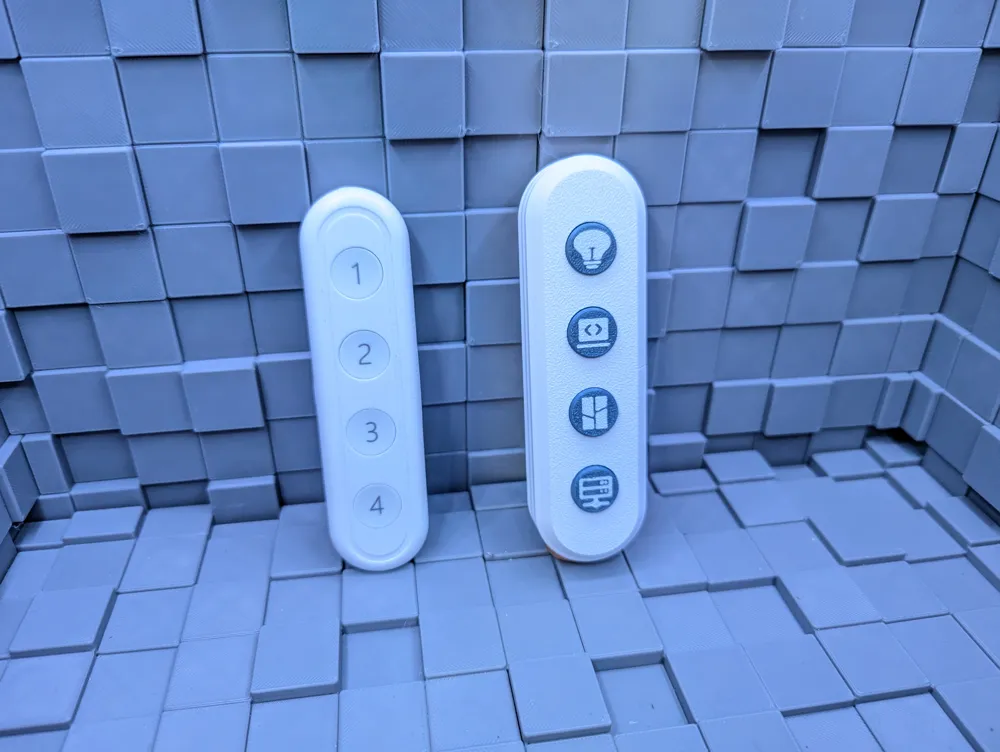

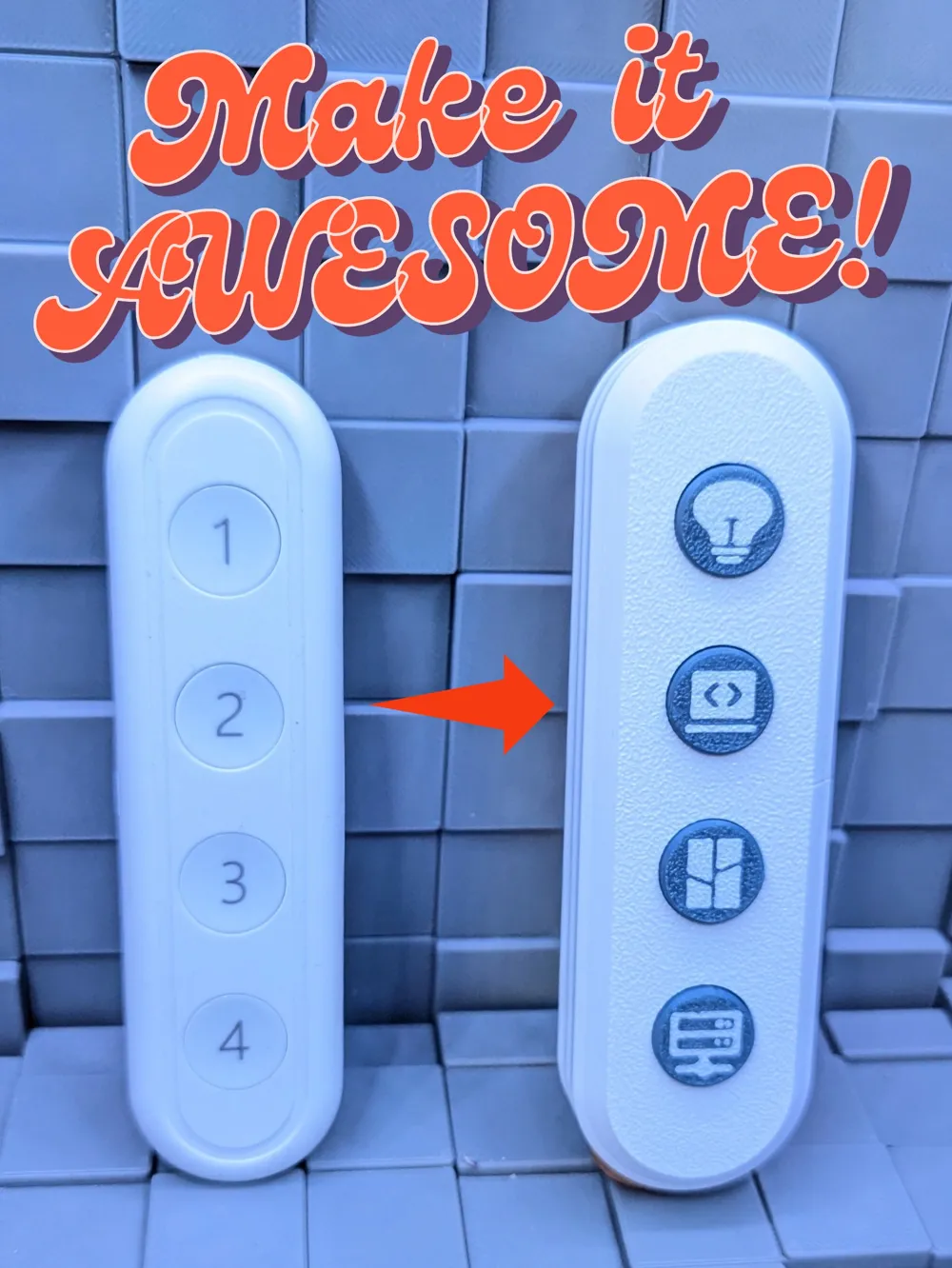

I designed a case with cuttons for a LoraTap Zigbee 4-way button, maybe also white-labels with other names available. Each button can perform a single, double and hold action.

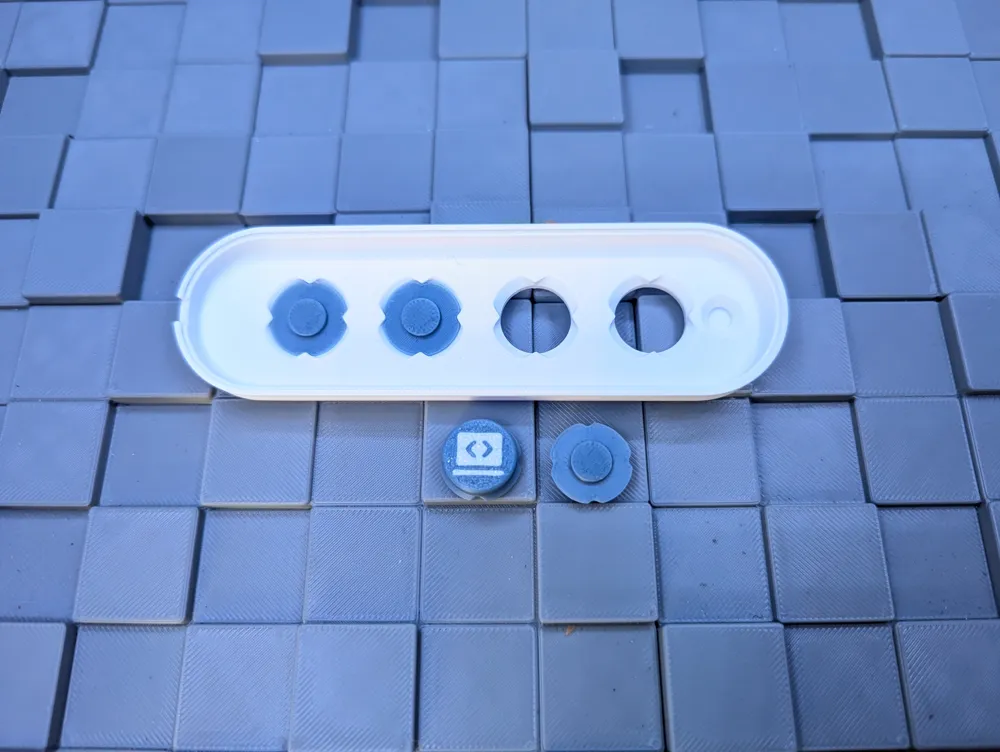

There is a selection of buttons available, just select the ones you like. If you need other icons, let me know.

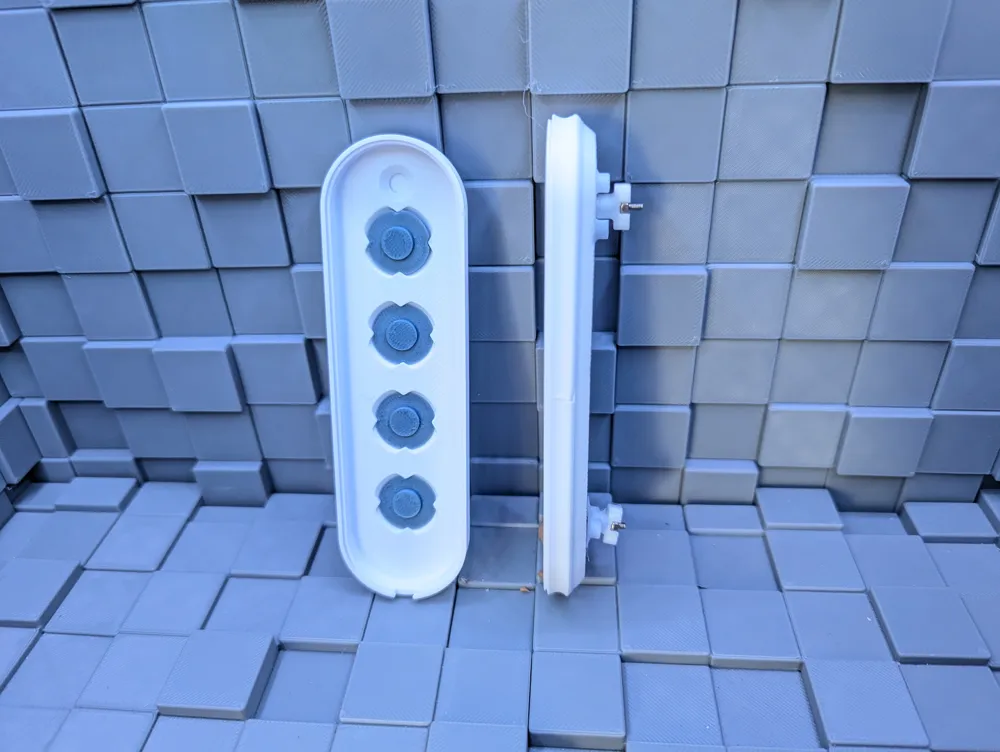

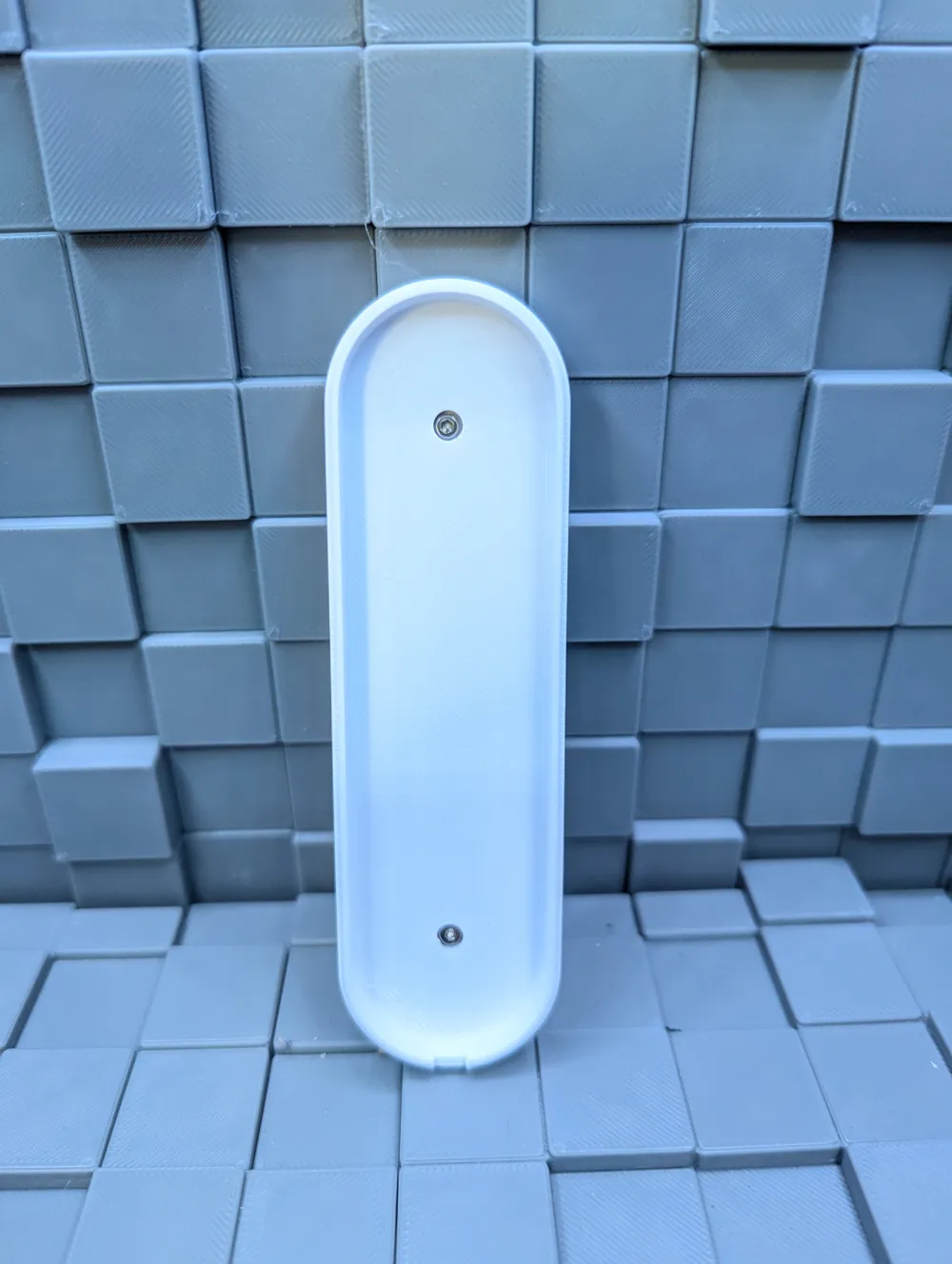

The housing is a snapfit with optional bores to add onto a ikea skadis pegboard but also can be screwed or glued onto a wall or desk. the side has a beautiful rounded shape to let the thick housing look less massive.
Boost Me (for free)
Please support me for more designs :)
LoraTap 4-way switch:
Zigbee2mqtt device (picture not fit to reality):
https://www.zigbee2mqtt.io/devices/TS0044.html
(OPTIONAL) For skadis mount I use skadisnut with the align guide:
https://www.printables.com/model/228663-skadis-t-nuts-mounting-system-for-ikea-skadis-pegb
My system:
Openhab + Zigbee2Mqtt on docker on a Raspberry Pi 5
My usecases:
Button 1: Turn on/off light
Button 2: Turn on/off desk power plug
Button 3: Turn on/off Bambu Lab X1C (off on long press if not printing and cooled down)
Button 4: Turn on my NAS
I will print the next one with glow in the dark filament to make it extra fancy.
