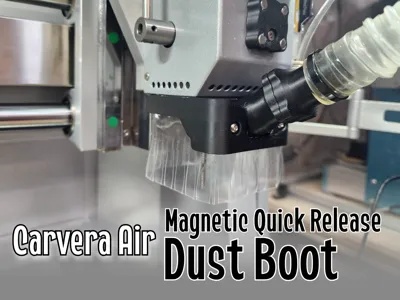

A Better Dust Boot for the Carvera Air CNC – Easy On, Easy Off!
(Original non height adjustable version)
Boost Me (for free)
Hi there! If you have a spare boost, I’d be so grateful for your support. While bigger creators often get lots of attention, boosting smaller creators like me truly makes a big difference. Your boost would help me keep sharing unique, niche models for everyone to enjoy. Thank you so much for considering it—it means the world! 🙏💖
Membership
Commercial License Membership For Resellers Available
See my new and improved height adjustable version here
PLEASE READ ENTIRE POST PRIOR TO PRINTING
I recently got the Carvera Air CNC, and while it’s an impressive machine, the stock dust boot left a lot to be desired. It felt like an afterthought—too much fiddling, a frustrating hose connection, and worst of all, no replaceable bristles.
So, I did what any maker would do… I designed my own! 🎉
✨ Key Upgrades:

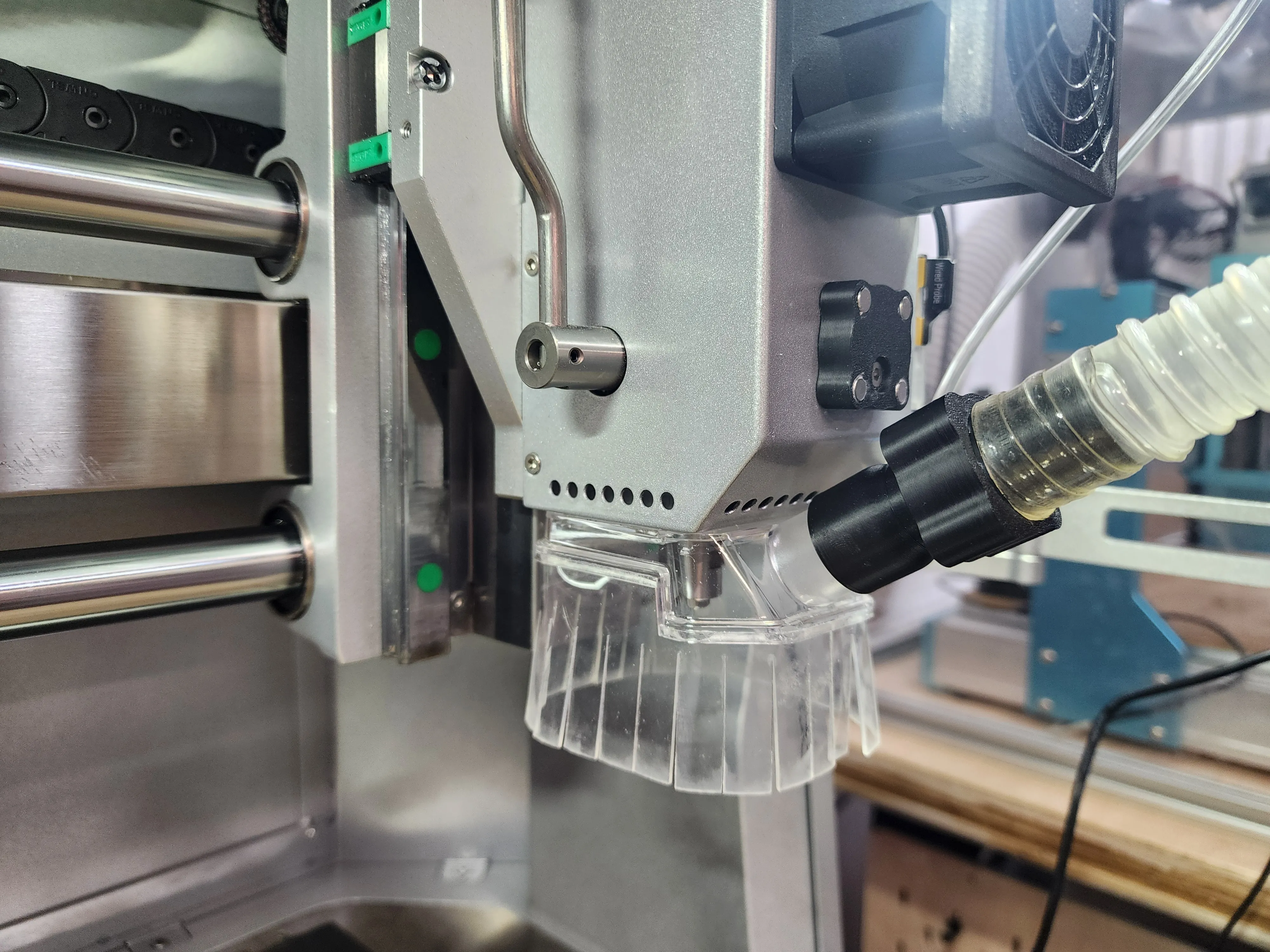

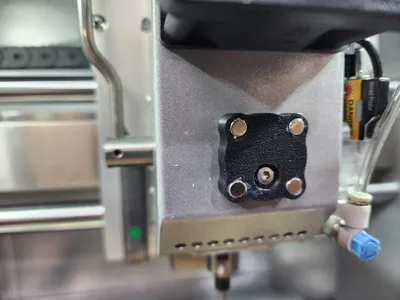

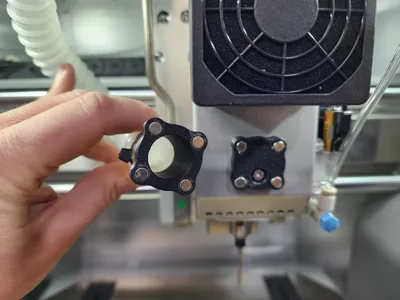

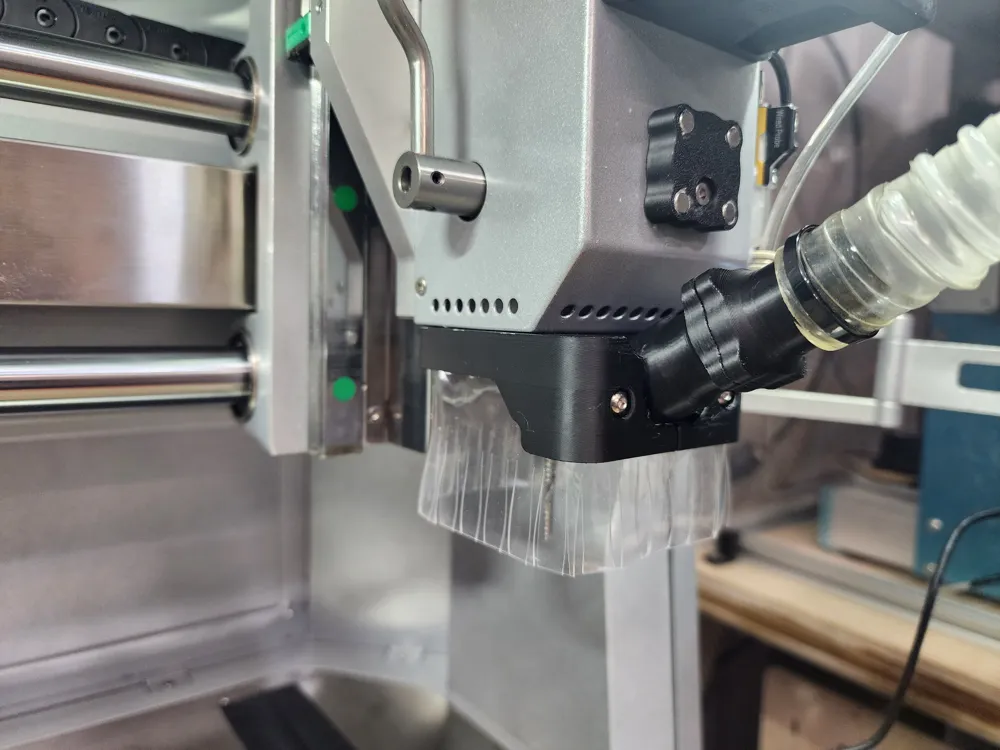

🔹 Magnetic quick mount – Snaps on and off effortlessly. No more struggling to reattach it to the spindle mount!

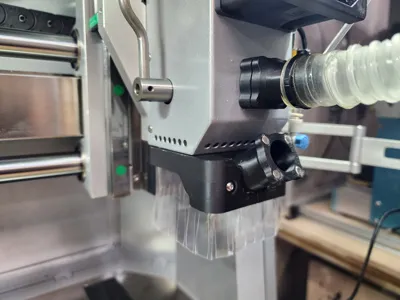

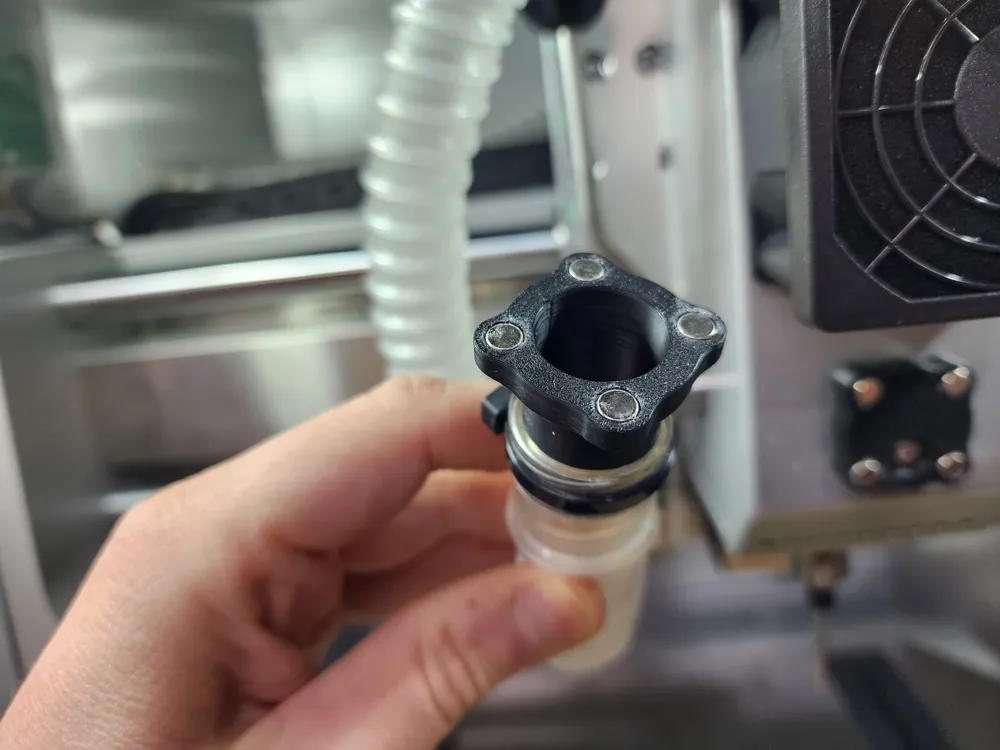

🔹 Magnetic hose connection – The hose clicks right into place

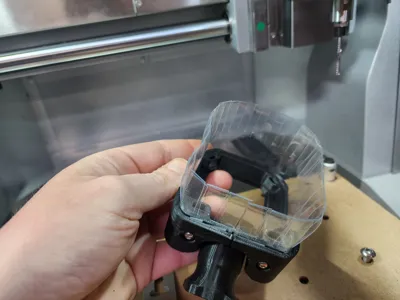

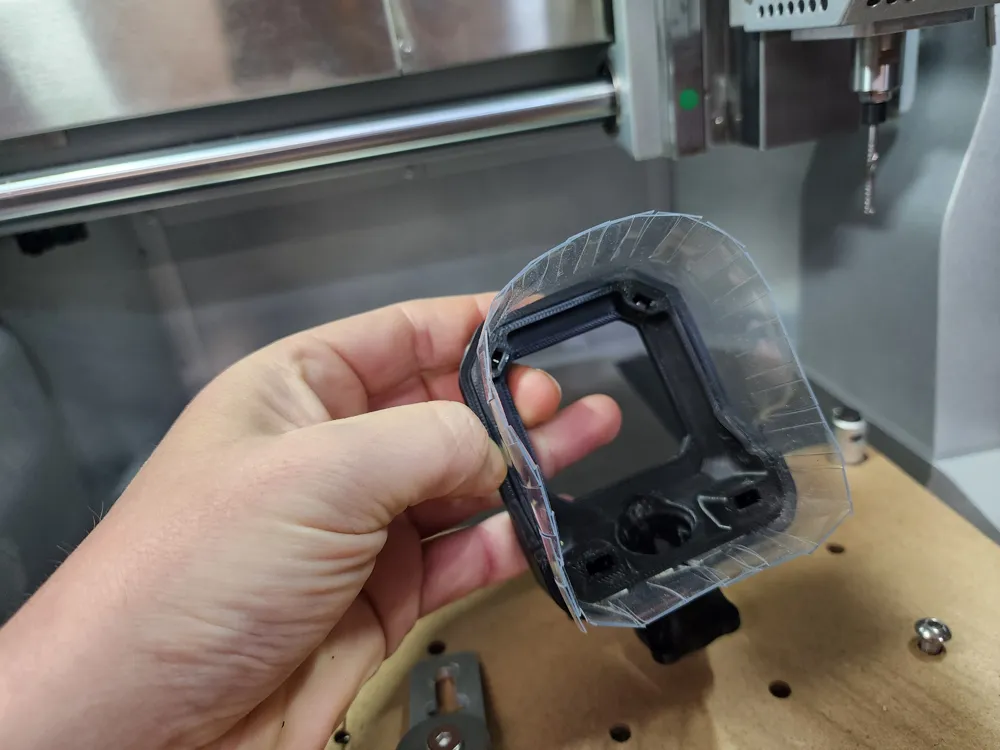

🔹 Replaceable vinyl bristles – Swap them out easily instead of replacing the whole boot.
Watch the video of assembly & use!
This was printed in PLA.
You will need the following:

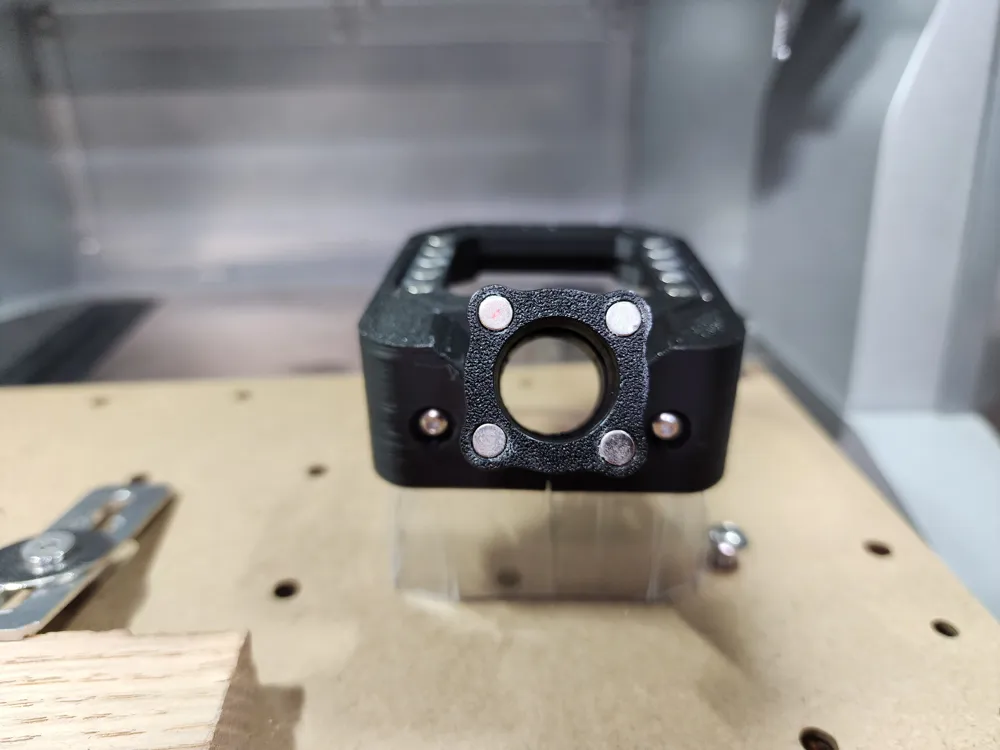

(10) 5x3mm Magnets For Dust Boot
(4) 5x3mm Magnets For Dust Boot Connector
(4) 5x3mm Magnets For Hose Connector
(5) 5x3mm Magnets For Hose Mount

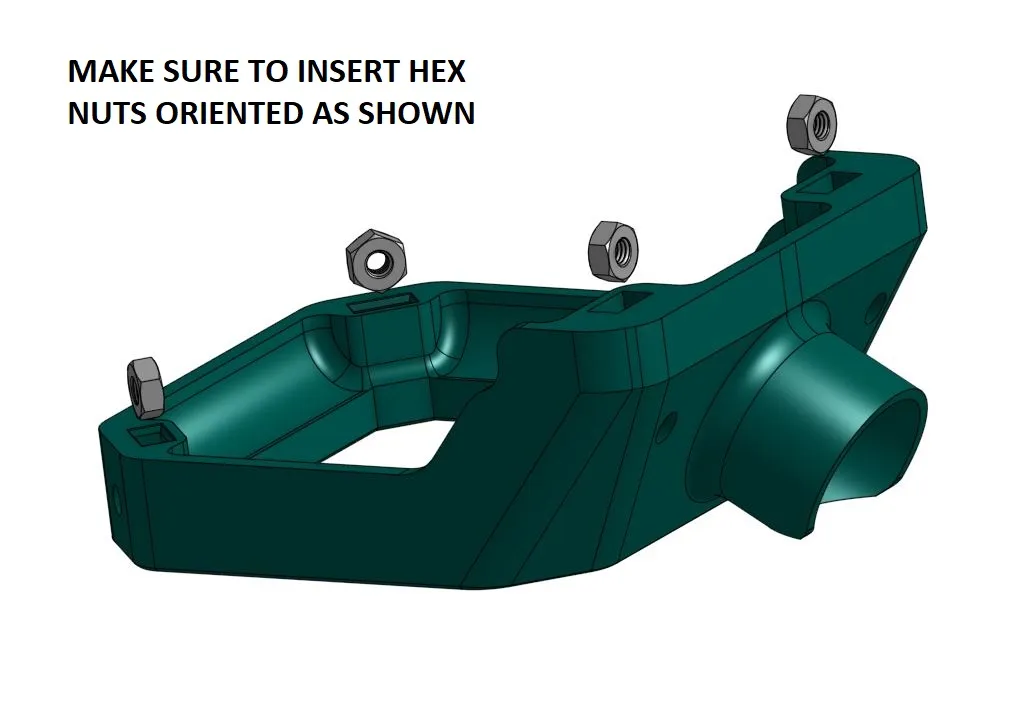

(4) M3 Hex Nuts
(2) M3x10mm Button Head Screws
(2) M3x8mm Button Head Screws
(1) 260x120mm 20mil Clear Vinyl (30mil should work as well)
IMPORTANT NOTES:
- WHEN INSERTING MAGNETS PLEASE MAKE SURE YOUR POLARITY IS CORRECT!!
- YOU WILL NEED TO ADJUST SLACK ON HOSE TO ALLOW IT TO SEAT CORRECTLY WITH MAGNETS. OTHERWISE IT WILL DISCONNECT.
Some people found that they did not have proper hose slack and the magnets would disconnect on lower Z movements.

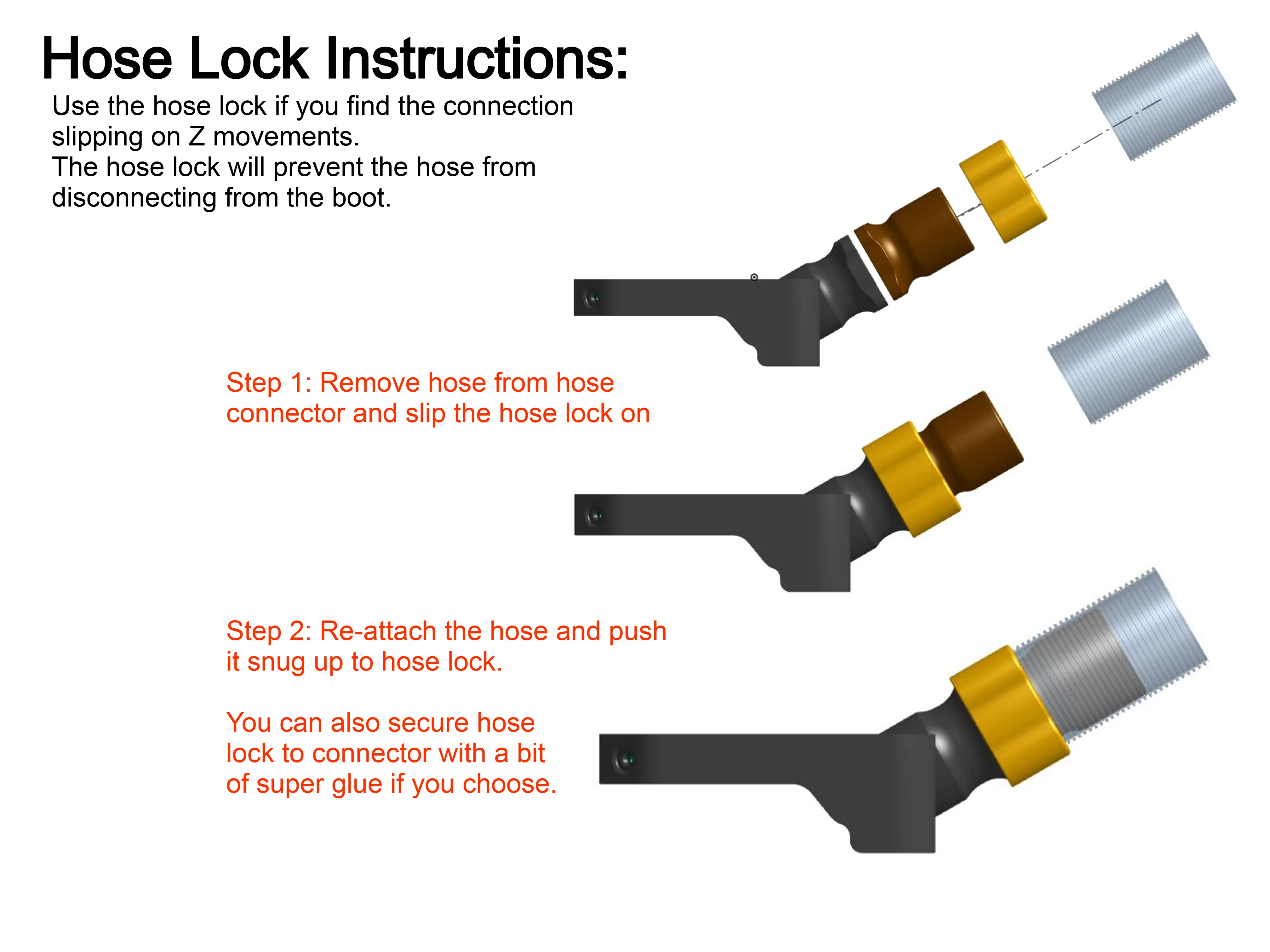

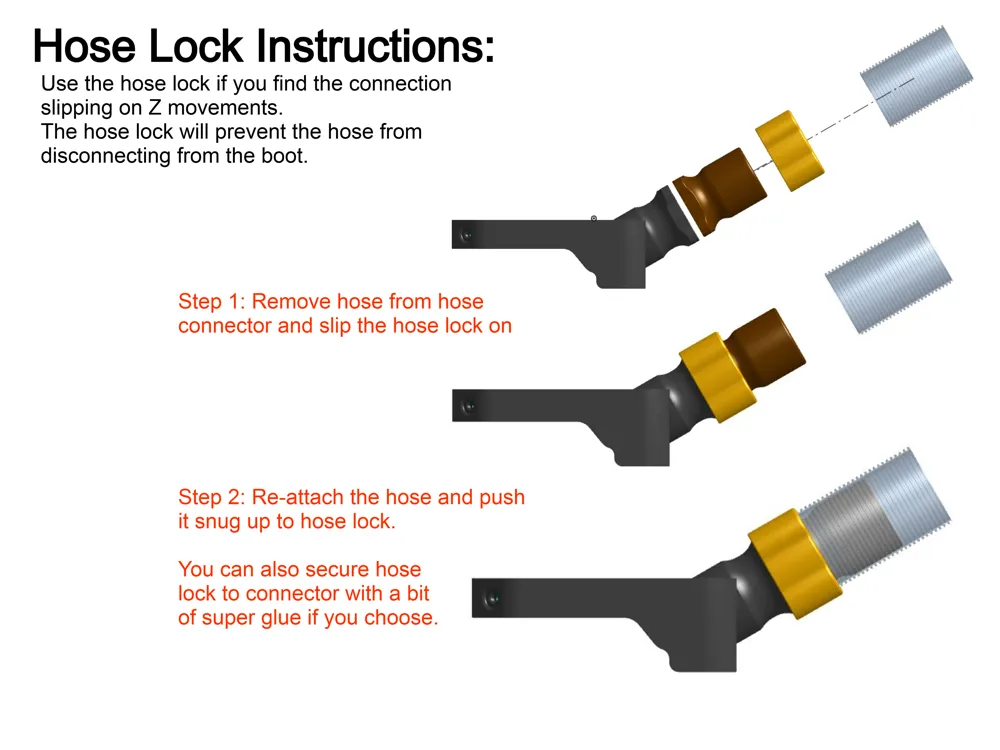

To fix this I added a Hose Lock to prevent the hose from disconnecting from the boot. It still has some slippage but that does not affect the suction or use. It will just prevent it from totally disconnecting.
See below video demonstration showings its use.

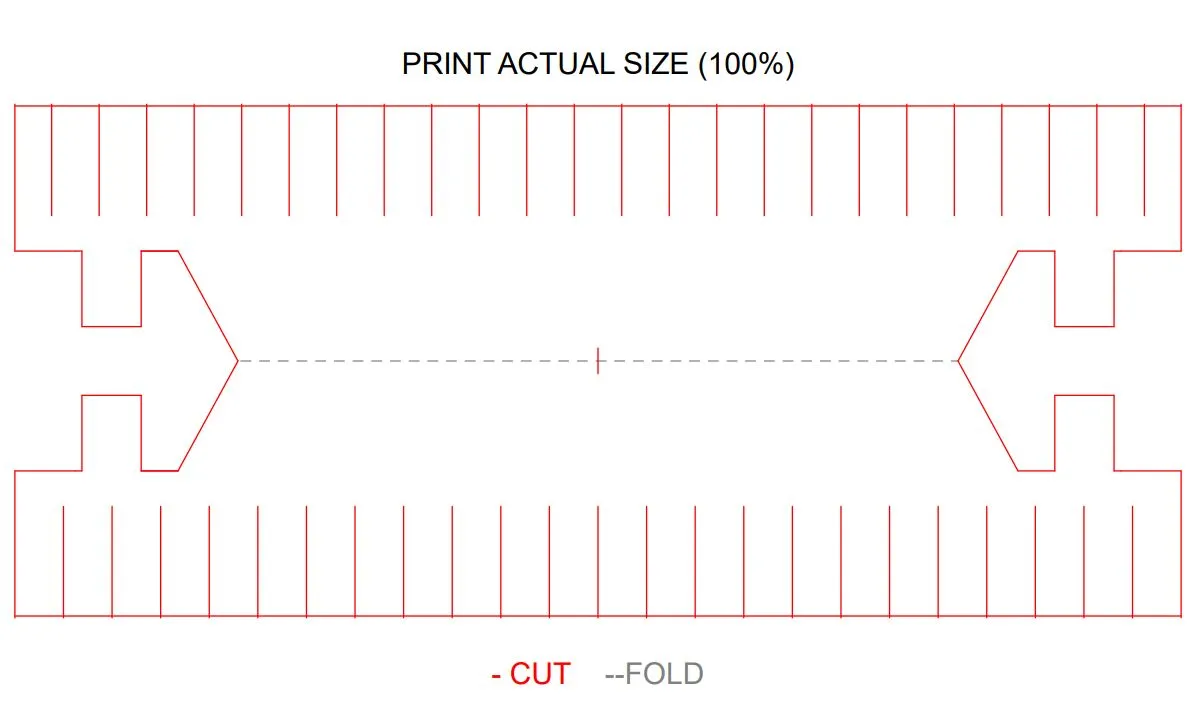

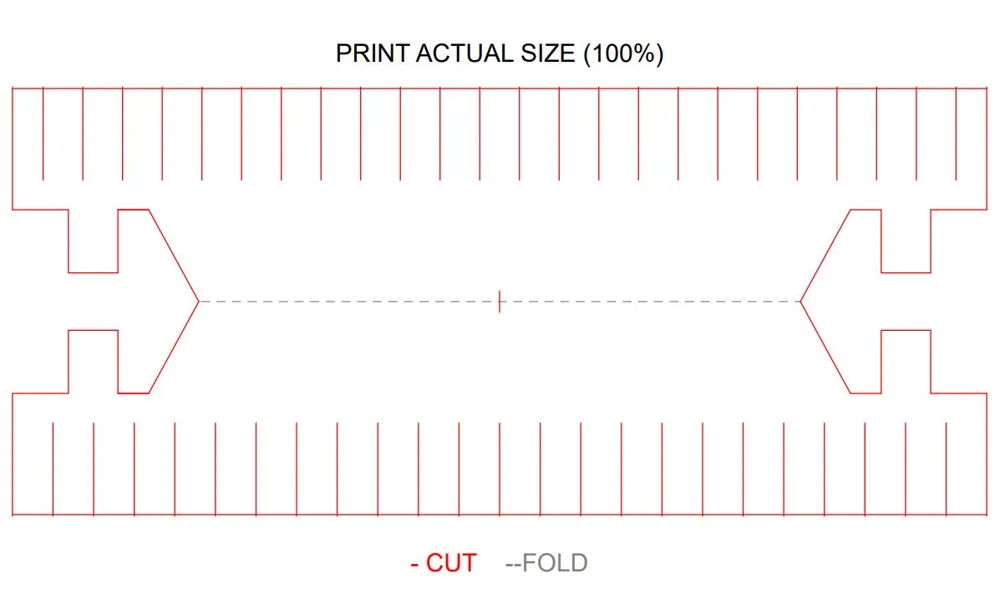

PRINTABLE VINYL BOOT TEMPLATE CUTOUT PROVIDED AS A PDF IN LISTING DOCUMENTATION

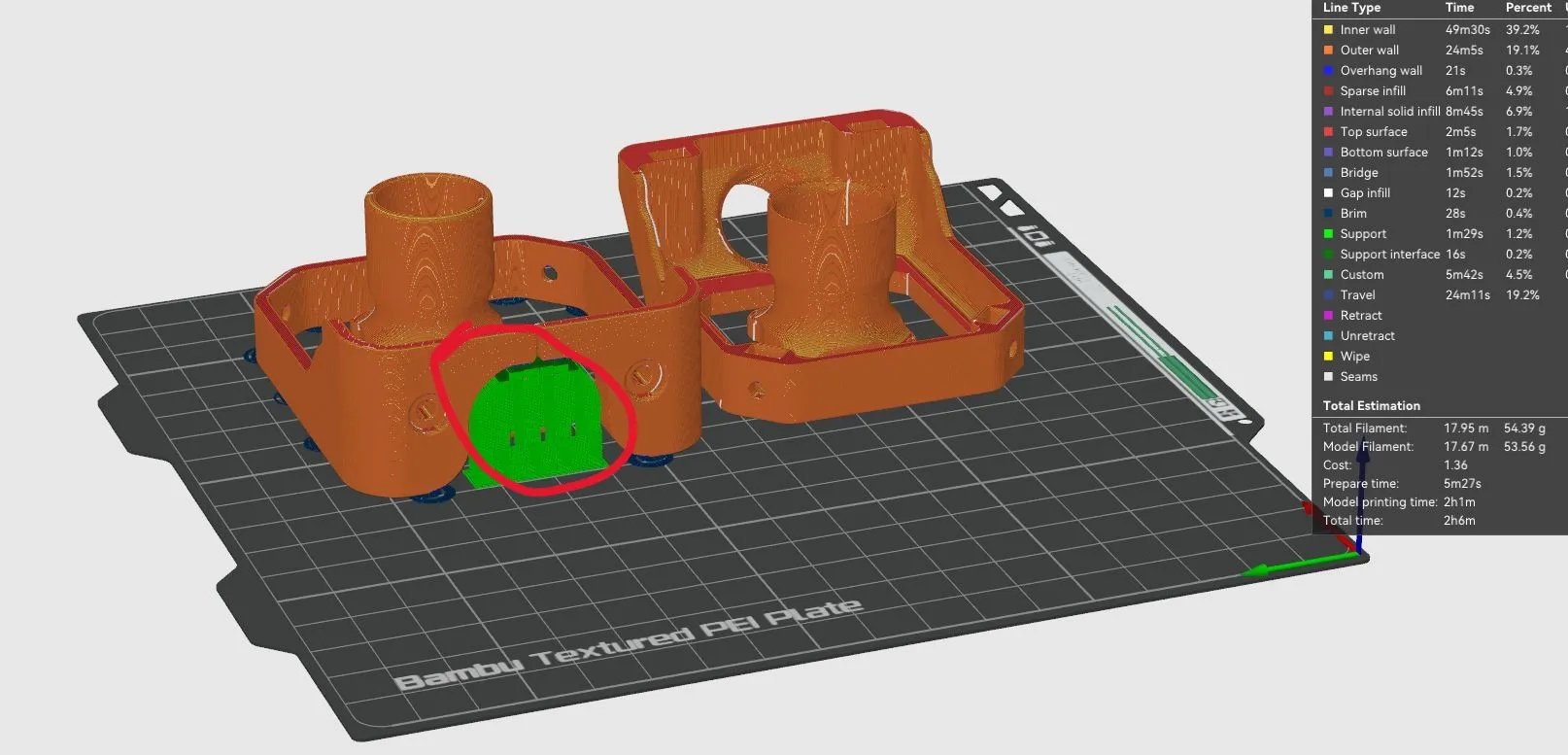

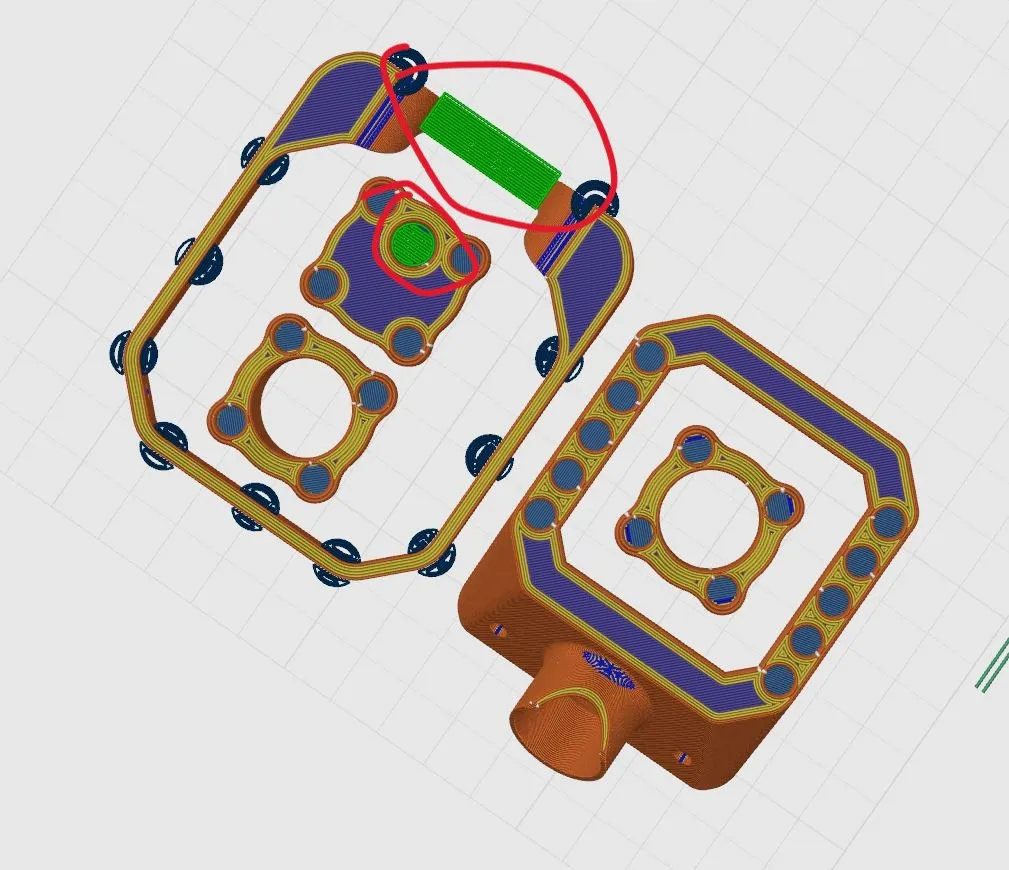

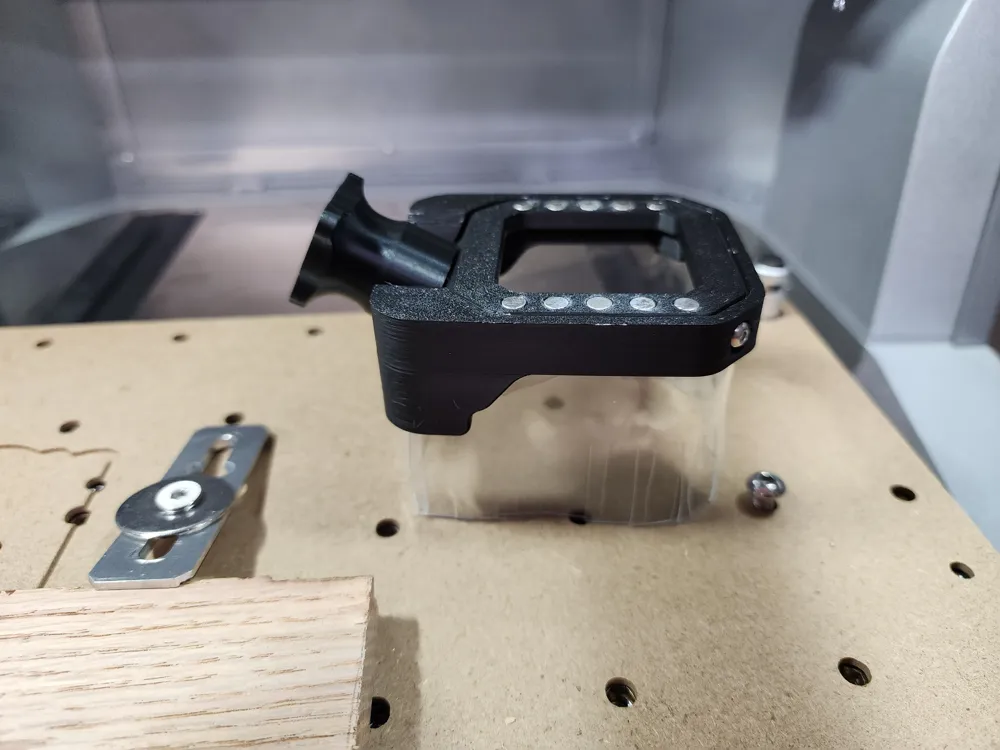

Print in orientation shown with support as shown (for shroud and mount screw hole only).
No other supports required.

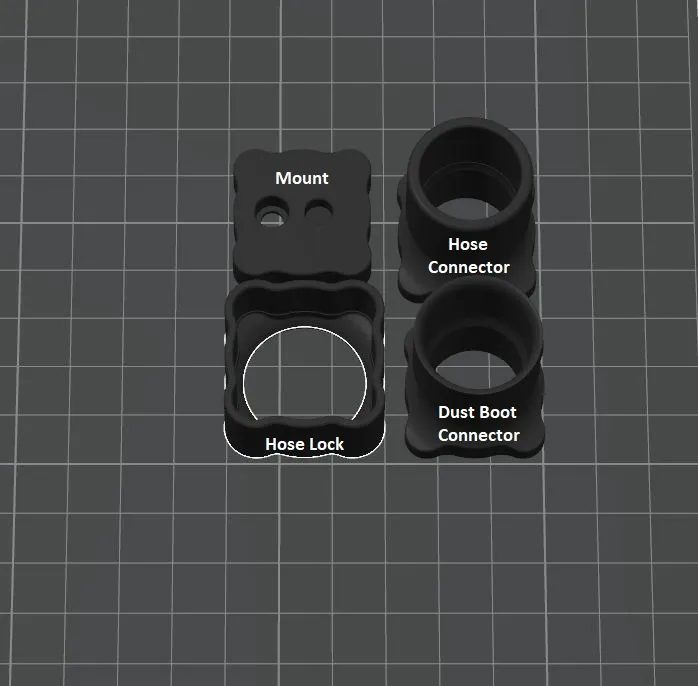

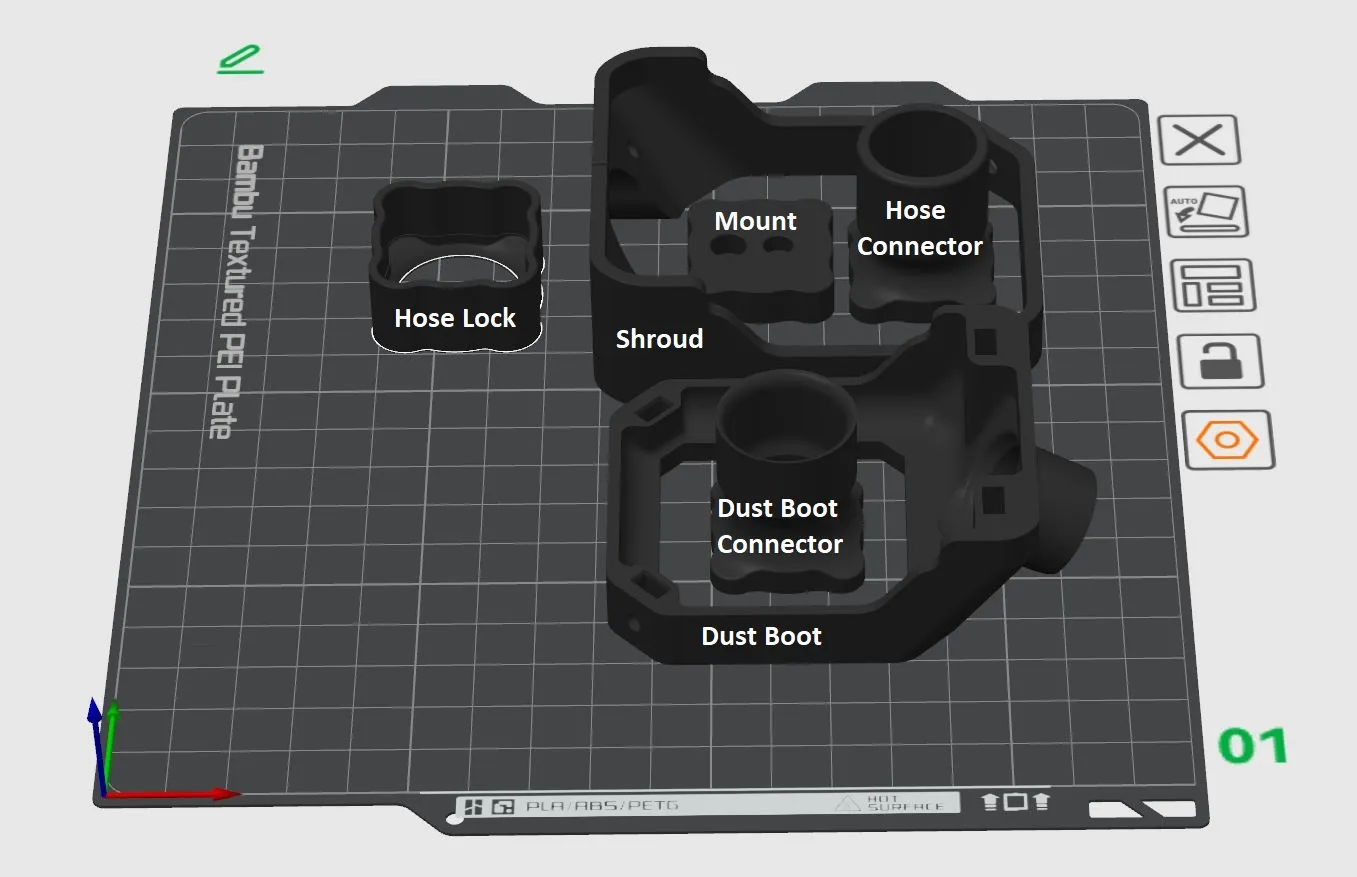

All printed parts named:
If you rather use the stock dust boot but want the quick connect feature you can choose the profile “Stock Dust Boot Magnetic Quick Connect”.
This will be for the following setup:
Make sure to use a tuned profile and dry filament. Things need to fit correctly here.
If you print this model and benefit from it please consider leaving a positive rating and boosting the model.
Thanks for looking and I hope these help you as they did for me.
