Garmin Varia Mount for 27.2/31.6 mm seatposts
Remixed by
IP Report
Print Profile(2)
for 27.2 mm (1.07 in), 0.2mm layer, 3 walls, 5% infill
Designer
1 h
1 plate
for 31.6 mm (1.24 in), 0.2mm layer, 3 walls, 5% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
188
606
90
23
1.1 k
765
Released
Bill of Materials
List other parts
- M3 8mm screws x 2:
- M3 thread inserts x 2: 4-6mm length
Description

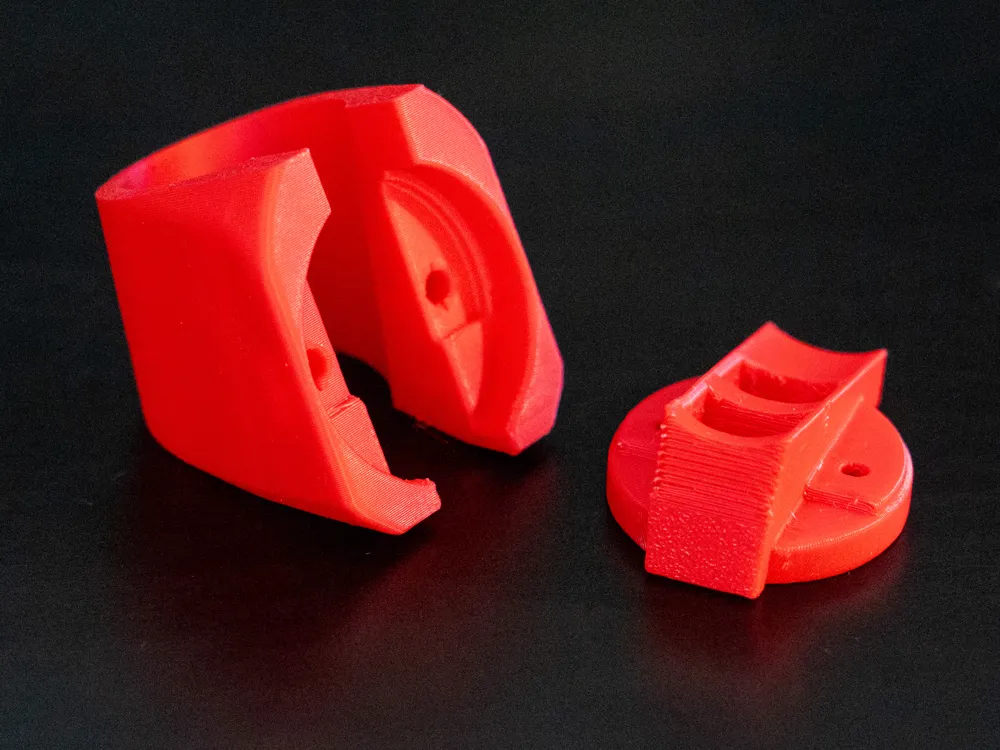

This mount is a robust design specifically for the Garmin Varia radar (RVR315, RTL515/RTL516), and is made to fit 27.2 mm (1.07″) or 31.6 mm (1.24″) seatposts.
I printed it in ABS because of its impressive heat resistance (PETG should also work).

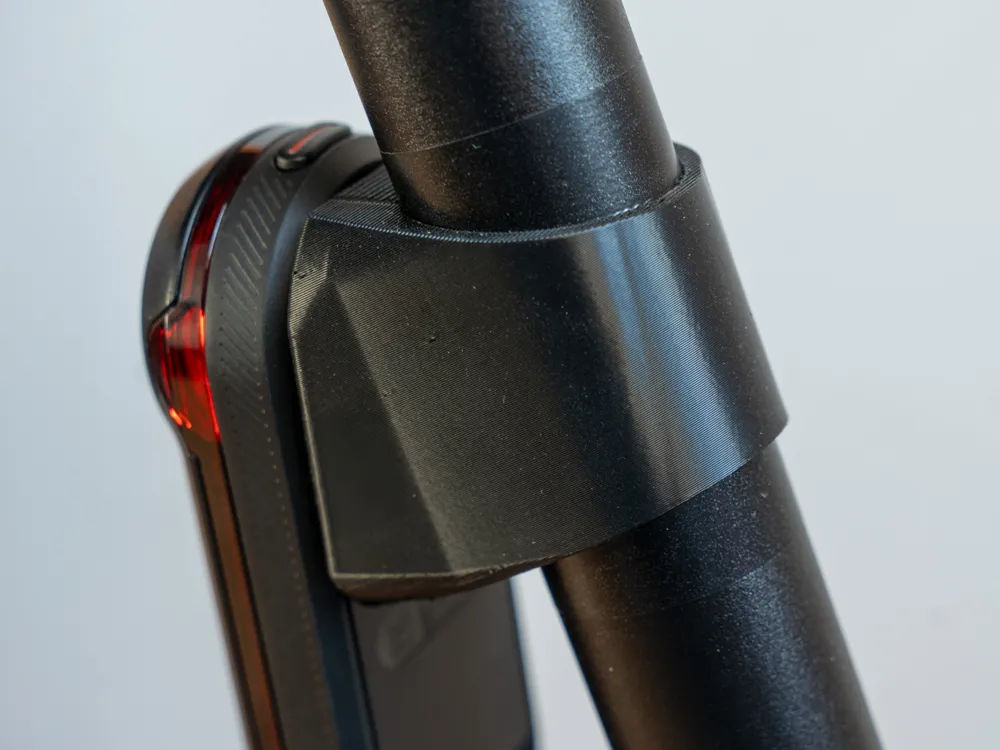

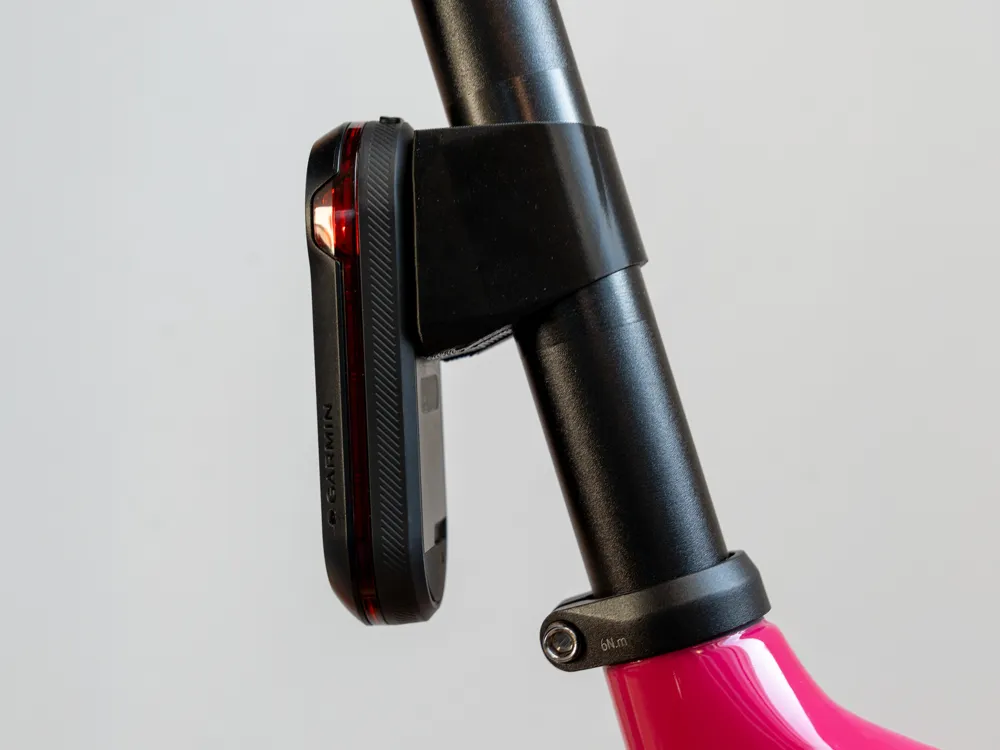

It clamps by tightening the 2 insert screws. Once the Varia radar is attached, nothing is visible on the outside.
Countersunk screws are suitable, but others will also work.
Important notes:
- Additional parts are required for printing
- Please allow to harden before mounting
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
