Thru Wall Hose Barb For PET bottle cap 8-10mm pipe
Print Profile(1)
Description
Hi,
Because is winter and I'cant ride od moto, so I modeling and do this model. I very like in the garage :)

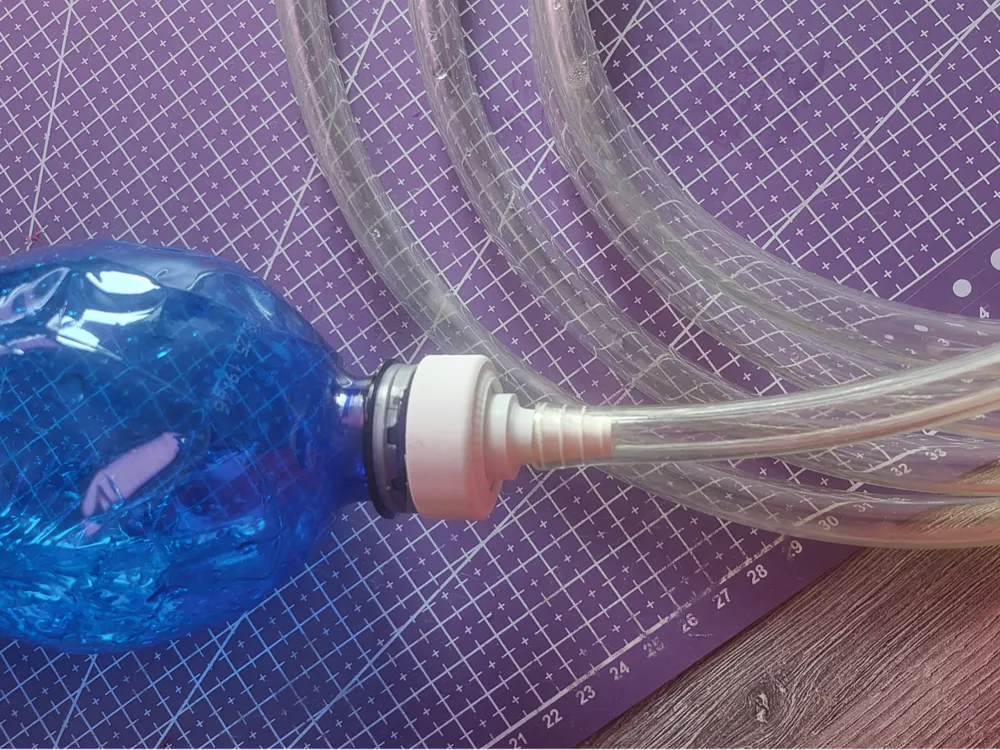

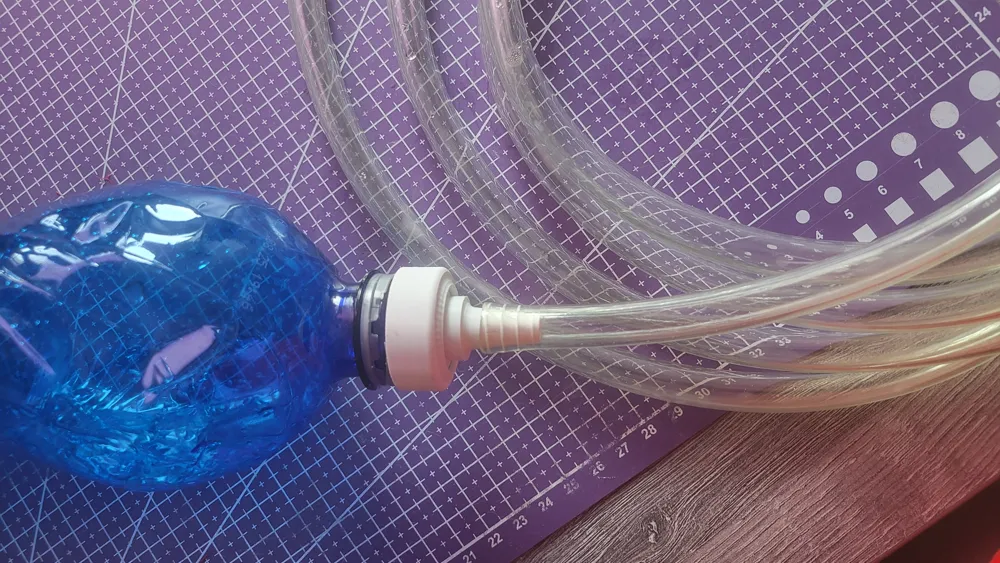

I have designed a hose adapter that fits onto a standard PET bottle cap. It allows the connection of a hose with an inner diameter of 8–10 mm.

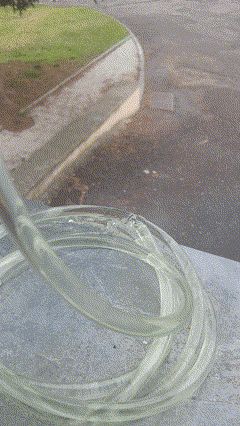

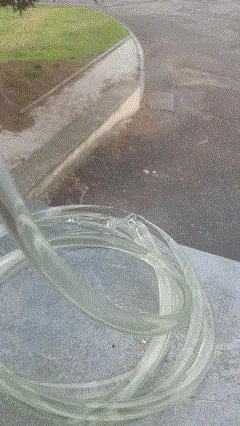

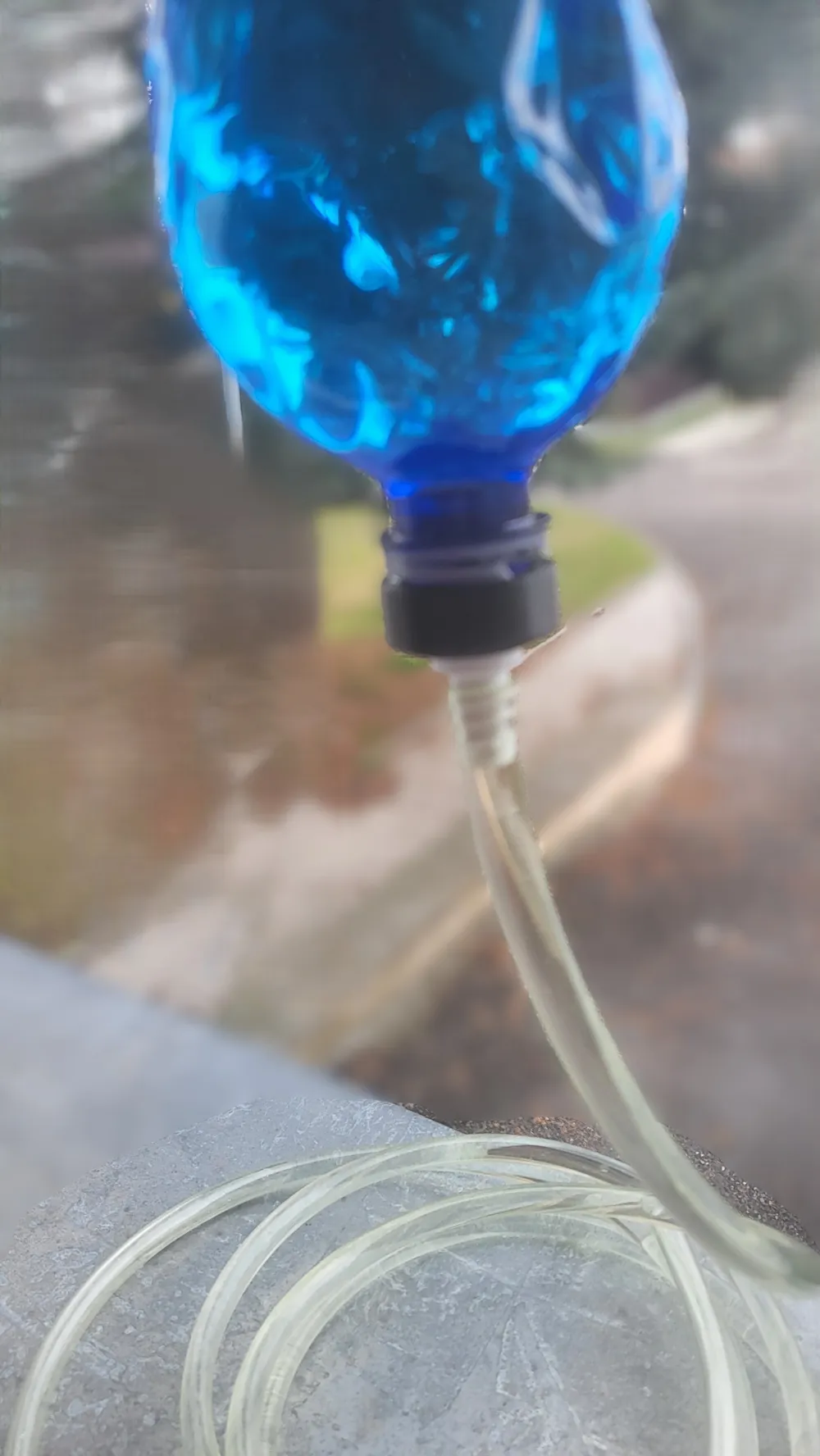

This setup can be used as a manual filling tool for applications such as adding oil to a transmission, functioning similarly to a syringe.
Alternatively, the PET bottle can be cut to create a funnel with an integrated hose, suitable for filling fluids in hard-to-reach areas.

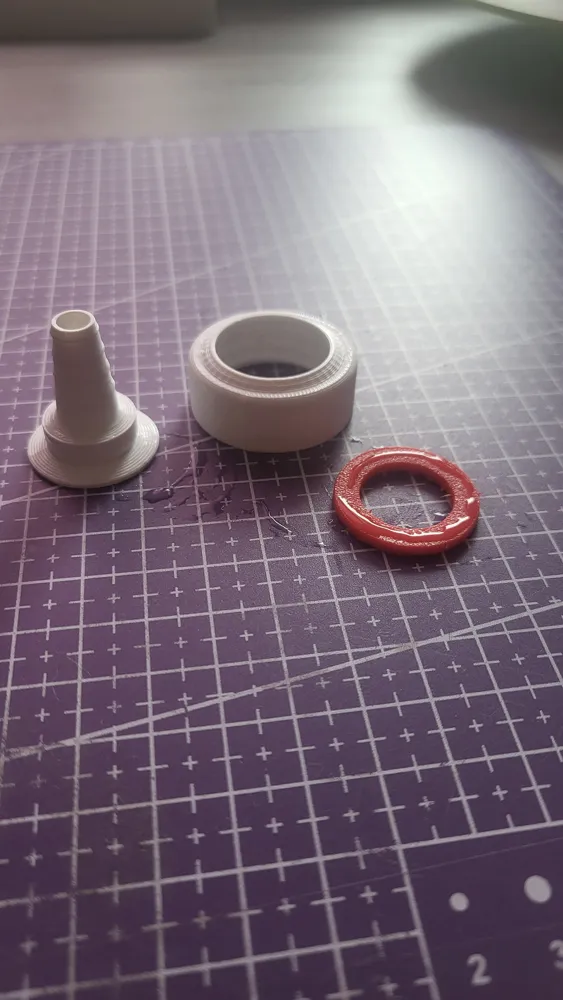

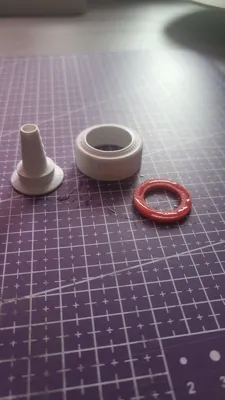

The adapter includes a sealing ring, which should be 3D printed from TPU. While not strictly necessary, it provides a better seal between the cap and the PET bottle. The red one on photo is sealing ring.
The part itself has been successfully printed using PLA and PET-G, both of which work well for this application.
Thanks for downolads and enjoy
