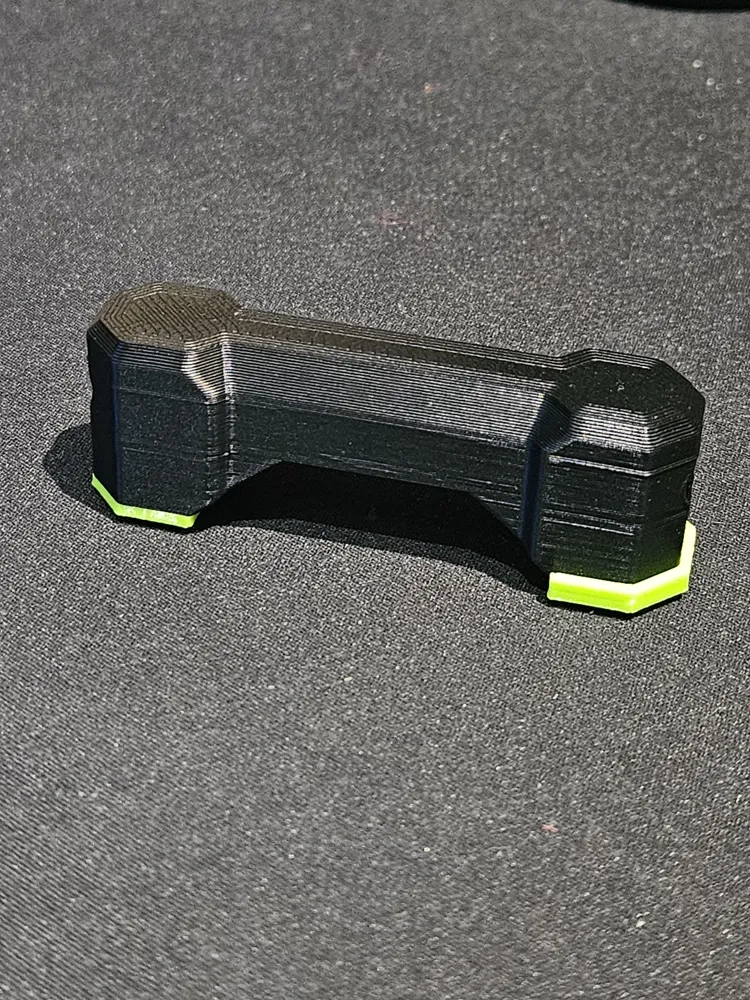

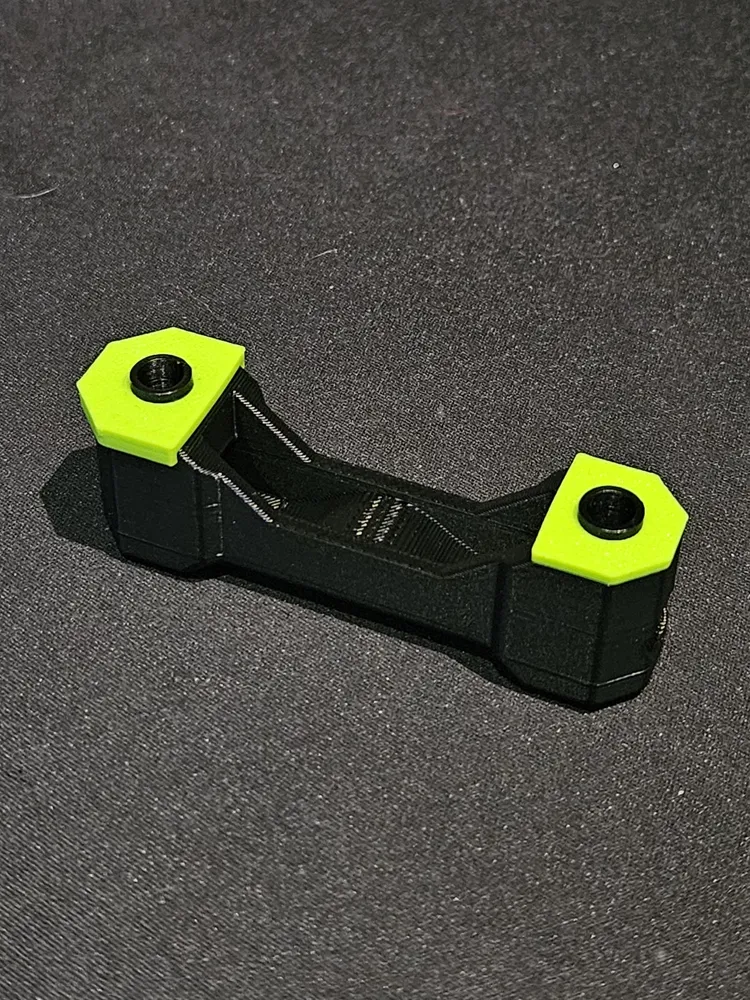

The original lug gasket was missing from the upload, so I modelled my own.

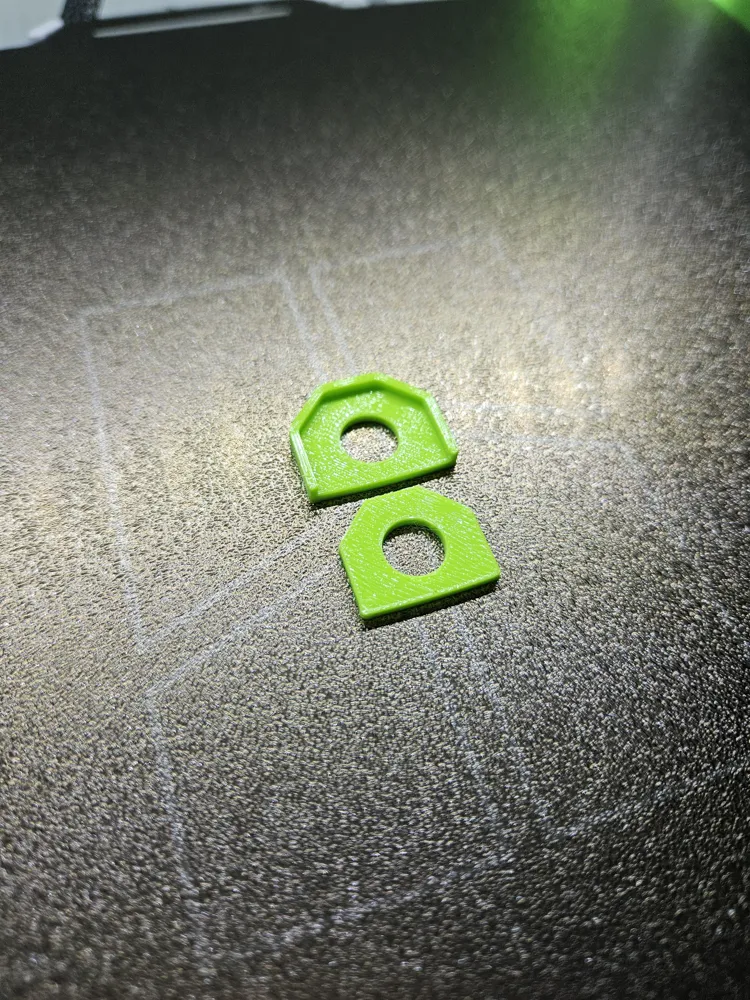

There are 2 variants available: One with a small border like in the original image and one that is flush with the lug. Note: .STEP and .F3D files are also provided.

Print in TPU!

Print Settings

Printer Brand:

Bambulab

Printer:

Supports:

No supports.

Nozzle:

0.4mm

Resolution:

0.2mm

Infill:

15% Grid

Filament:
Extrudr FLEX Medium neon green

Comment & Rating (2)

@mrmakas

what printer did you use for the actual drum?

The designer has replied

@reneerler

I used my modified Anycubic Chiron with a 0.8 mm nozzle. The largest part, which is the rim, requires a print area of at least 393 × 393 mm. However, you could definitely cut the model into four parts, add some dowel pins in Bambu Studio, and split it across two plates (see attached image). Just make sure to use fairly large dowels for the rim, since it’s a load-bearing part!
