Stand for Samsung Duo Charge Pad EP-5400 - S25

Stand to fit the Samsung Duo Charge Pad:
https://www.samsung.com/uk/mobile-accessories/super-fast-wireless-charger-duo-dark-gray-ep-p5400tbeggb/

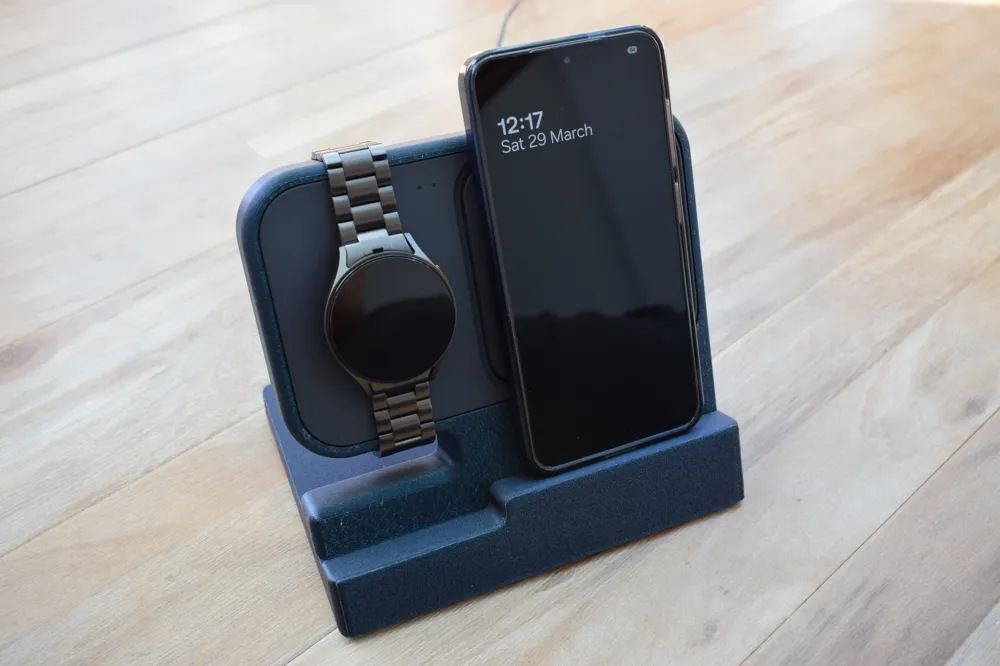

I remixed this design for use with my Galaxy S25 (non plus / ultra) and Watch 7 with metal clasp strap.
- I removed the guides that sat beside the phone for alignment - I felt these were unnecessary and limited variants of phones compatible with the stand.

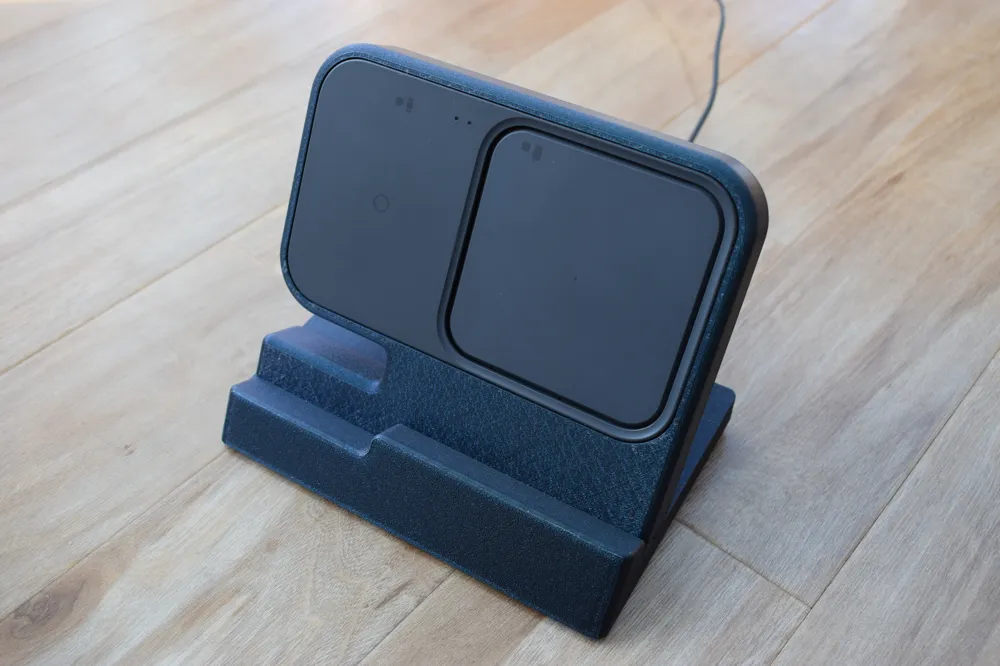

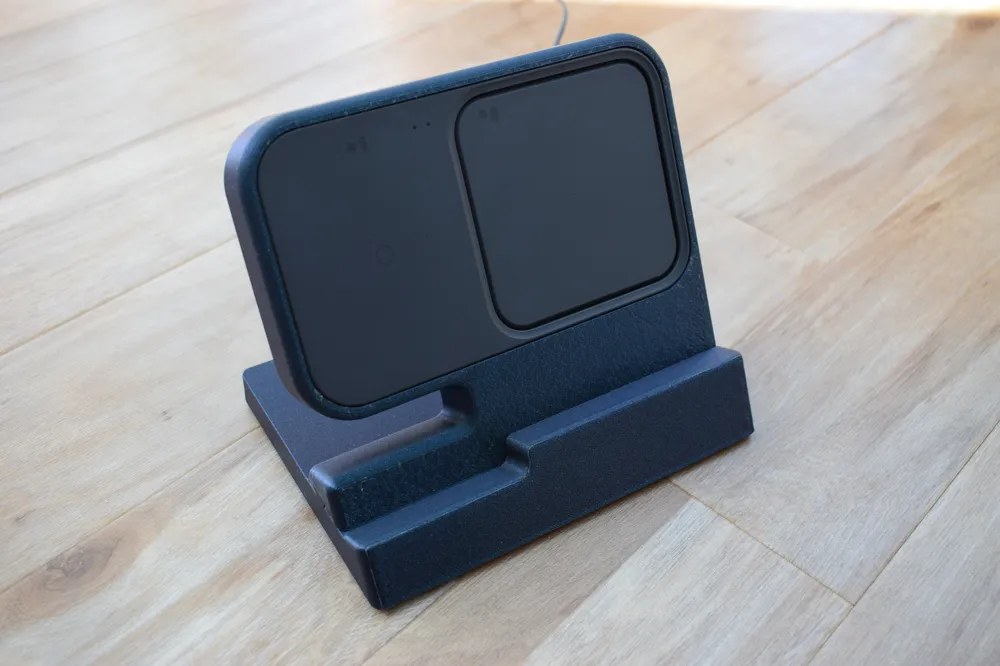

- I added a 10mm step to the base to lift the smaller S25 into the correct wireless charging place.

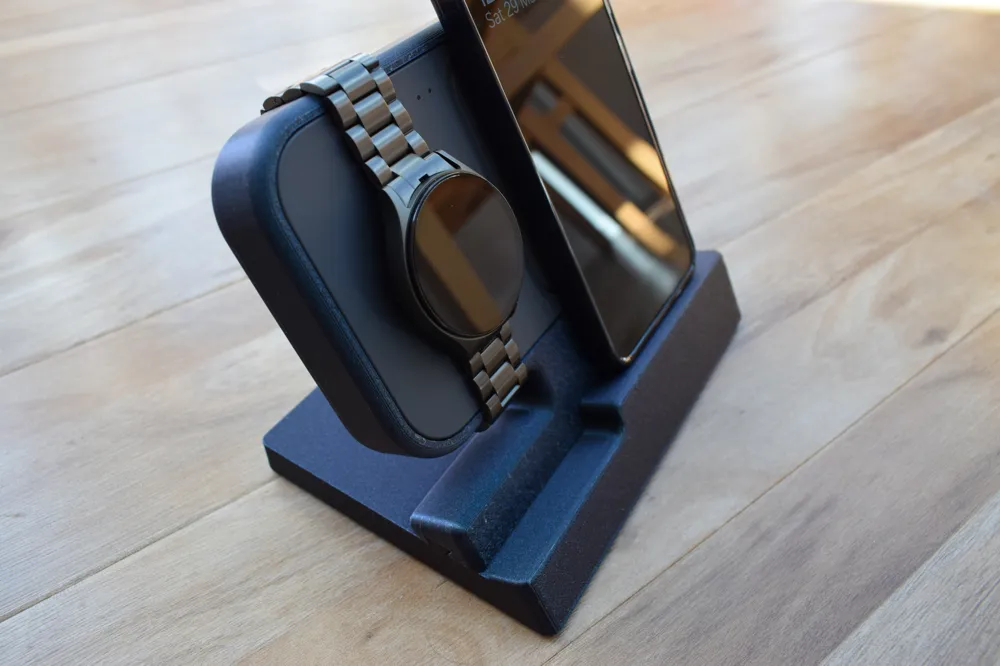

- I also added a large cut out in the side to accommodate watches which have a metal clasp, like mine. This was the most important feature for me, as the charge pad doesn't work with straps like that if flat on a table. Please note, that if you have extra small wrists, your strap may not fit around the charger. I made it as small as feasibly possible, but please measure your strap and the stand before printing to avoid disappointment.

Printing tips:
I've orientated the model in the 3MF how I printed mine. However I chose to use a “Hilbert Curve” top surface pattern on the “TOP” model. As this may not be to everyone's taste, I have left this as “Monotronic Line" (default) for the uploaded print file.
I couldn't get the “TOP” model to print face down without bed lift or warp on the corners. Which is why it's on it's back. Feel free to experiment.
The material I used was Galaxy PLA Black.

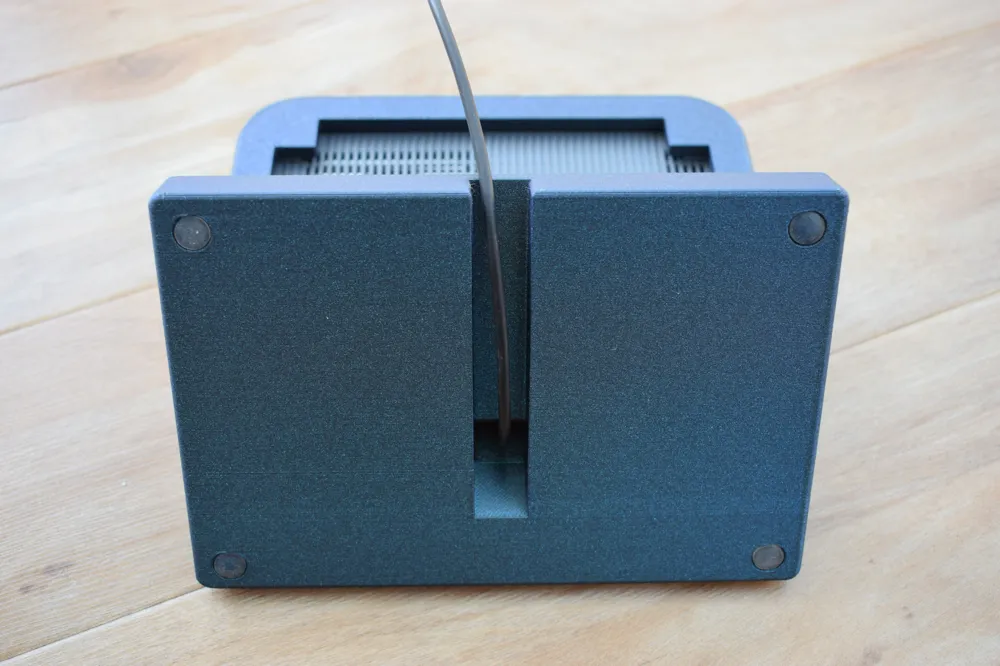

I added four rubber feet as per original model's recommendation.

Thanks to Daniel Schenk for the original model.
I redrew this completely from scratch using Daniel's model as reference. I have included the STEP files for anyone who wants to more easily modify this to suit their needs.

UPDATE 13/09/2025:
New profile added for S25 Ultra. With 10mm extension to upper stand to better center wireless charging coil. Awaiting feedback.
Please select profile to suit your device.
