P1S or P2S Filament (poop) exhaust chute
Print Profile(2)
Bill of Materials
- Double Sided Tape x 1: Not 100% required but helps between pieces
Description
Update:
Open topped version now available, here. An adapter to use with the P2S here. Matching Air vent here

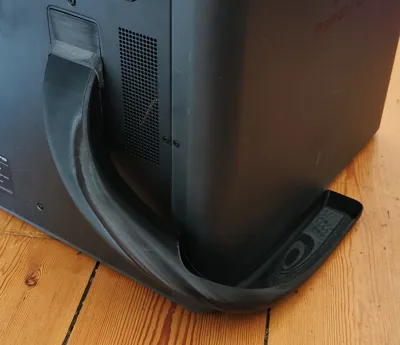

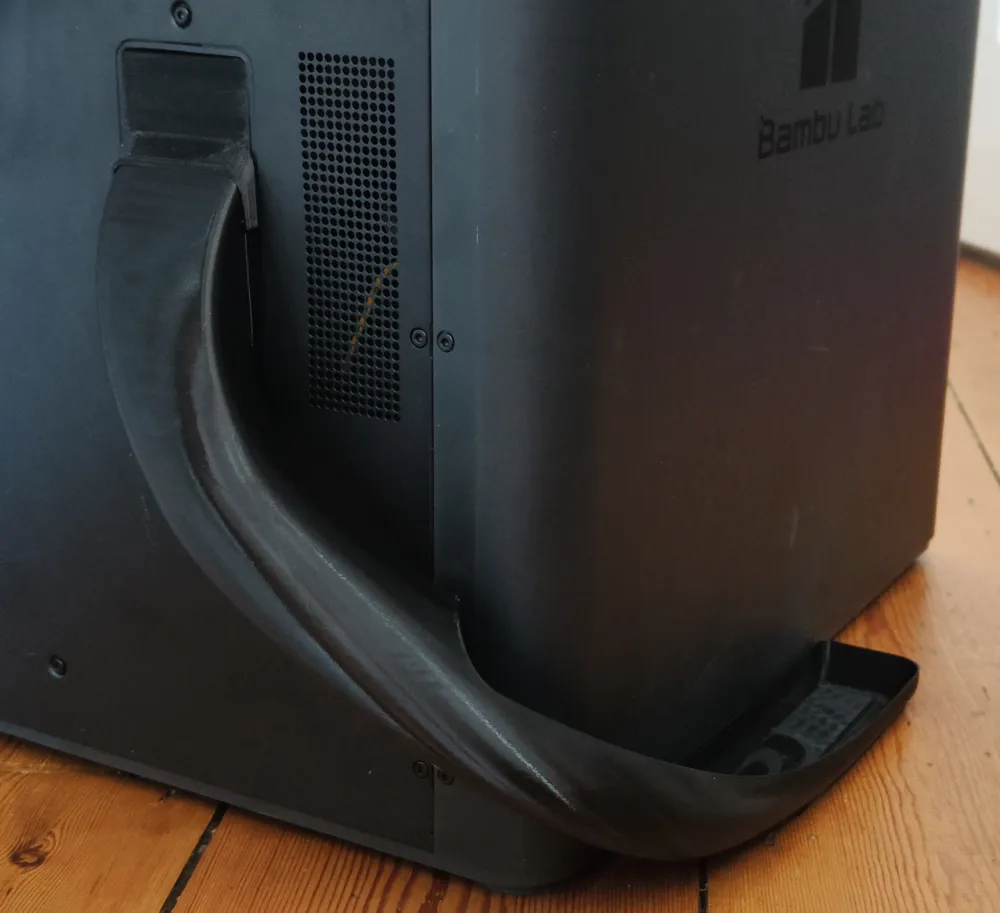

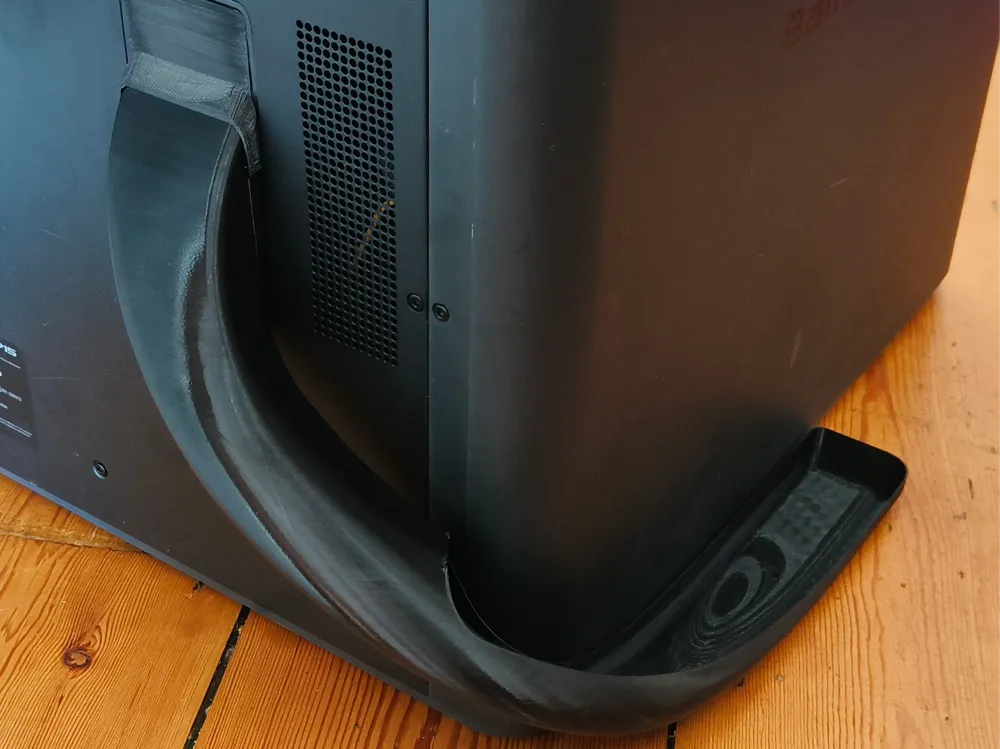

A filament exhaust chute for use with a P1S or P1P, X1 etc.

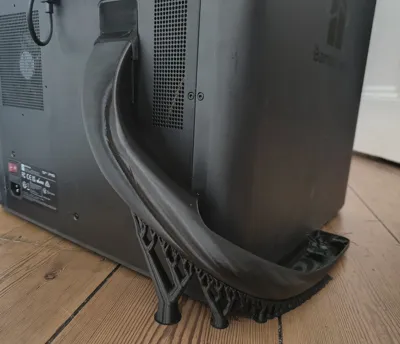

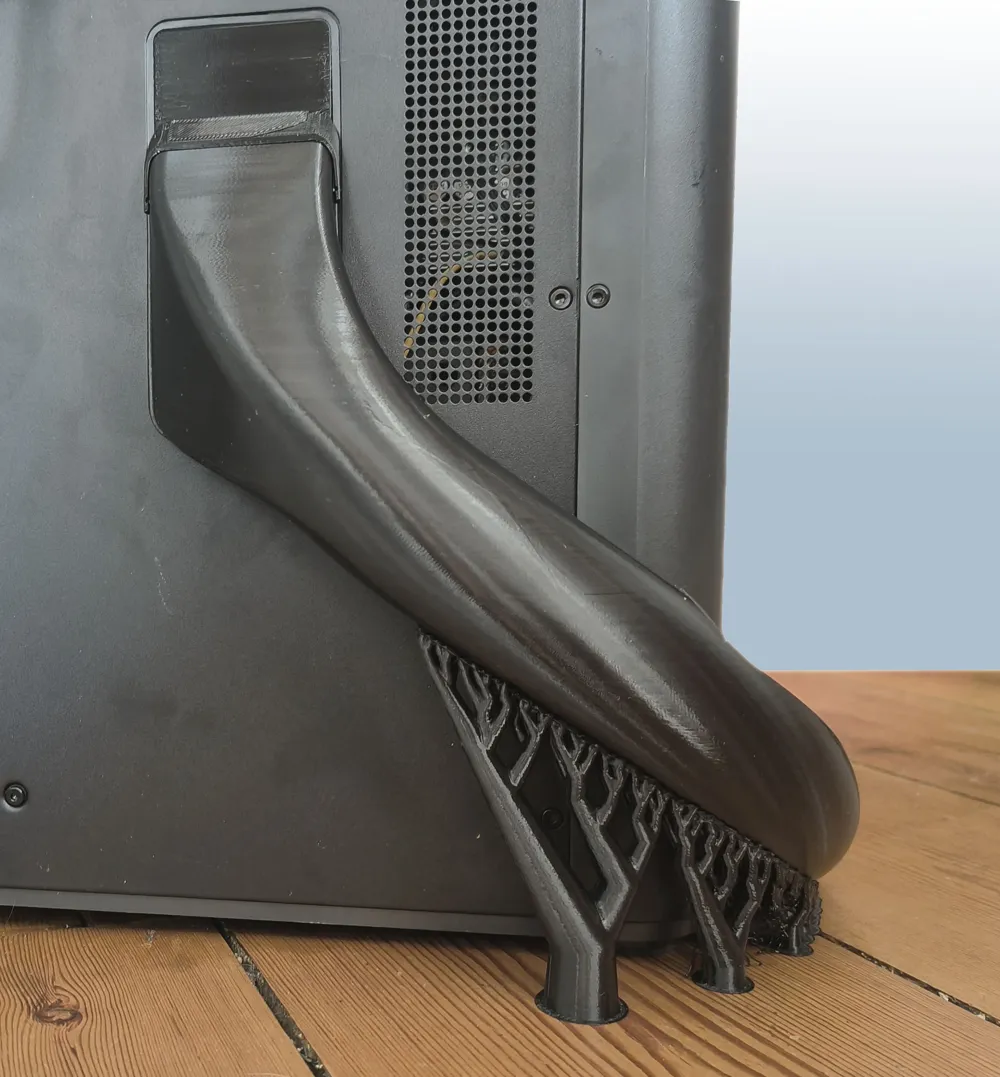

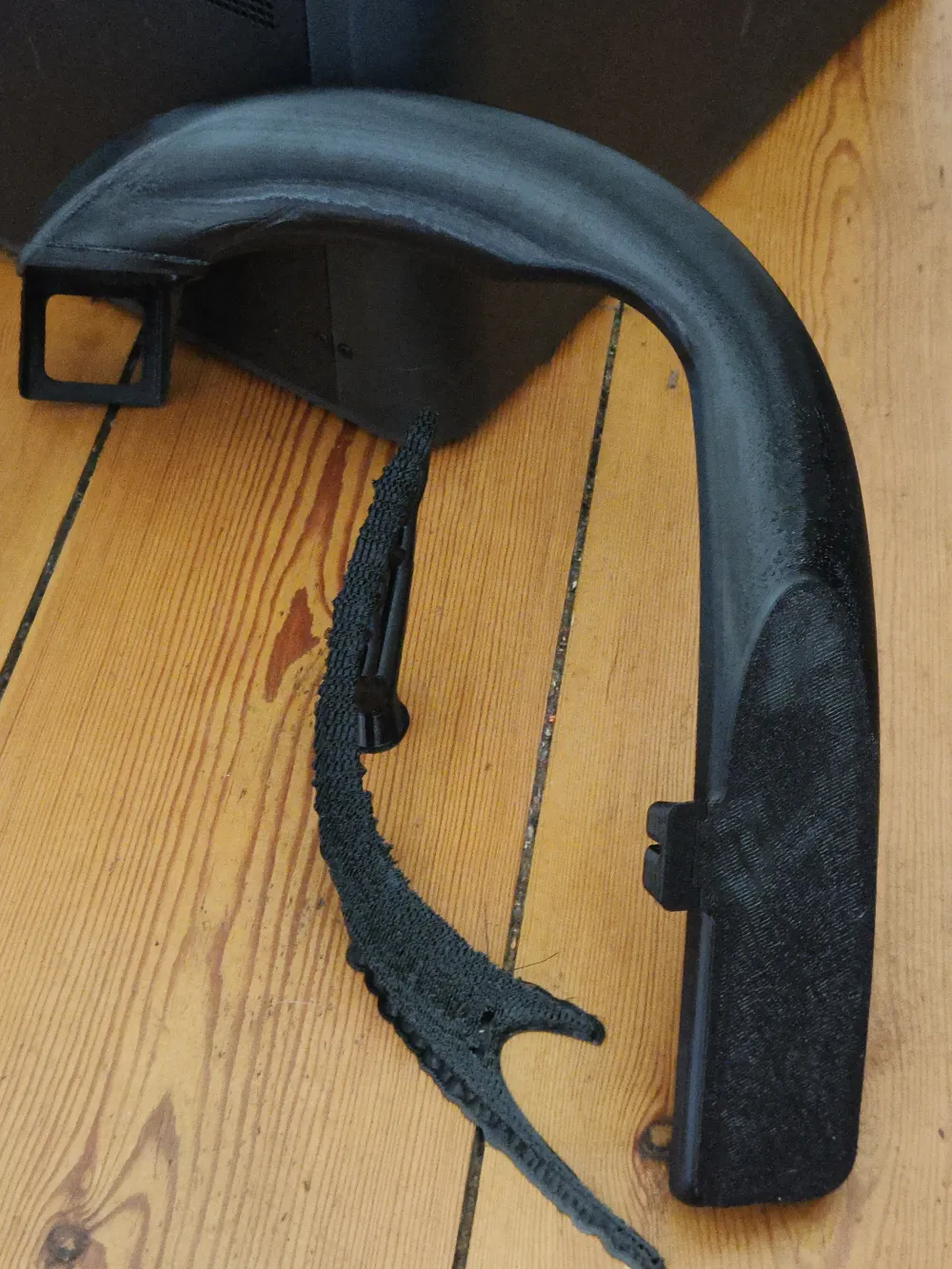

Sub 50g, optional supports, place additional as you like (keep them on for use if you prefer). If you have the filament, I recommend the fully supported version for best surface quality.
No fasteners or magnets required.
Assembly:
Slide printed parts together,
Insert inward and up,

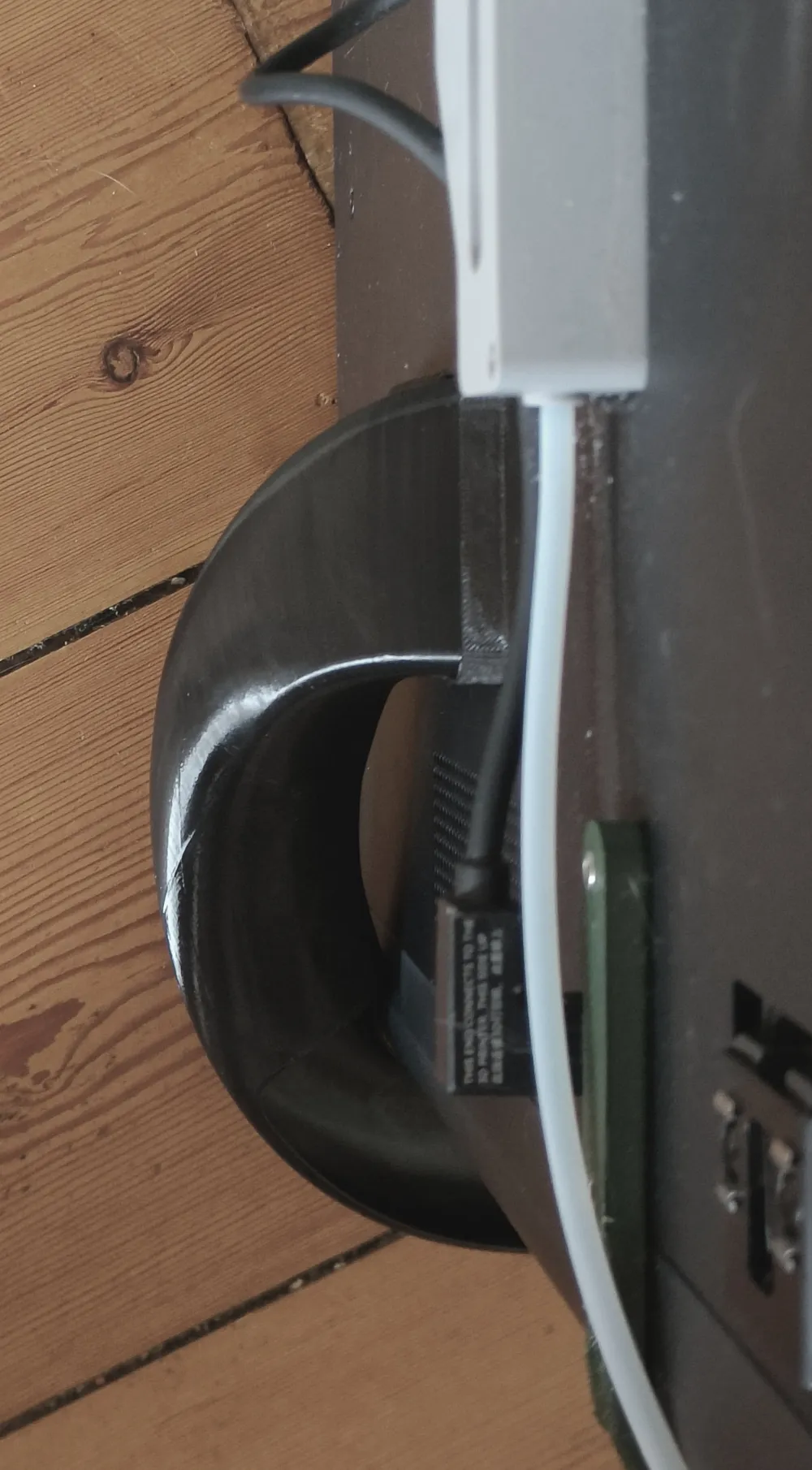

Lean the printer to one side and place the lower portion of the slide in place with the foot retention underneath the printer.
Return the printer flat to the floor. (check the edge of the slide is not squashed)
Once secure it's possible to pick the printer up to move it as required with the chute in place.

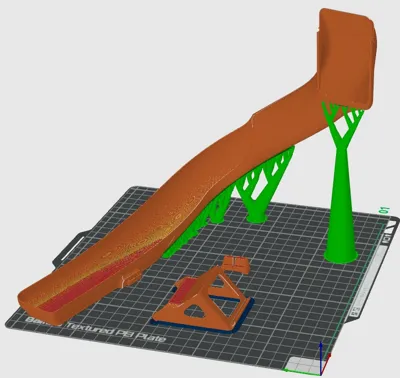

Note: Print profile shown shows reccommended supports, it's possible to print without painted on additions.
